Front-End Discriminating Sensor: Installation
WARNING: This page is about a different car, the 2001 Pontiac Sunfire and 2001 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

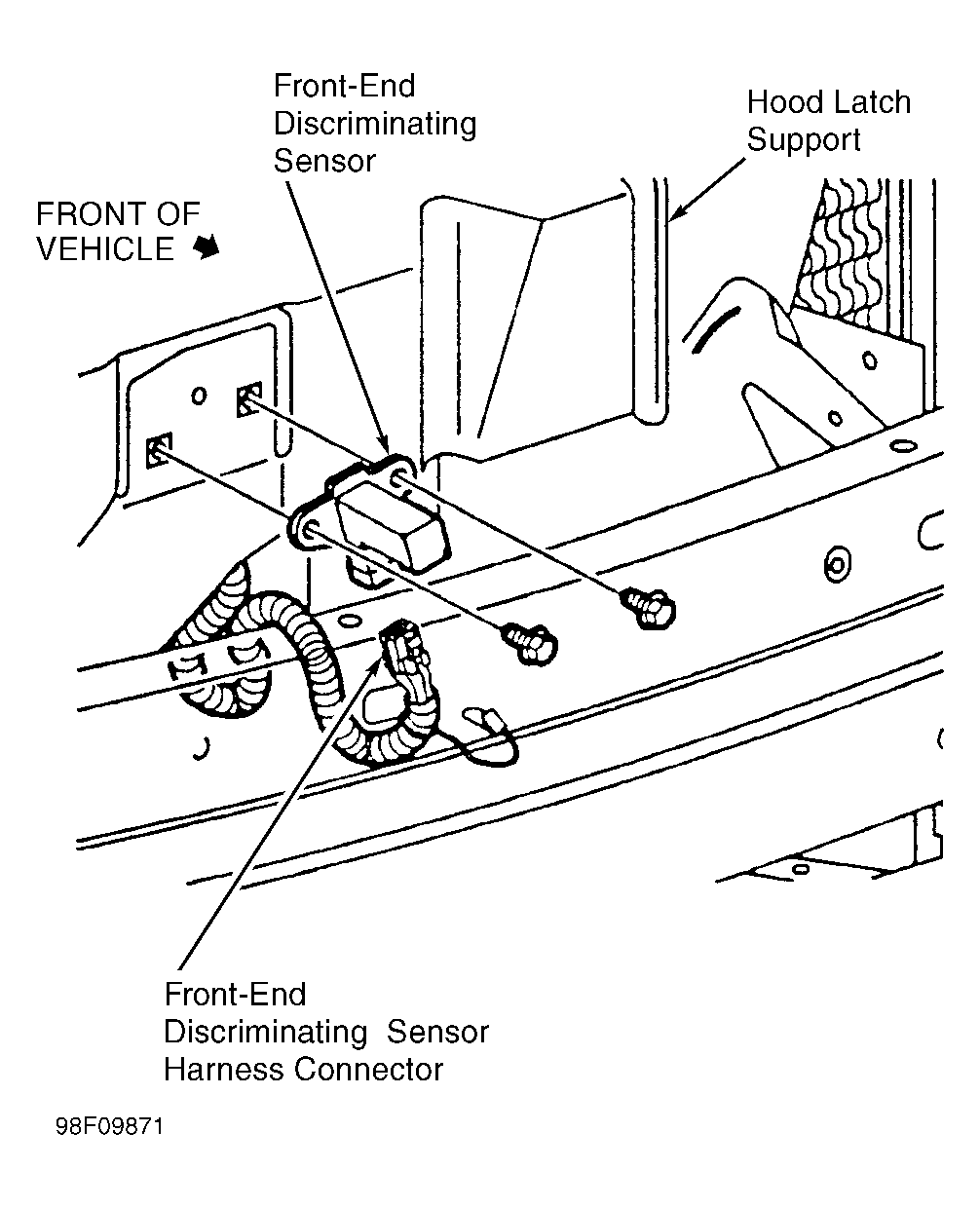

- Align sensor to vehicle, ensuring arrow on sensor body is pointing toward front of vehicle. Install bolts and tighten to specification. See TORQUE SPECIFICATIONS . Reconnect sensor connector and install CPA clip.
- Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check system for proper operation. See SYSTEM OPERATION CHECK .
