Manual Transmission Component Views

WARNING: This page is about a different variant/trim than selected.

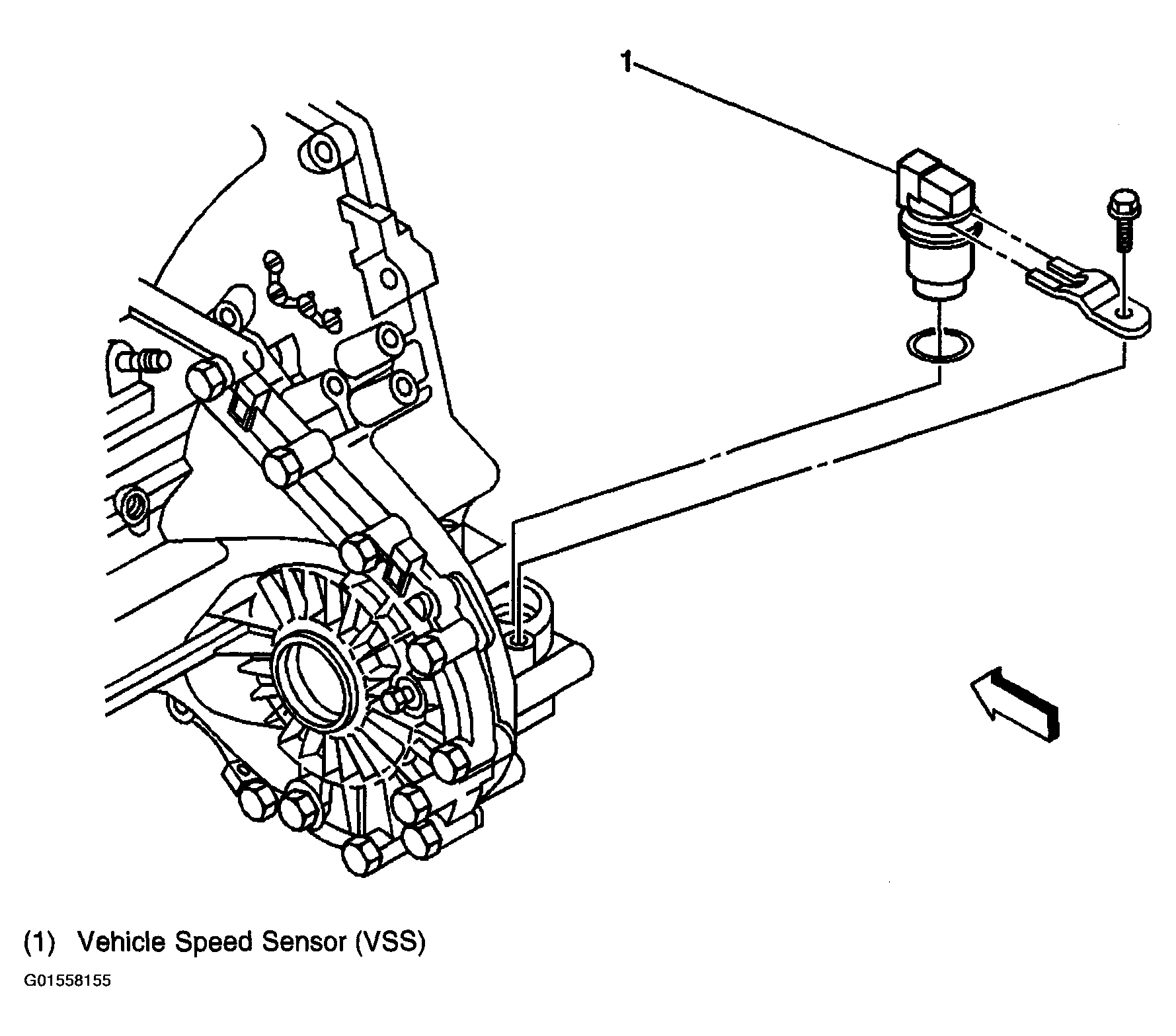

Fig 1: Vehicle Speed Sensor (VSS)
G01558155Courtesy of GENERAL MOTORS CORP.

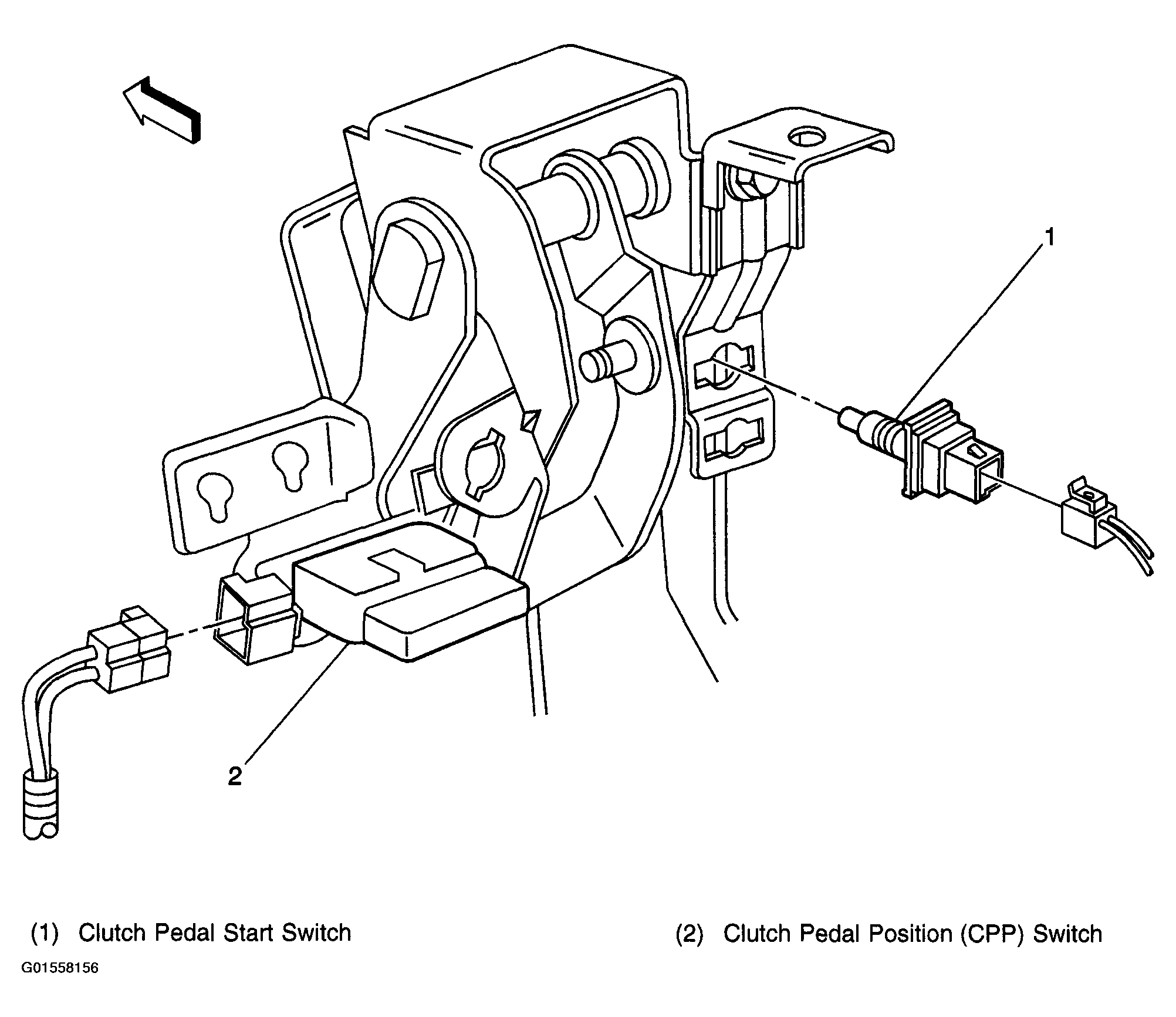

Fig 2: Clutch Pedal Position Switch
G01558156Courtesy of GENERAL MOTORS CORP.
