Installation Procedure

  1. Position the seat belt buckle to the seat.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat belt buckle bolt (1).

    Tighten

    Tighten the bolt to 34 N.m (25 lb ft).

  3. Connect the seat belt buckle electrical connector.
  4. Install the front bucket seat. Refer to SEAT REPLACEMENT in Seats.
  5. Enable the SIR system, if equipped with SIAB. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM or DISABLING & ACTIVATING AIR BAG SYSTEM in Restraints.

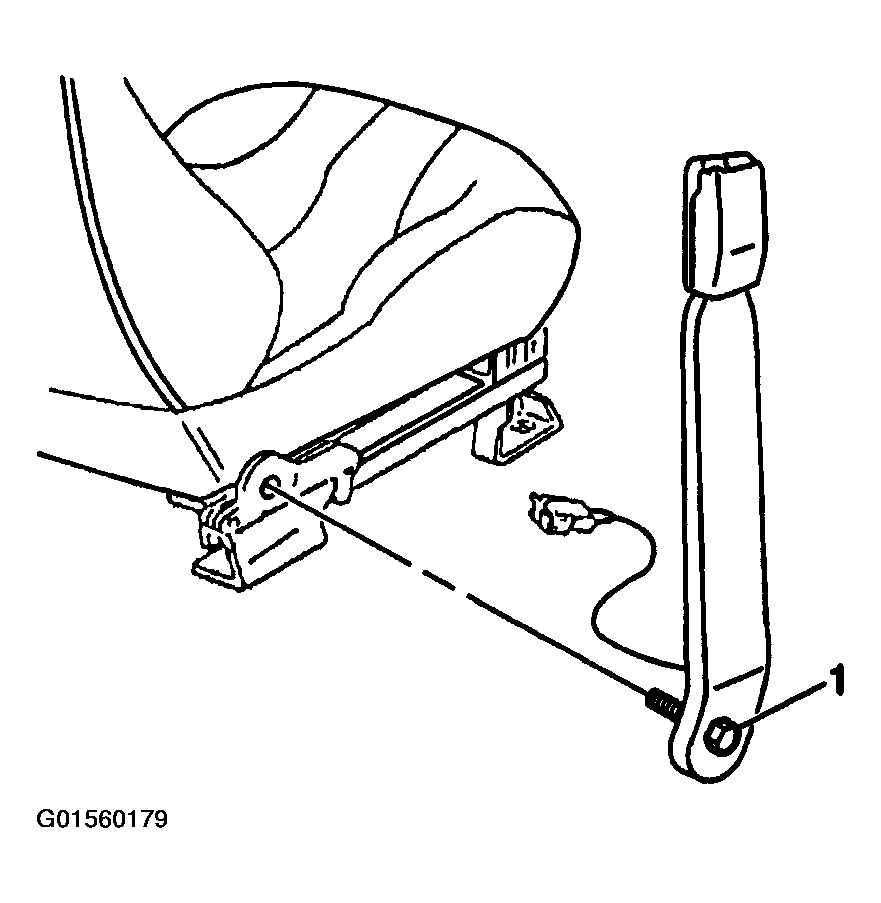

    Fig 1: Installing Seat Belt Buckle To Seat & Bolt
    G01560179Courtesy of GENERAL MOTORS CORP.
