Removal Procedure

  1. Remove the power steering pressure hose (3) from the power steering pressure pipe (4). Refer to Power Steering Pressure Pipe/Hose Replacement (2.2L (L61) and 2.4L (LD9)) .

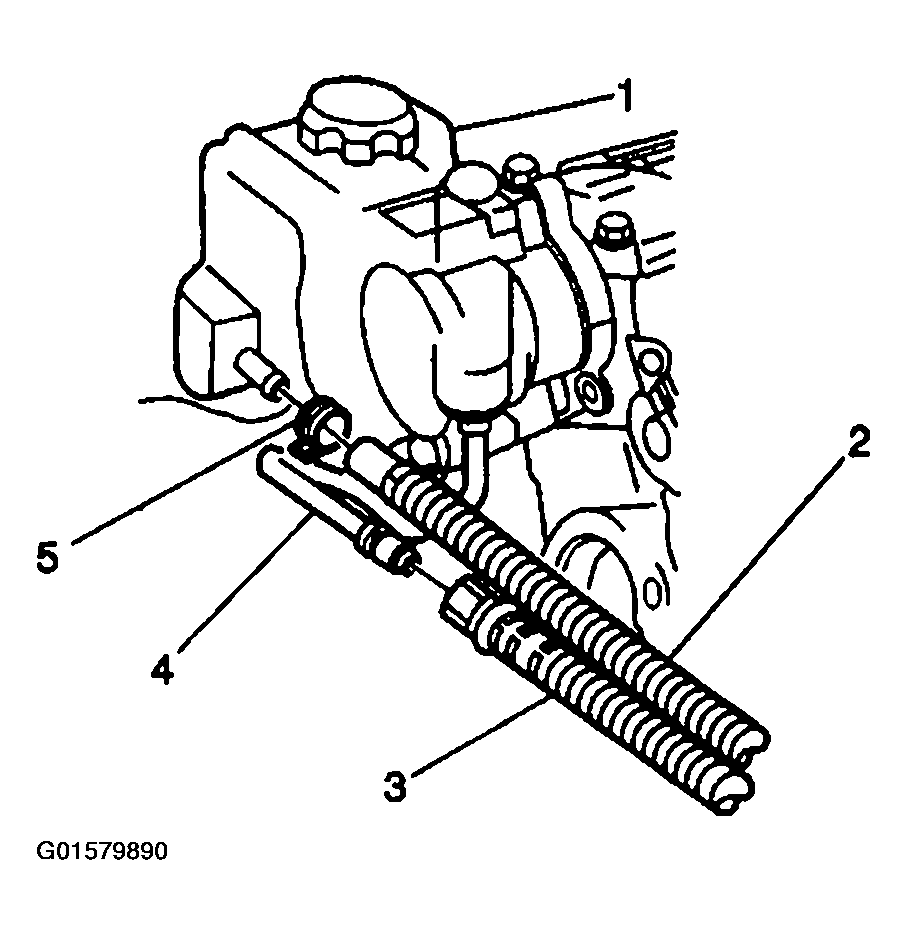

    2. Fig 1: Identifying Power Steering Pressure Hose & Pipe
    G01579890Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt (2) from the power steering pressure pipe bracket (3).

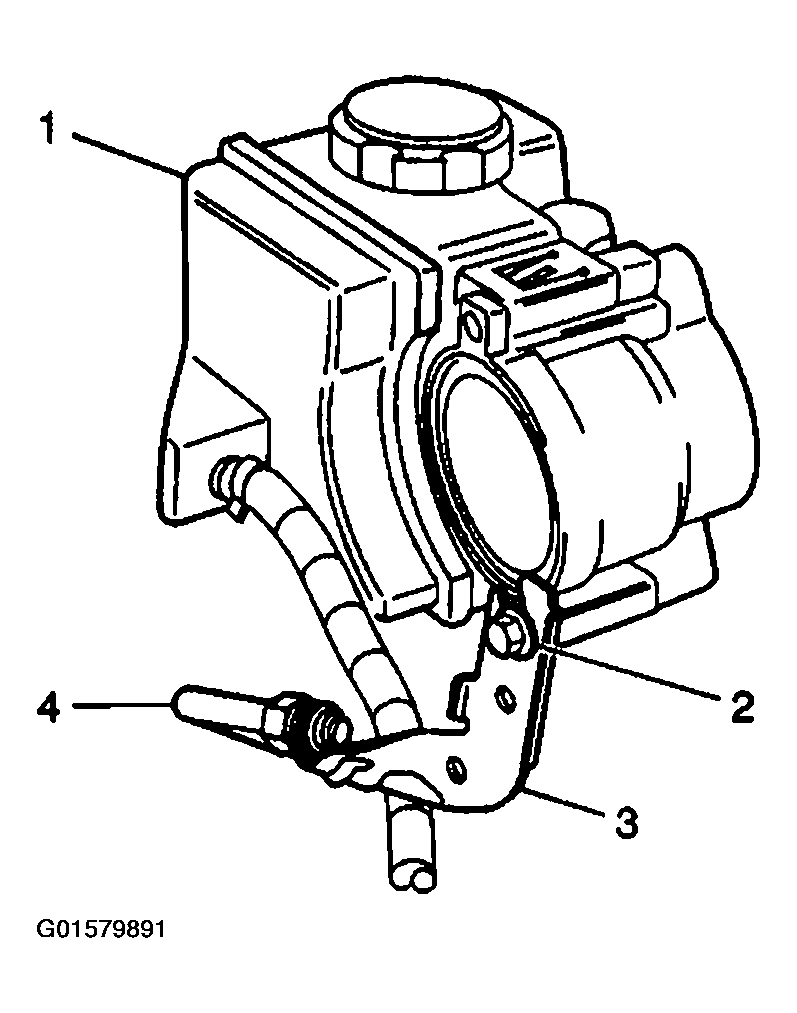

    Fig 2: Identifying Power Steering Pressure Pipe Bracket
    G01579891Courtesy of GENERAL MOTORS CORP.
  3. Remove the power steering pressure pipe (4) from the power steering pump (1).
  4. Remove the power steering pressure pipe (4) from the vehicle.
