Steering Column Disassembled View (Standard Column)
Steering Column Disassembled View (Standard Column)

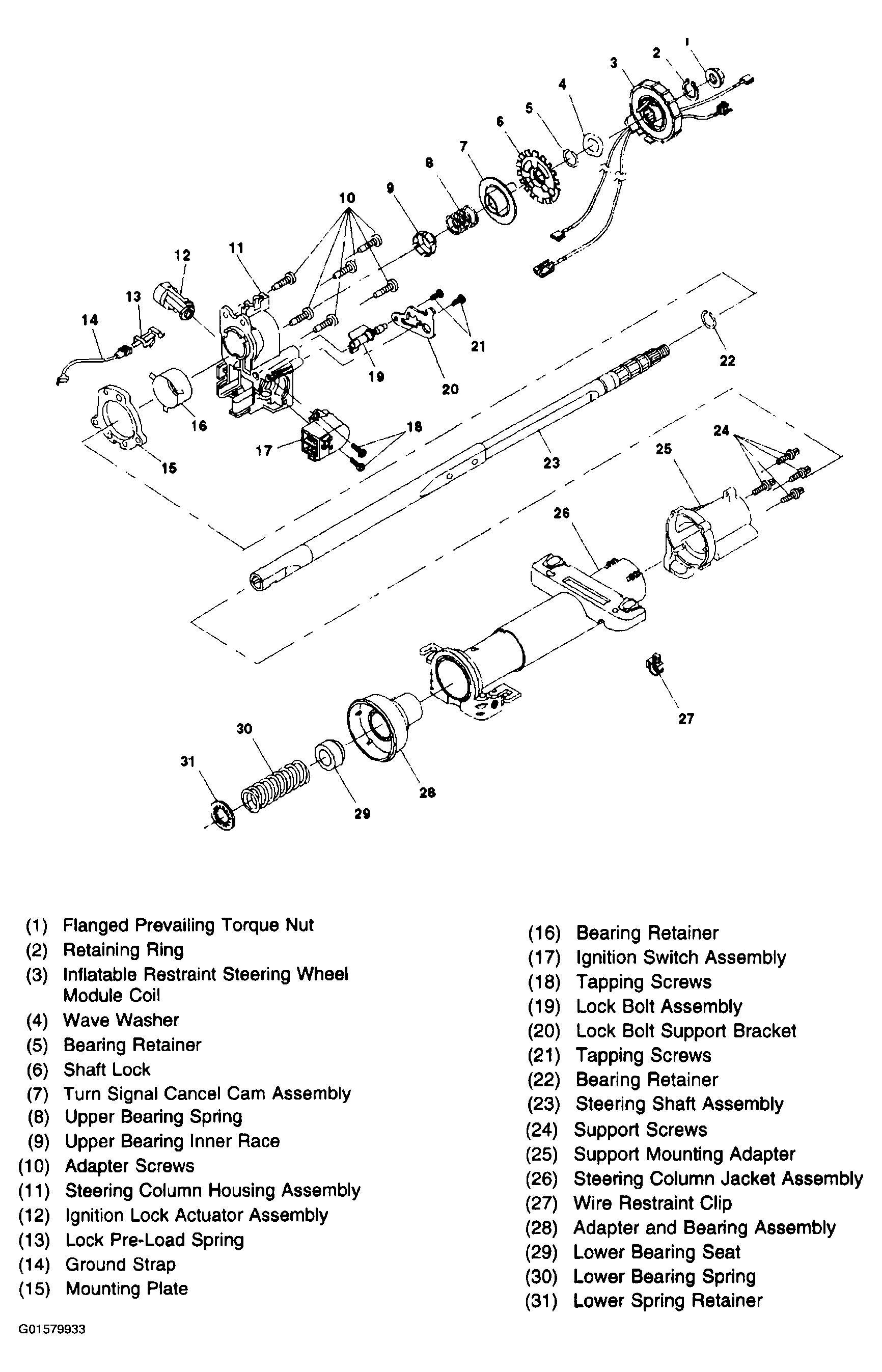

Fig 1: Exploded View Of Standard Steering Column
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
