Installation Procedure

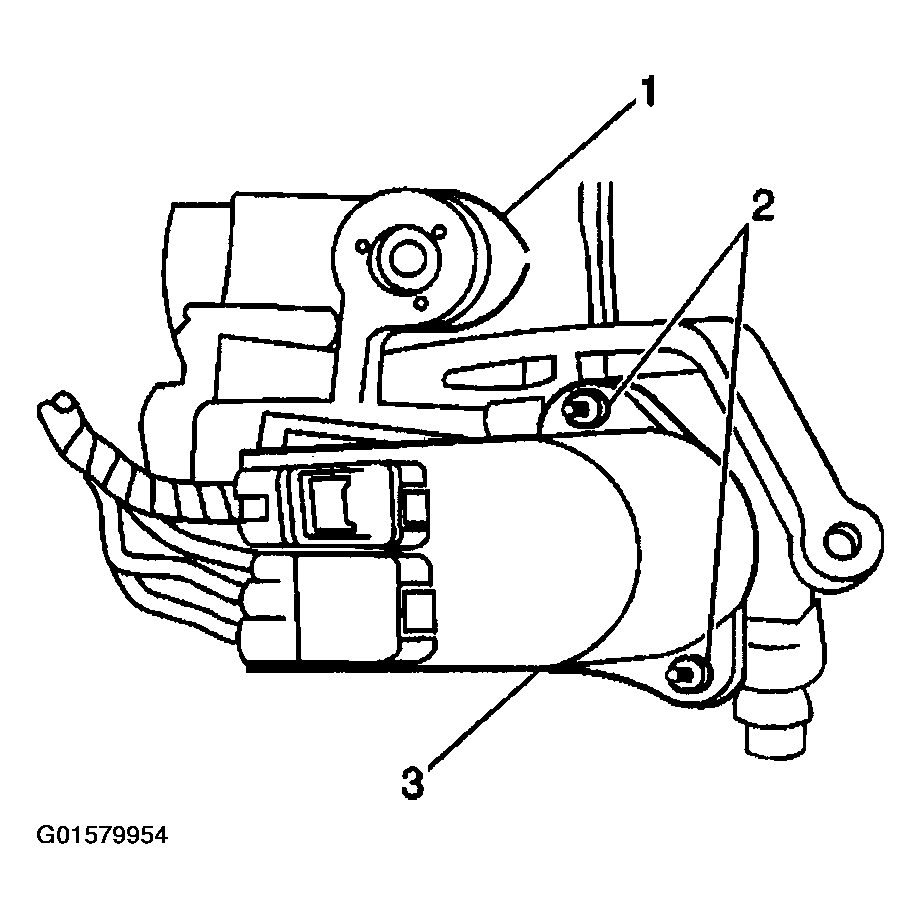

Fig 1: Installing Ignition Switch To Steering Column

Courtesy of GENERAL MOTORS CORP.

Install the ignition switch (3) to the steering column (1).
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the retaining screws (2) to the ignition switch (3).
Tighten

Tighten the screws to 4 N.m (36 lb in).
Install the ignition lock cylinder. Refer to IGNITION LOCK CYLINDER REPLACEMENT (WITHOUT KEY) or IGNITION LOCK CYLINDER REPLACEMENT (WITH KEY) .
Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Connect the negative battery cable.
