Lower Control Arm Bushings Replacement: Notes

Tools Required

• J 21474-4  1/2 inch Nut
• J 21474-18  3/8 inch Nut
• J 21474-19  3/8 inch Nut
• J 23444-A  High Pressure Lubricant
• J 41211  Lower Front Control Arm Vertical Bushing Set
• J 41397  Lower Control Arm Bushings Remover/Installer

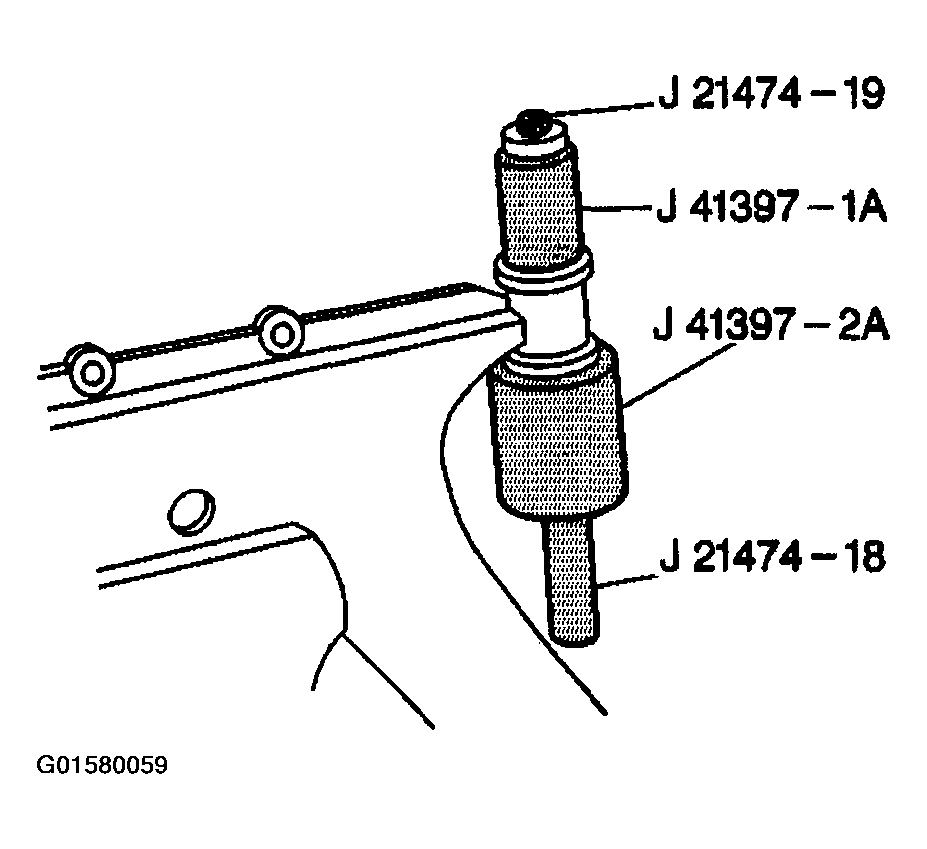

Fig 1: Identifying Proper Assemble Of Front Bushing Removal Tools

Courtesy of GENERAL MOTORS CORP.
