Scan Tool Data List

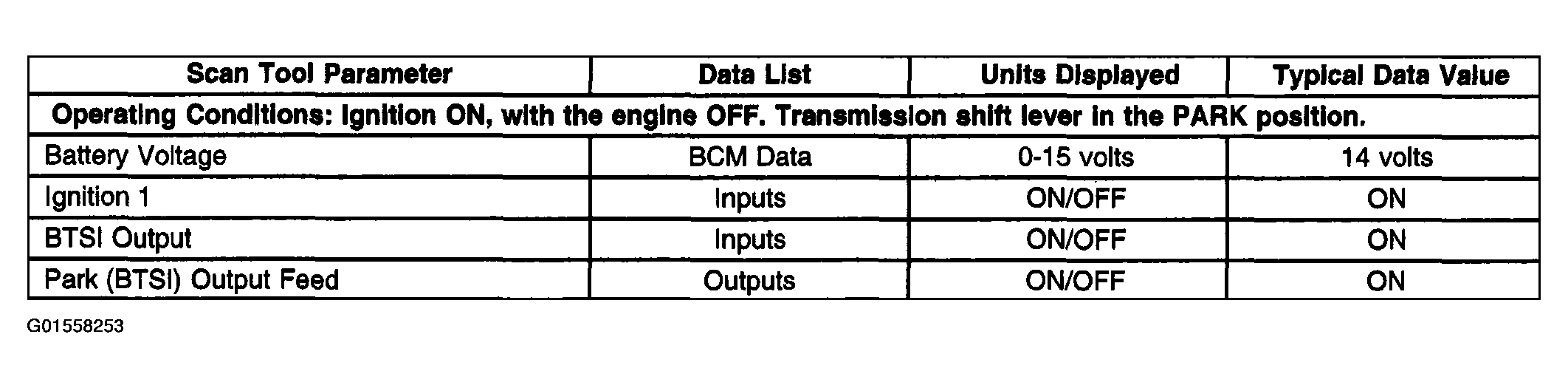

Fig 1: Scan Tool Data List (BCM)
G01558253Courtesy of GENERAL MOTORS CORP.

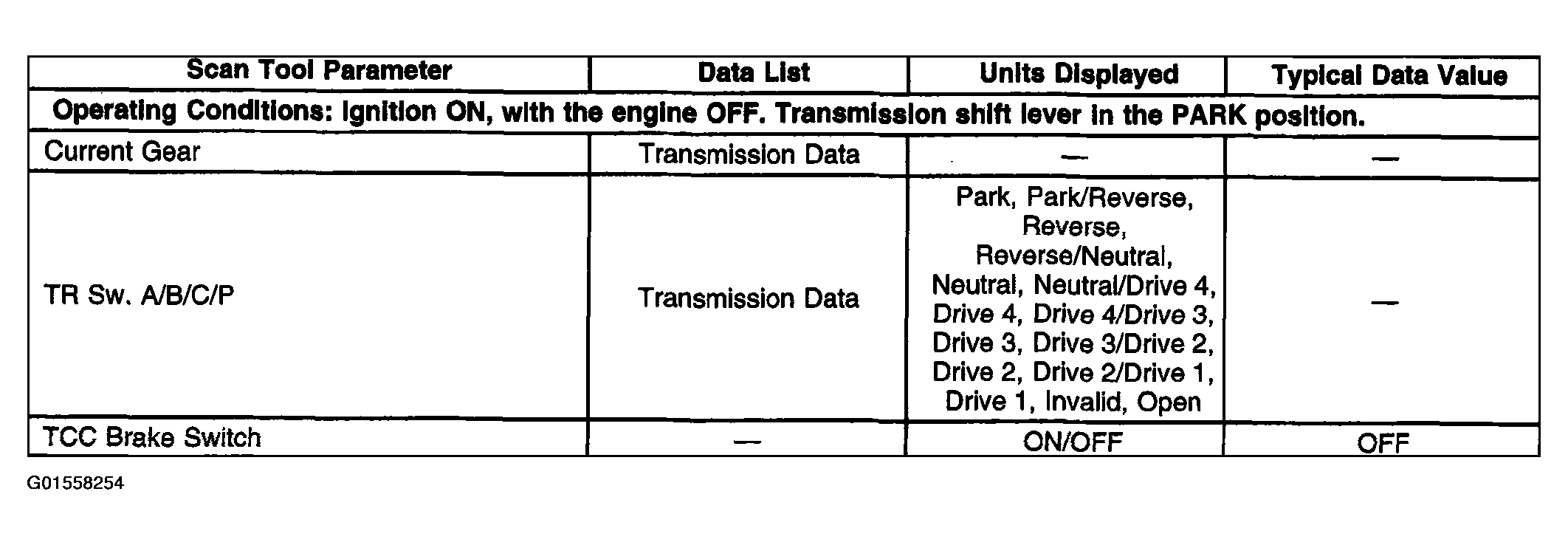

Fig 2: Scan Tool Data List (PCM)
G01558254Courtesy of GENERAL MOTORS CORP.
