Body Control System Schematics (Power, Ground, Serial Data)

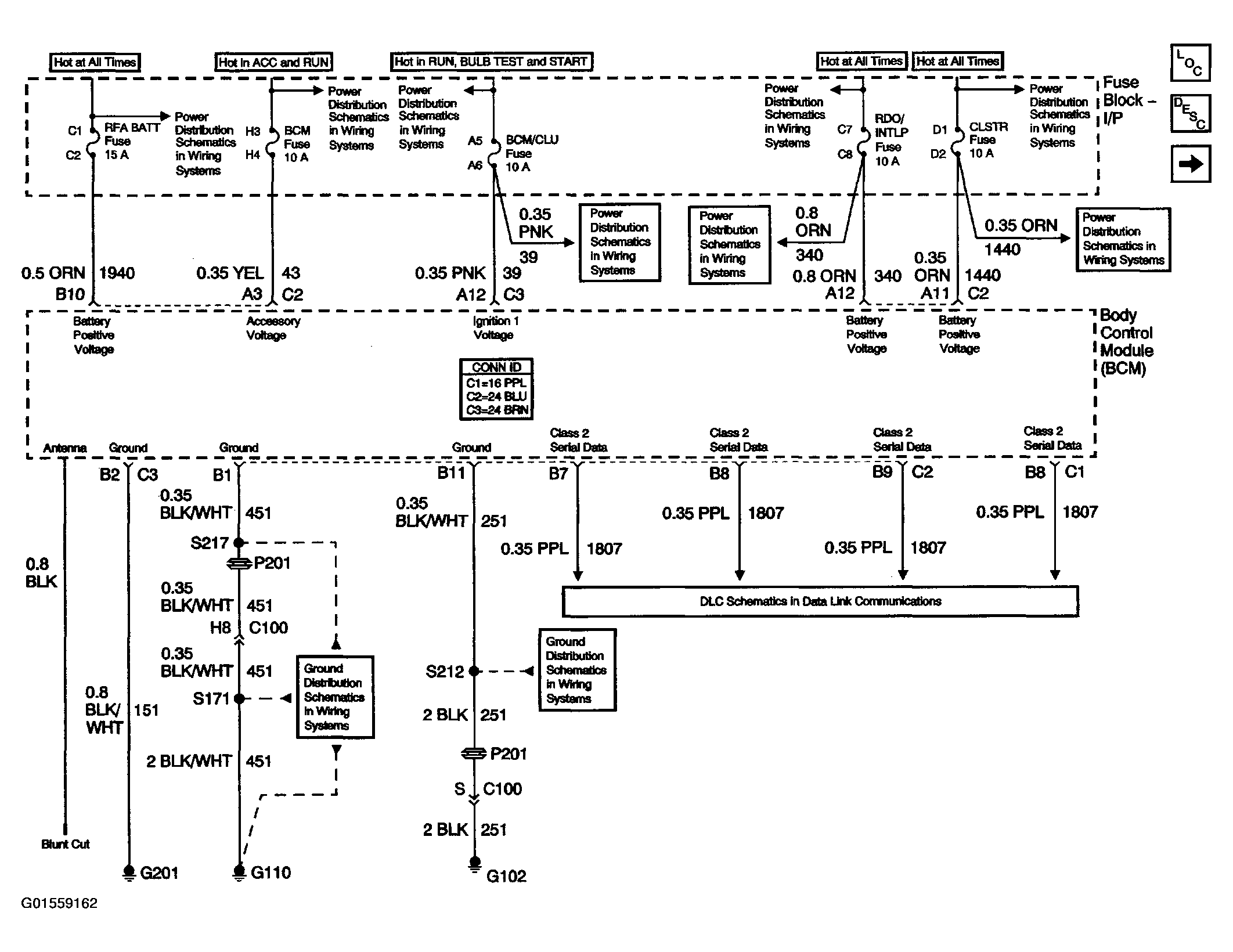

Fig 1: Body Control System Schematics (Power, Ground, Serial Data)
G01559162Courtesy of GENERAL MOTORS CORP.

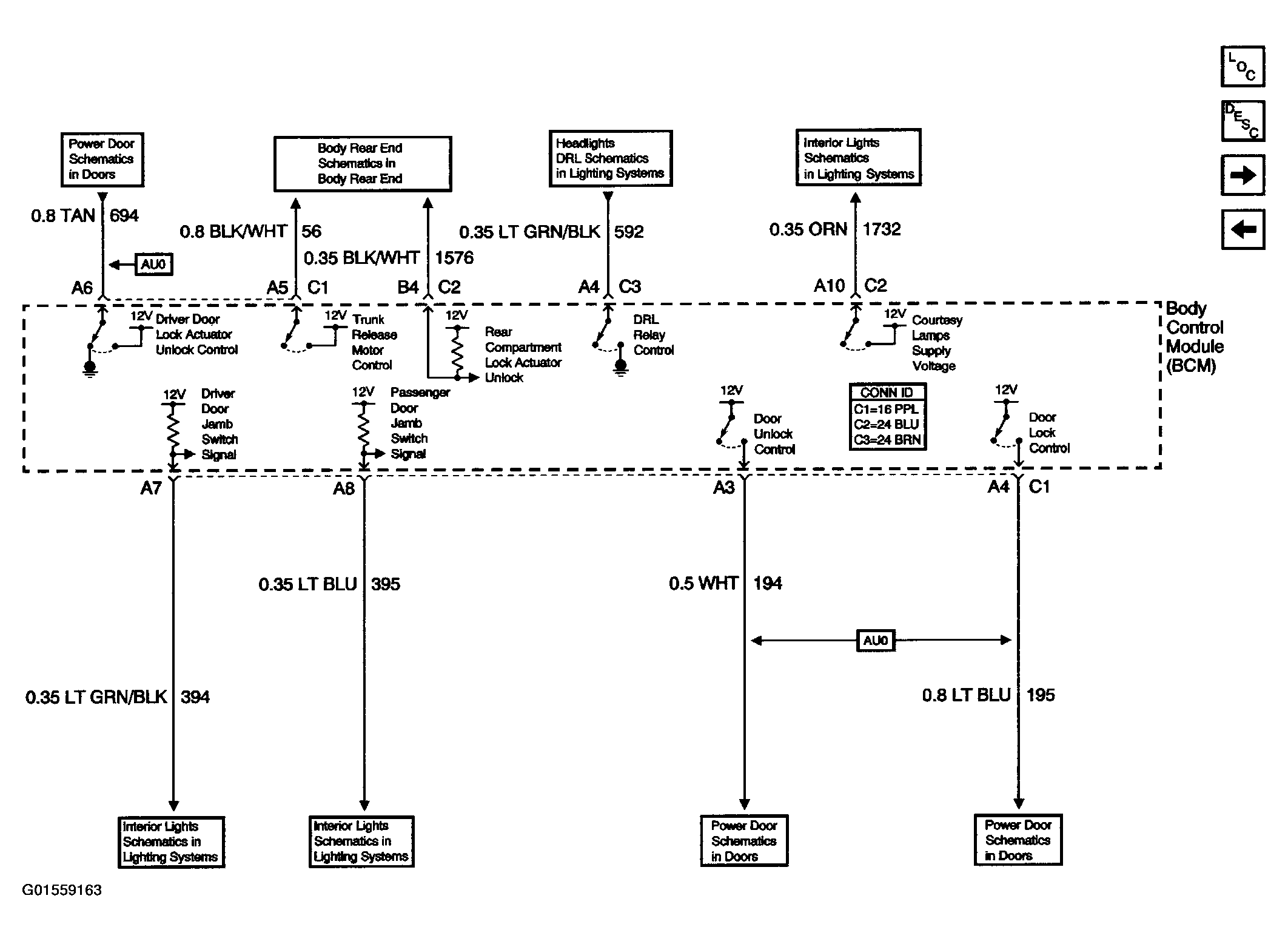

Fig 2: Body Control System Schematics (Controlled/Monitored Subsystem References (Page 1 of 3))
G01559163Courtesy of GENERAL MOTORS CORP.

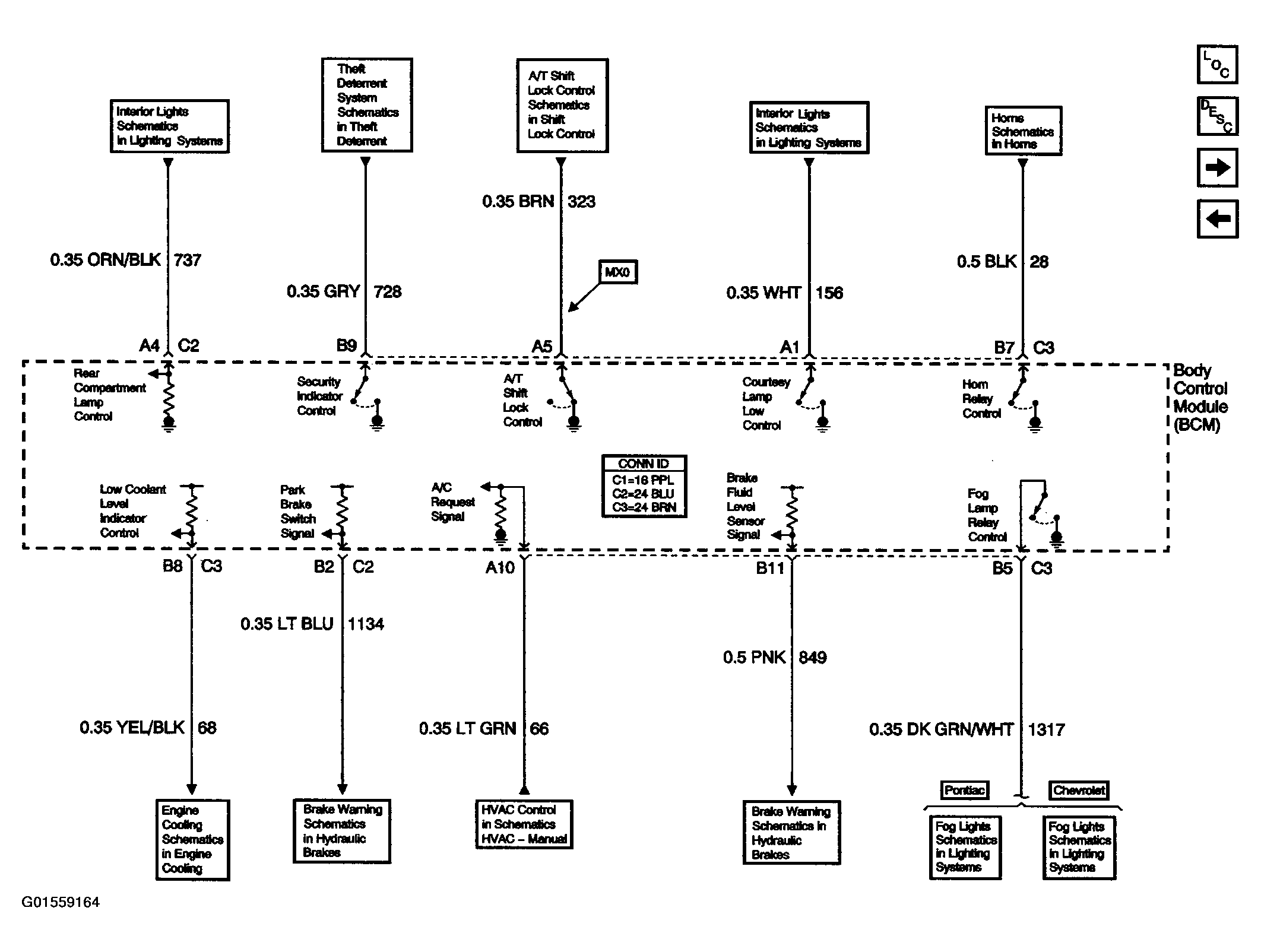

Fig 3: Body Control System Schematics (Controlled/Monitored Subsystem References (Page 2 of 3))
G01559164Courtesy of GENERAL MOTORS CORP.

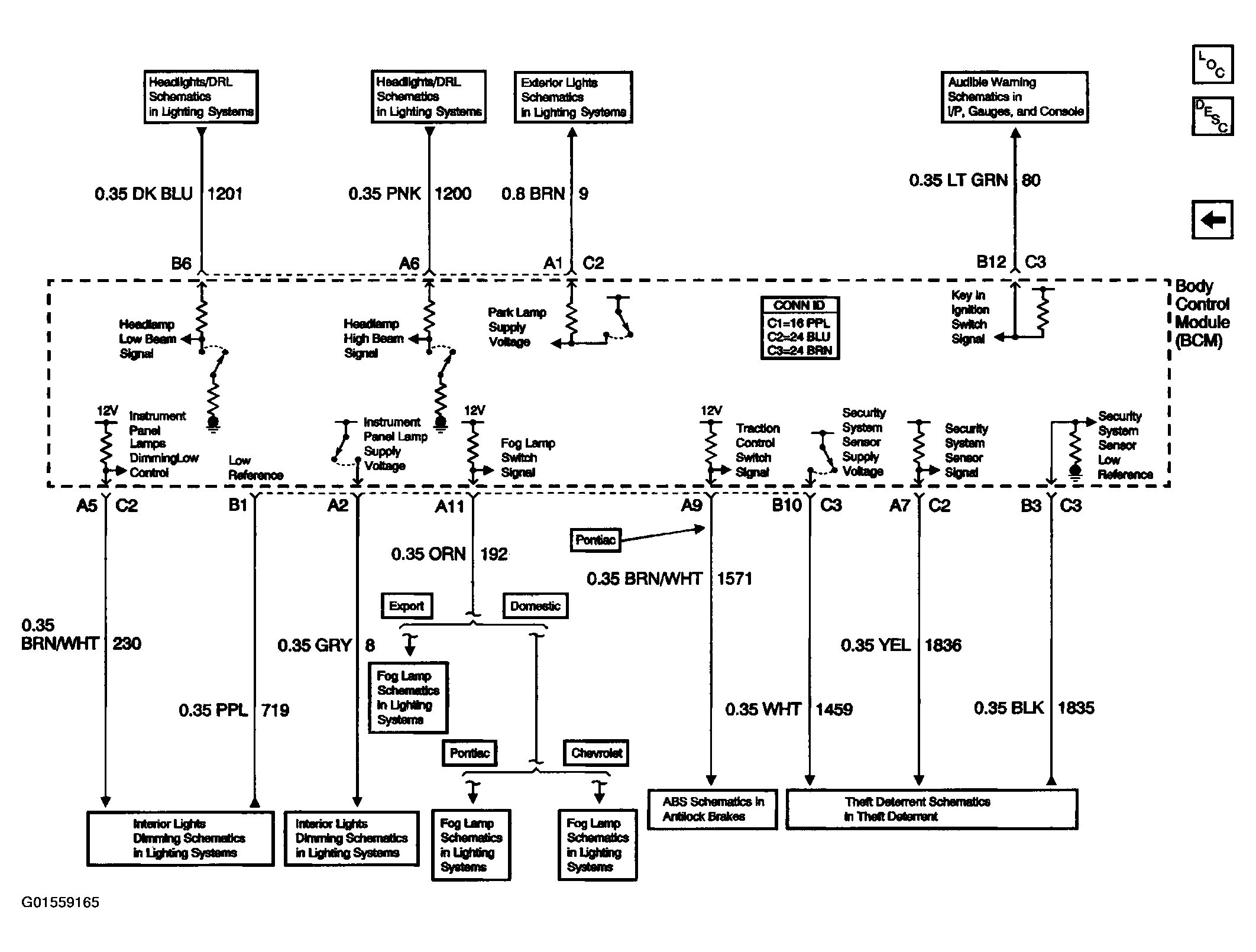

Fig 4: Body Control System Schematics (Controlled/Monitored Subsystem References (Page 3 of 3))
G01559165Courtesy of GENERAL MOTORS CORP.
