Entertainment Connector End Views

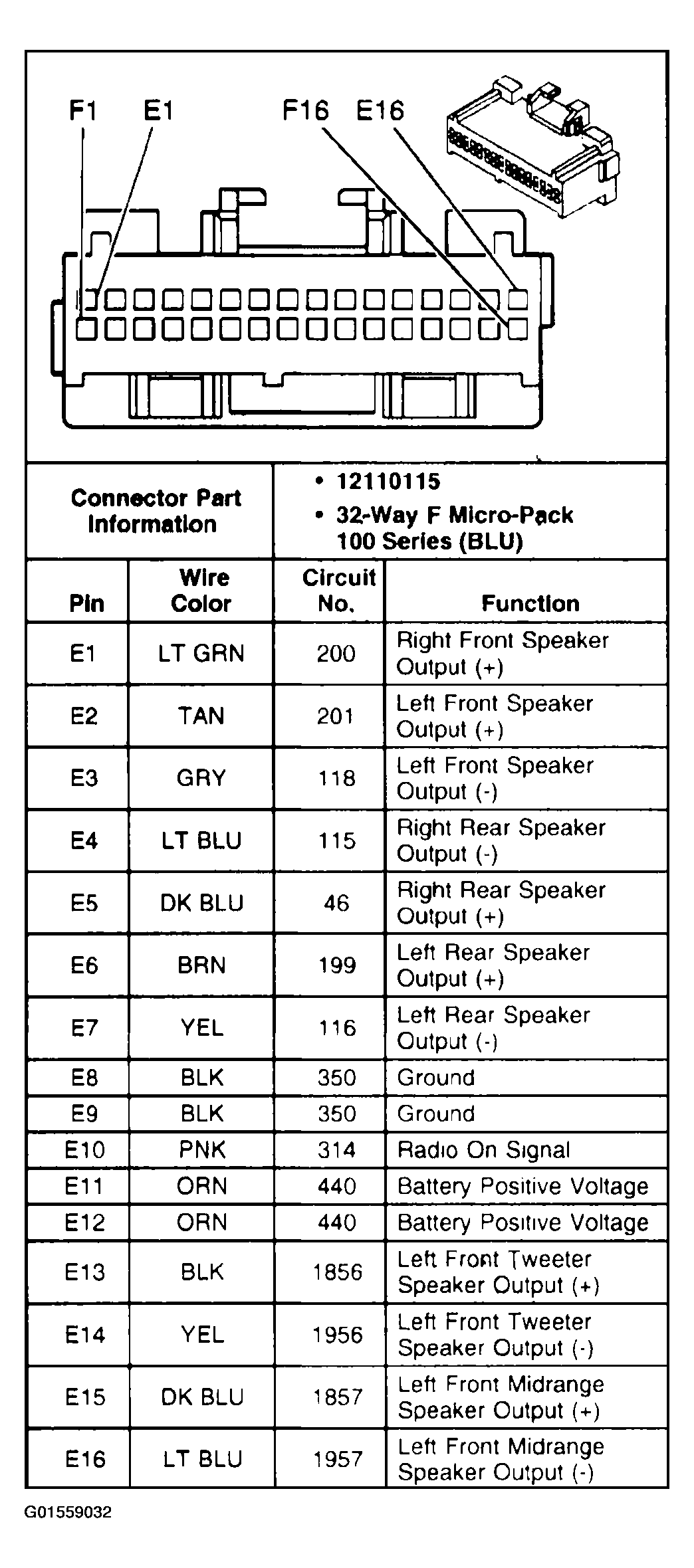

Fig 1: Identifying Audio Amplifier (U85) Connector Terminals (1 Of 2)

G01559032

Courtesy of GENERAL MOTORS CORP.

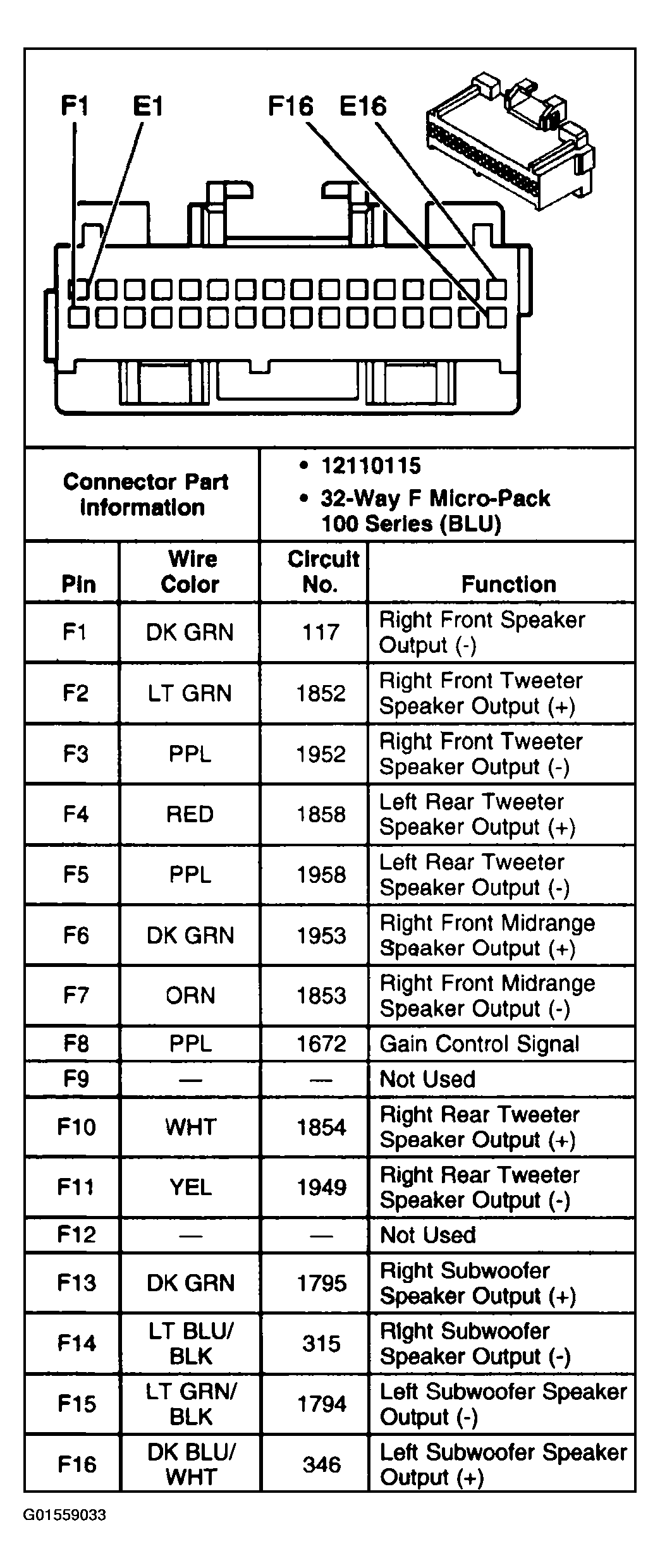

Fig 2: Identifying Audio Amplifier (U85) Connector Terminals (2 Of 2)

G01559033

Courtesy of GENERAL MOTORS CORP.

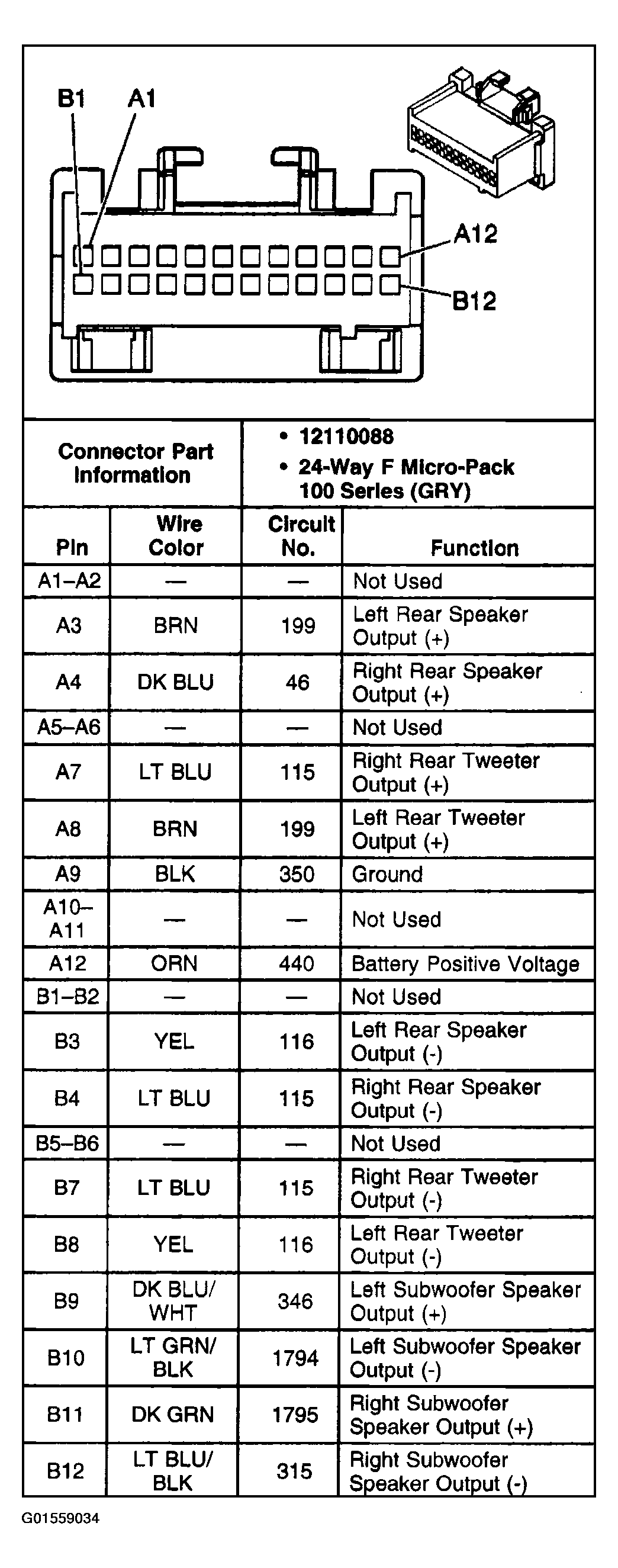

Fig 3: Identifying Audio Amplifier (UQ3) Connector Terminals

G01559034

Courtesy of GENERAL MOTORS CORP.

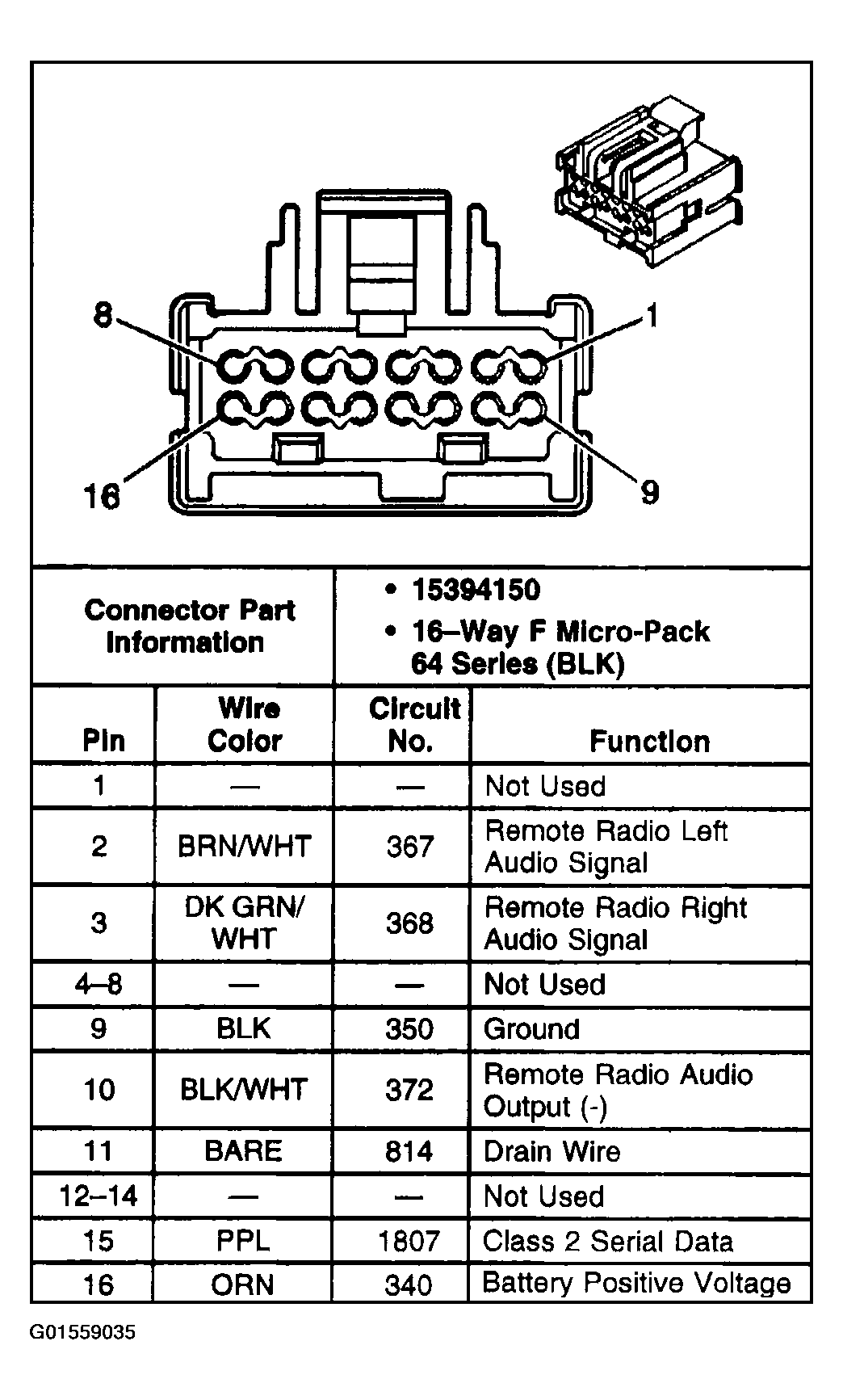

Fig 4: Identifying Digital Radio Receiver Connector Terminals

G01559035

Courtesy of GENERAL MOTORS CORP.

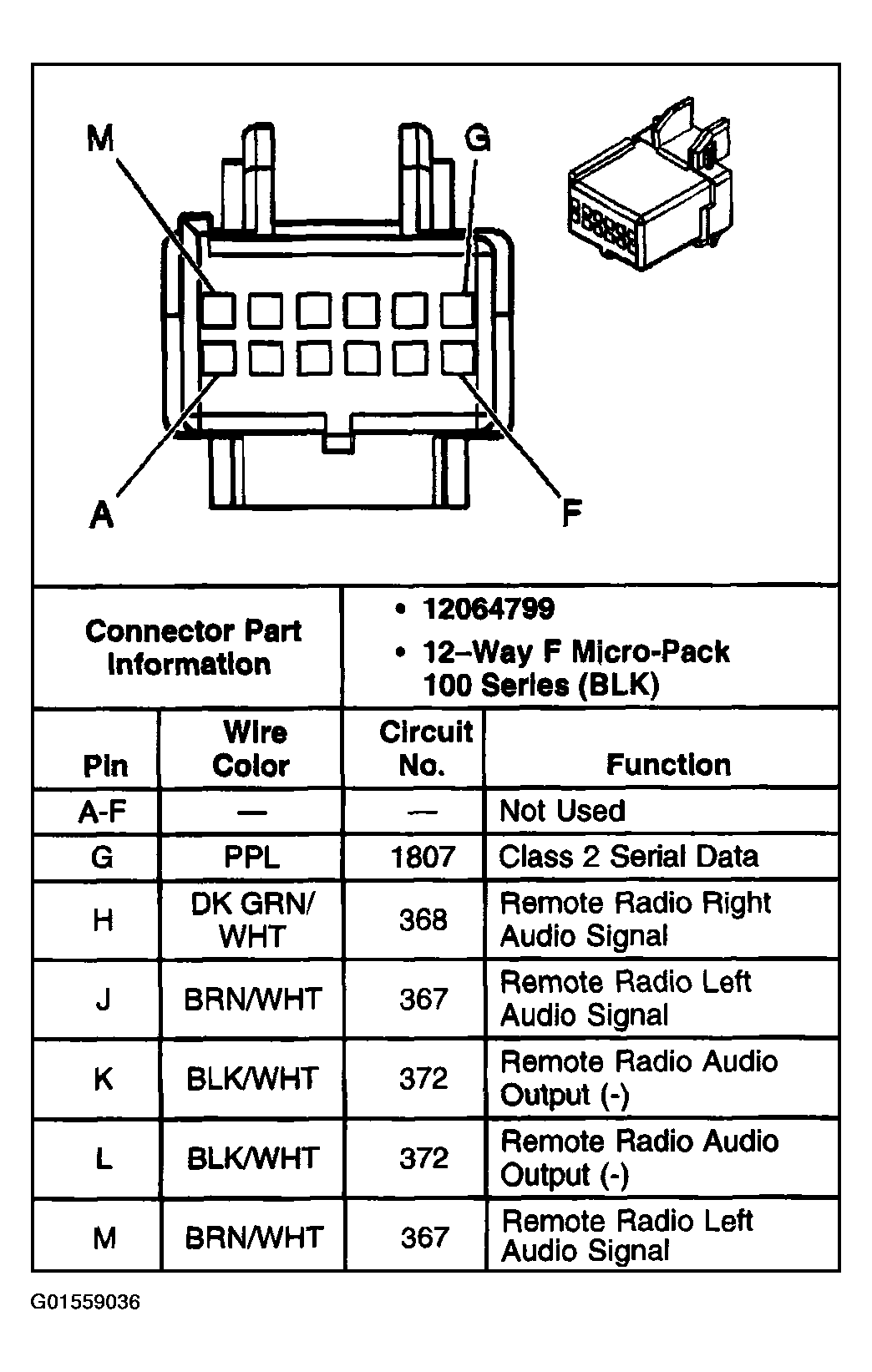

Fig 5: Identifying Radio W/U2K Connector Terminals

G01559036

Courtesy of GENERAL MOTORS CORP.

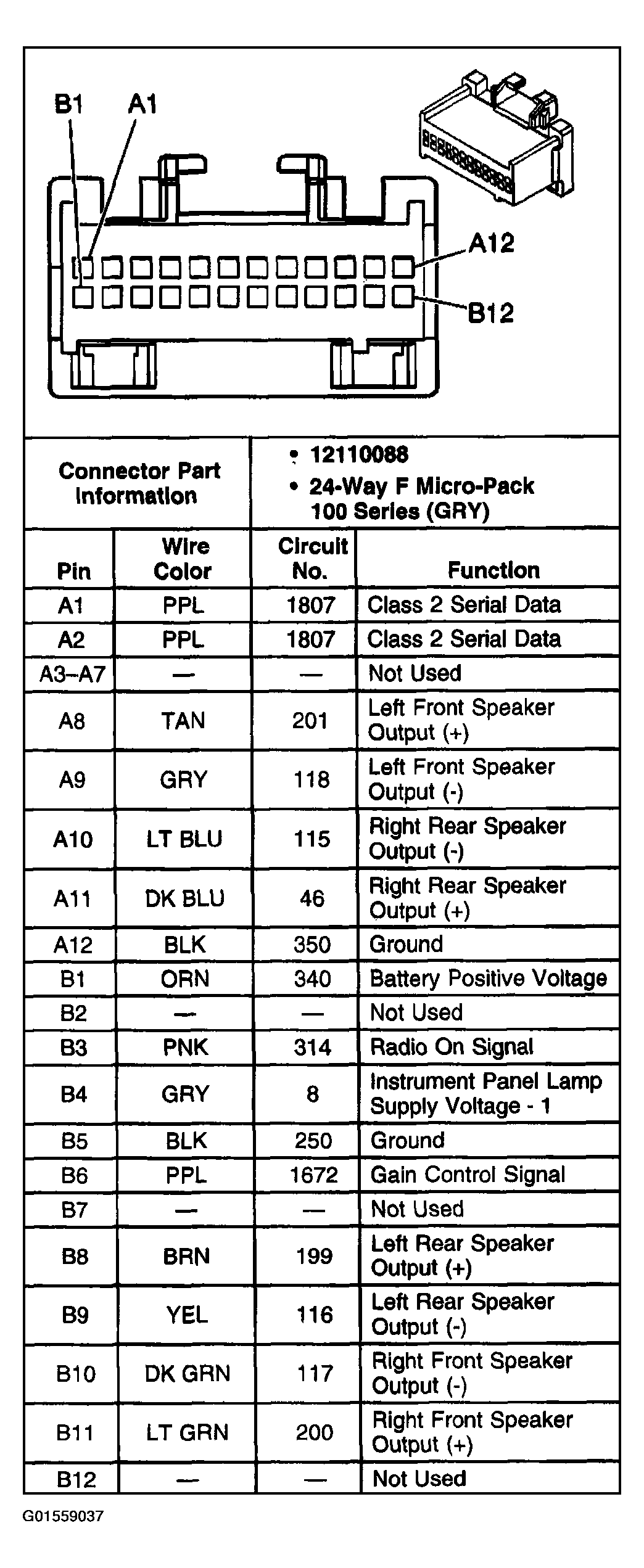

Fig 6: Identifying Radio (U85) Connector Terminals

G01559037

Courtesy of GENERAL MOTORS CORP.

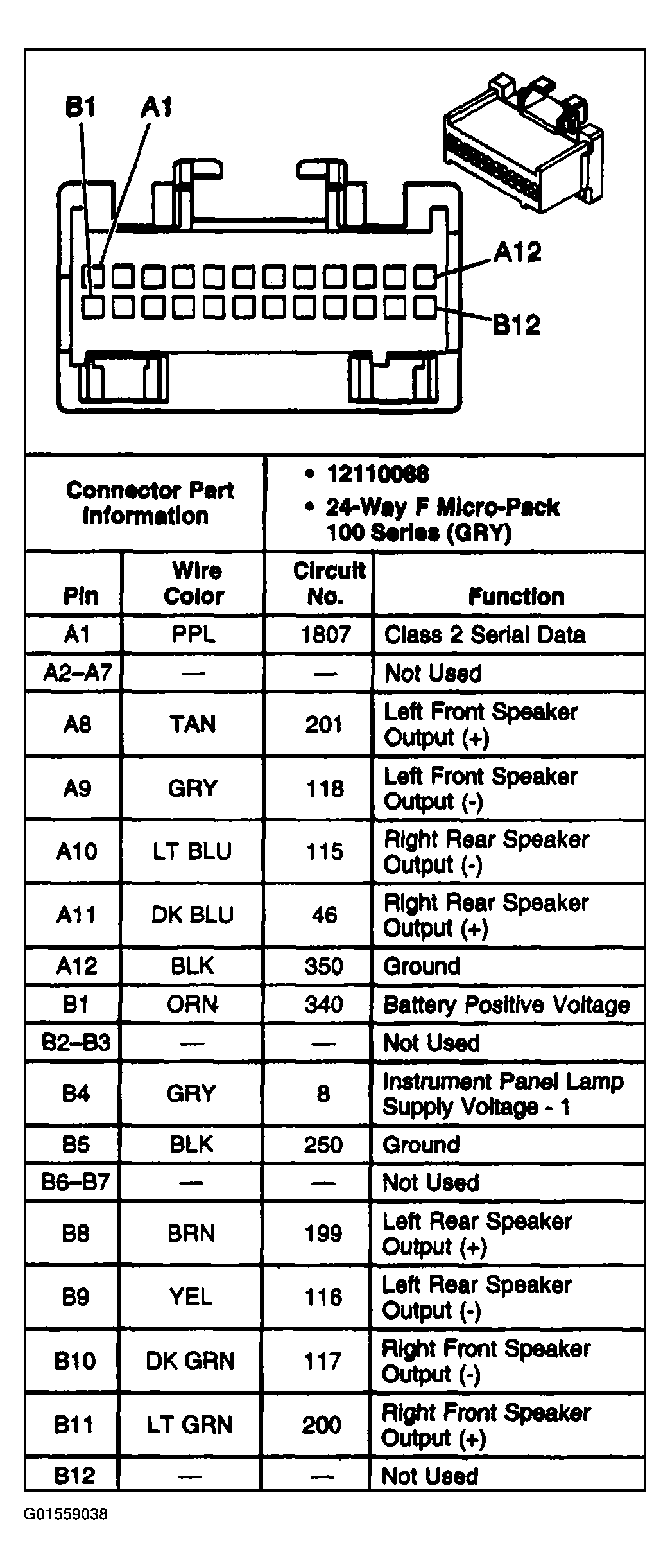

Fig 7: Identifying Radio (UX7/UW6/UQ3) Connector Terminals

G01559038

Courtesy of GENERAL MOTORS CORP.

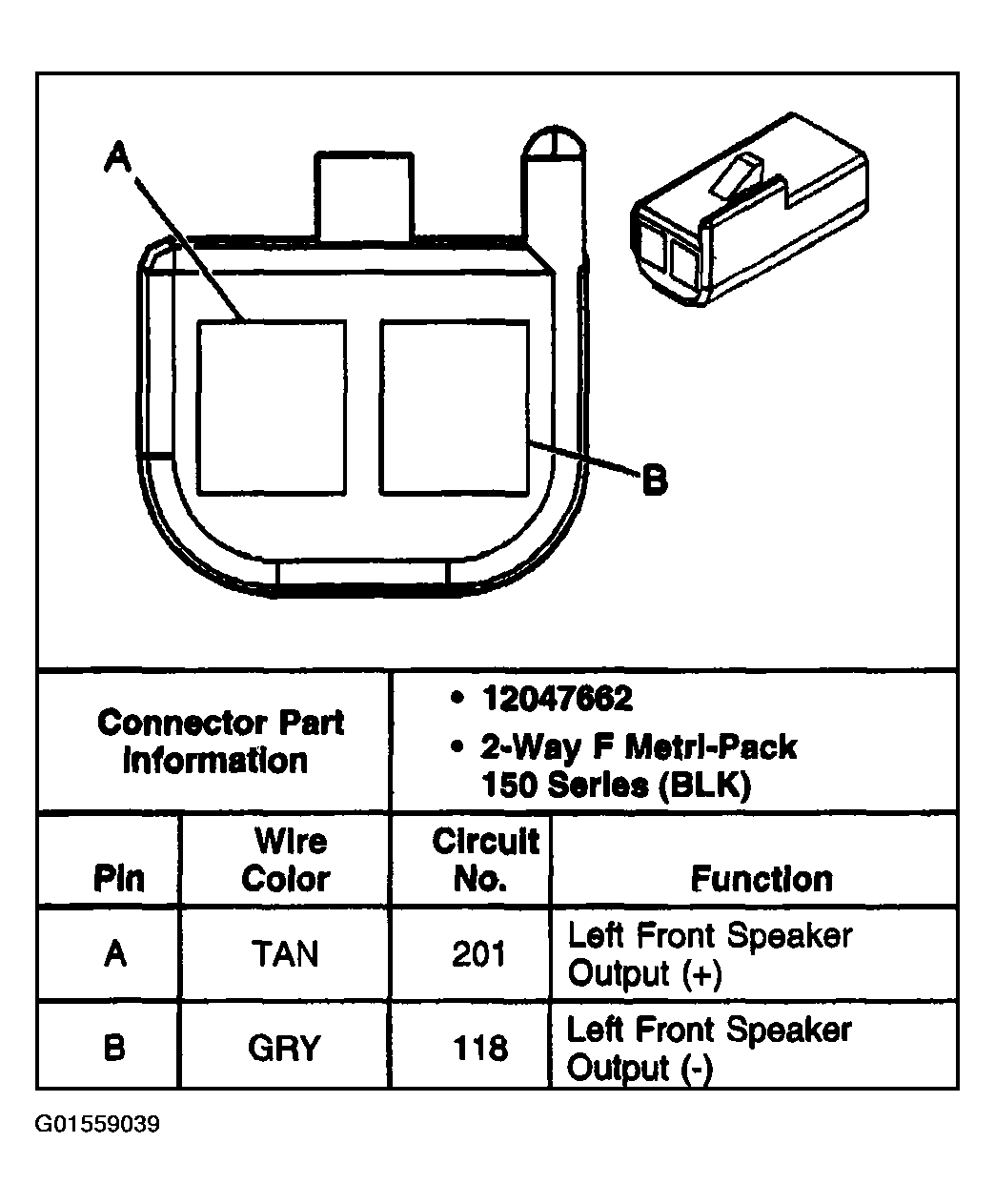

Fig 8: Identifying Speaker - LF (U79) Connector Terminals

G01559039

Courtesy of GENERAL MOTORS CORP.

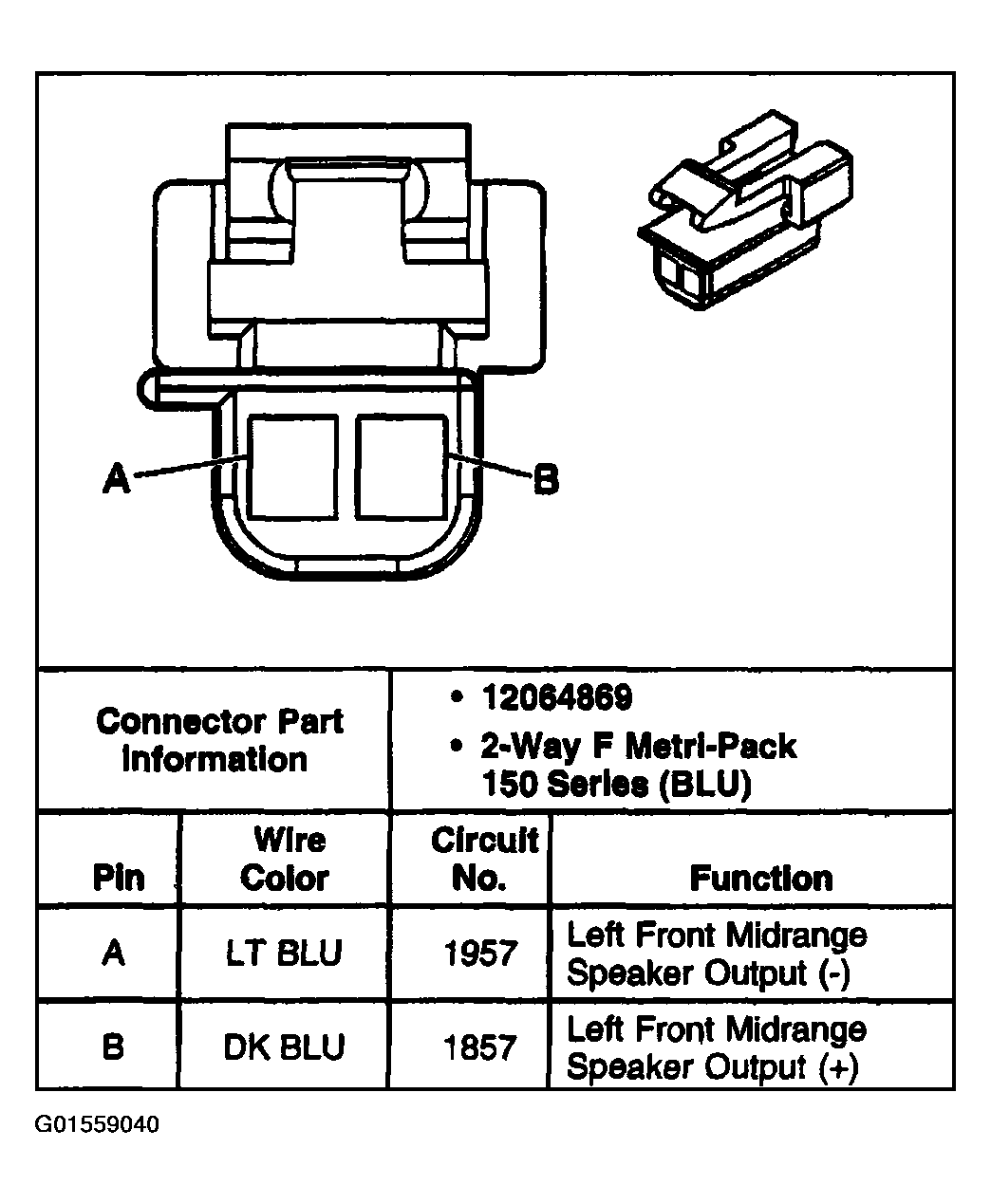

Fig 9: Identifying Speaker - LF (U85) Connector Terminals

G01559040

Courtesy of GENERAL MOTORS CORP.

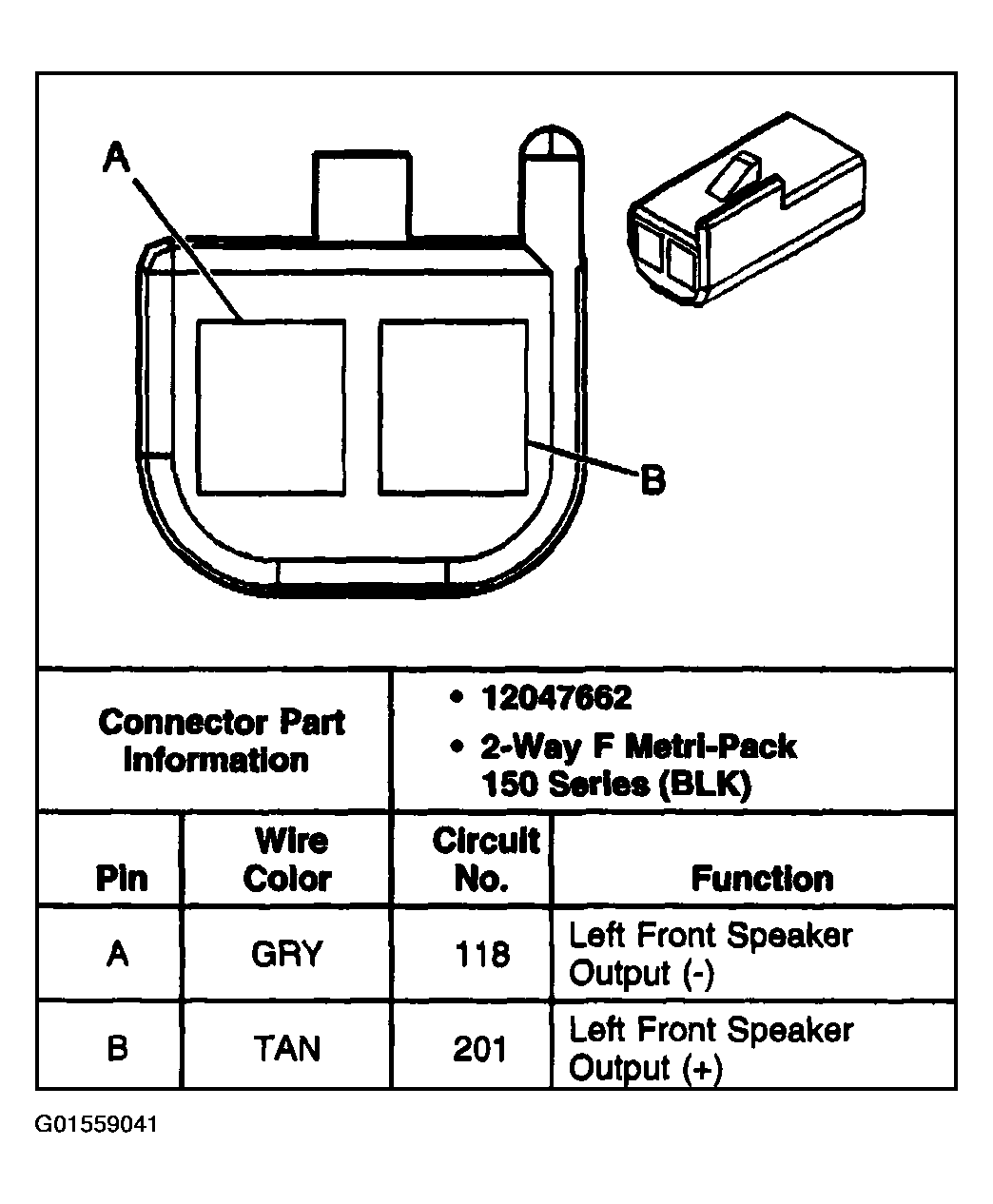

Fig 10: Identifying Speaker - LF (UW6/UQ3) Connector Terminals

G01559041

Courtesy of GENERAL MOTORS CORP.

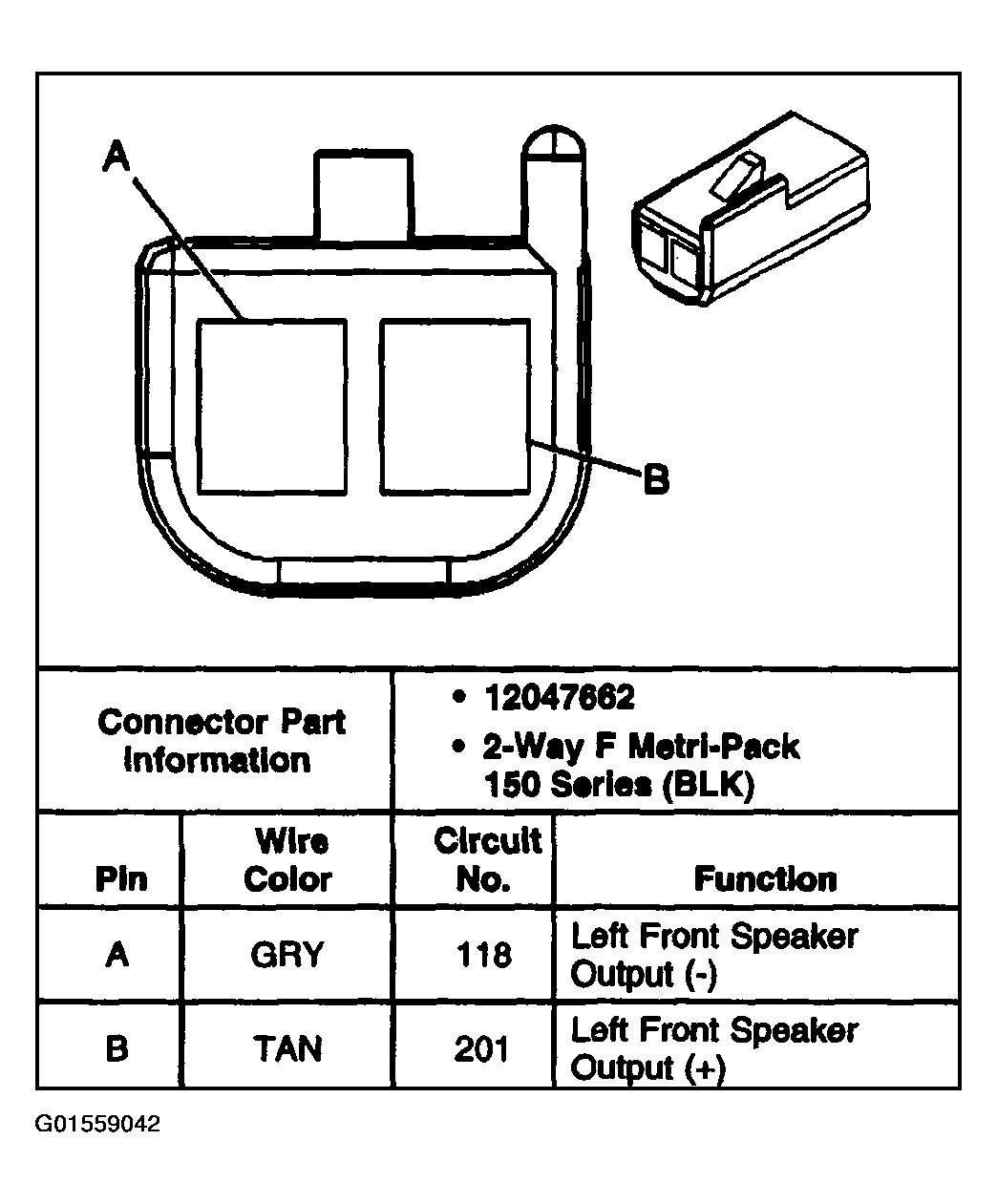

Fig 11: Identifying Speaker - LF (UX7) Connector Terminals

G01559042

Courtesy of GENERAL MOTORS CORP.

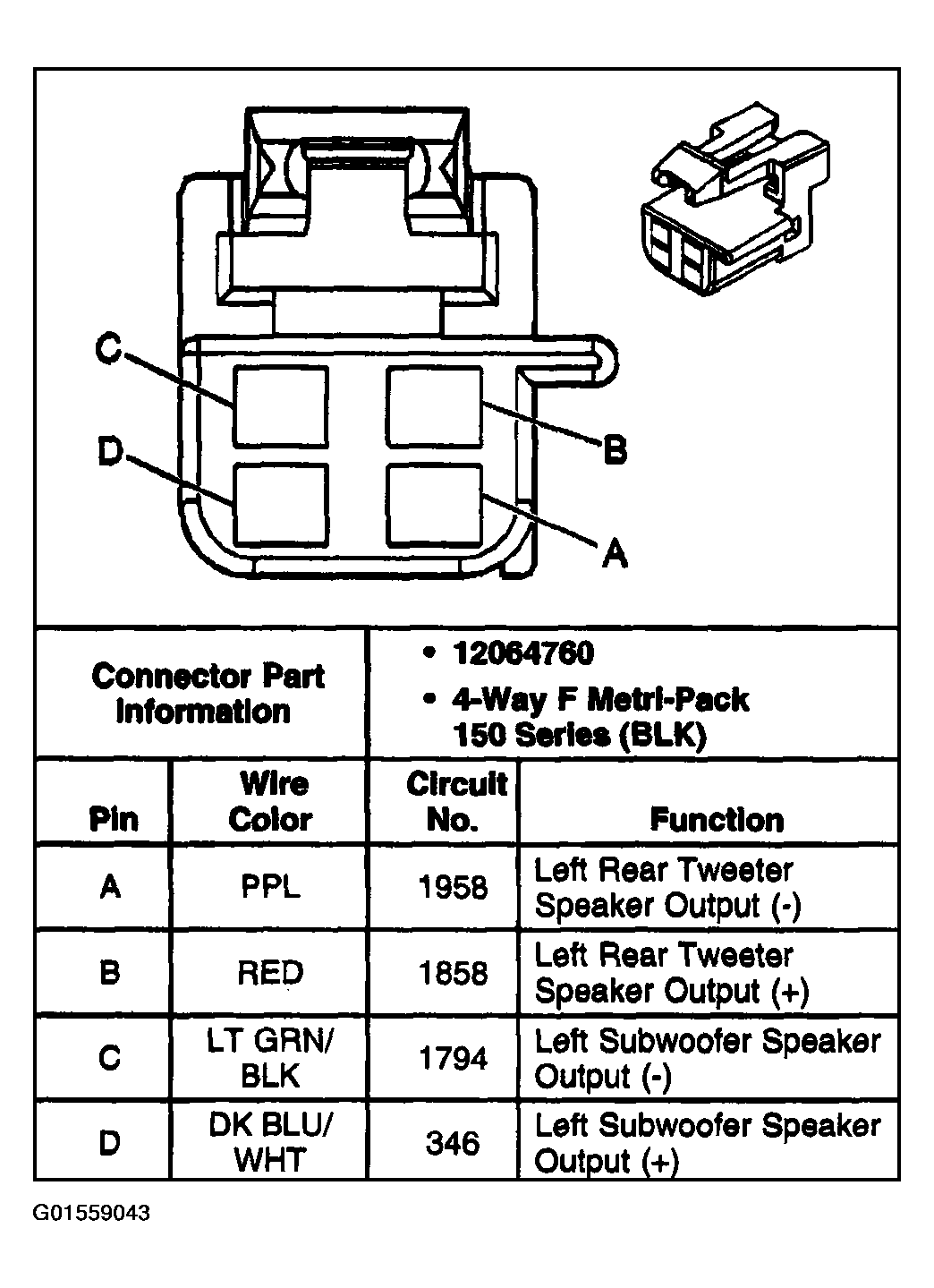

Fig 12: Identifying Speaker - LR (U85) Connector Terminals

G01559043

Courtesy of GENERAL MOTORS CORP.

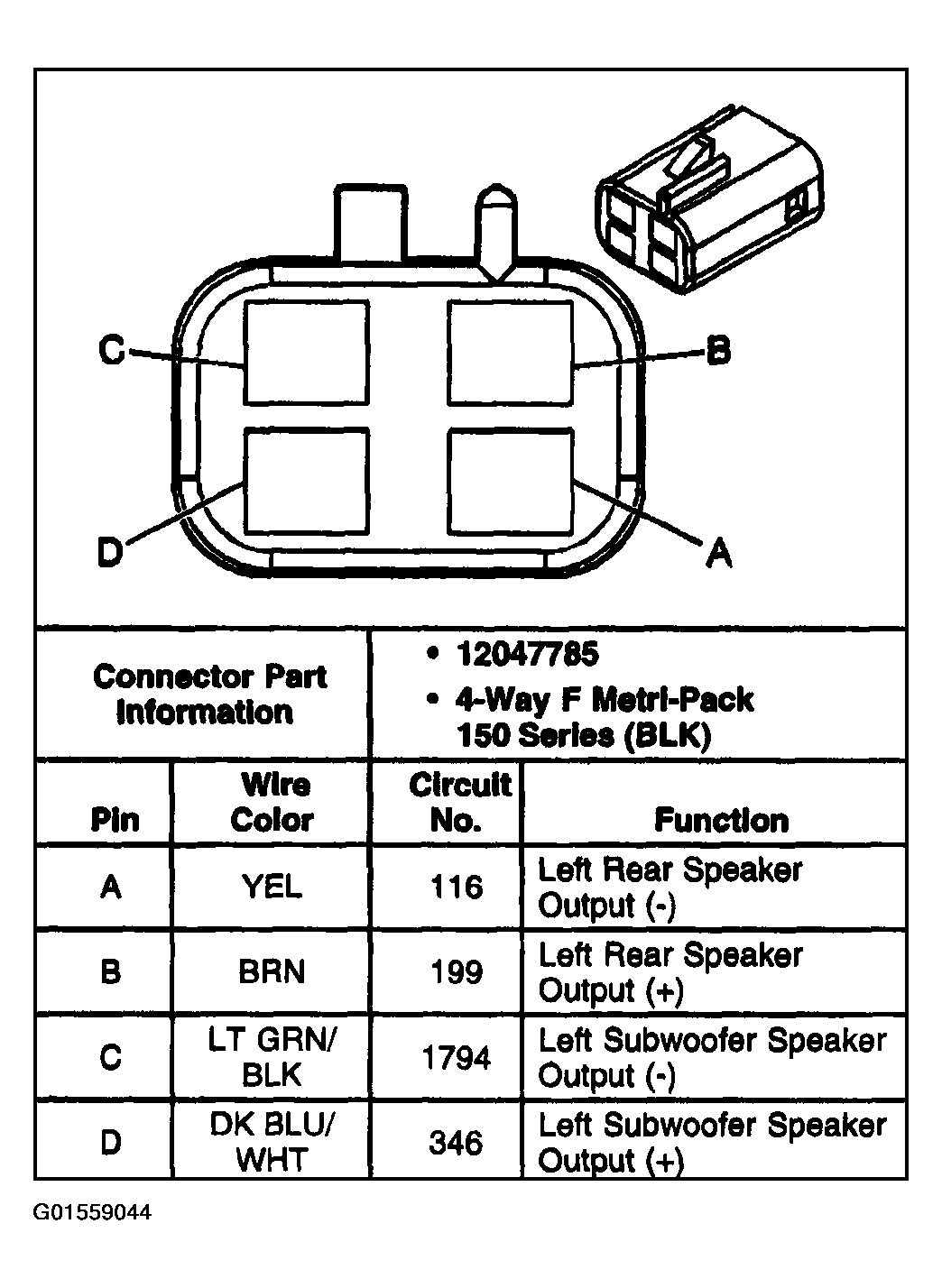

Fig 13: Identifying Speaker - LR (UQ3) Connector Terminals

G01559044

Courtesy of GENERAL MOTORS CORP.

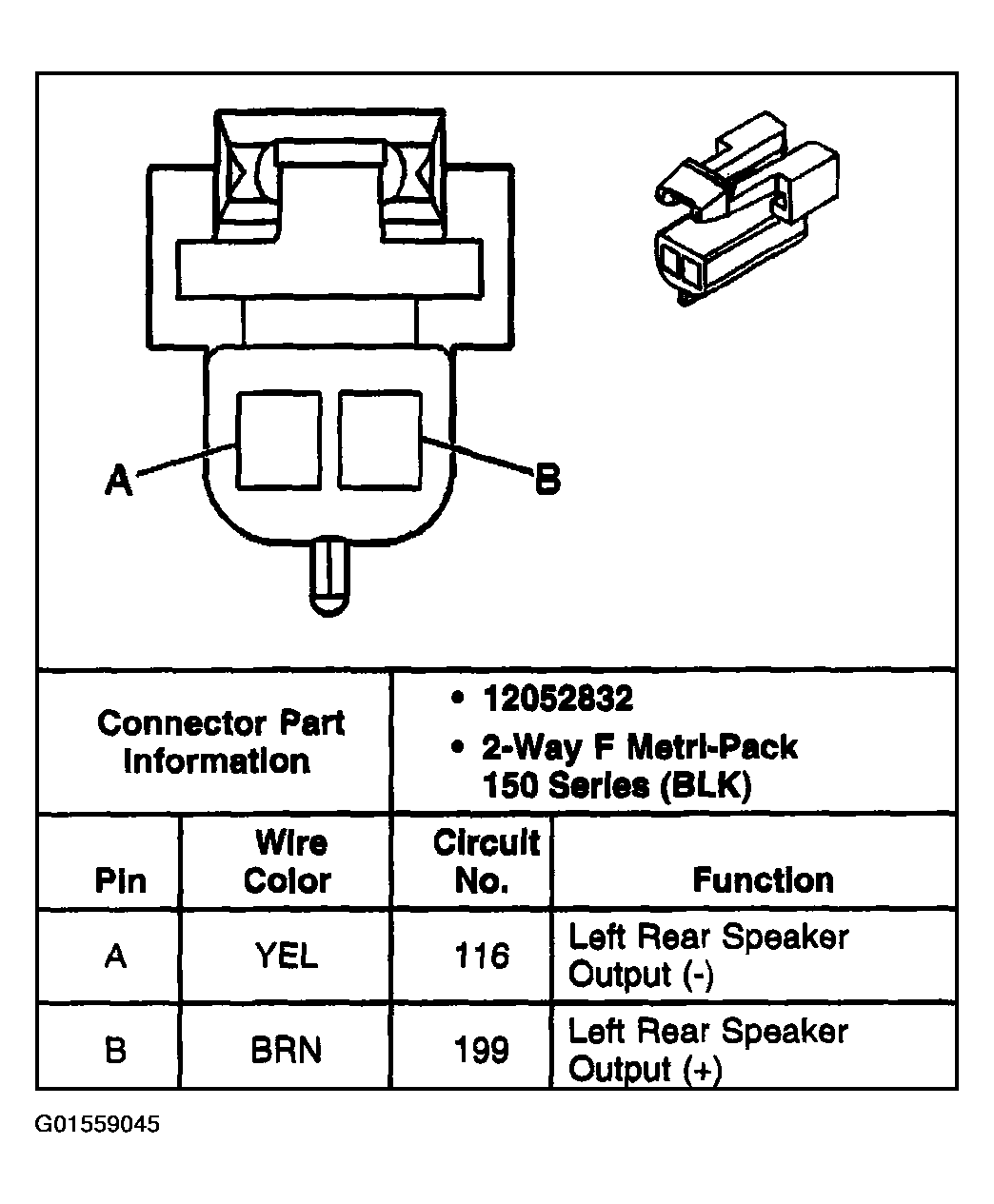

Fig 14: Identifying Speaker - LR (UX7/UW6) Connector Terminals

G01559045

Courtesy of GENERAL MOTORS CORP.

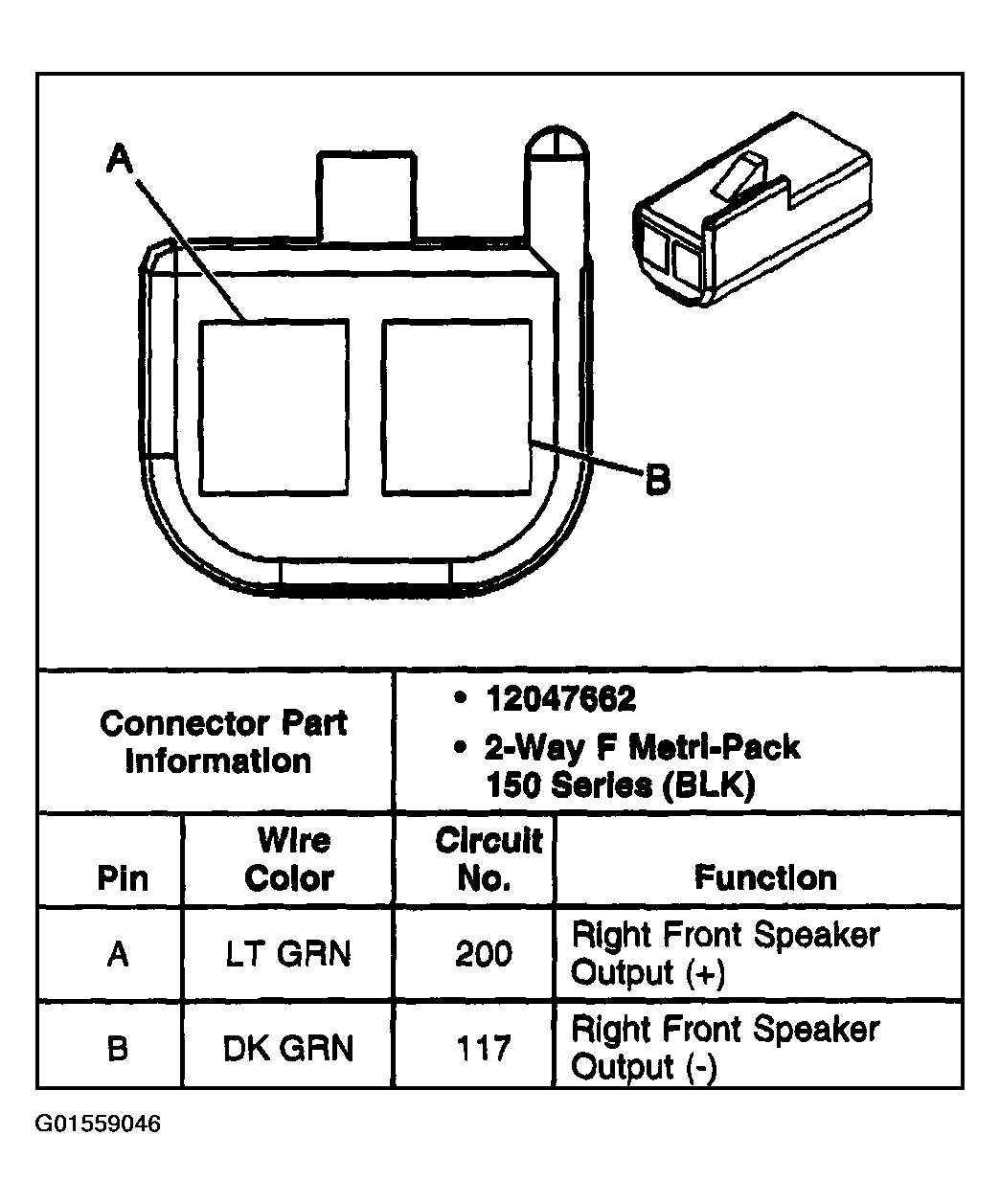

Fig 15: Identifying Speaker - RF (U79) Connector Terminals

G01559046

Courtesy of GENERAL MOTORS CORP.

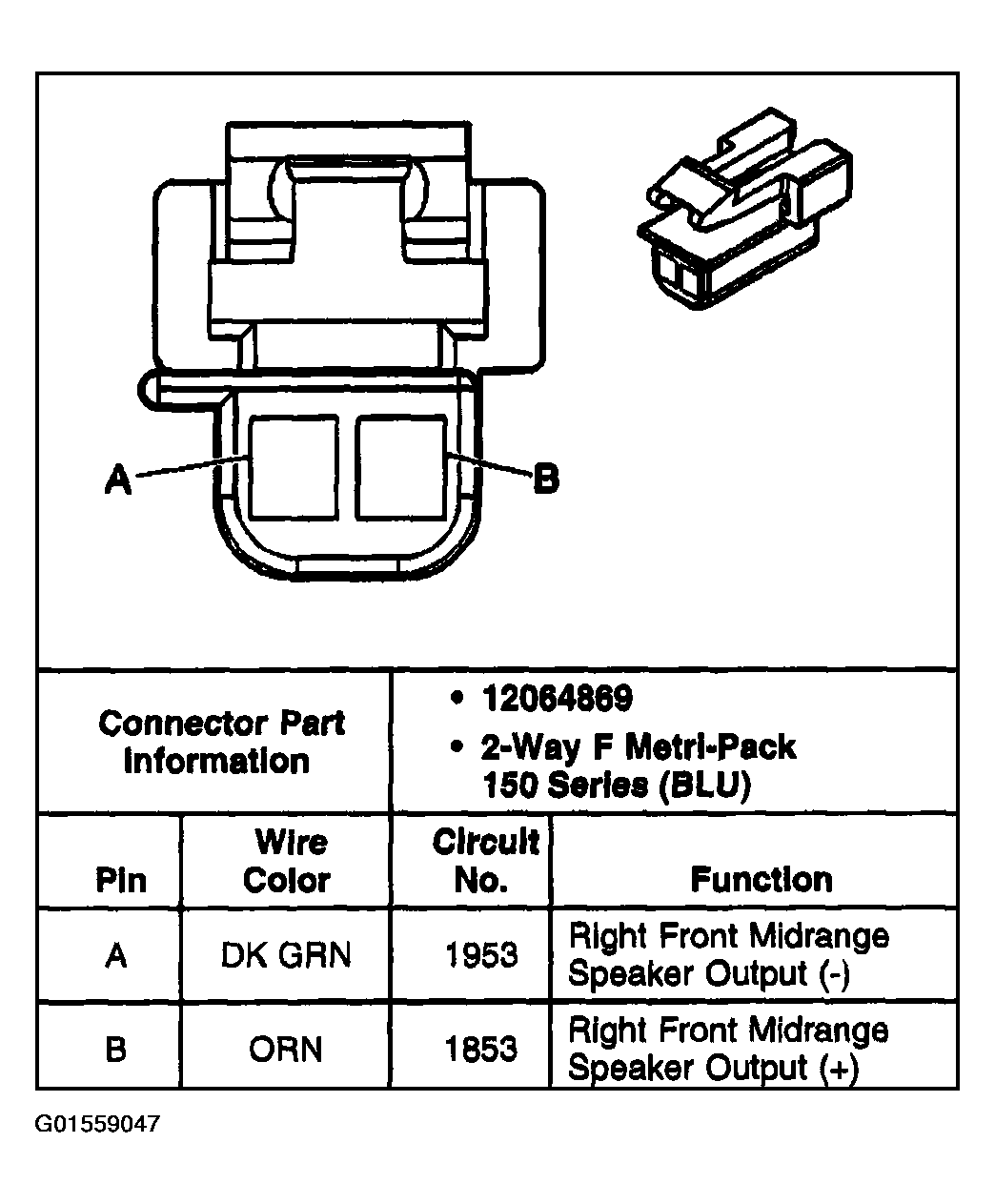

Fig 16: Identifying Speaker - RF (U85) Connector Terminals

G01559047

Courtesy of GENERAL MOTORS CORP.

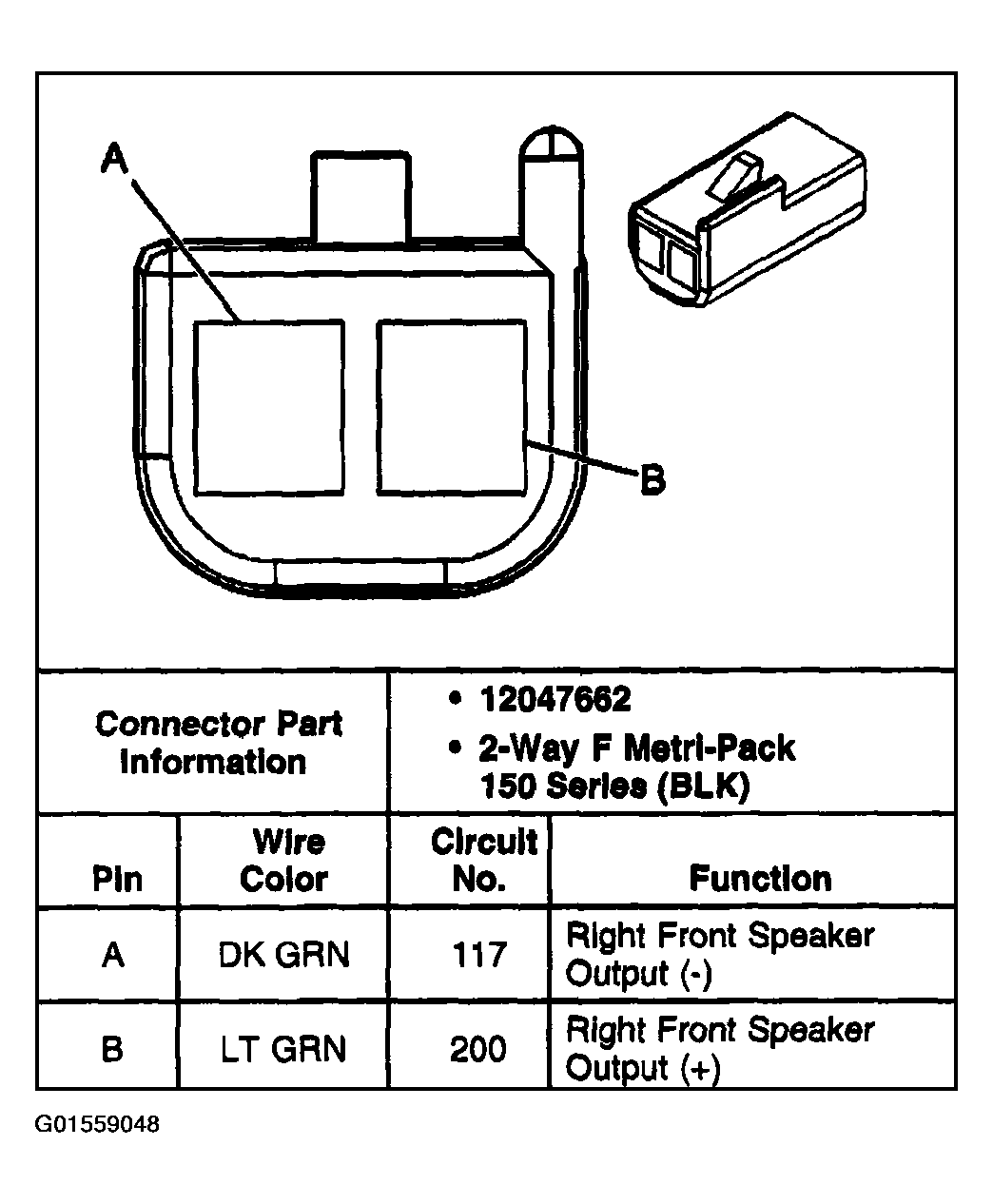

Fig 17: Identifying Speaker - RF (UW6/UQ3) Connector Terminals

G01559048

Courtesy of GENERAL MOTORS CORP.

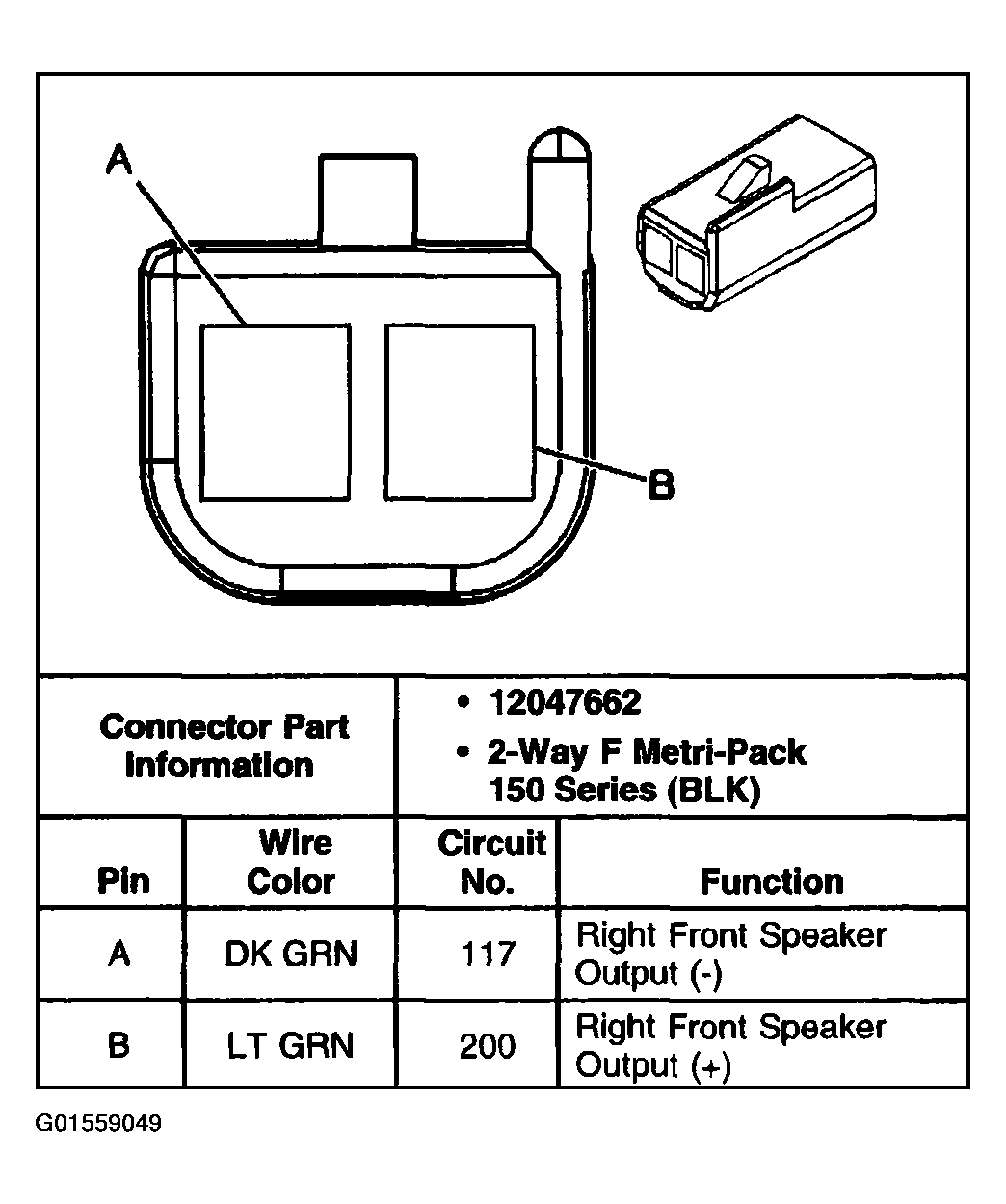

Fig 18: Identifying Speaker - RF (UX7) Connector Terminals

G01559049

Courtesy of GENERAL MOTORS CORP.

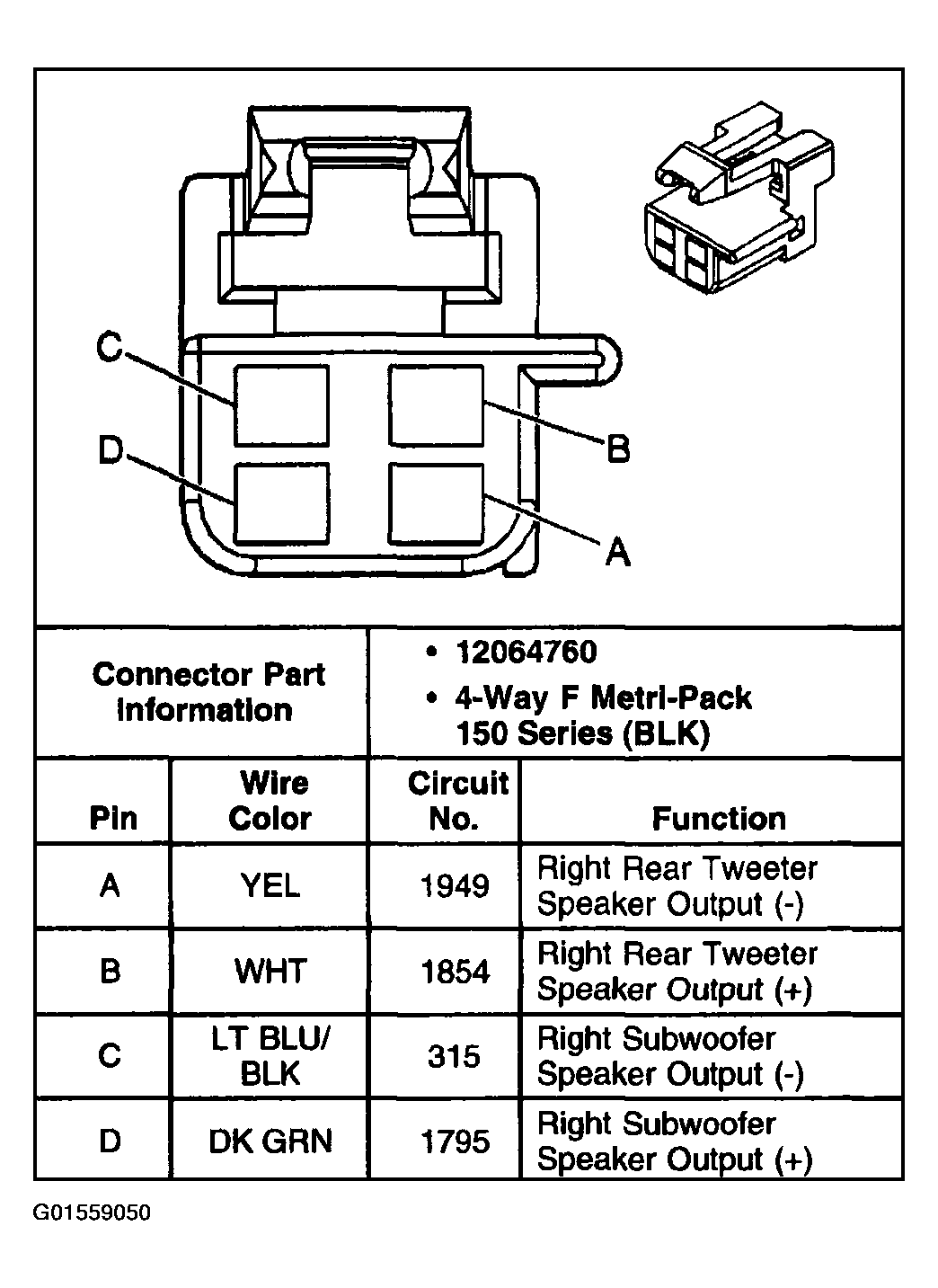

Fig 19: Identifying Speaker - RR (U85) Connector Terminals

G01559050

Courtesy of GENERAL MOTORS CORP.

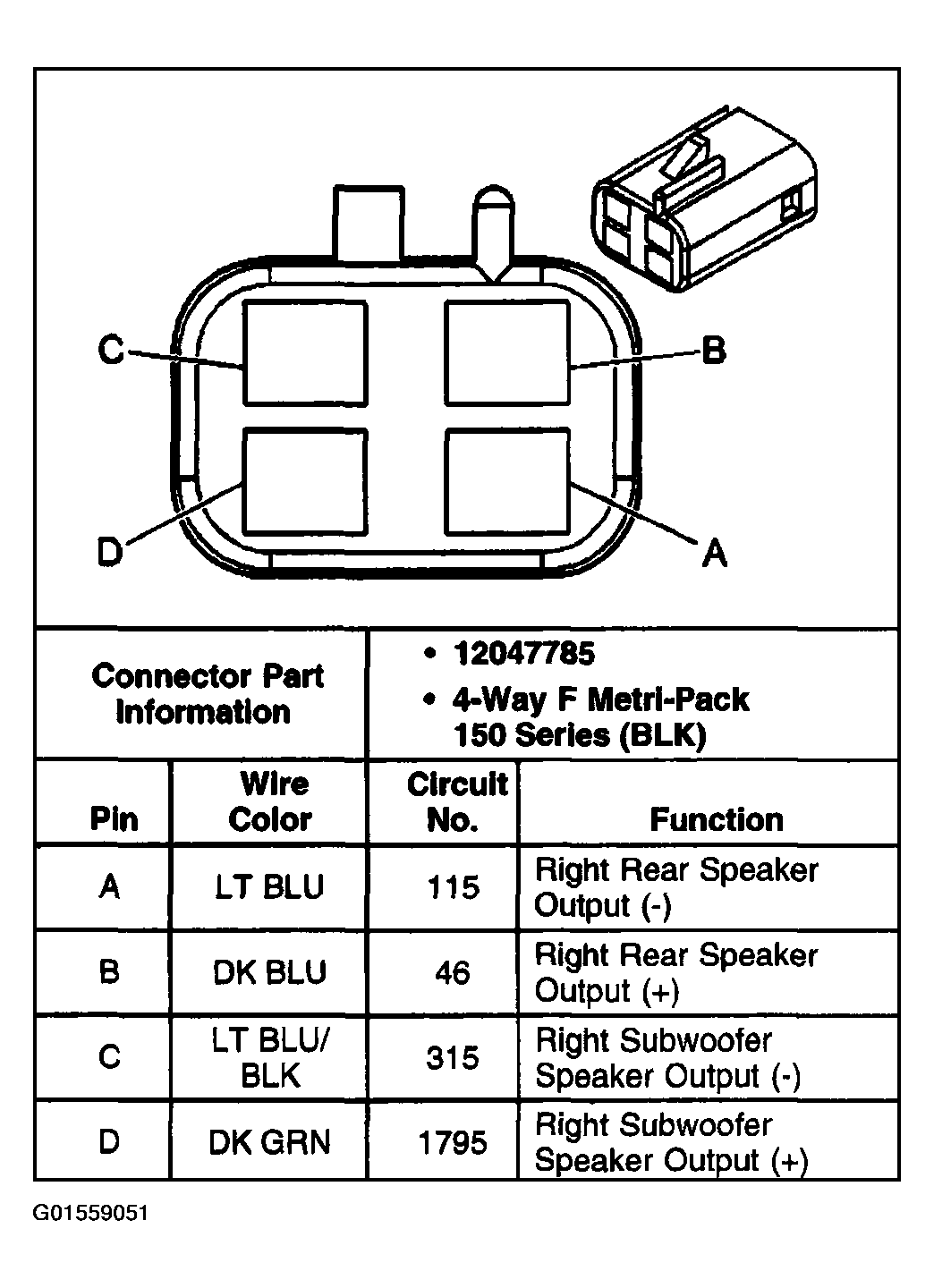

Fig 20: Identifying Speaker - RR (UQ3) Connector Terminals

G01559051

Courtesy of GENERAL MOTORS CORP.

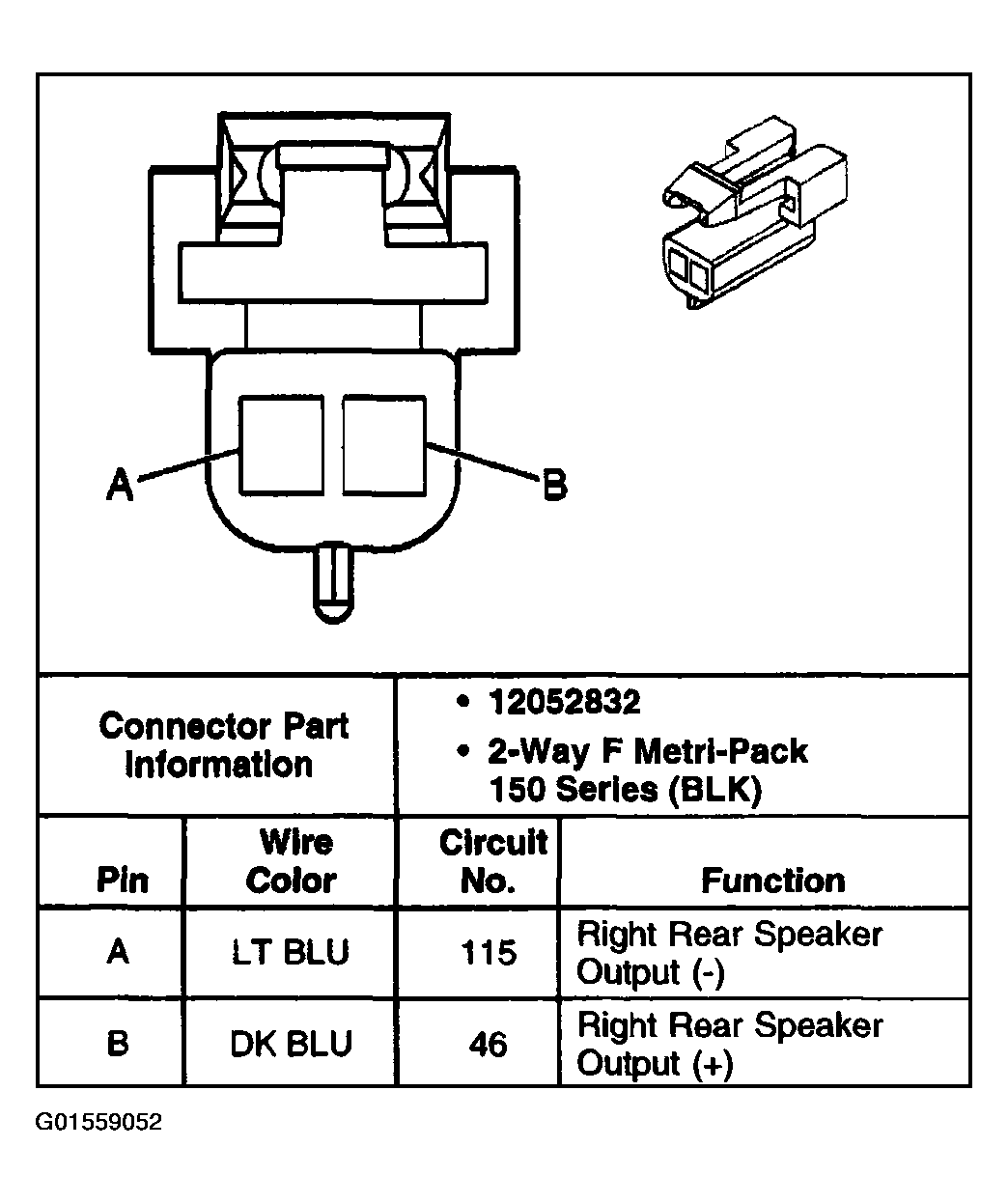

Fig 21: Identifying Speaker - RR (UX7/UW6) Connector Terminals

G01559052

Courtesy of GENERAL MOTORS CORP.

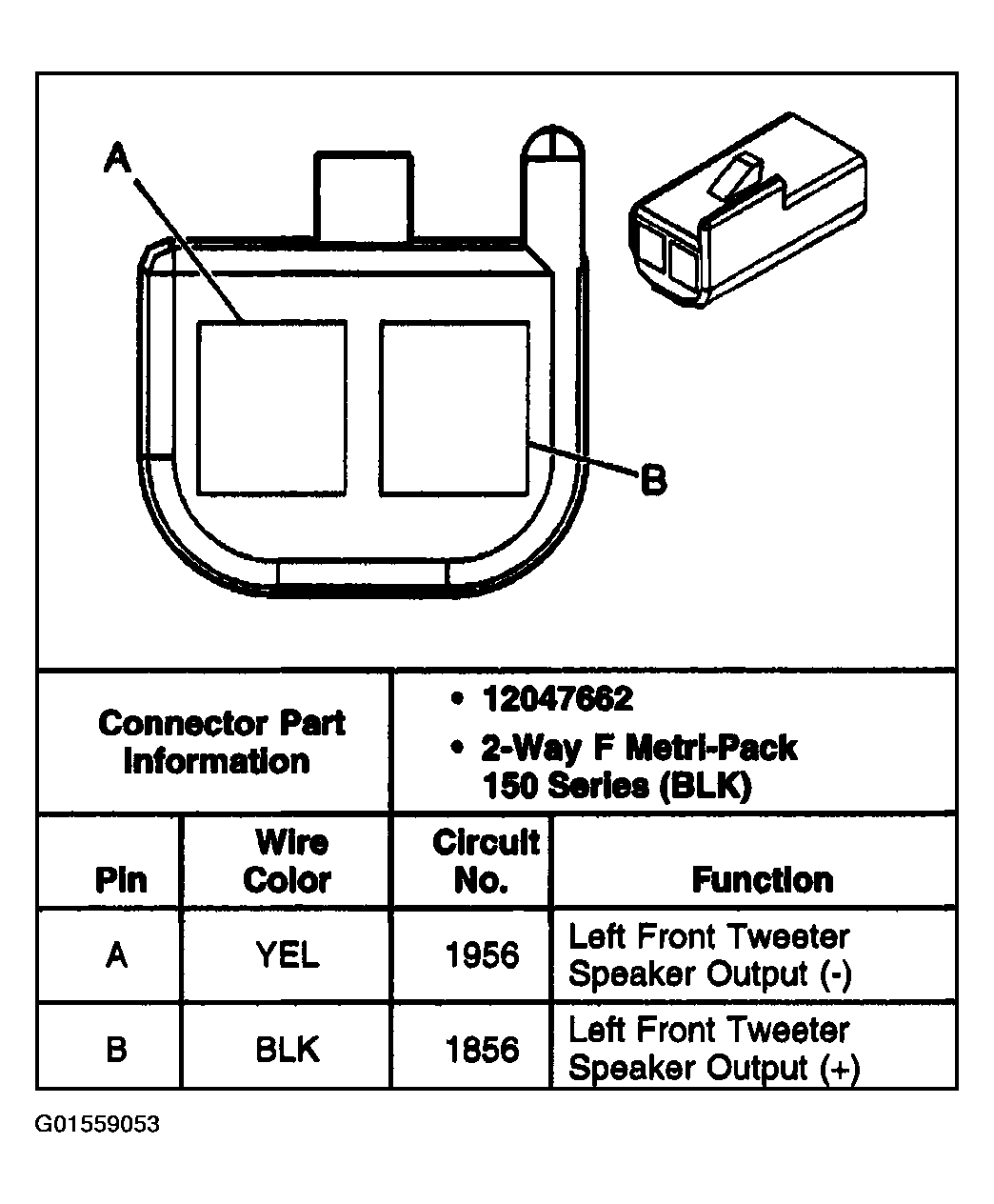

Fig 22: Identifying Tweeter - LF (U85) Connector Terminals

G01559053

Courtesy of GENERAL MOTORS CORP.

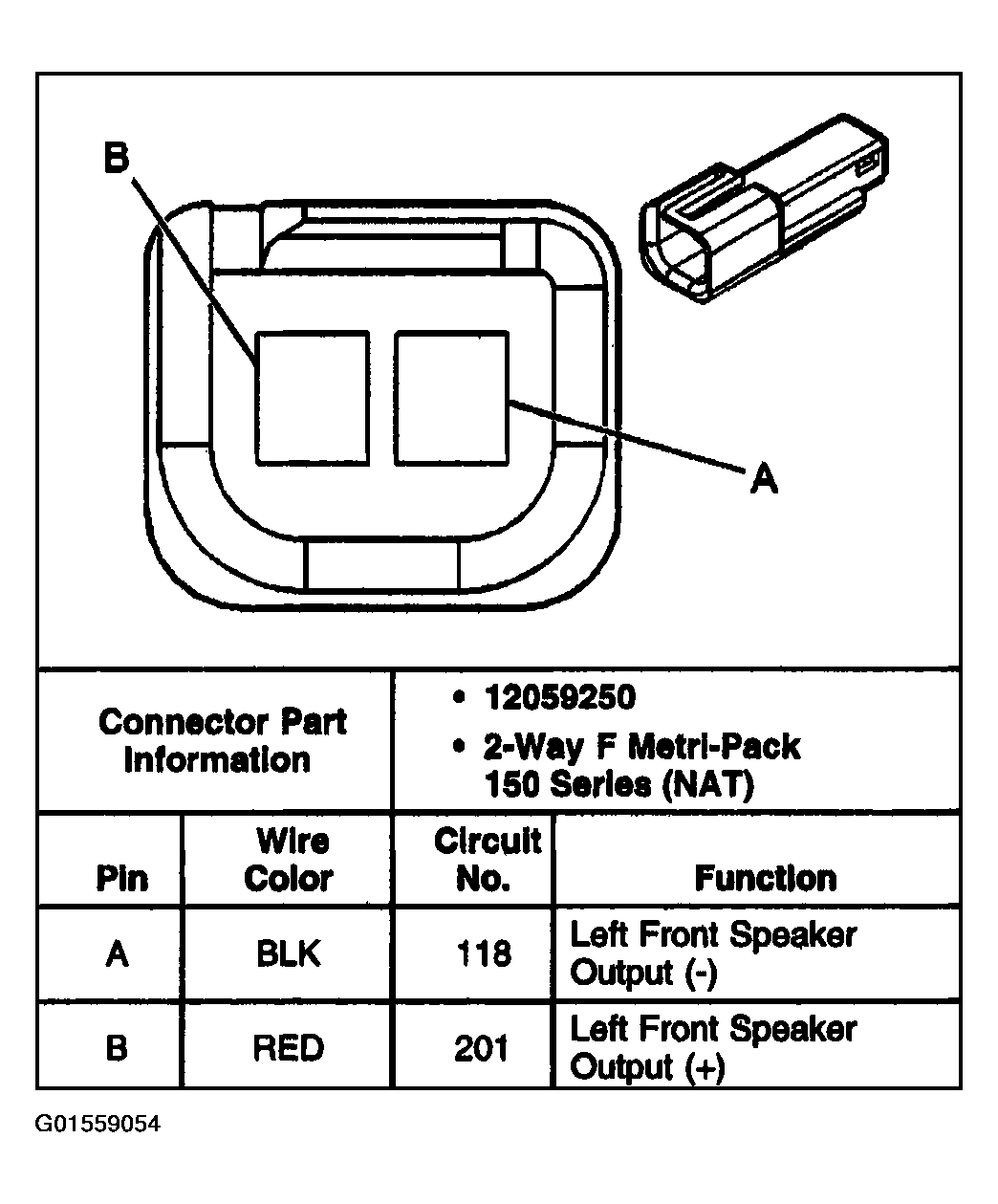

Fig 23: Identifying Tweeter - LF (UW6/UQ3) Connector Terminals

G01559054

Courtesy of GENERAL MOTORS CORP.

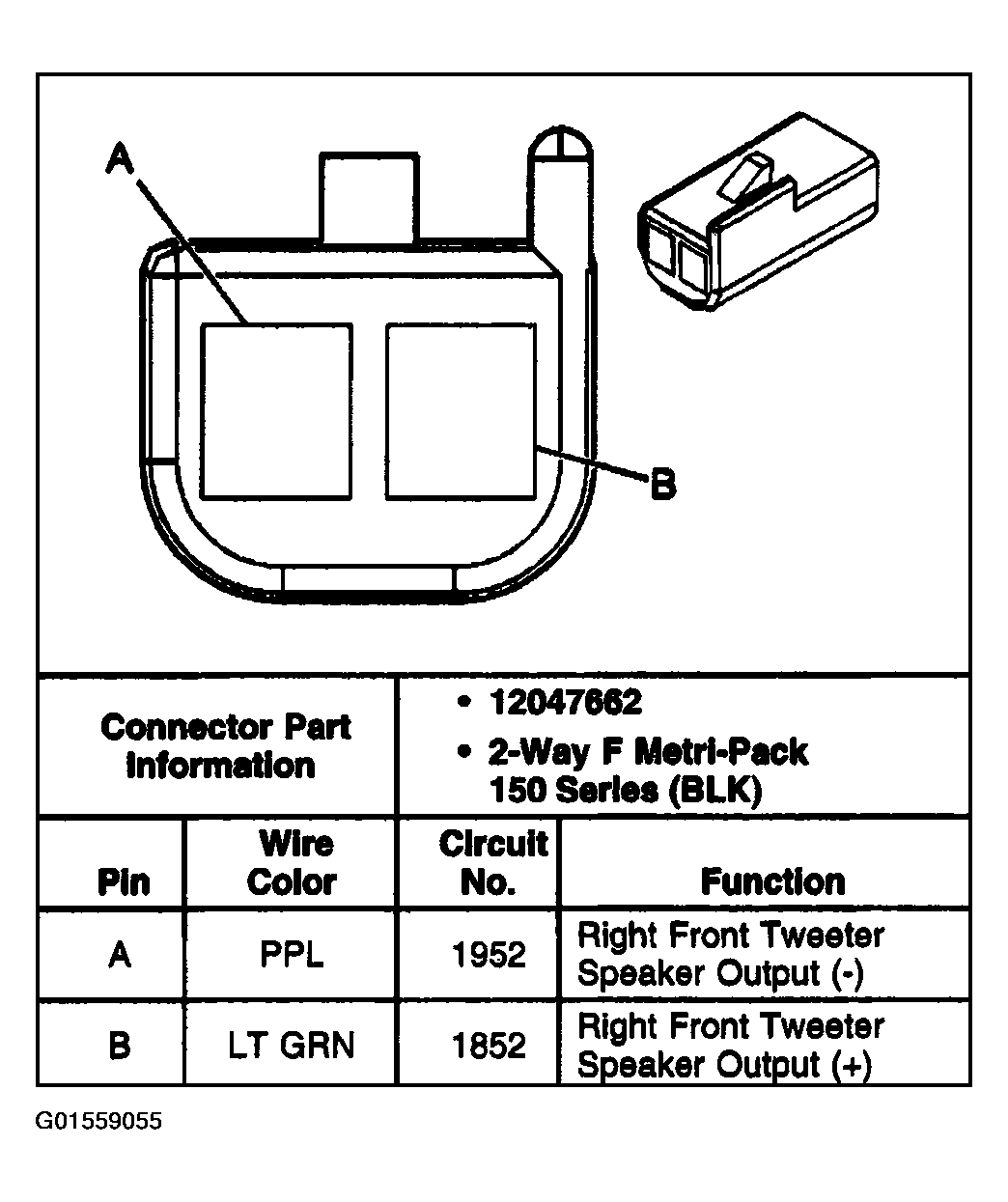

Fig 24: Identifying Tweeter - RF (U85) Connector Terminals

G01559055

Courtesy of GENERAL MOTORS CORP.

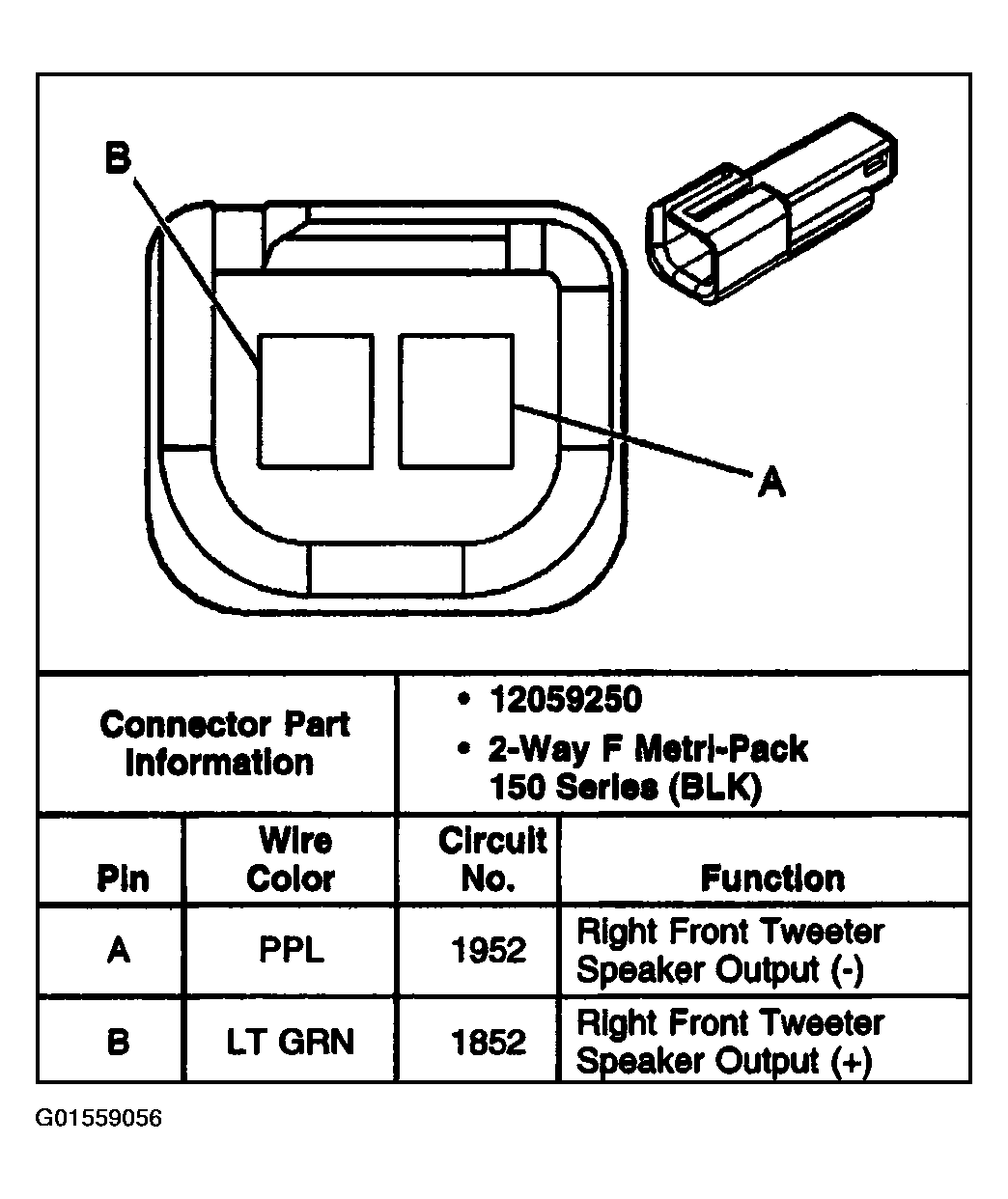

Fig 25: Identifying Tweeter - RF (UW6/UQ3) Connector Terminals

G01559056

Courtesy of GENERAL MOTORS CORP.
