Stationary Windows Connector End Views

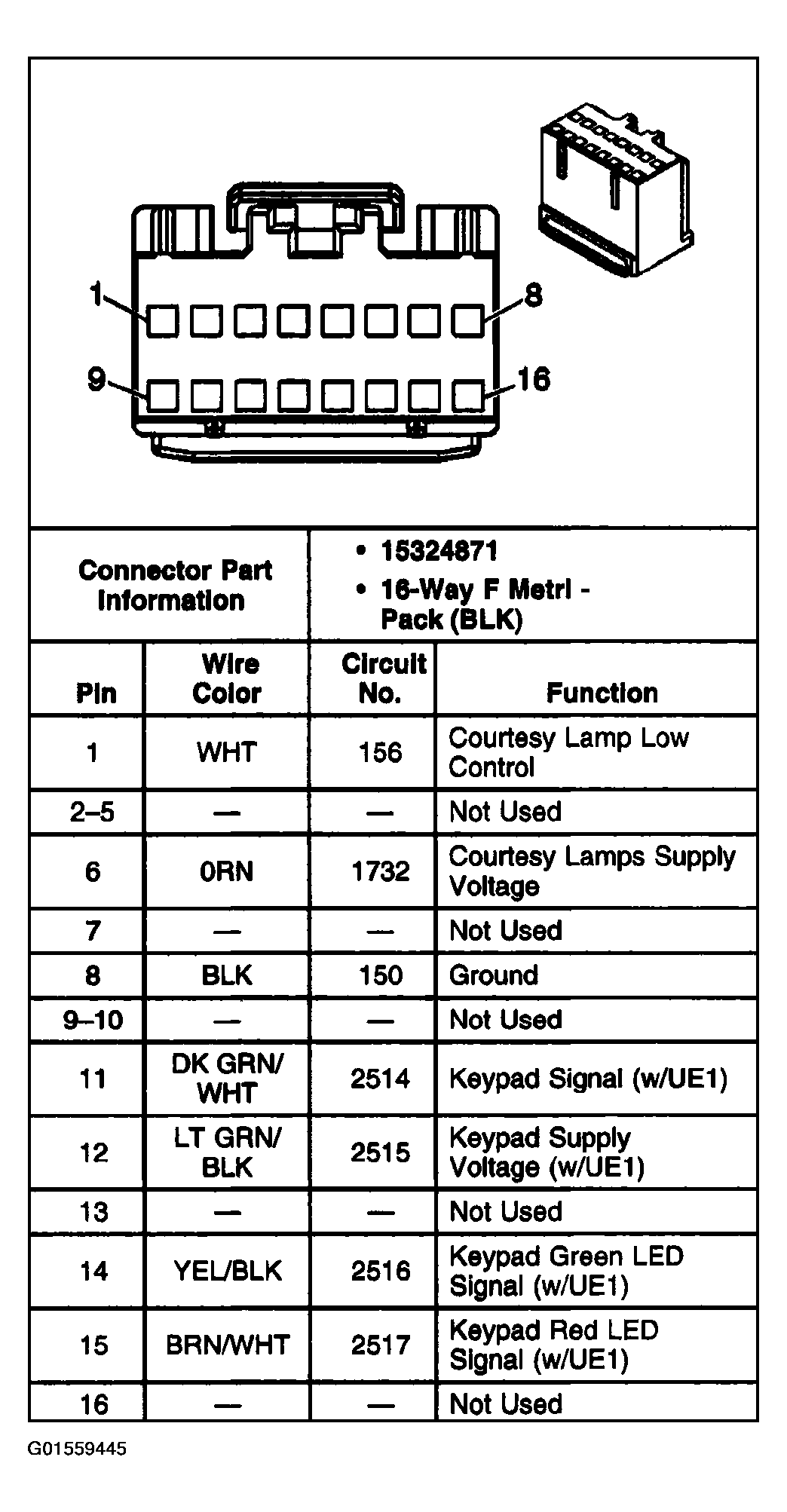

Fig 1: Identifying Inside Rearview Mirror Connector

Courtesy of GENERAL MOTORS CORP.

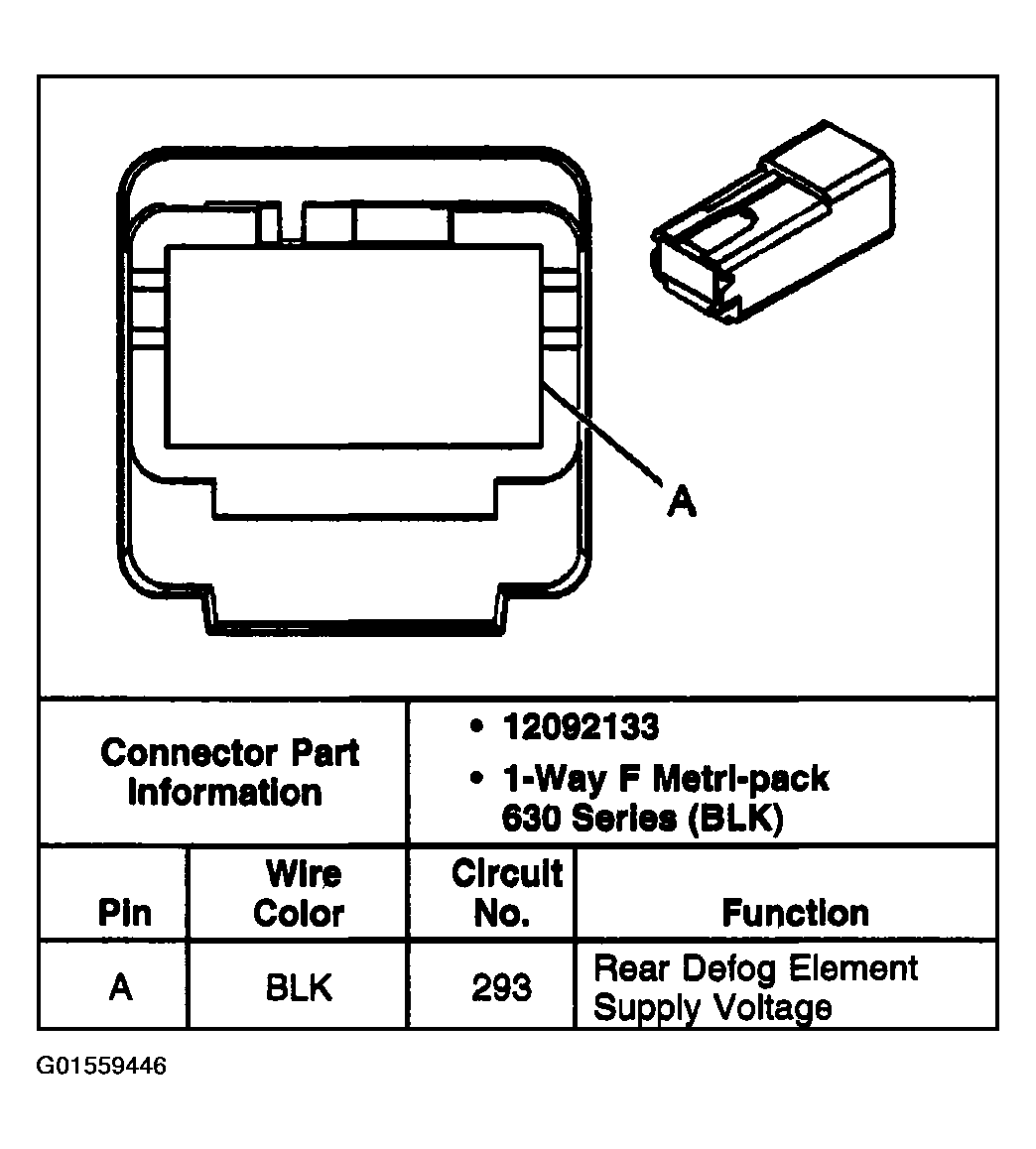

Fig 2: Identifying Rear Window Defogger Grid C1 Connector

Courtesy of GENERAL MOTORS CORP.

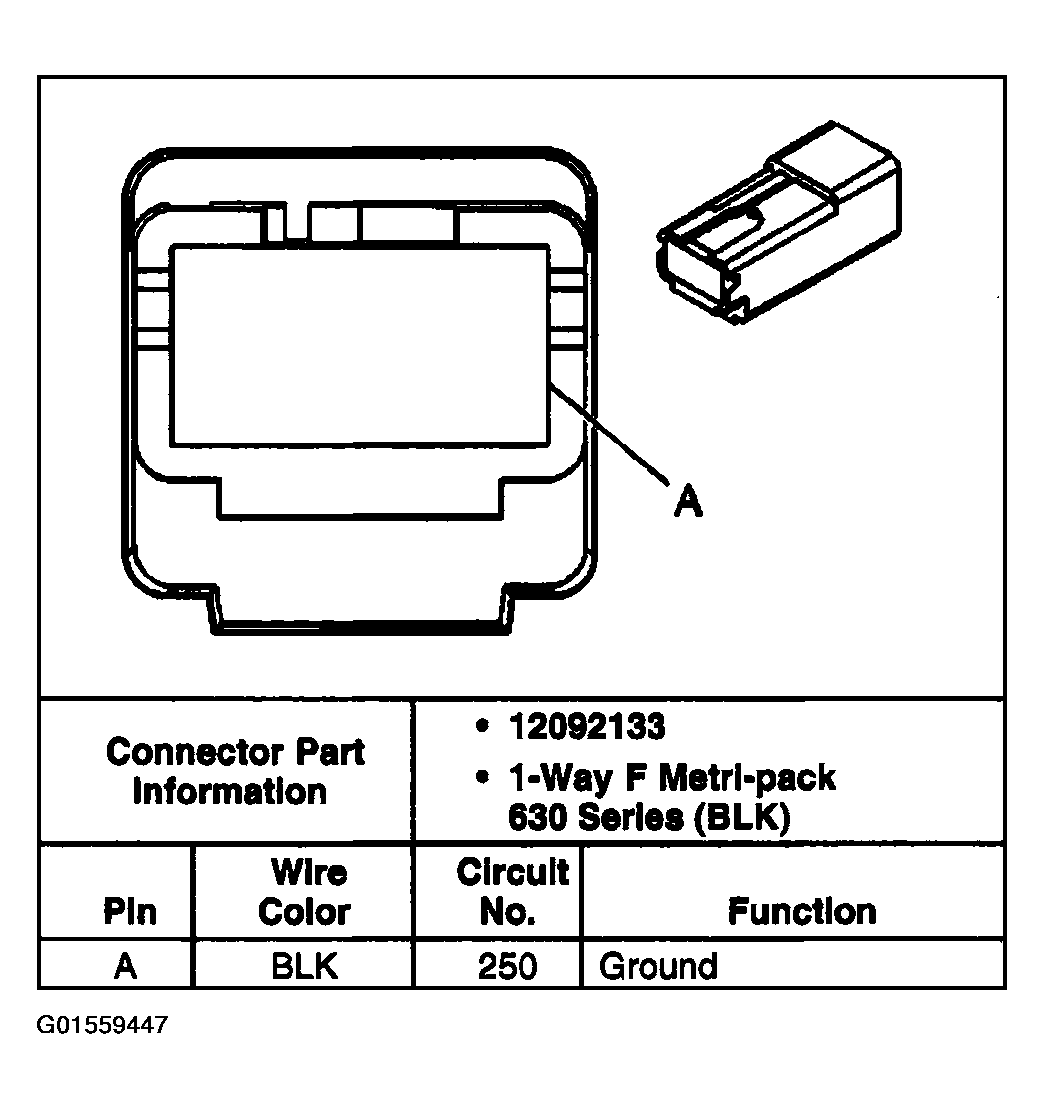

Fig 3: Identifying Rear Window Defogger Grid C2 Connector

Courtesy of GENERAL MOTORS CORP.
