Scan Tool Data List
Fig 1: Body Control Module - Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.

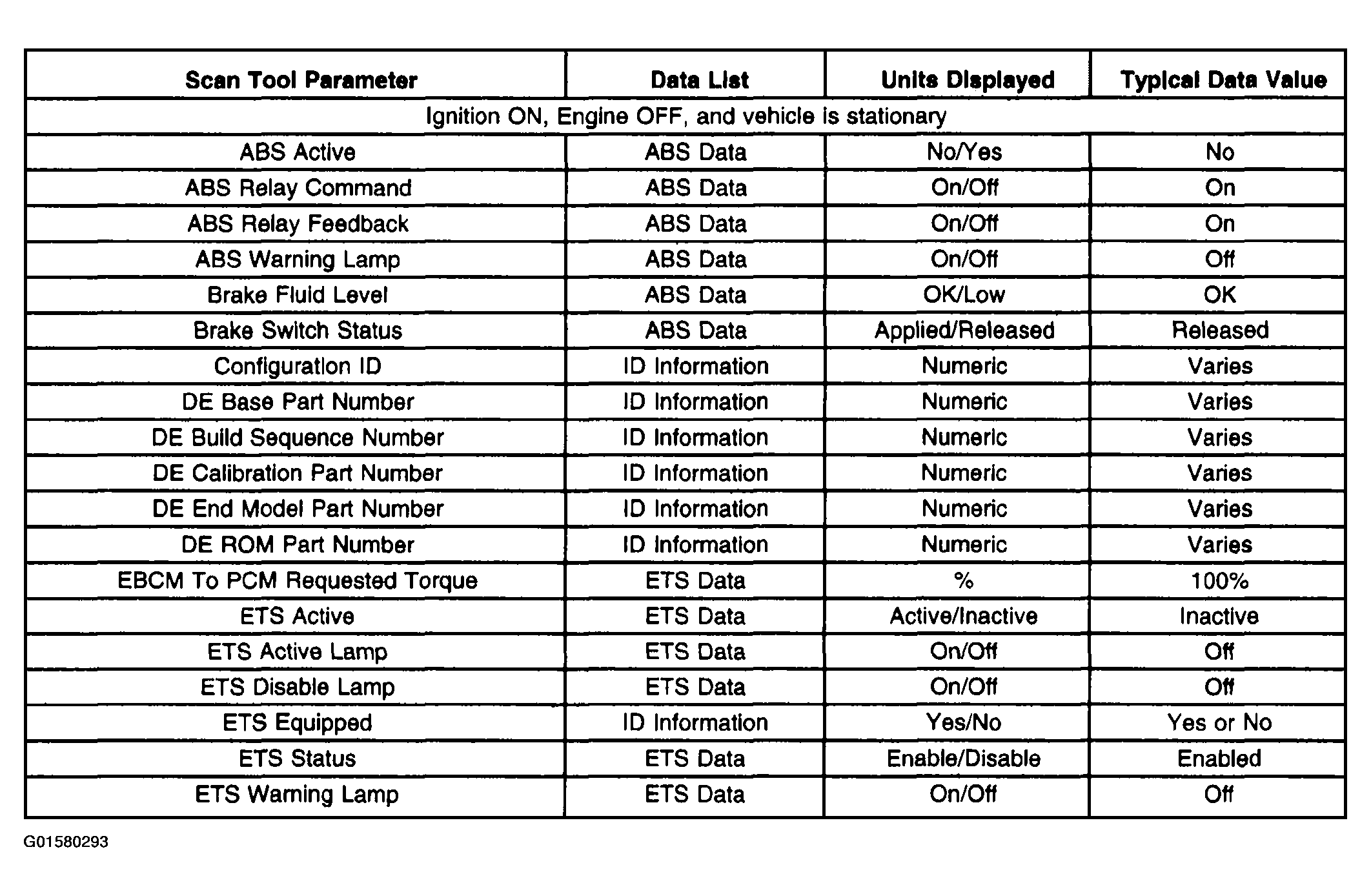

Fig 2: Electronic Brake Control Module - Scan Tool Data List (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

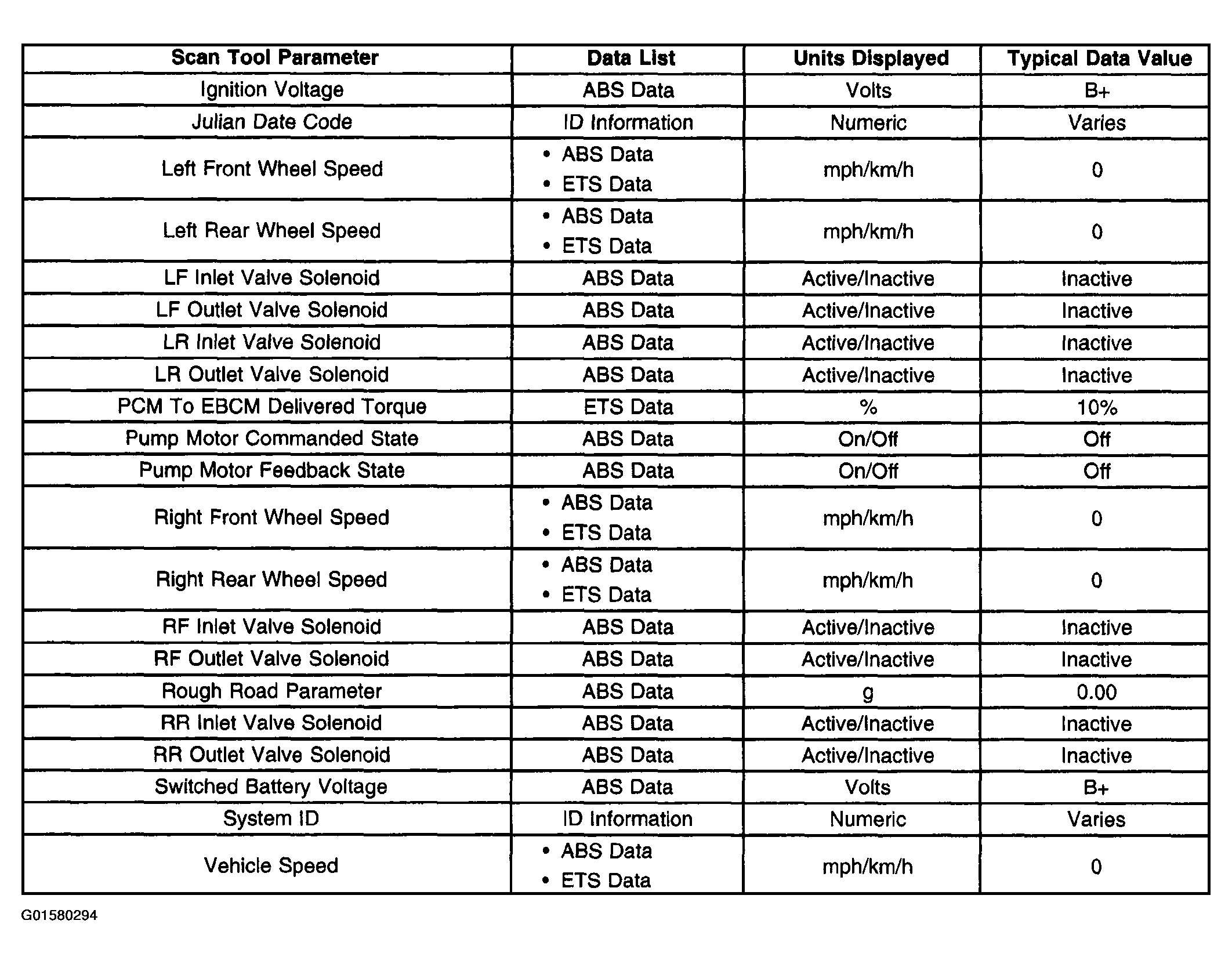

Fig 3: Electronic Brake Control Module - Scan Tool Data List (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Instrument Panel Cluster - Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
