Horns Component Views
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

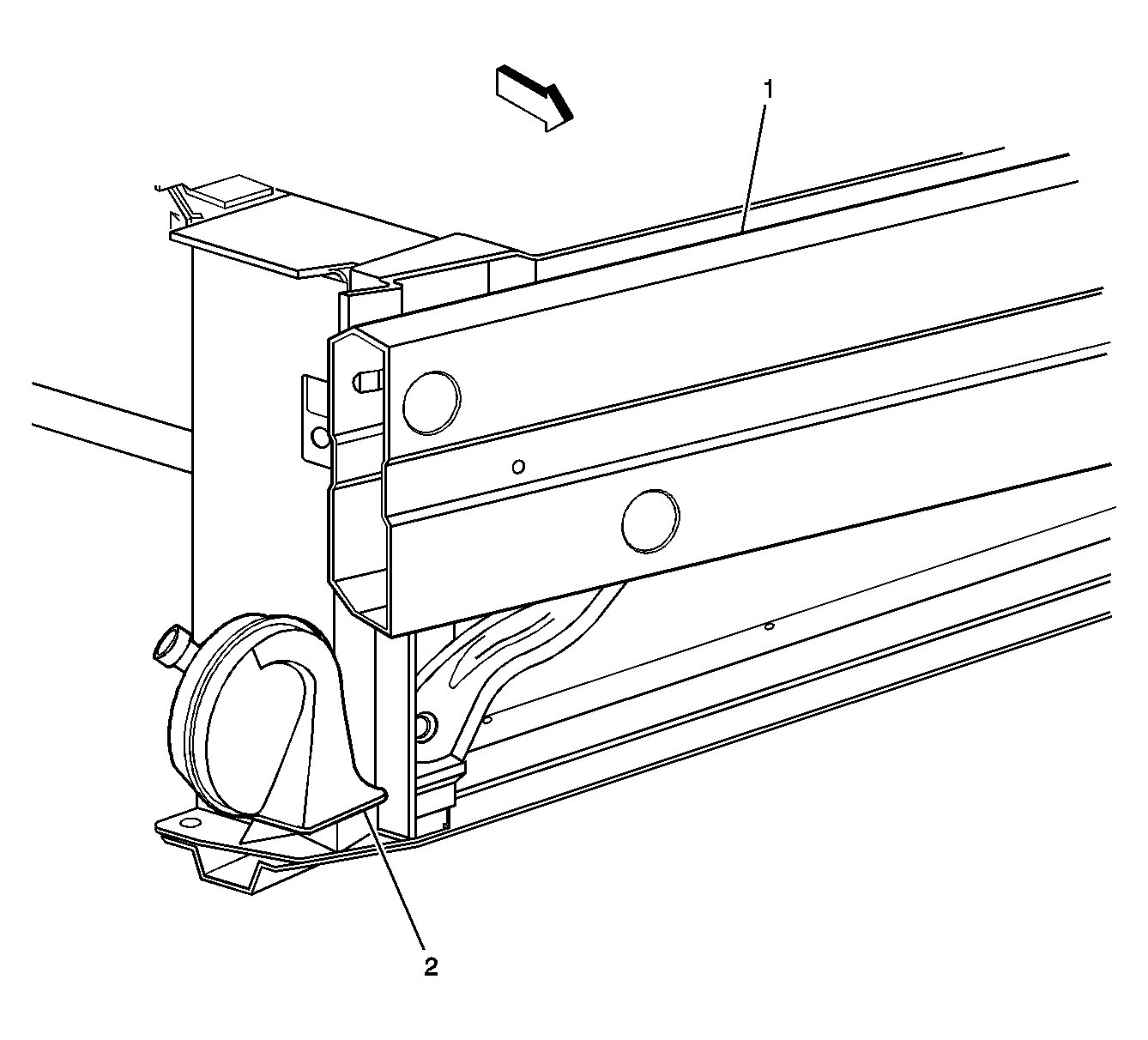

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Front Impact Bar |
| 2 |
Horn |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Body Control Module (BCM) |
| 2 |
BCM Connectors |
| 3 |
G204 |
| 4 |
G201 |
| 5 |
Fuse Block I/P |
| 6 |
Horn Relay |
