Steering Column Disassembled View (Tilt Column)

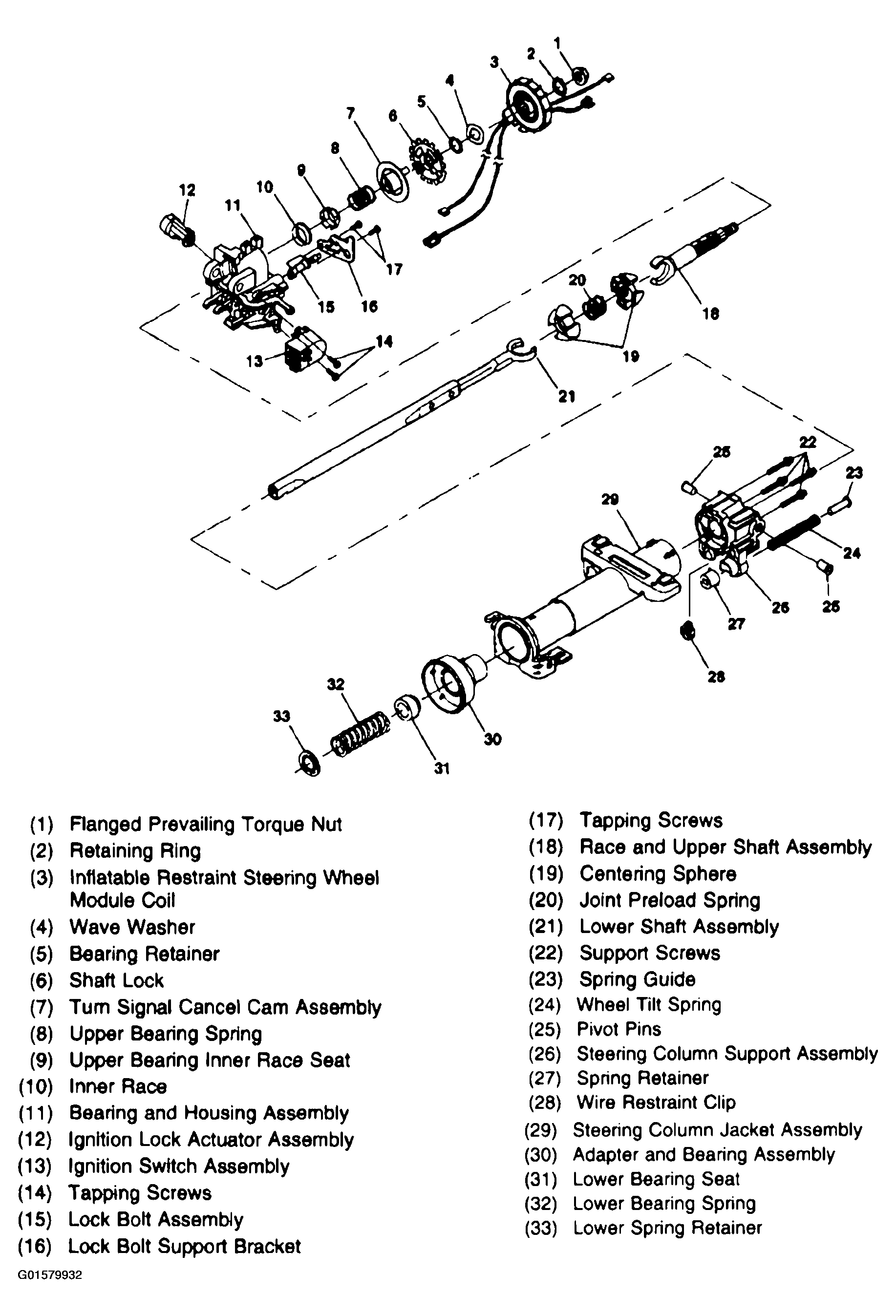

Fig 1: Exploded View Of Tilt, Floor Shift Steering Column
G01579932Courtesy of GENERAL MOTORS CORP.
