Keyless Entry Connector End Views
›
Remote Control Door Lock Receiver
Remote Control Door Lock Receiver

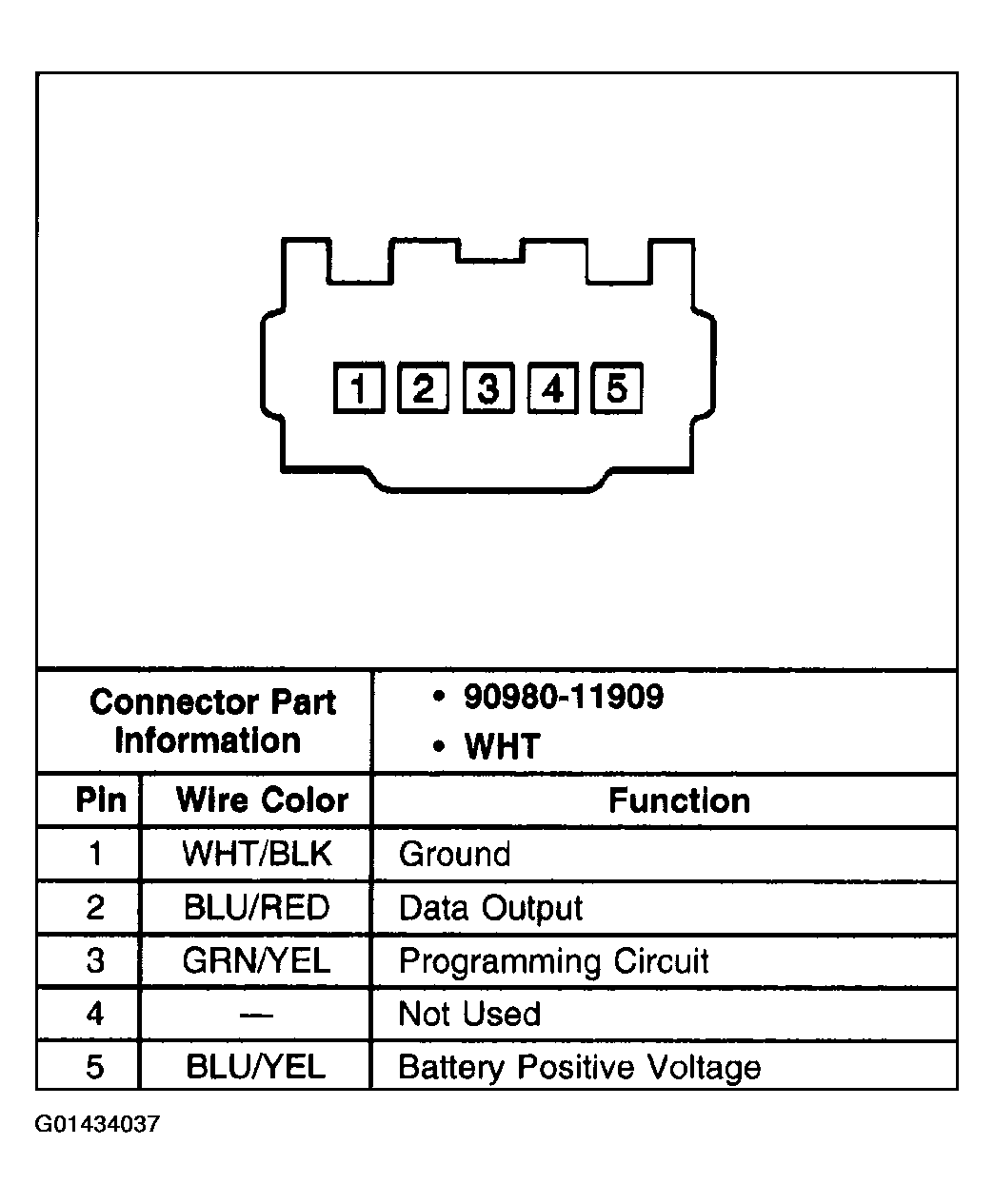

Fig 1: Identifying Remote Control Door Lock Receiver Connector And Pin Function Chart
Courtesy of GENERAL MOTORS CORP.
