Power Seat Systems Component Views

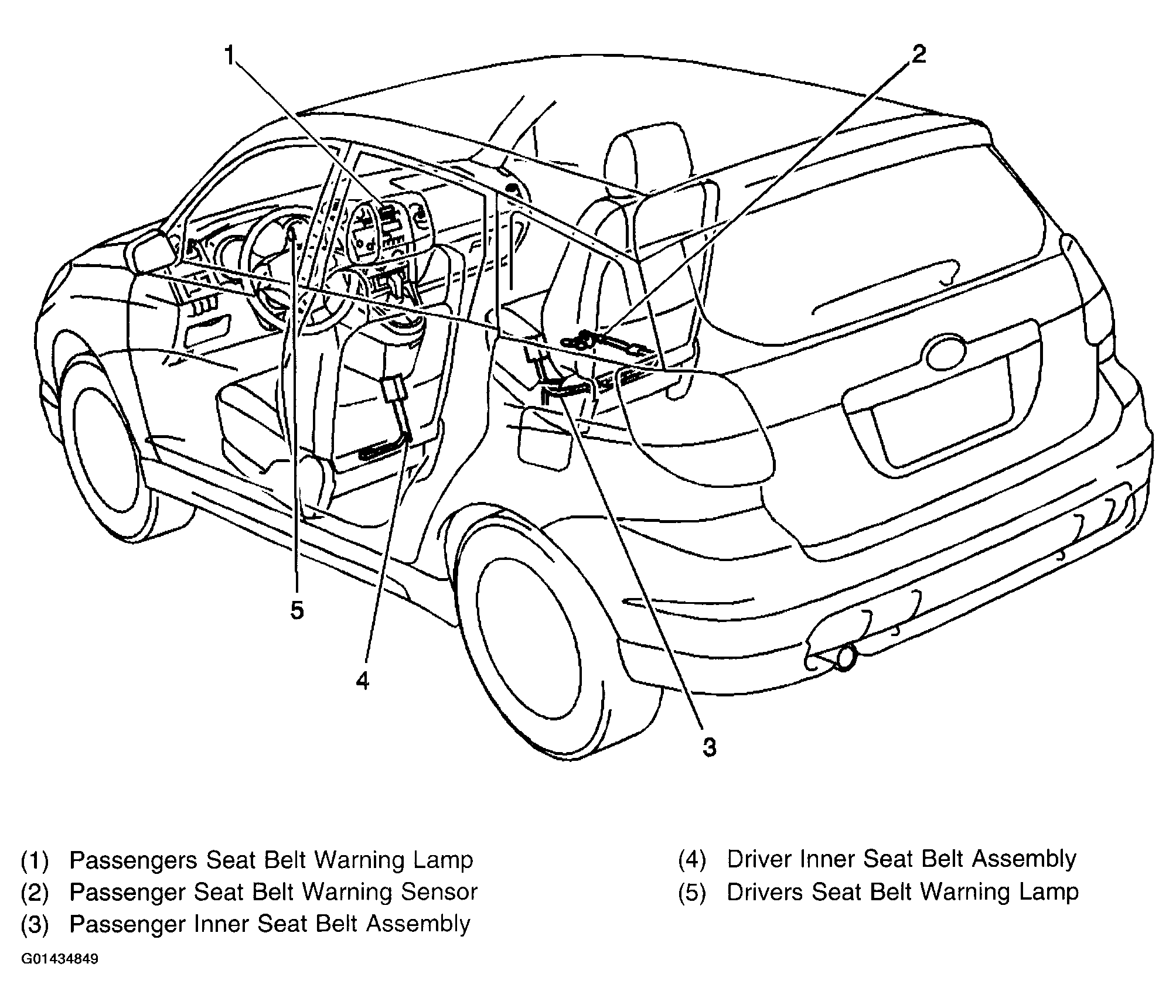

Fig 1: Power Seat Systems Component View - Seat Belt Warning System
G01434849Courtesy of GENERAL MOTORS CORP.

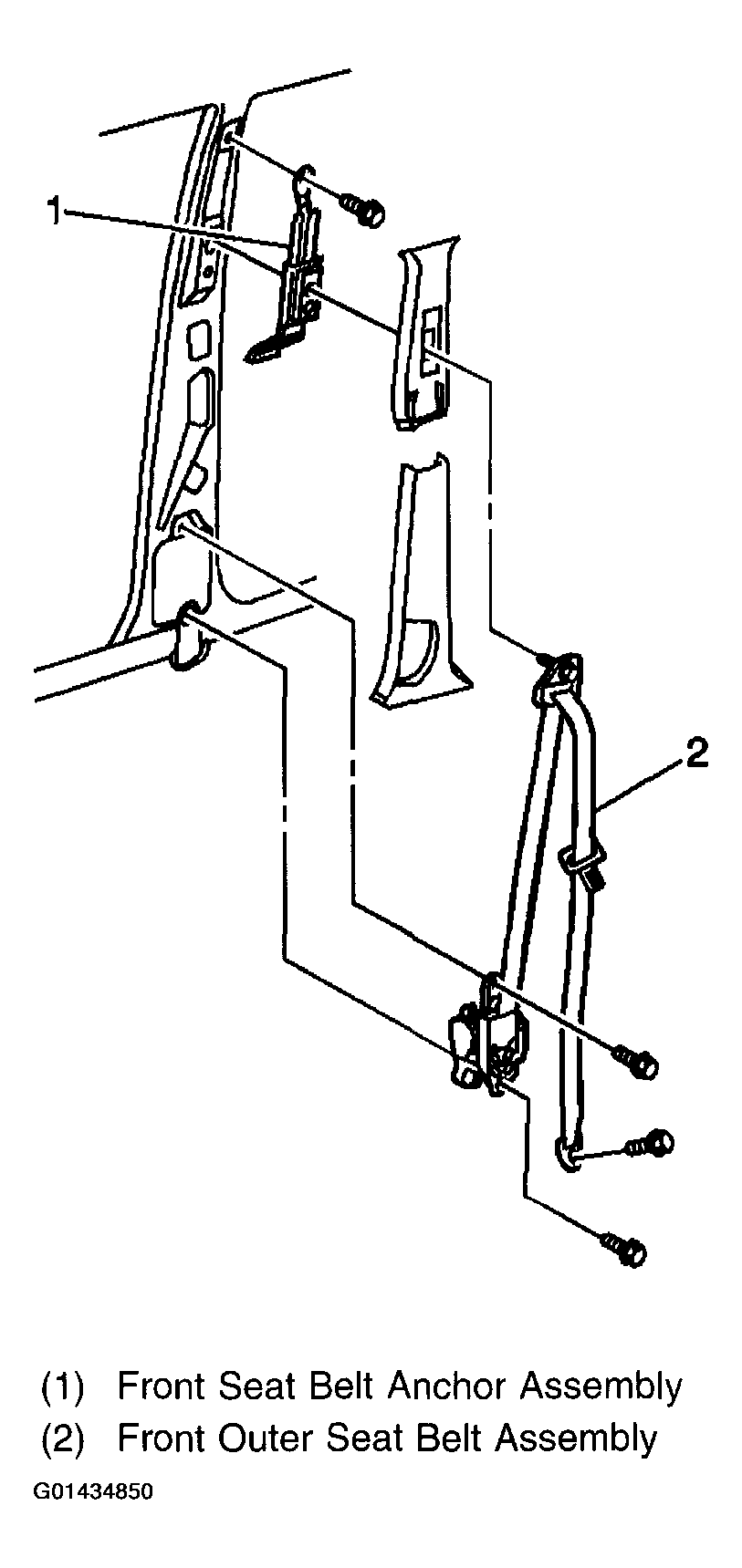

Fig 2: Power Seat Systems Component View - Front Seat Belts
G01434850Courtesy of GENERAL MOTORS CORP.

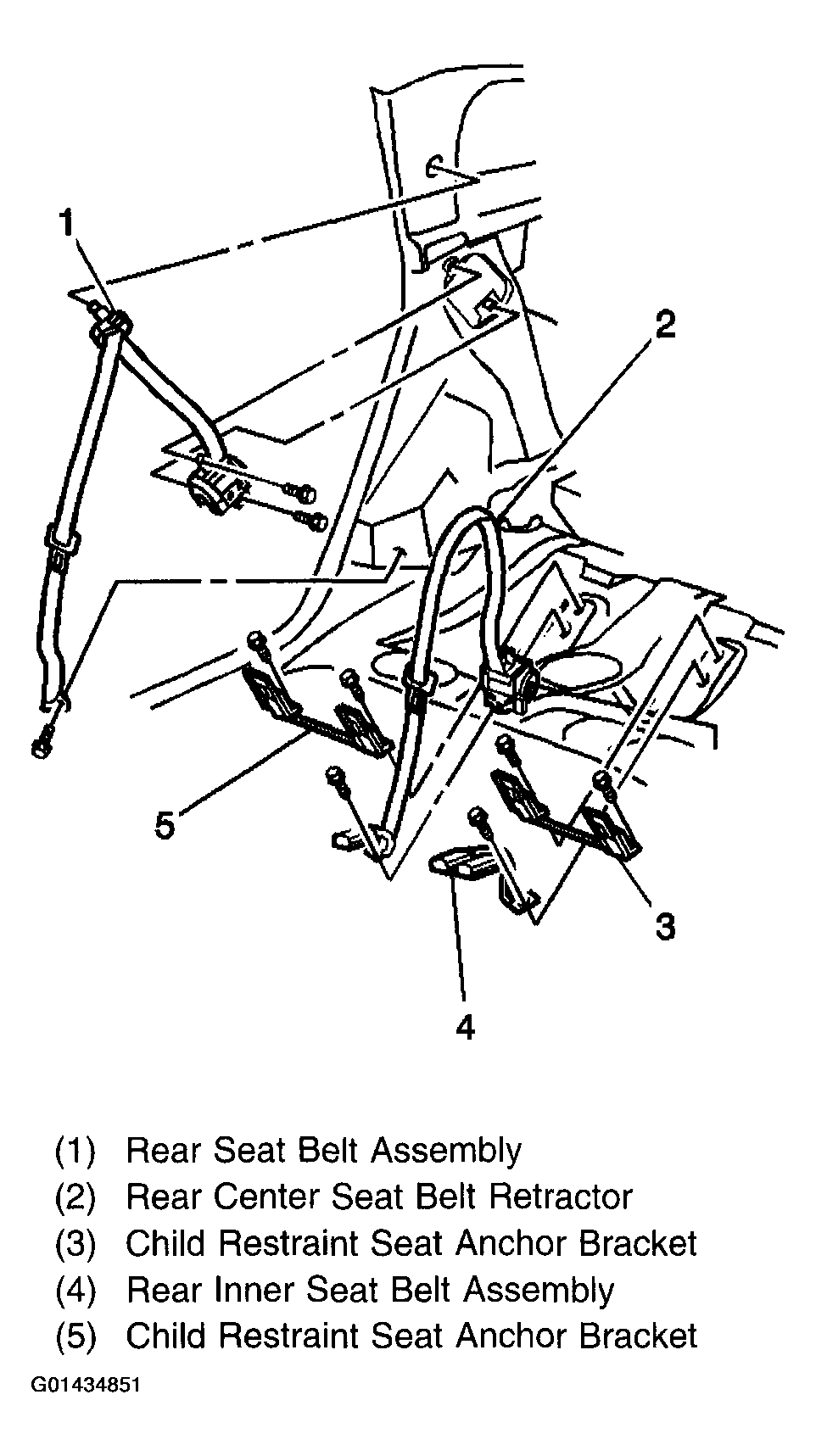

Fig 3: Power Seat Systems Component View - Rear Seat Belts
G01434851Courtesy of GENERAL MOTORS CORP.
