Removal Procedure
- Remove the rear side door trim. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR .
- Remove the rear water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR .
- Loosen the rubber window run channel along the center guide channel.

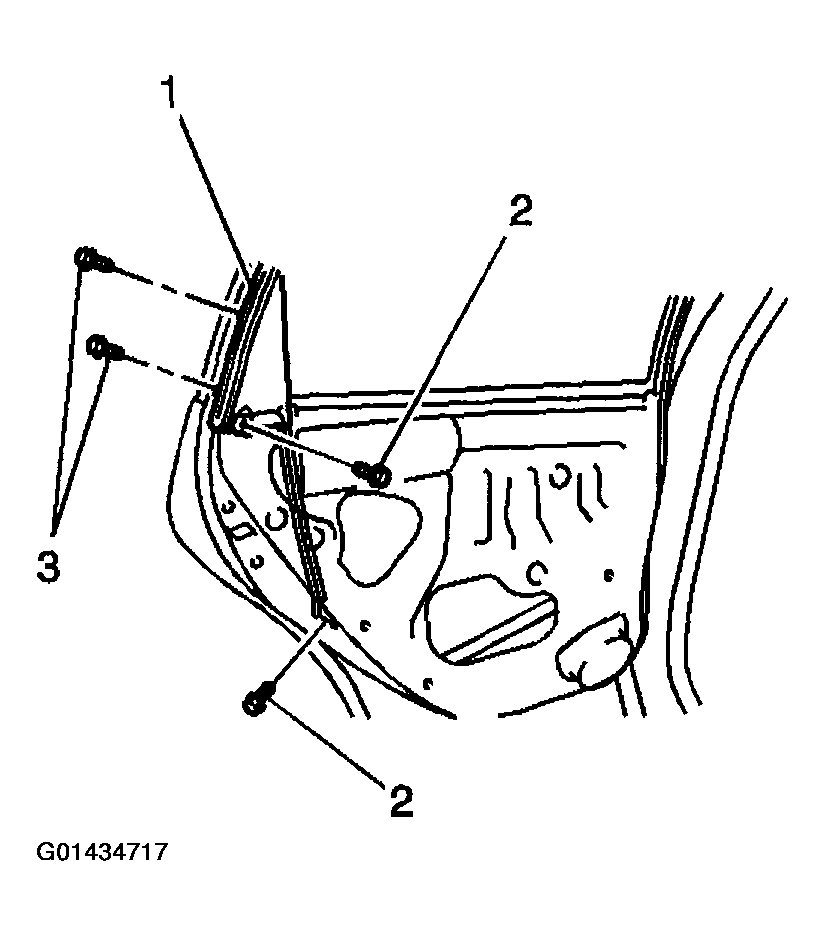

- Remove the following components from the rear door:
- The 2 bolts (2)
- The 2 screws (3)
- The window guide channel (1)
