Stationary Windows Connector End Views

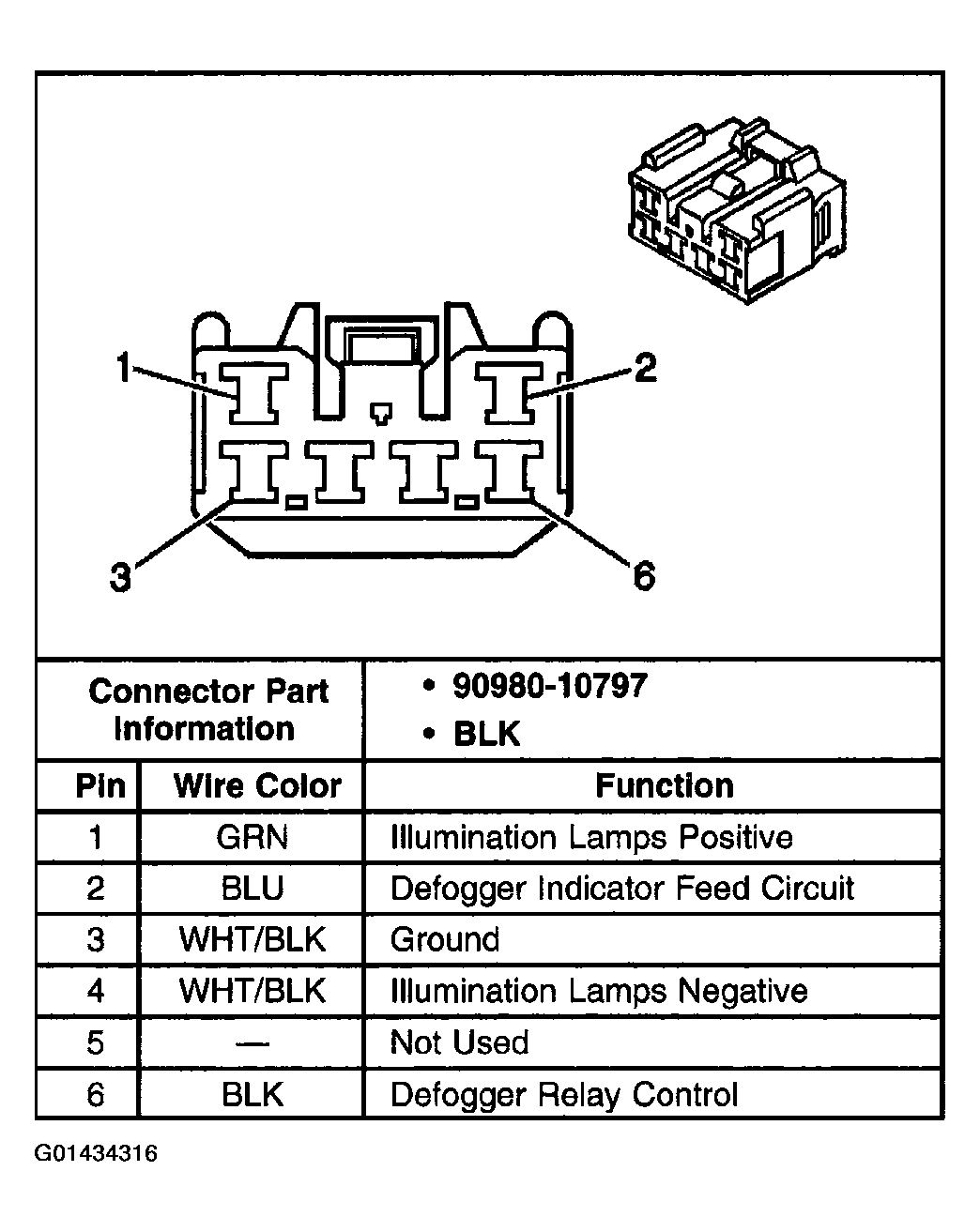

Fig 1: Identifying Defogger Switch Connector End
G01434316Courtesy of GENERAL MOTORS CORP.
