Defogger Schematics
Defogger Schematics

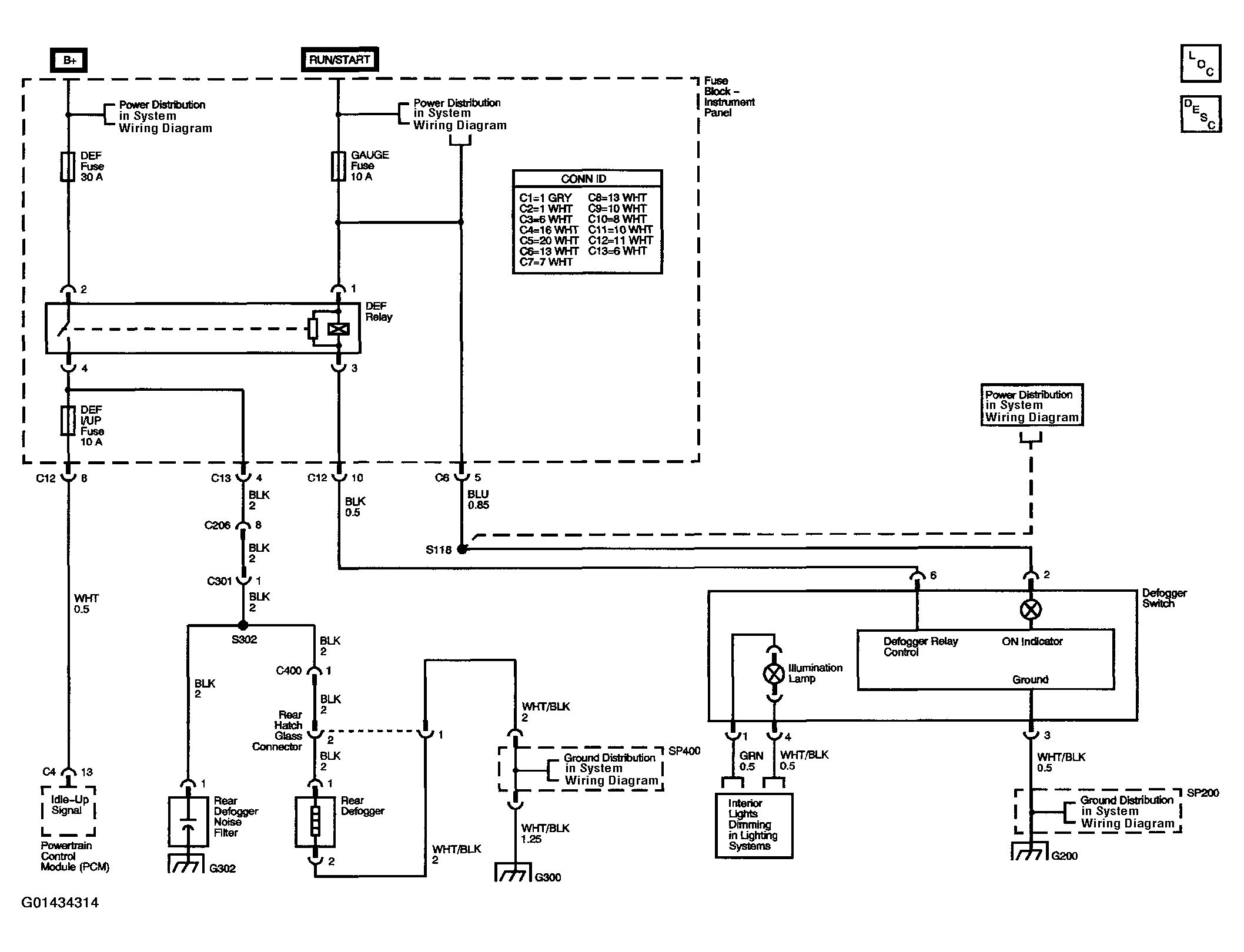

Fig 1: Defogger Schematics Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
