Pontiac
›
2003
›
Vibe Base, AWD
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Antilock Brake System
›
Component Locator
›
ABS Component Views
ABS Component Views

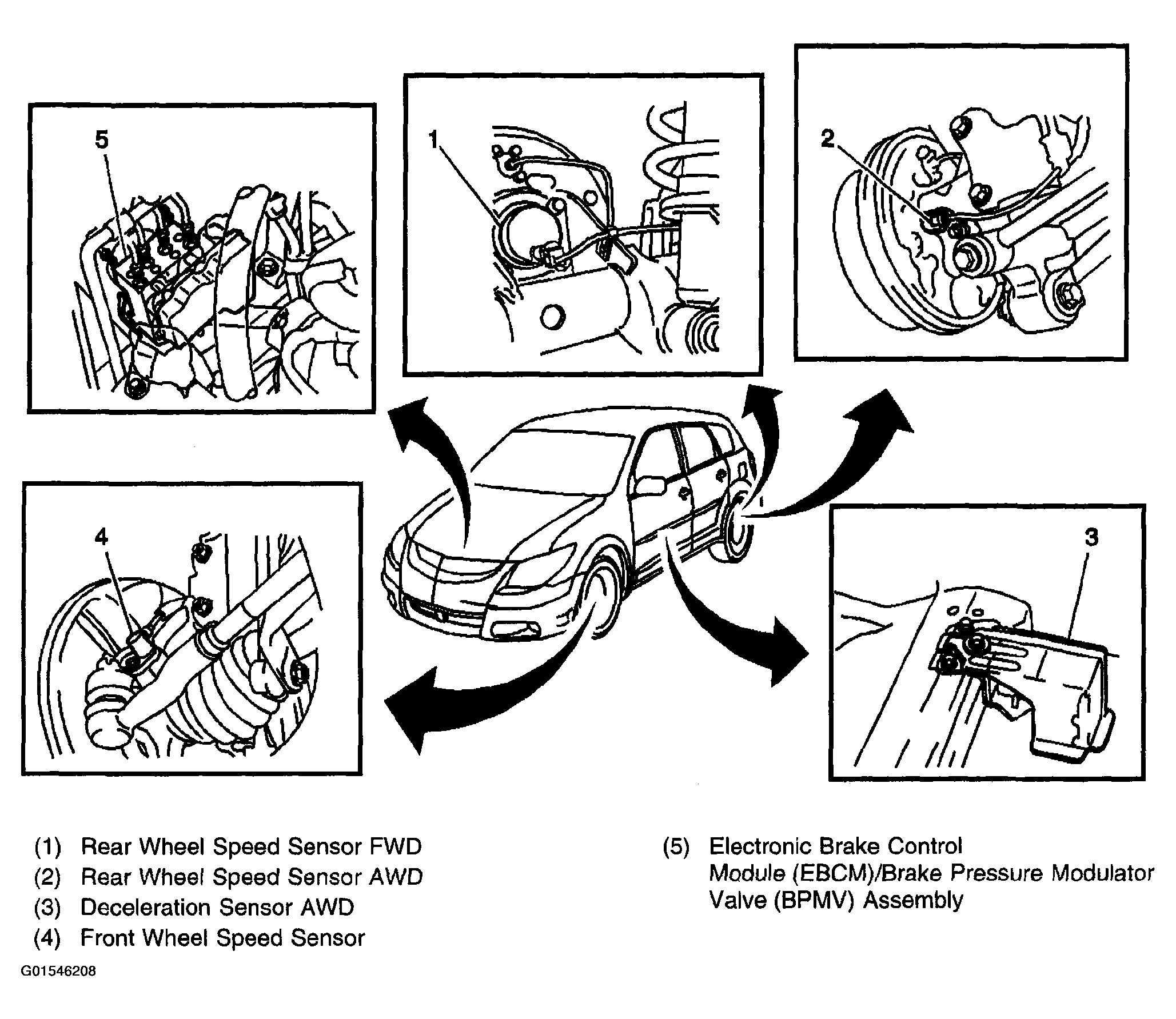

Fig 1: ABS Component Views
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
