Blower Switch Connector End View
Blower Switch Connector End View

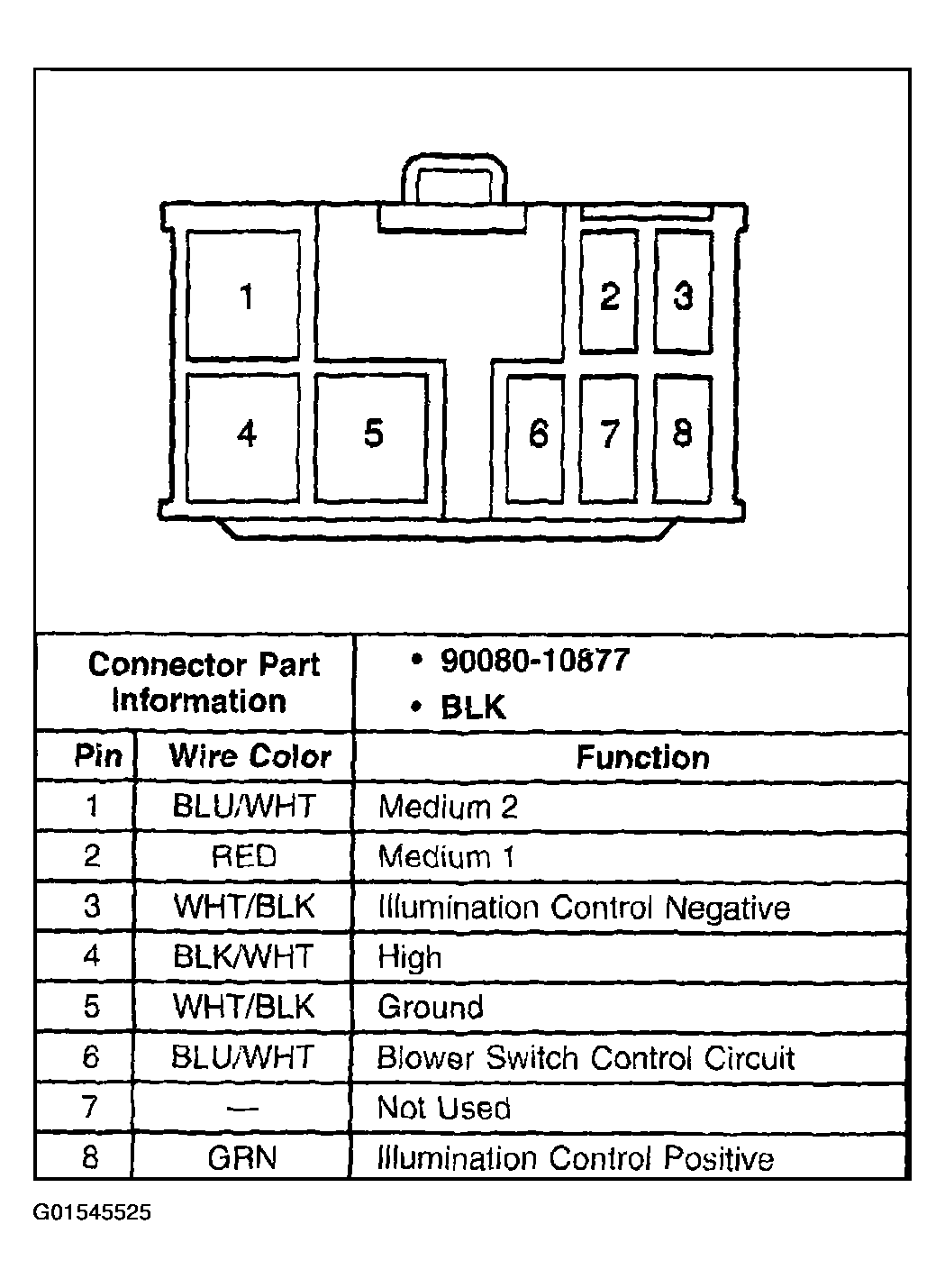

Fig 1: Blower Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
