Glass Breakage Sensor Connector End View
Glass Breakage Sensor Connector End View

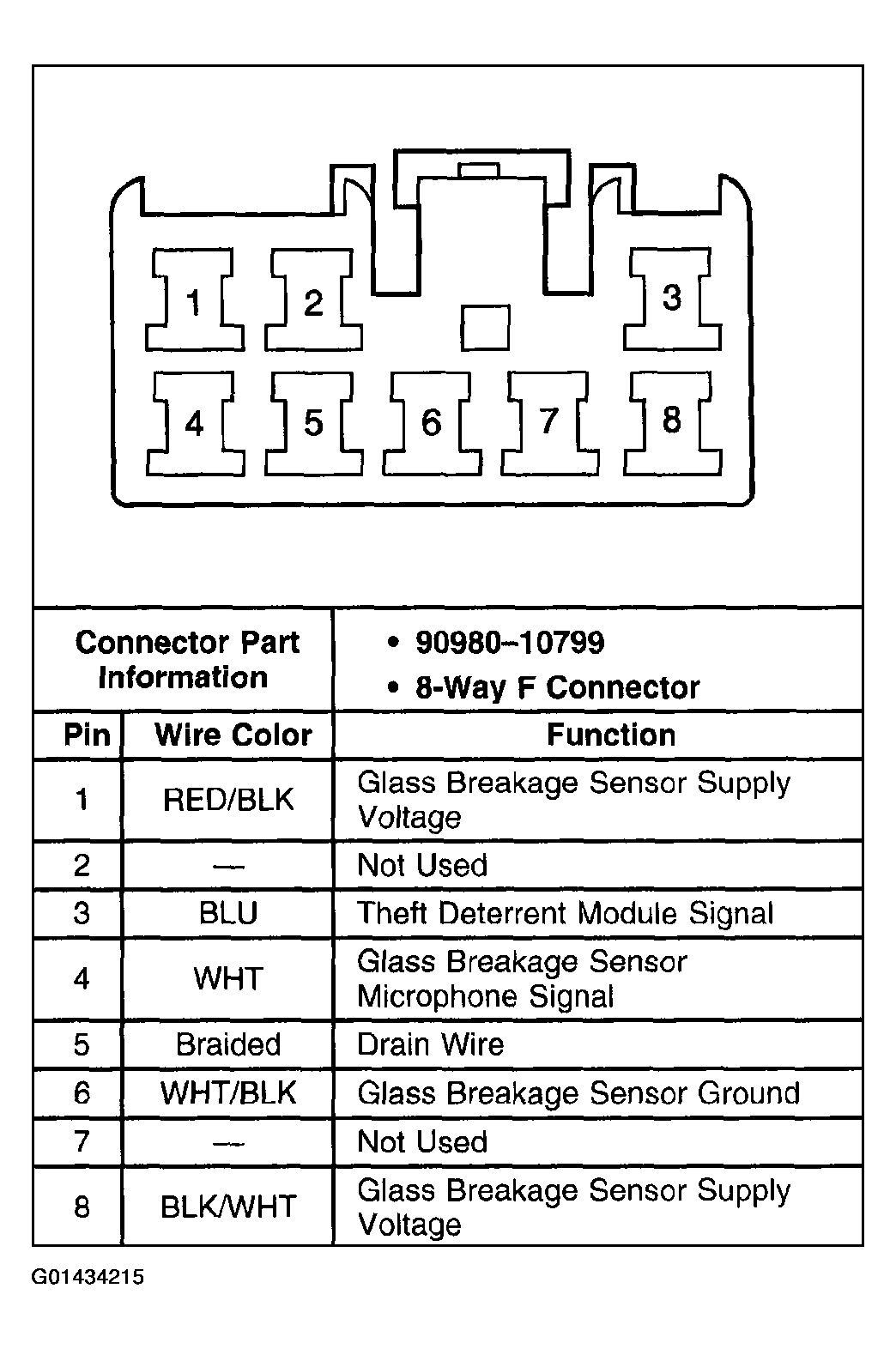

Fig 1: Glass Breakage Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
