Locating Generator Connector End View
Locating Generator Connector End View

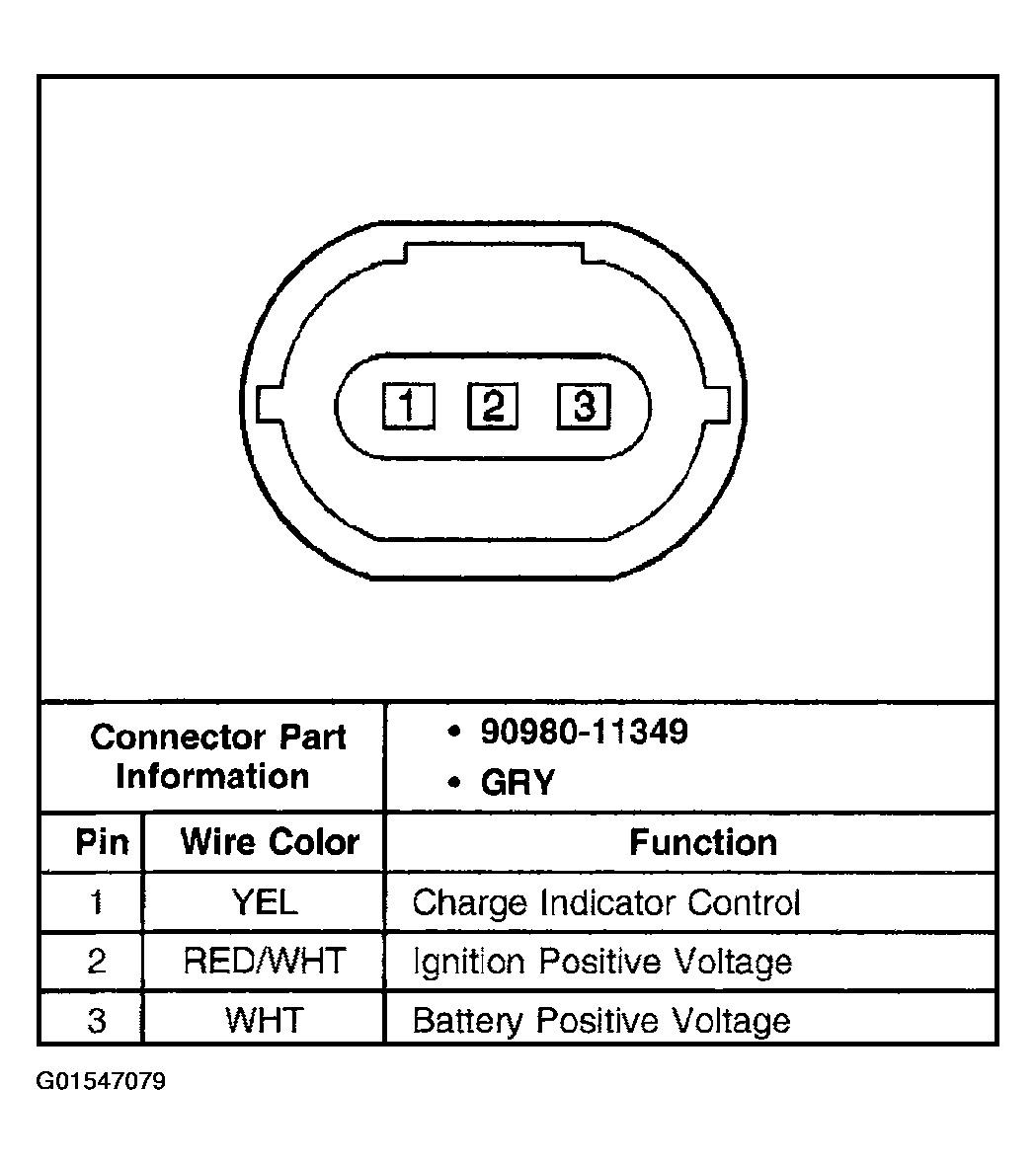

Fig 1: Locating Generator Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
