Terminals Of Overdrive Switch Connector End View

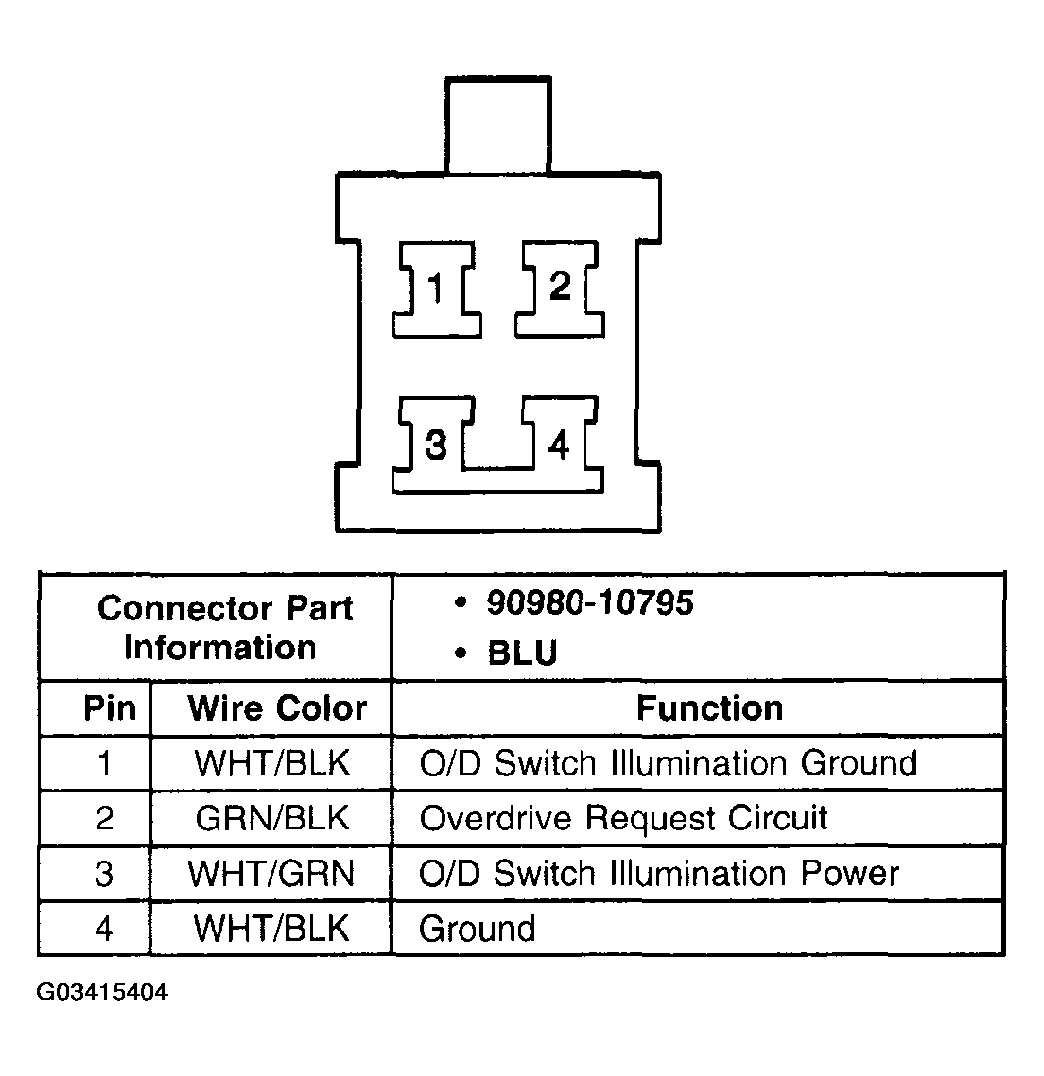

Fig 1: Terminals Of Overdrive Switch Connector End View
G03415404Courtesy of GENERAL MOTORS CORP.

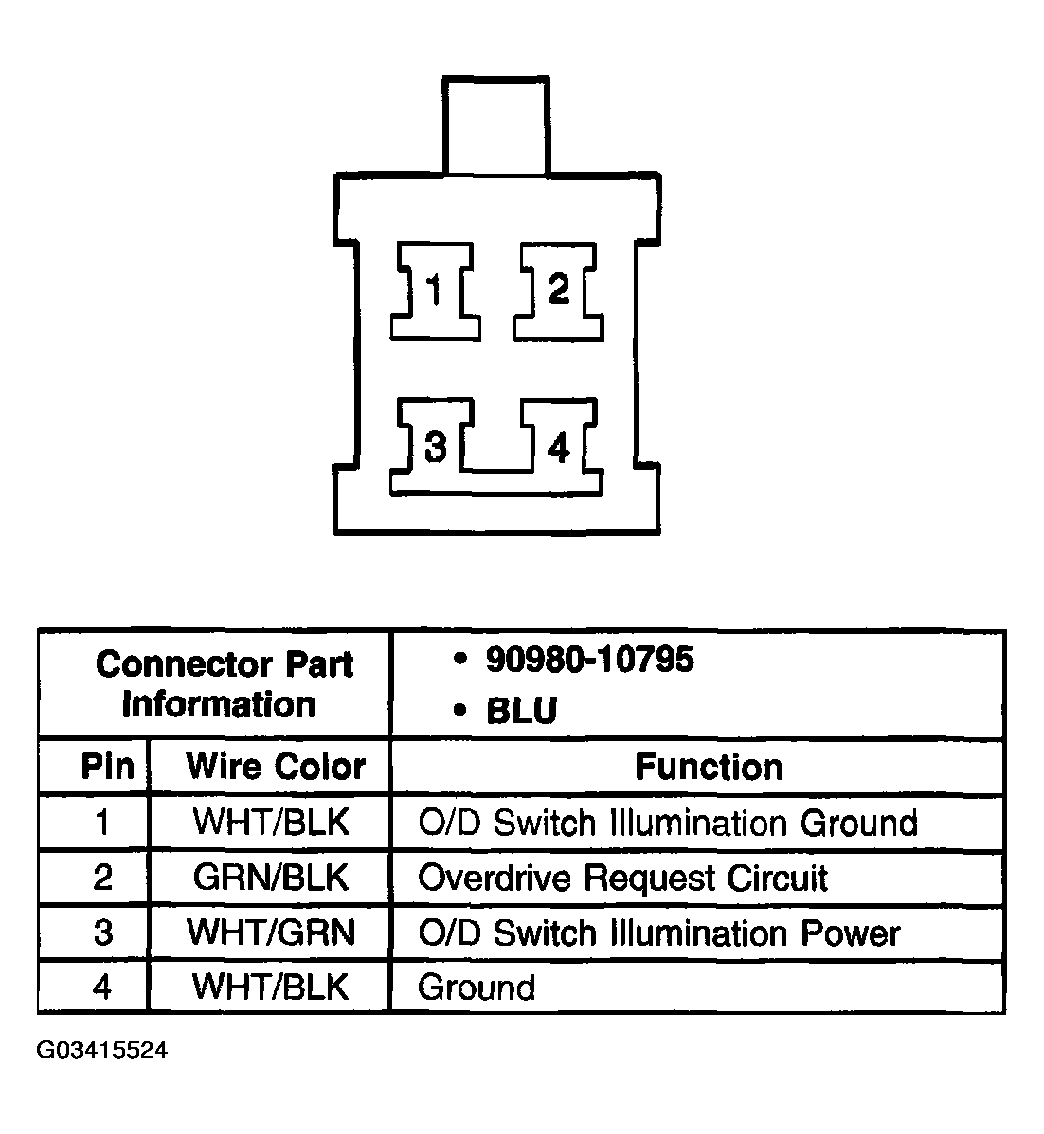

Fig 1: Terminals Of Overdrive Switch Connector End View
G03415524Courtesy of GENERAL MOTORS CORP.
