Fan Motor Connector End View

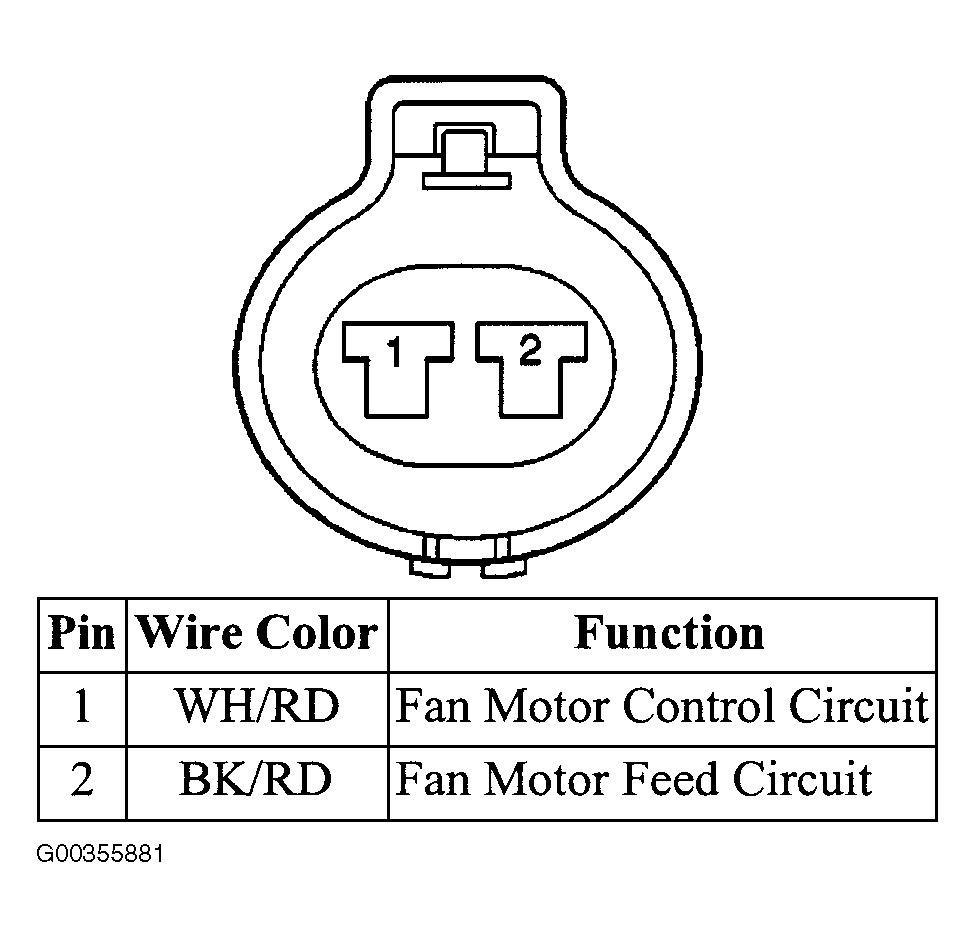

Fig 1: Fan Motor Connector End View
G00355881Courtesy of GENERAL MOTORS CORP.

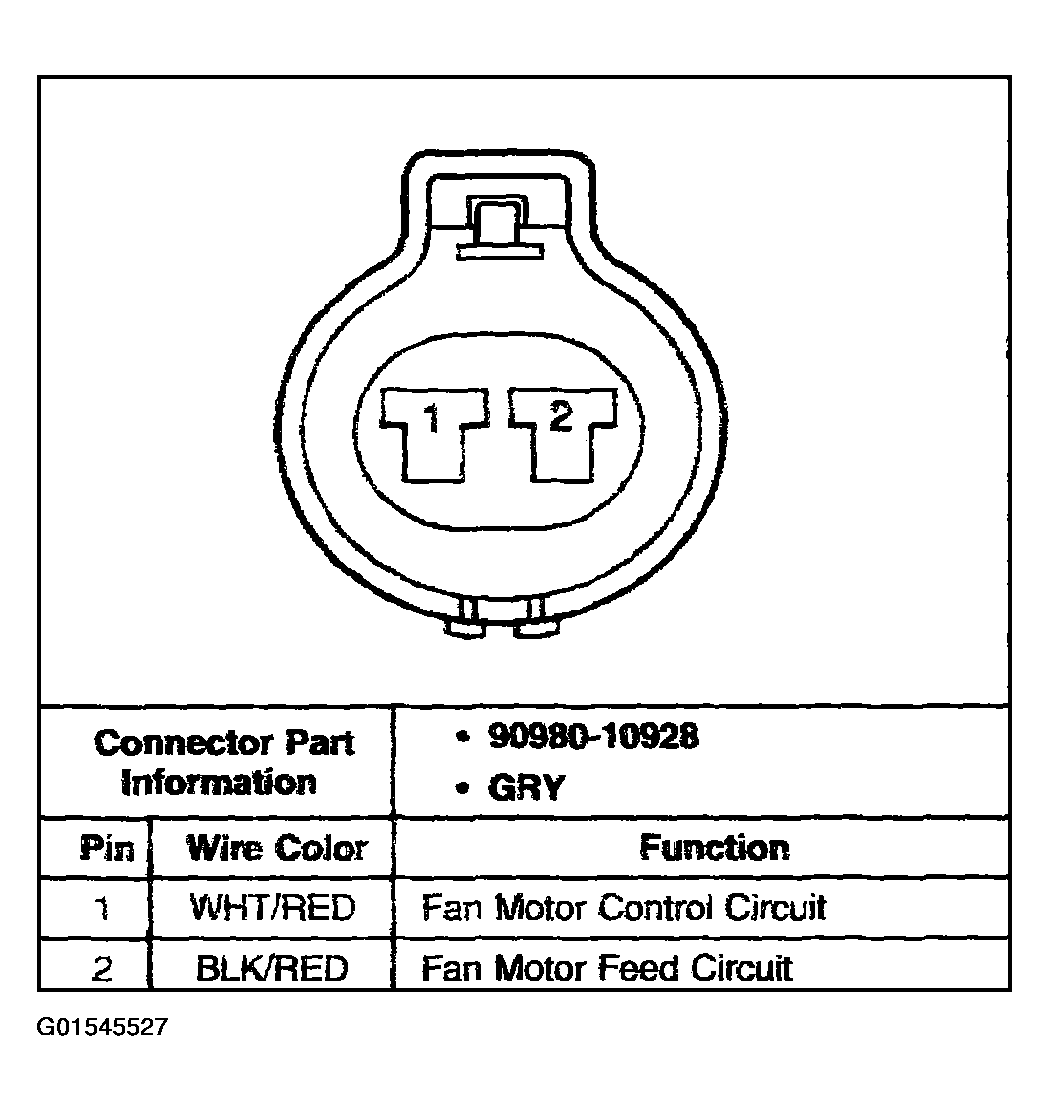

Fig 1: Fan Motor Connector End View
G01545527Courtesy of GENERAL MOTORS CORP.
