Power Roof Systems Connector End View - Sunroof Switch Assembly
Power Roof Systems Connector End View - Sunroof Switch Assembly

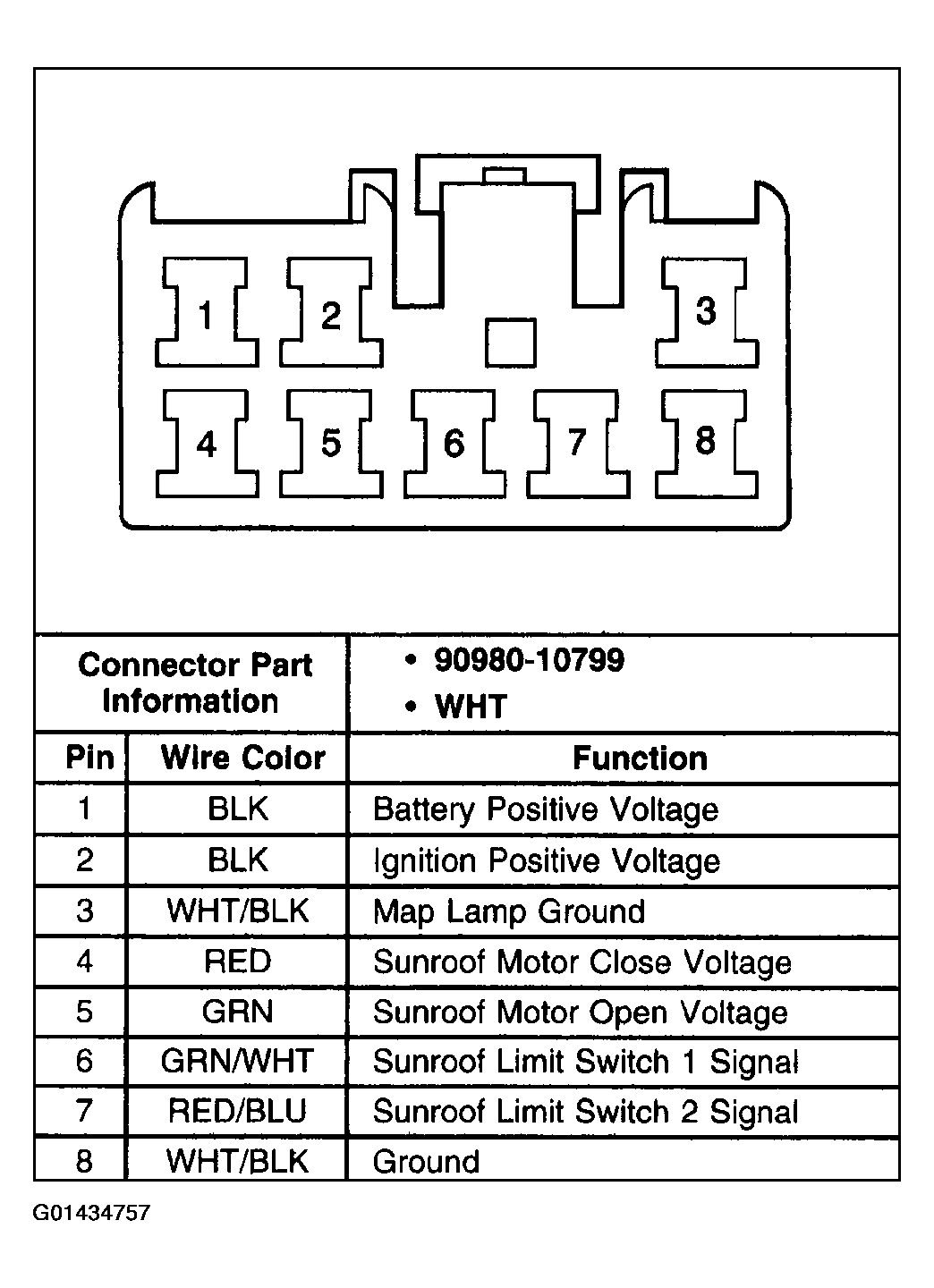

Fig 1: Power Roof Systems Connector End View - Sunroof Switch Assembly
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
