Refrigerant Pressure Switch Connector End View

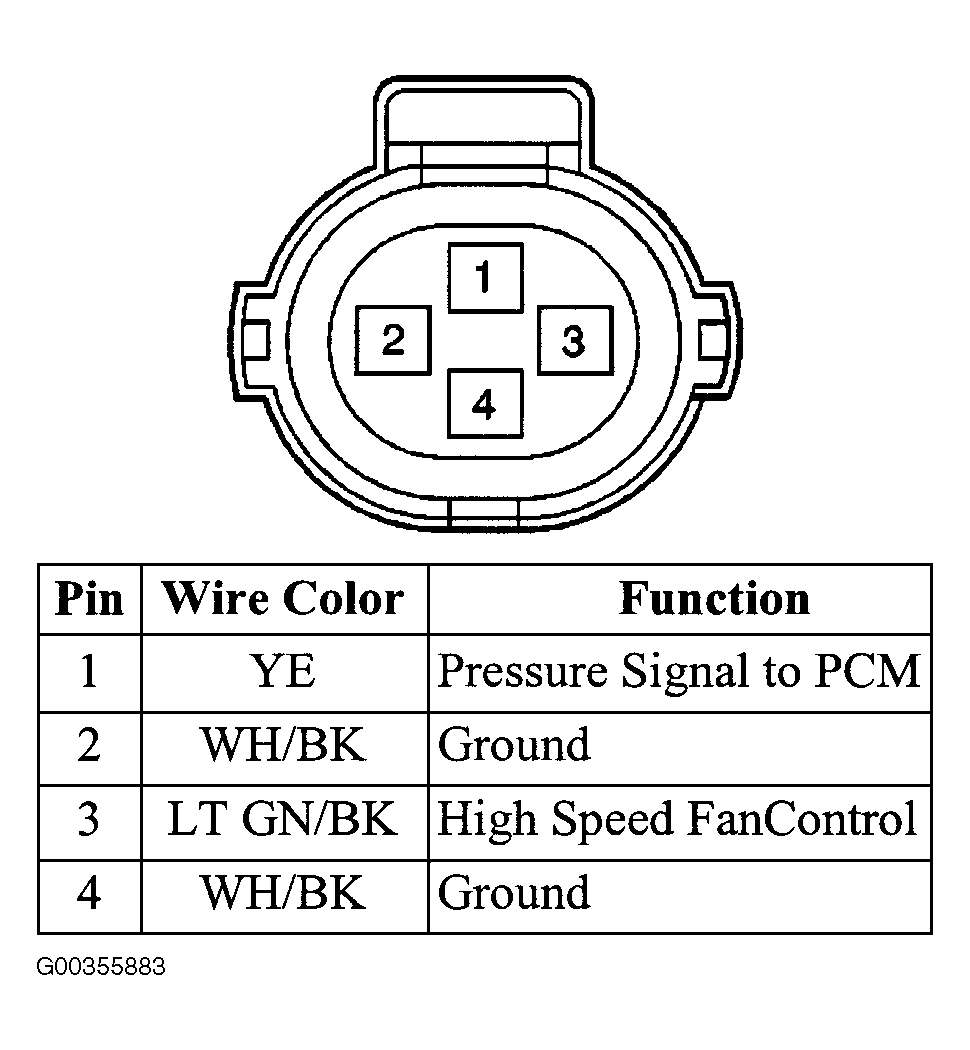

Fig 1: Refrigerant Pressure Switch Connector End View
G00355883Courtesy of GENERAL MOTORS CORP.

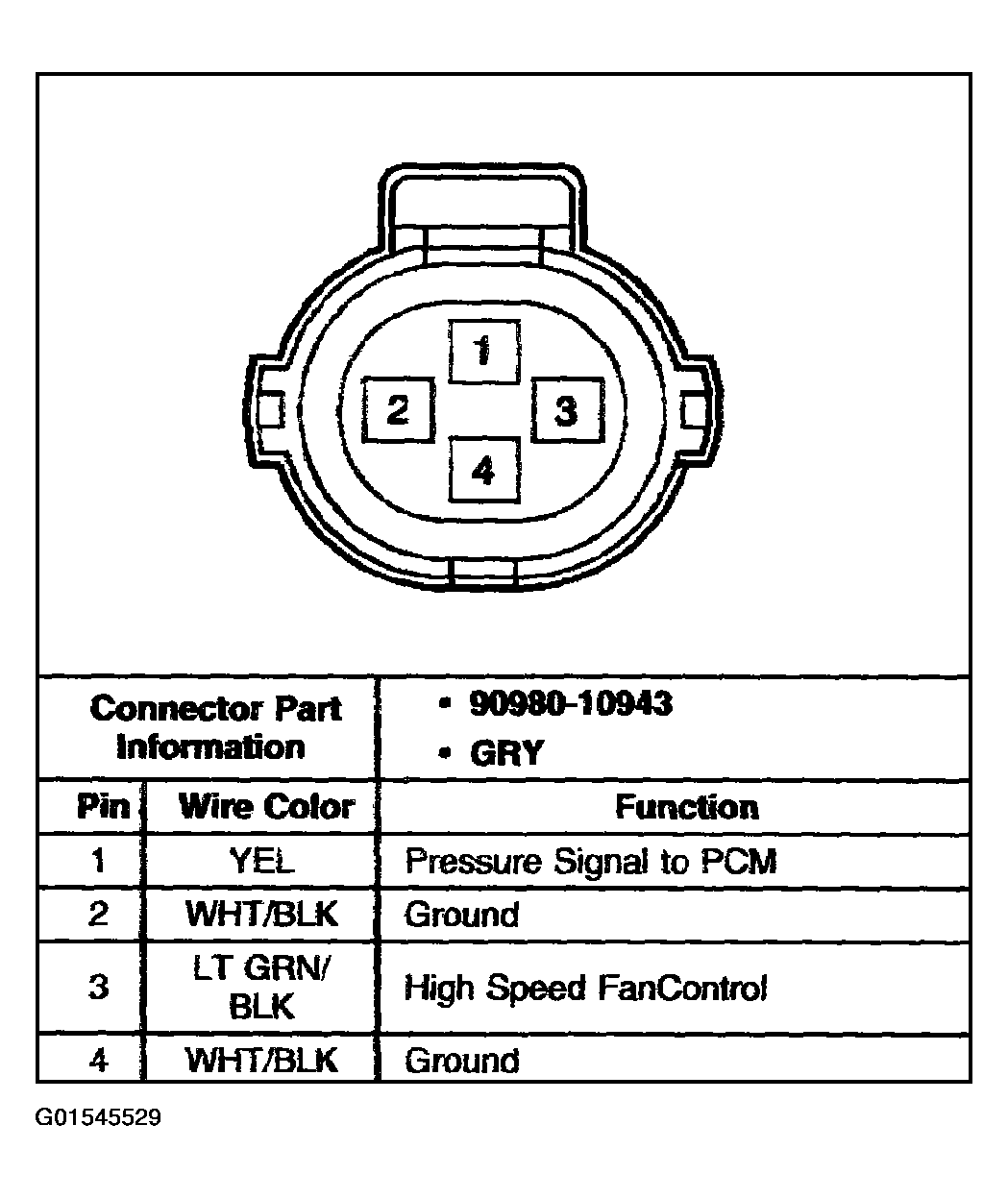

Fig 1: Refrigerant Pressure Switch Connector End View
G01545529Courtesy of GENERAL MOTORS CORP.
