Starter Cut Relay Connector End View
Starter Cut Relay Connector End View

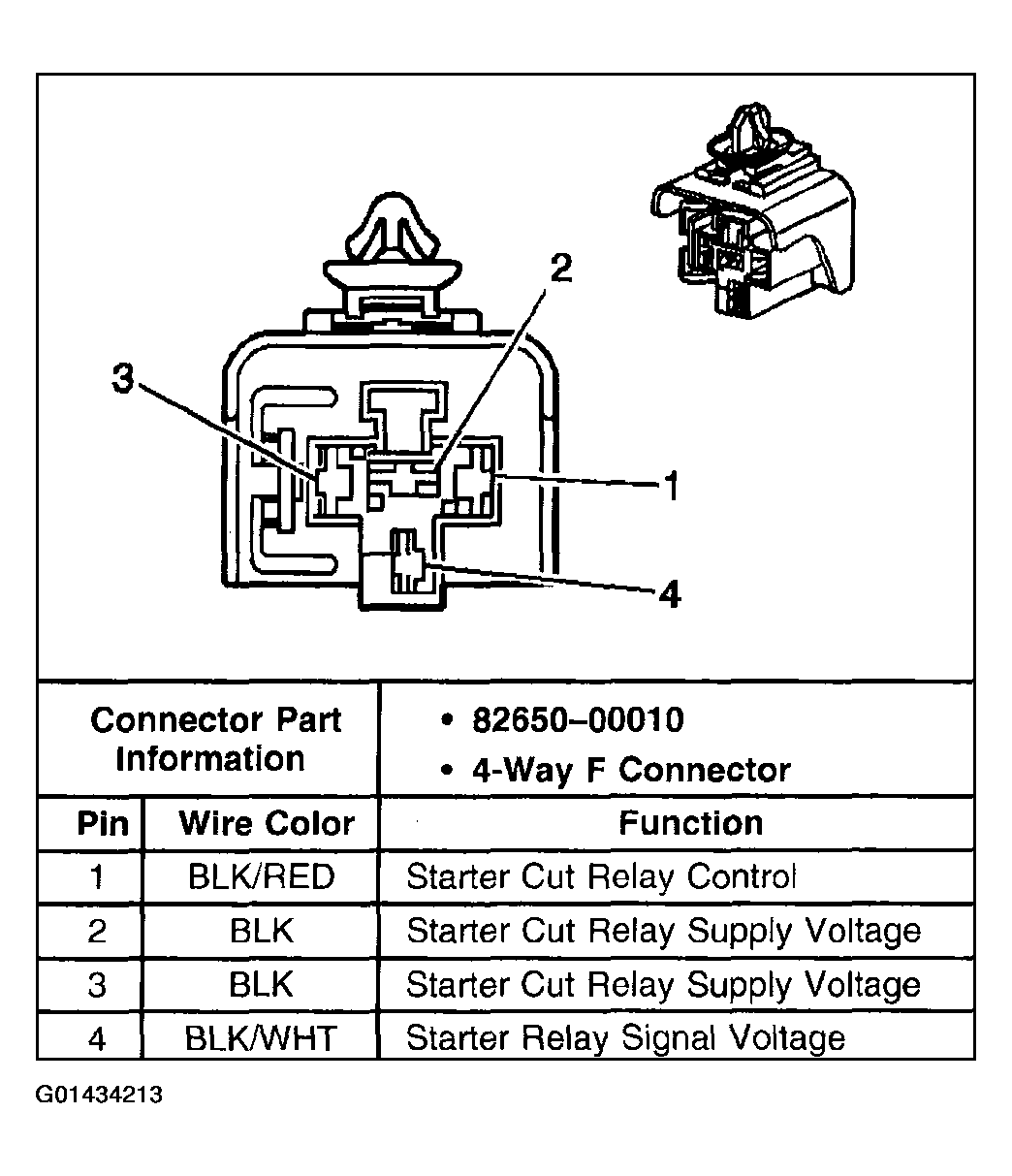

Fig 1: Starter Cut Relay Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
