Terminals Of Transmission Connector Connector End View
Terminals Of Transmission Connector Connector End View

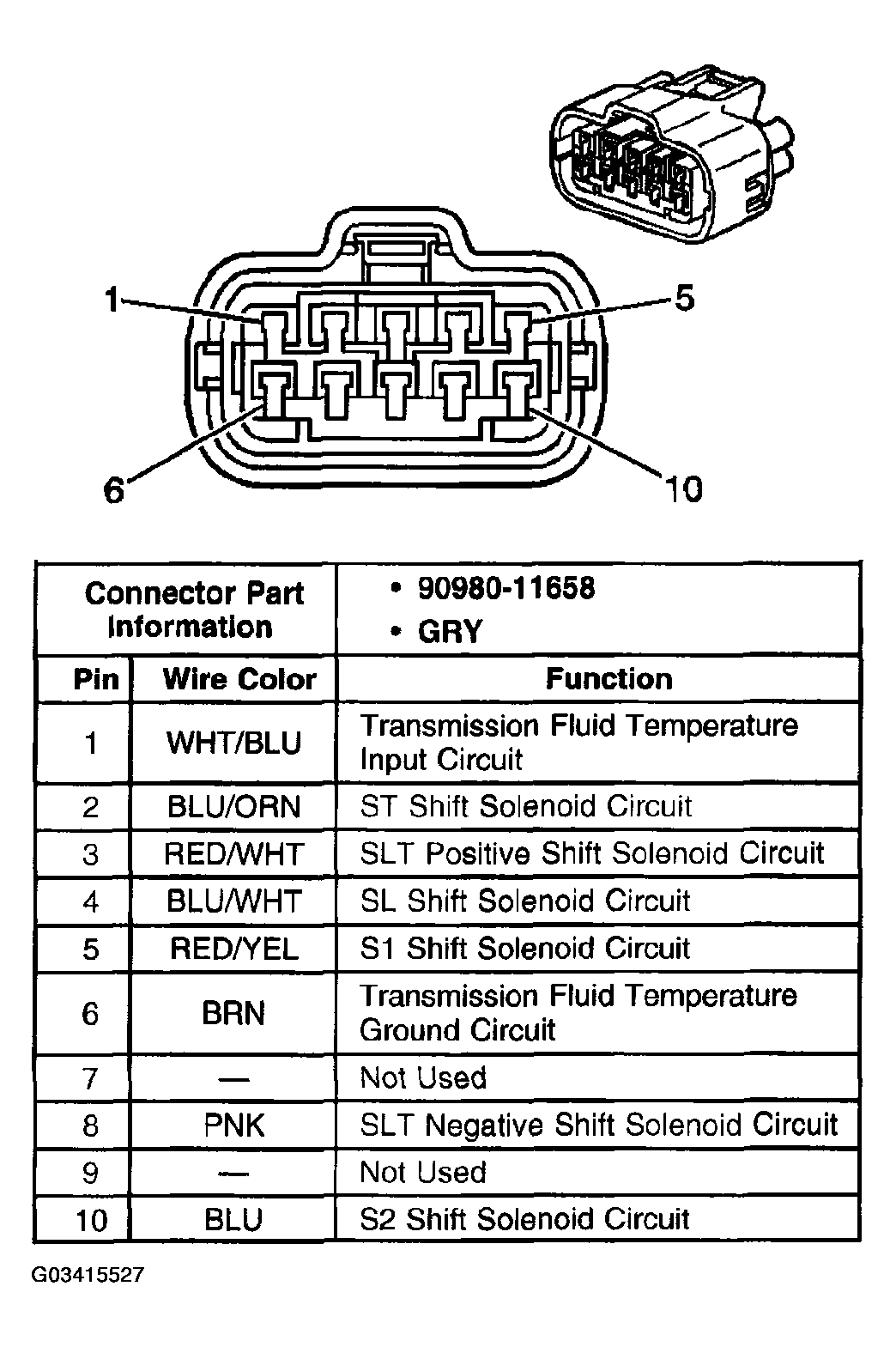

Fig 1: Terminals Of Transmission Connector Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
