Seat Belt Connector End Views

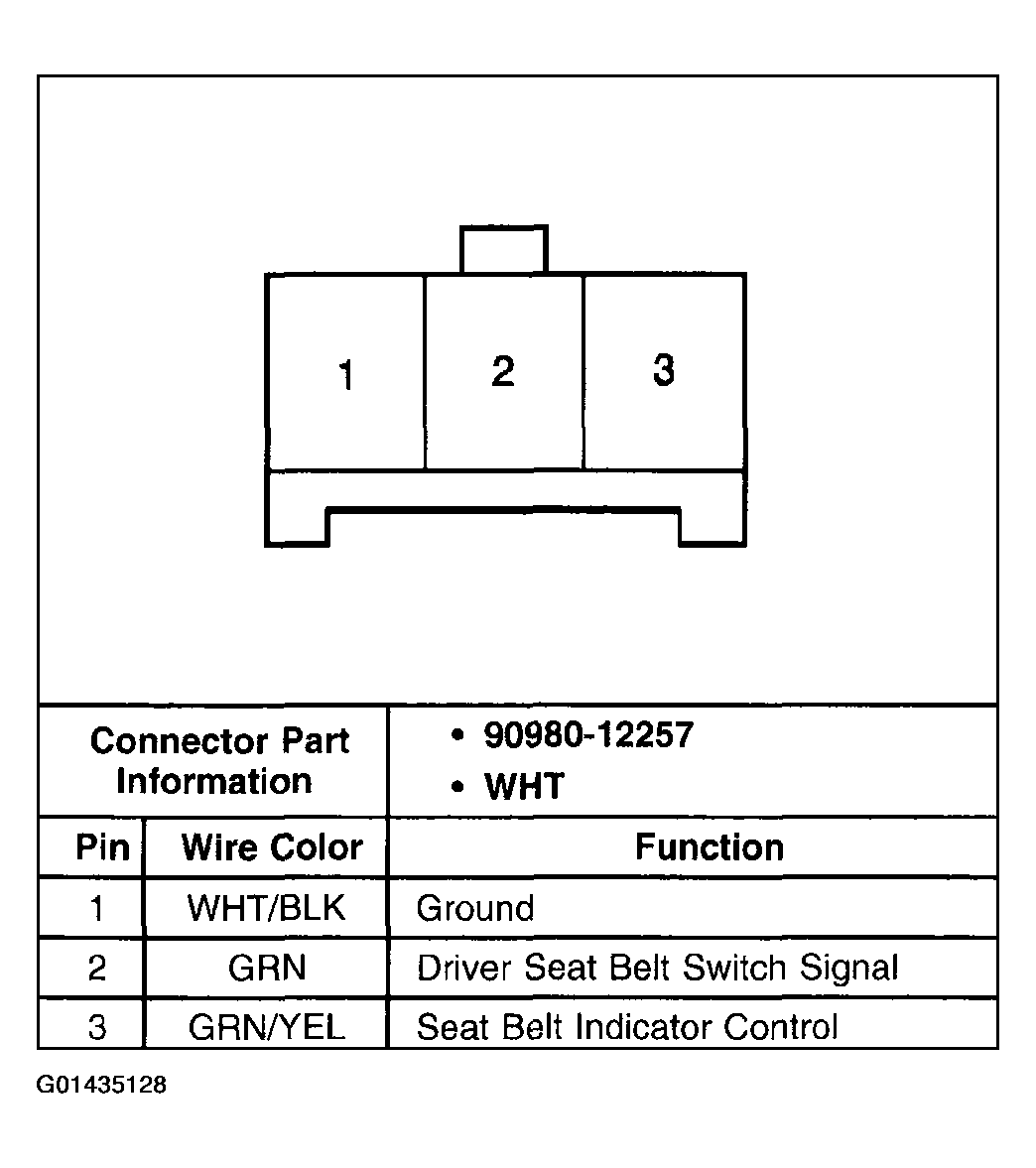

Fig 1: Driver Seat Belt Switch Connector End View
G01435128Courtesy of GENERAL MOTORS CORP.

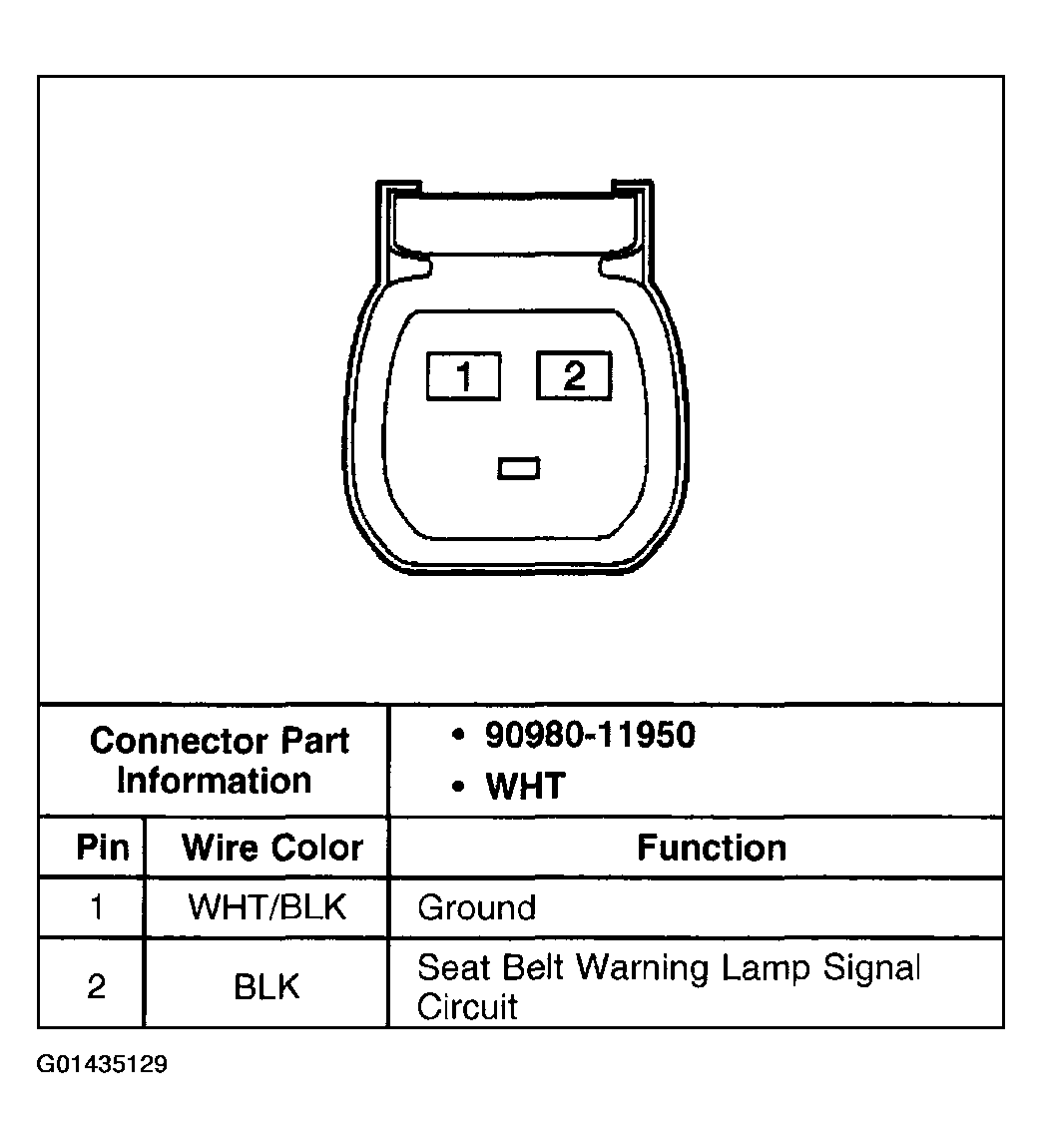

Fig 2: Passenger Seat Belt Switch Connector End View
G01435129Courtesy of GENERAL MOTORS CORP.

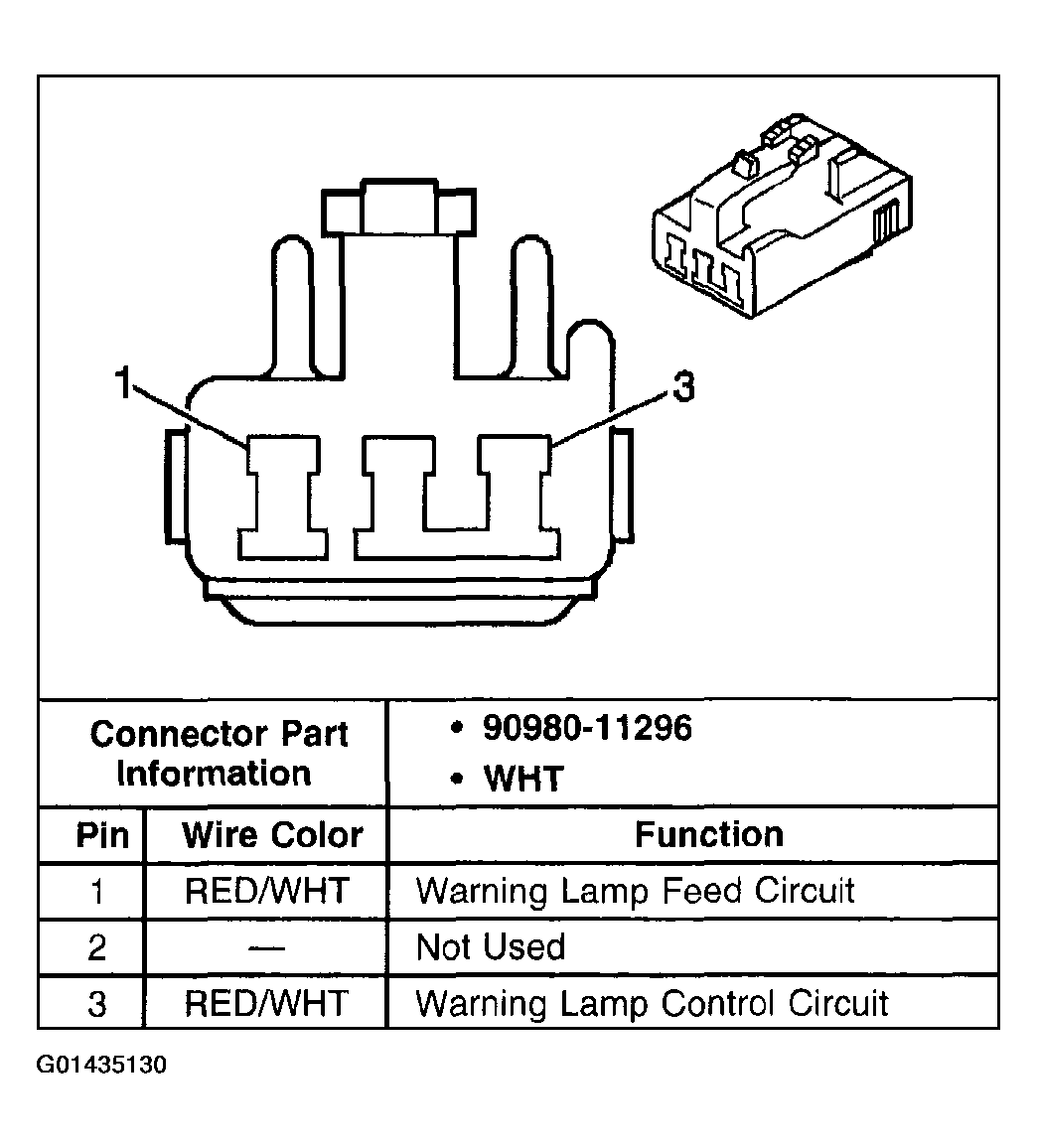

Fig 3: Passenger Seat Belt Warning Lamp Connector End View
G01435130Courtesy of GENERAL MOTORS CORP.

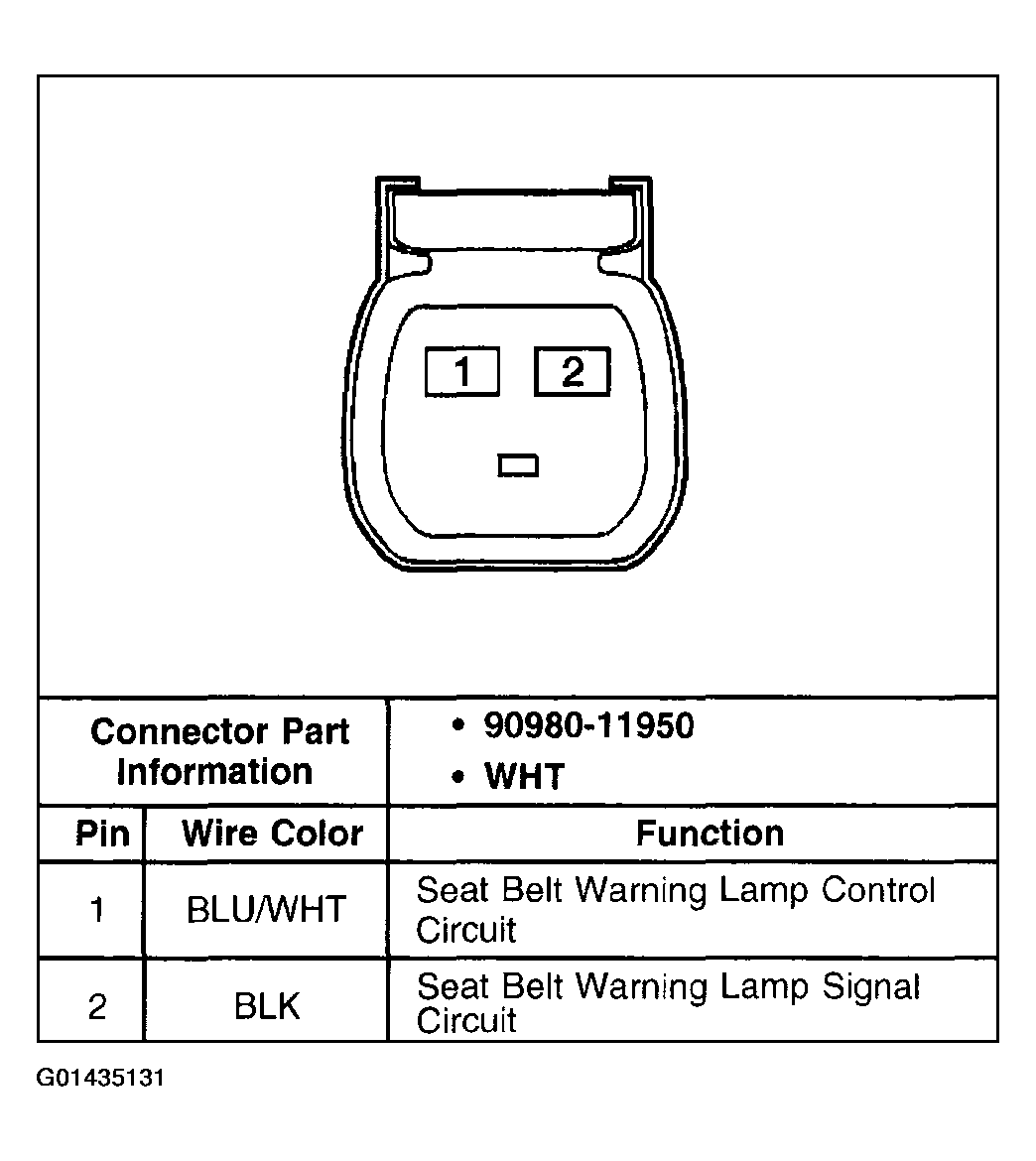

Fig 4: Passenger Seat Occupant Detection Sensor Connector End View
G01435131Courtesy of GENERAL MOTORS CORP.
