Removal Procedure

  1. Remove the rear access panel (2).
  2. Remove the following components from the vehicle:
    • The bolt (3)
    • The child seat anchor bracket (4)

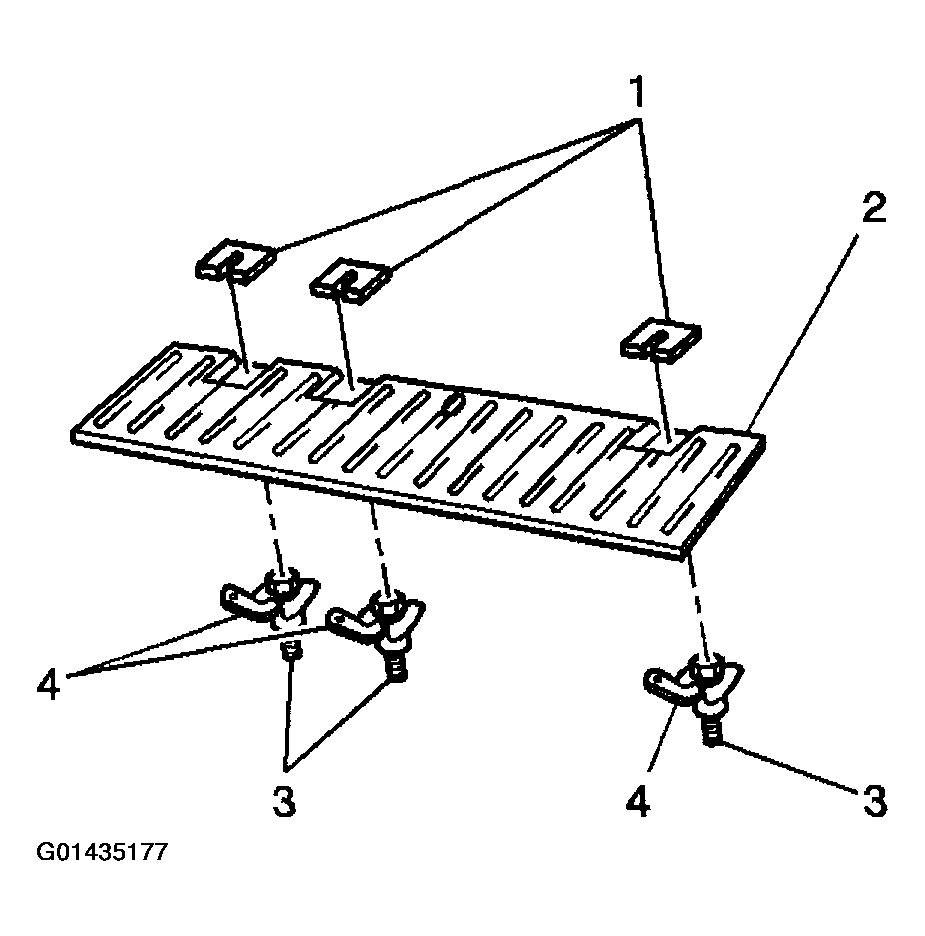

    Fig 1: Removing Rear Access Panel, Child Seat Anchor Bracket & Bolt
    G01435177Courtesy of GENERAL MOTORS CORP.
