Wheel Alignment Specifications (AWD)

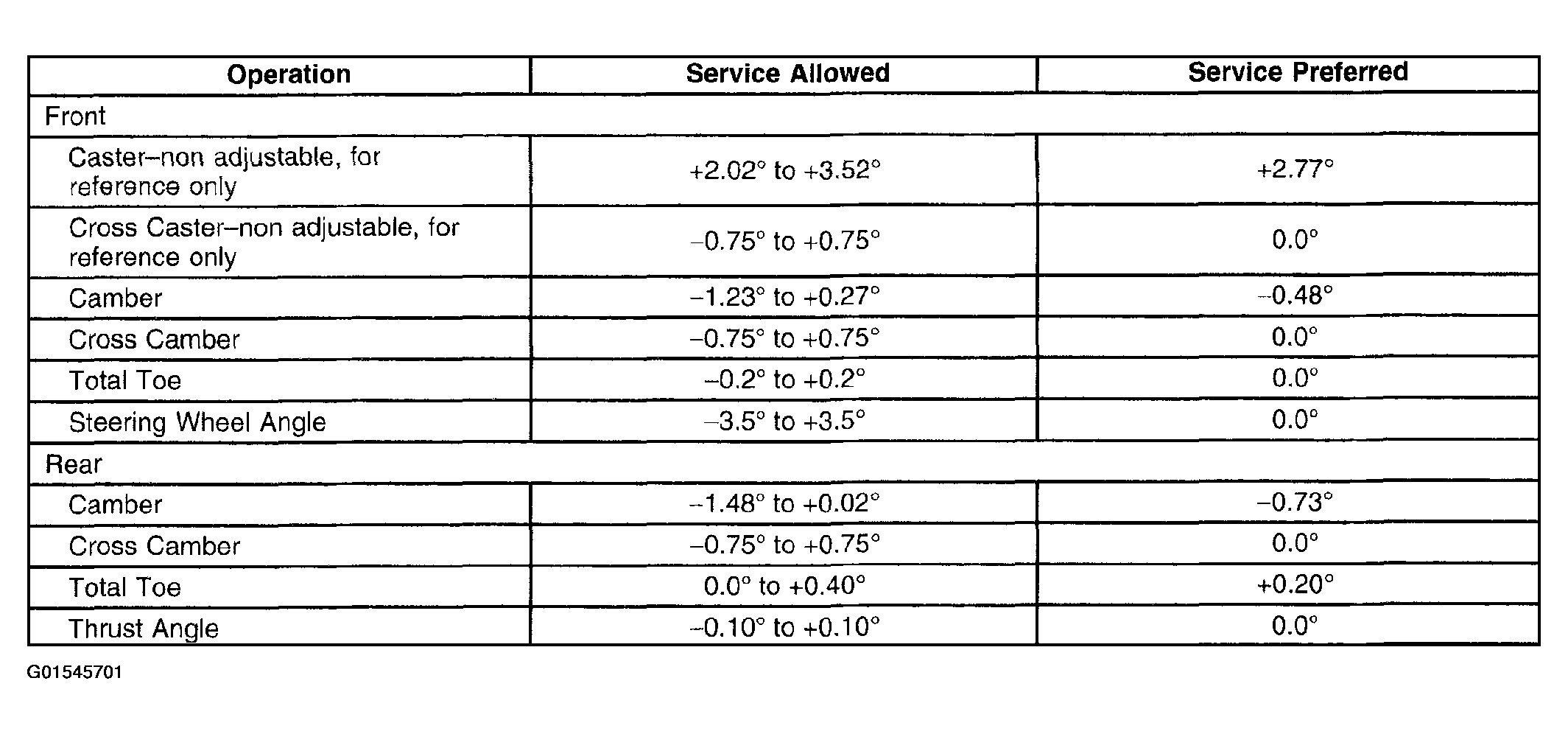

Fig 1: Wheel Alignment Specifications (AWD)
G01545701Courtesy of GENERAL MOTORS CORP.
