Wheel Alignment Specifications (FWD)

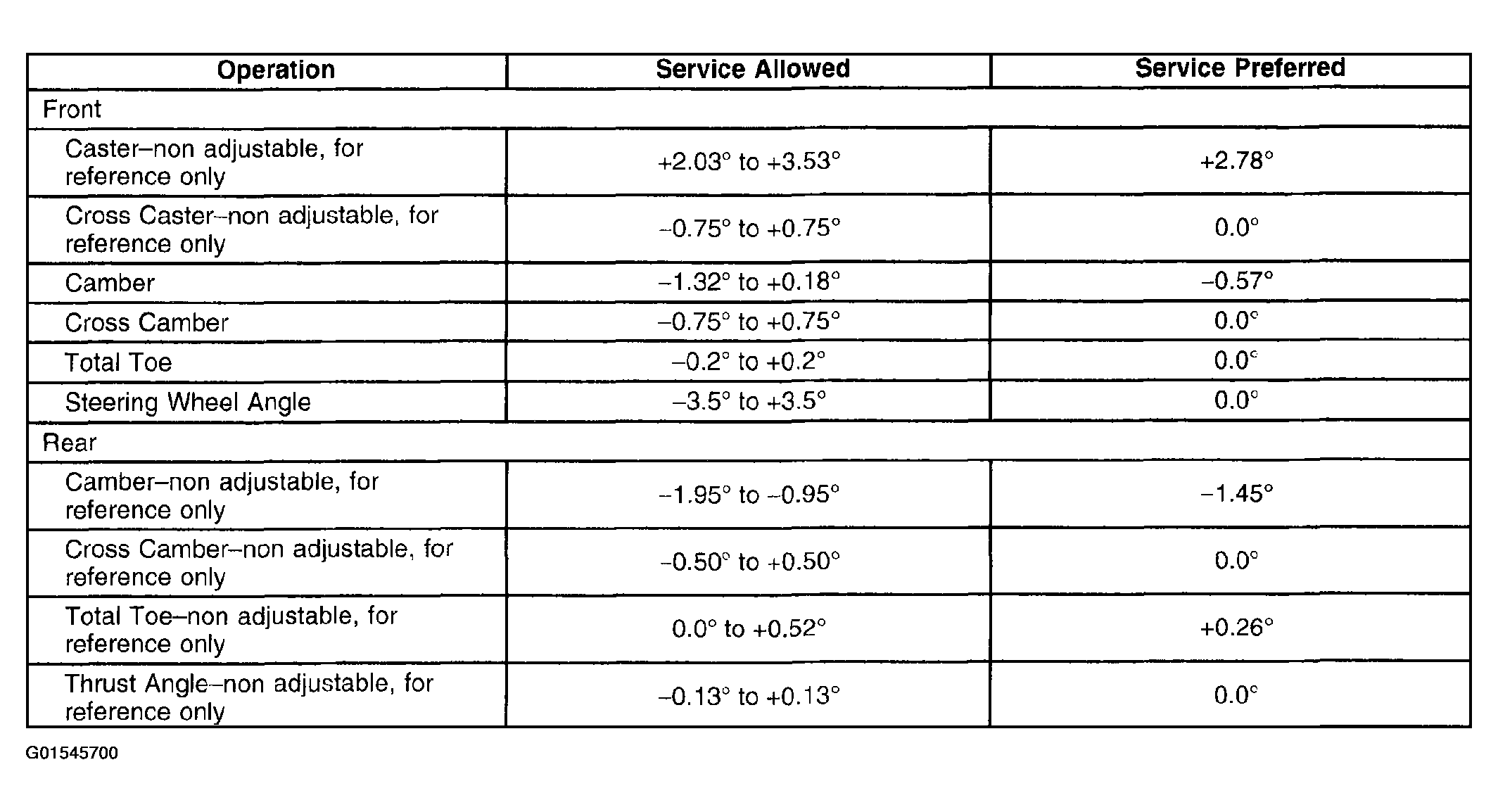

Fig 1: Wheel Alignment Specifications (FWD)
G01545700Courtesy of GENERAL MOTORS CORP.
