Disassembled Views

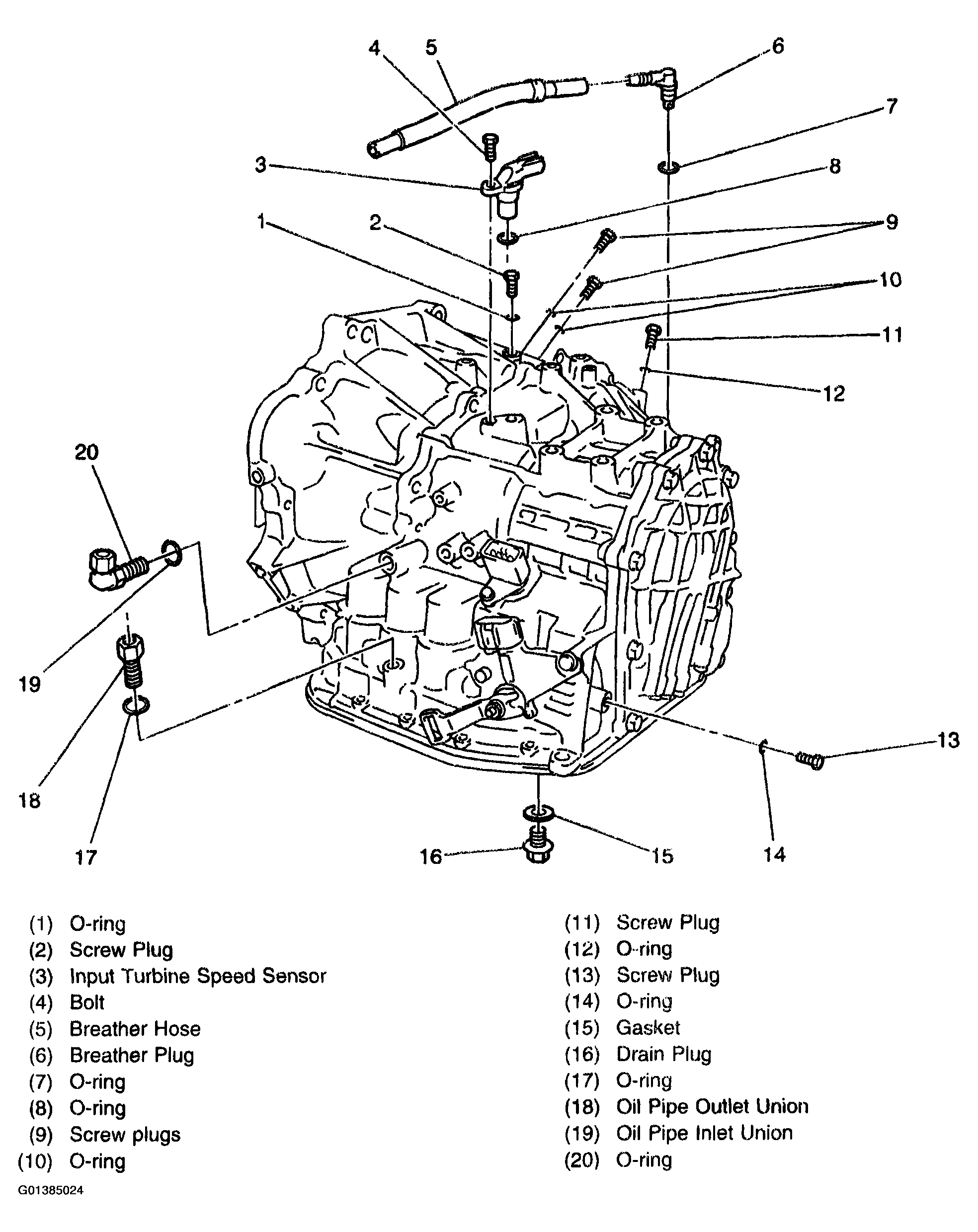

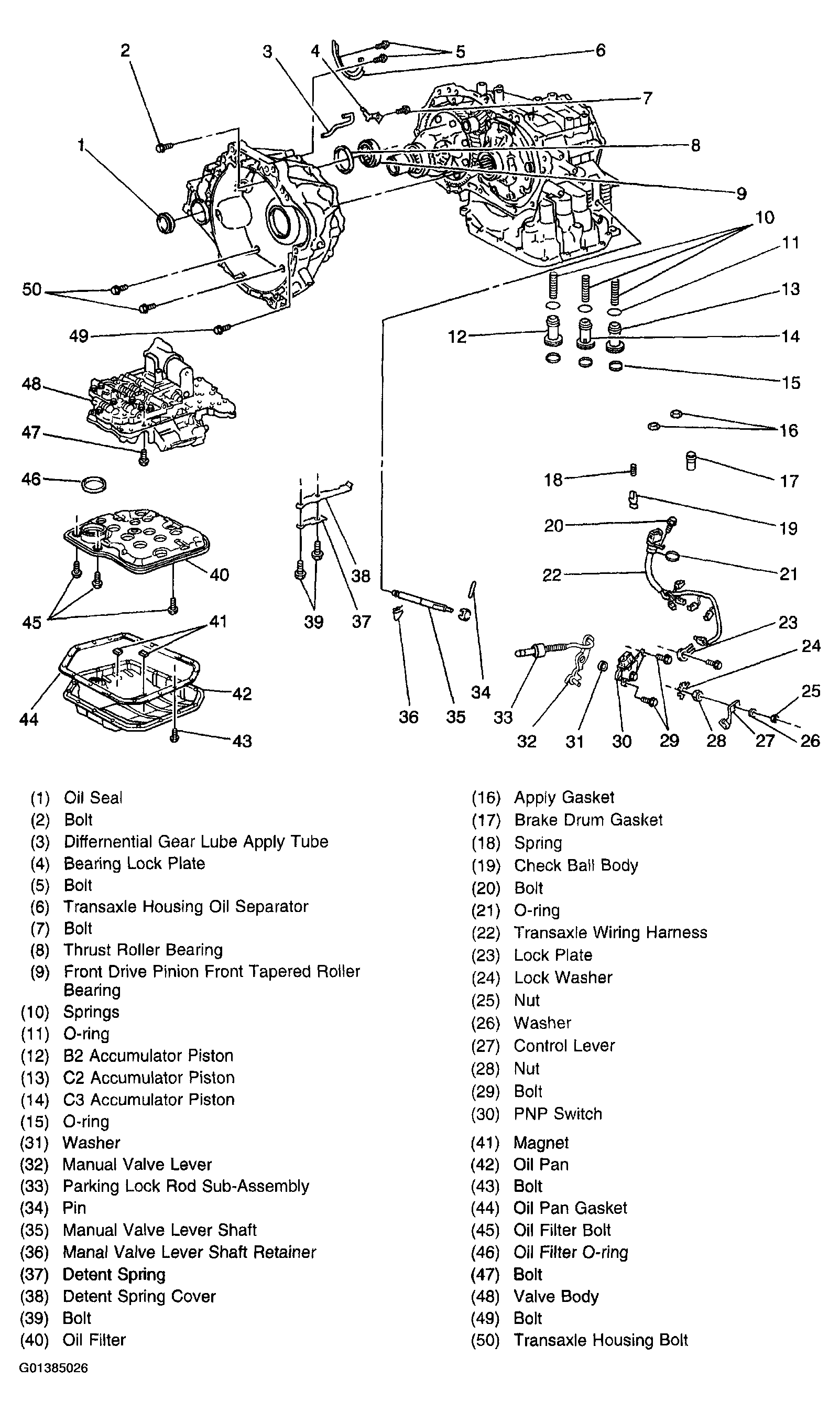

Fig 1: External Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

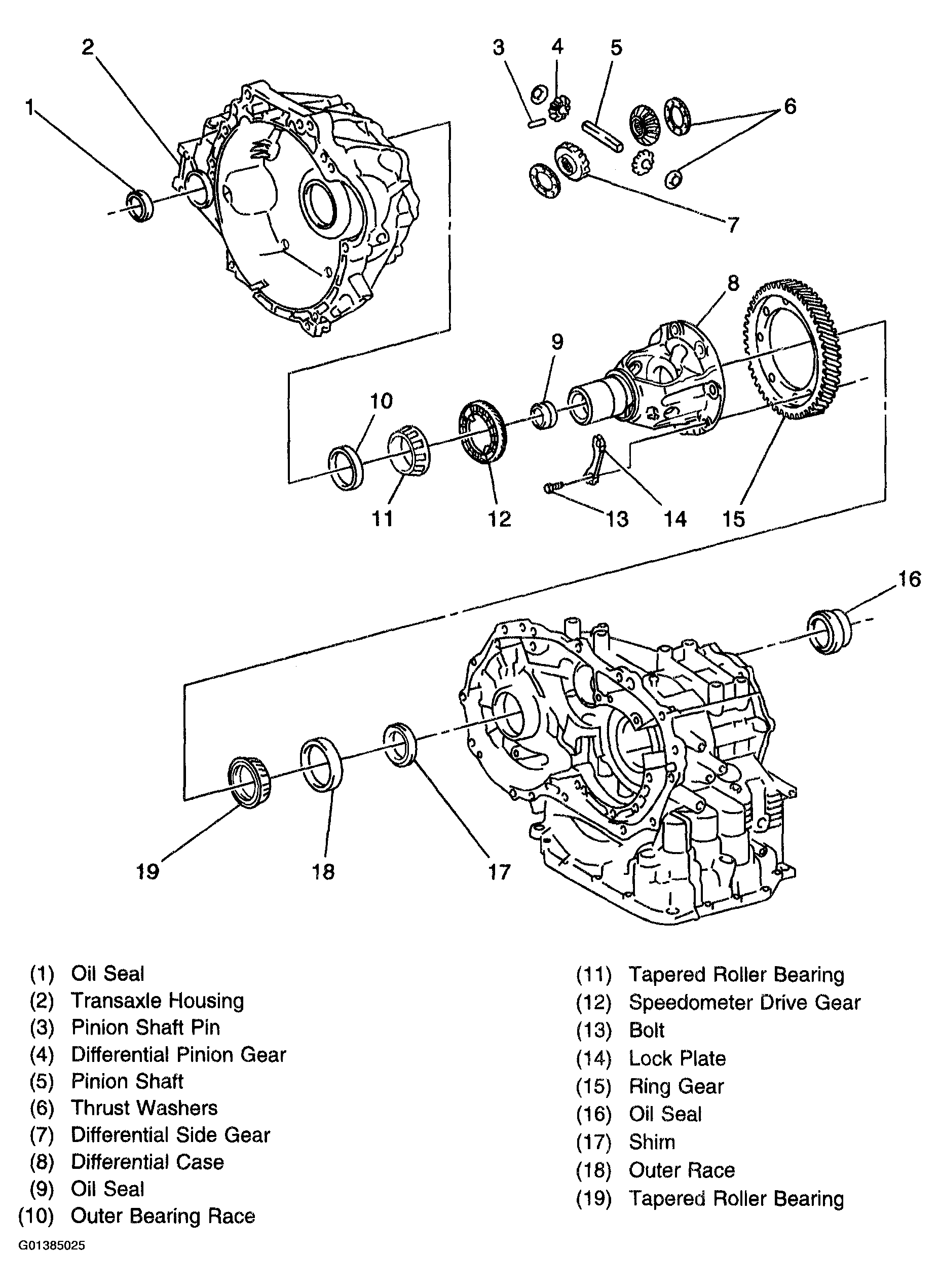

Fig 2: Differential Assembly & Related Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

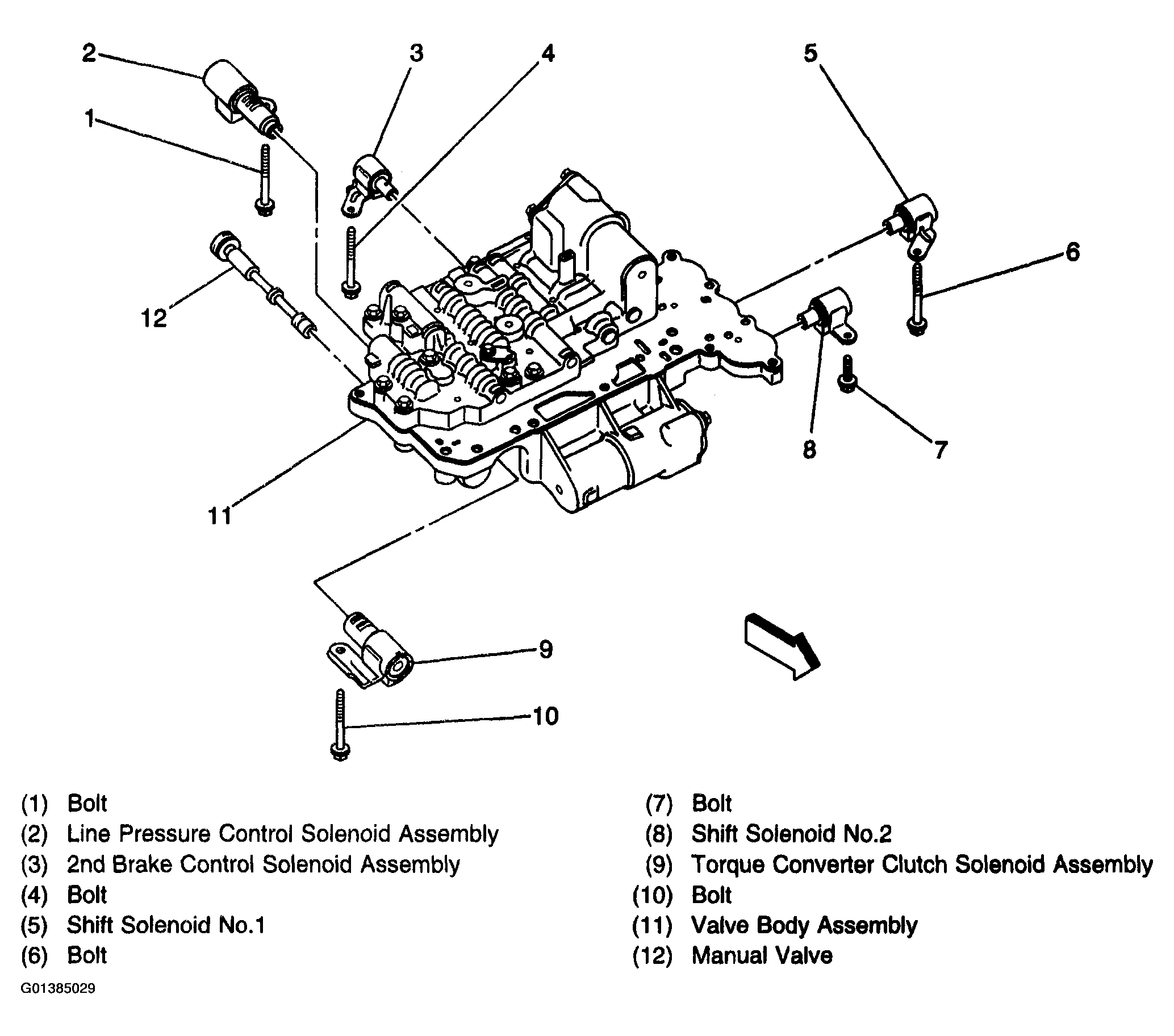

Fig 3: Valve Body & Related Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

Fig 4: Front & Rear Planetary Gear Assemblies & Related Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

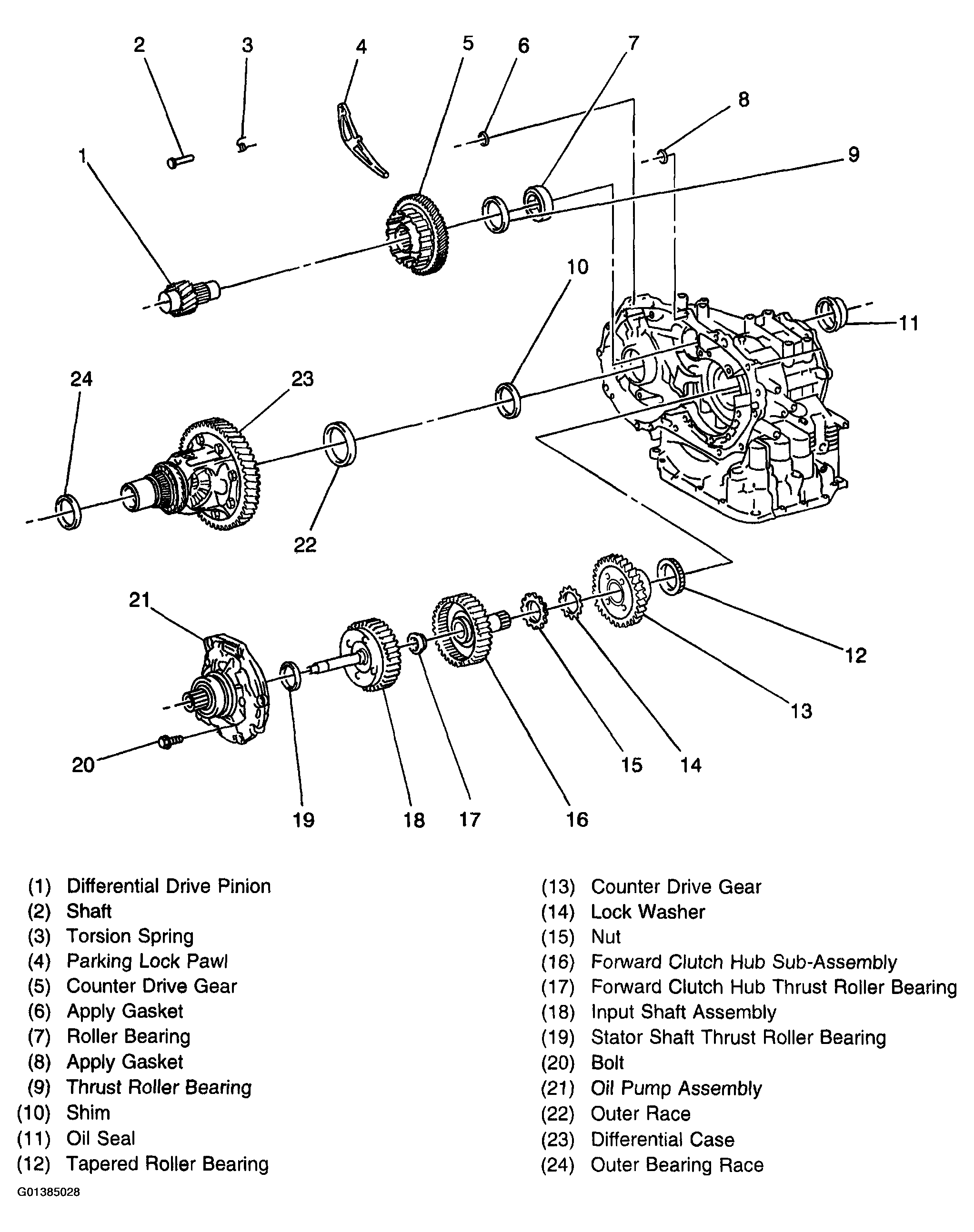

Fig 5: Input Shaft & Related Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

Fig 6: Valve Body & Related Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

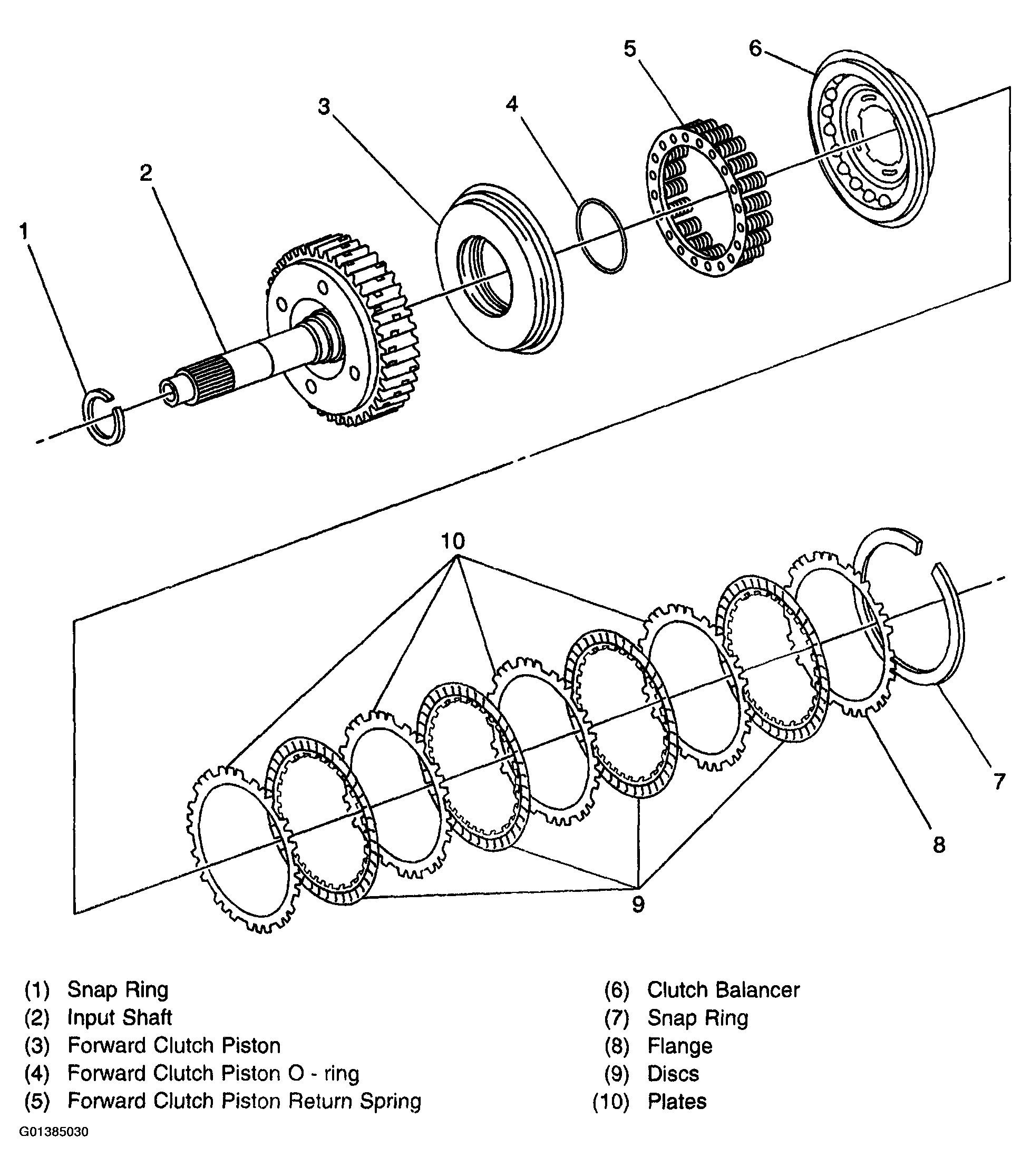

Fig 7: Forward Clutch & Related Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

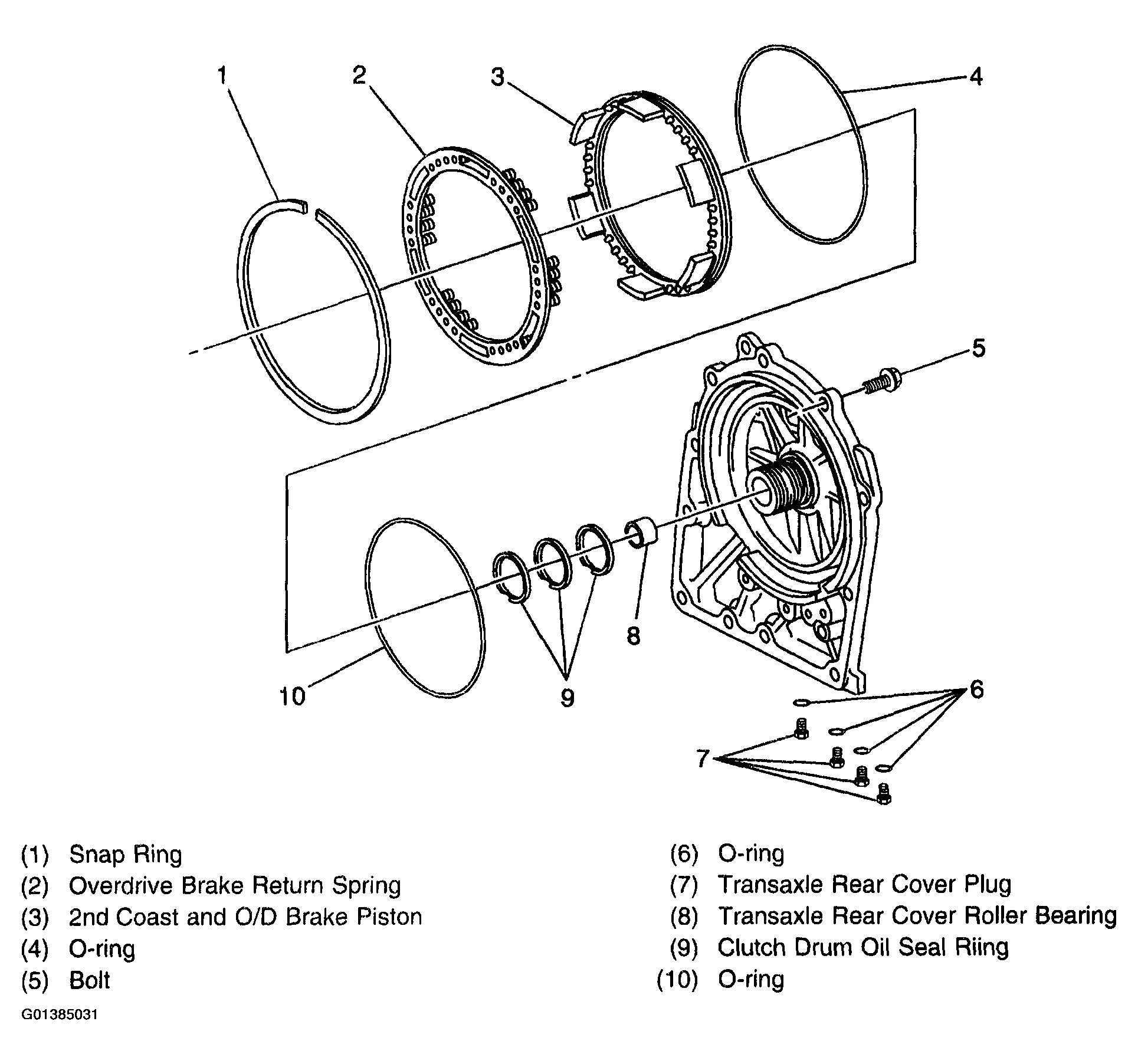

Fig 8: Overdrive Brake & Related Component Disassembled View

Courtesy of GENERAL MOTORS CORP.

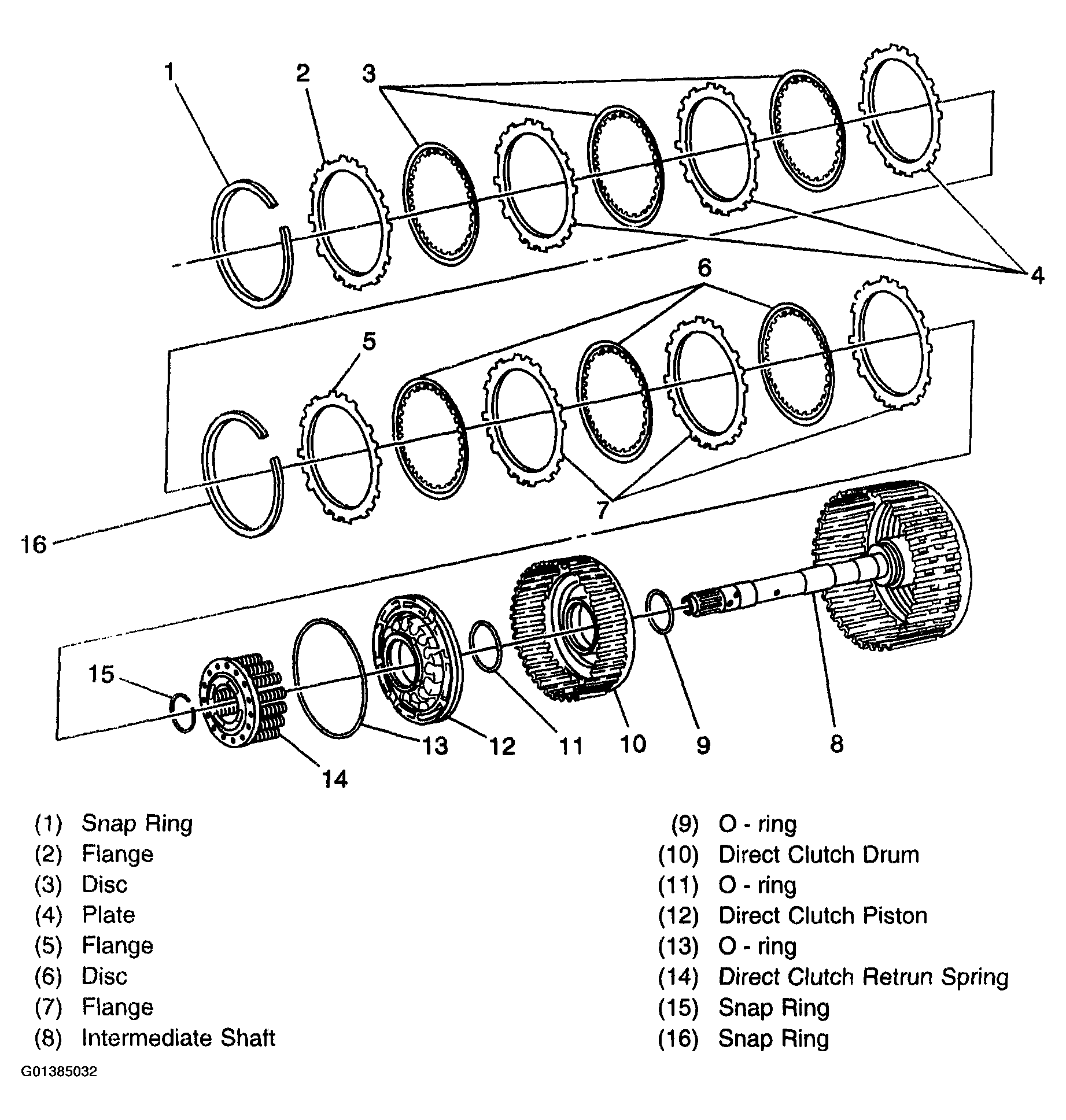

Fig 9: Direct Clutch & Related Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

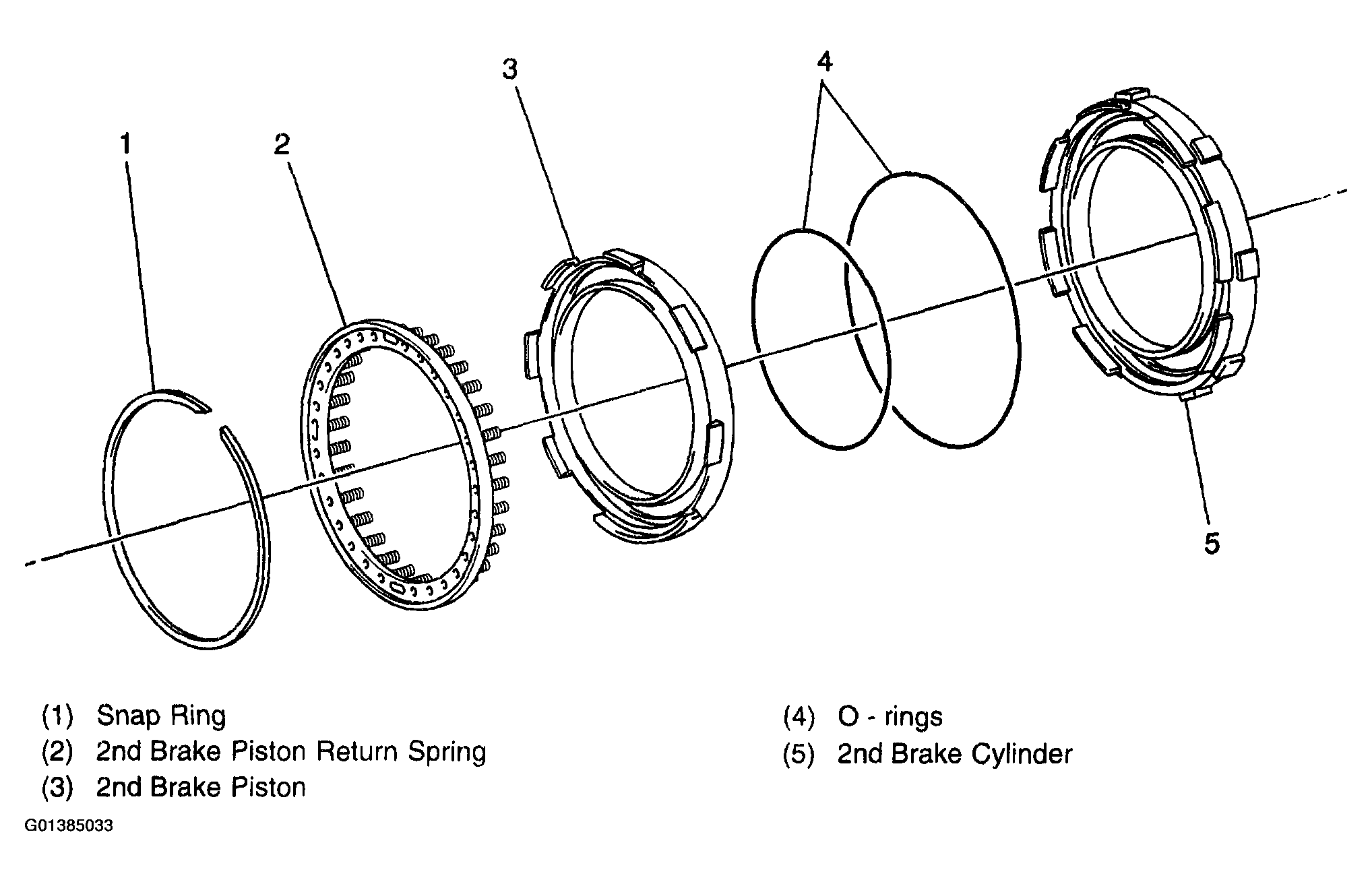

Fig 10: 2nd Brake & Related Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

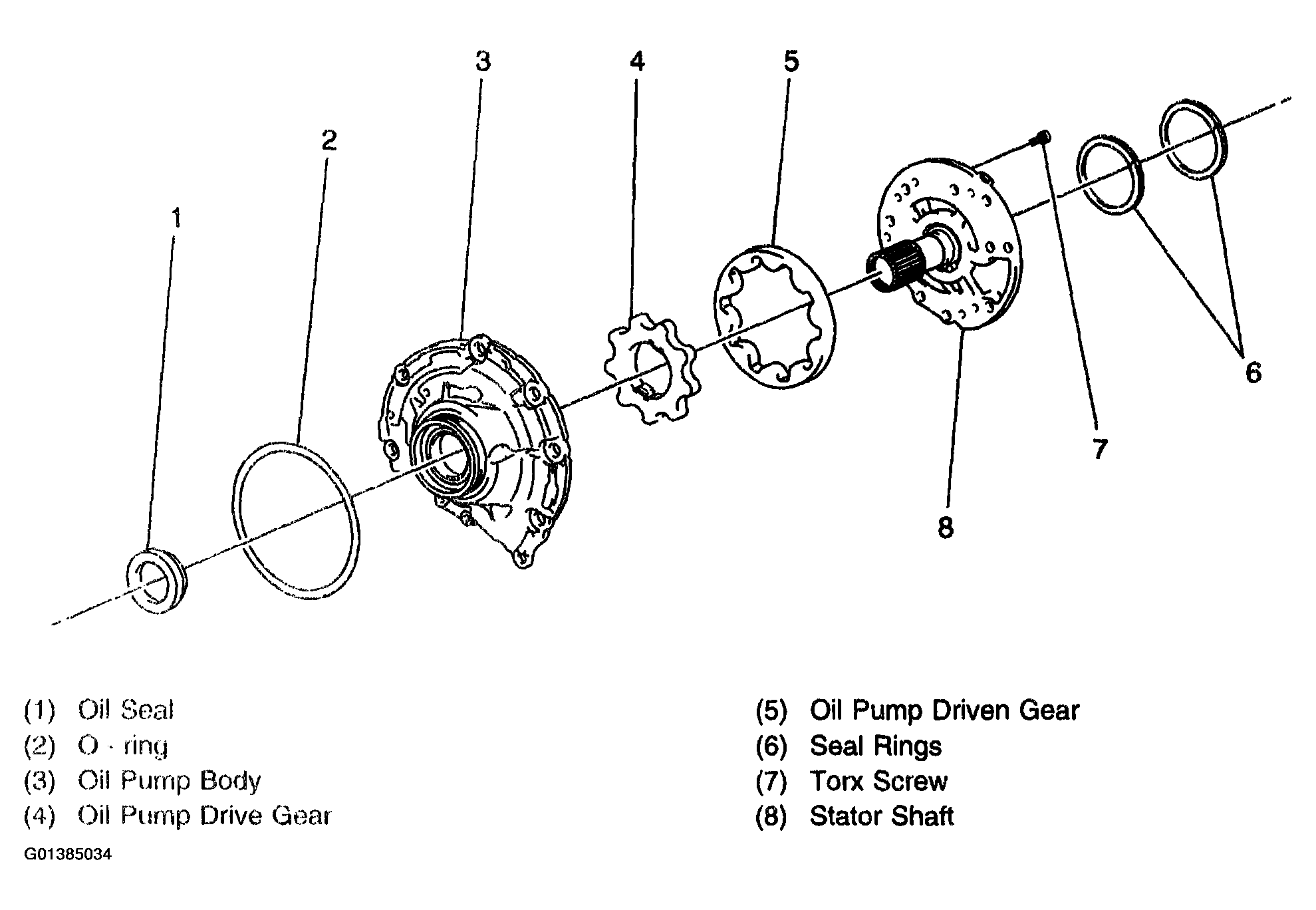

Fig 11: Oil Pump Disassembled View

Courtesy of GENERAL MOTORS CORP.
