Installation Procedure

  1. Install the Shift Lock Control Module/Shift Lock Solenoid assembly, then the retaining screw (2).
  2. Connect the electrical connector (1).
  3. Install the front floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR  in Instrument Panel, Gages and Console.
  4. Connect the negative battery cable.

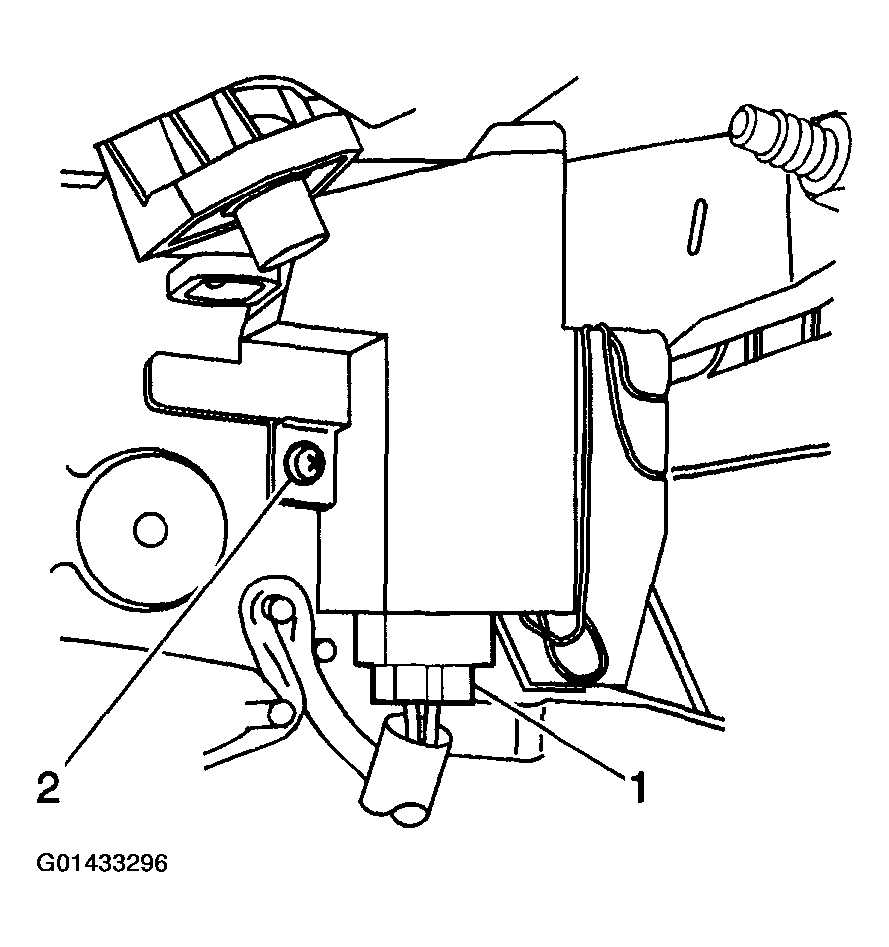

    Fig 1: Connecting Shift Lock Solenoid Electrical Connector
    G01433296Courtesy of GENERAL MOTORS CORP.
