Power Door Systems Component Views

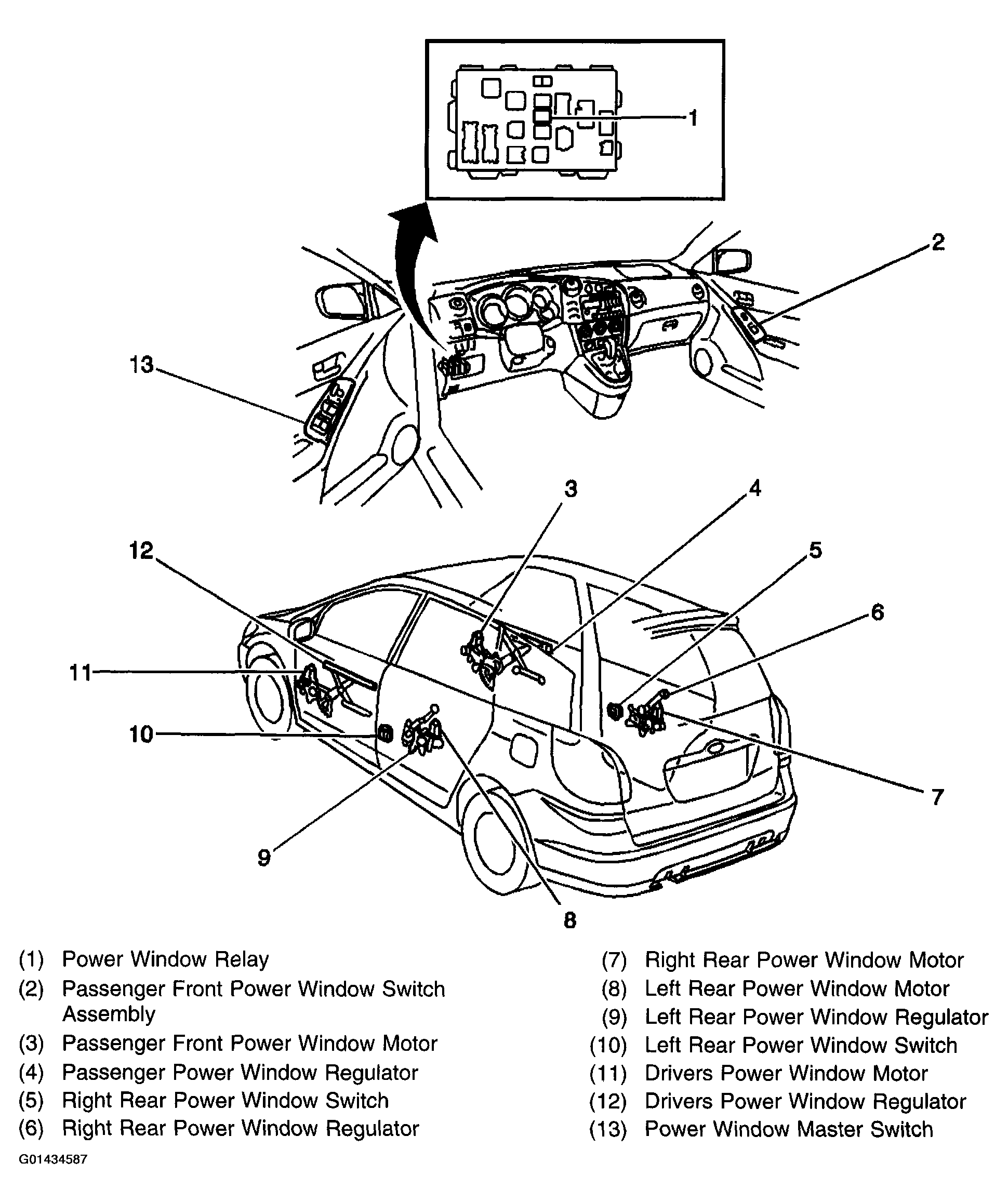

Fig 1: Power Door Systems Component View - Power Windows

Courtesy of GENERAL MOTORS CORP.

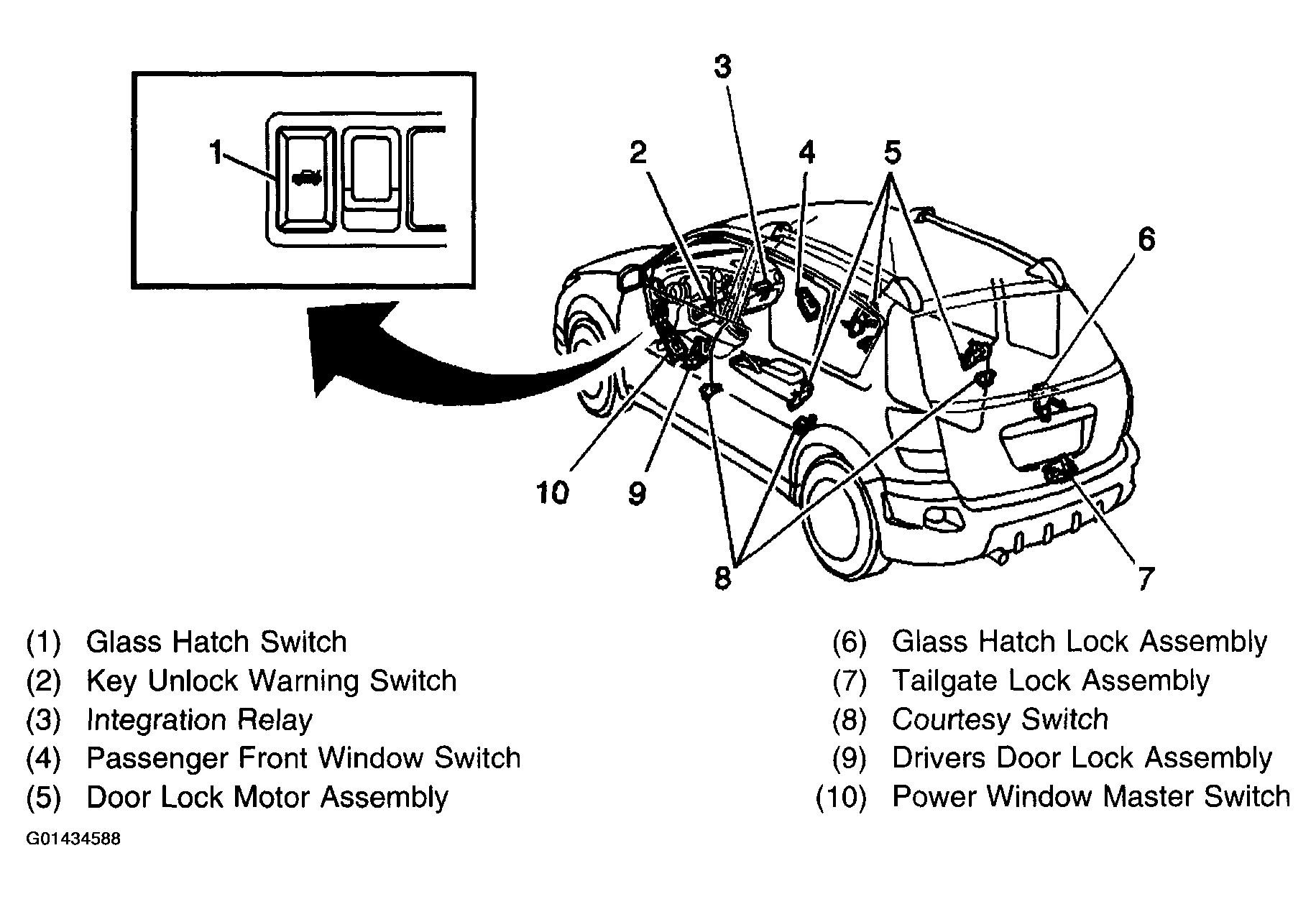

Fig 2: Power Door Systems Component View - Door Locks

Courtesy of GENERAL MOTORS CORP.

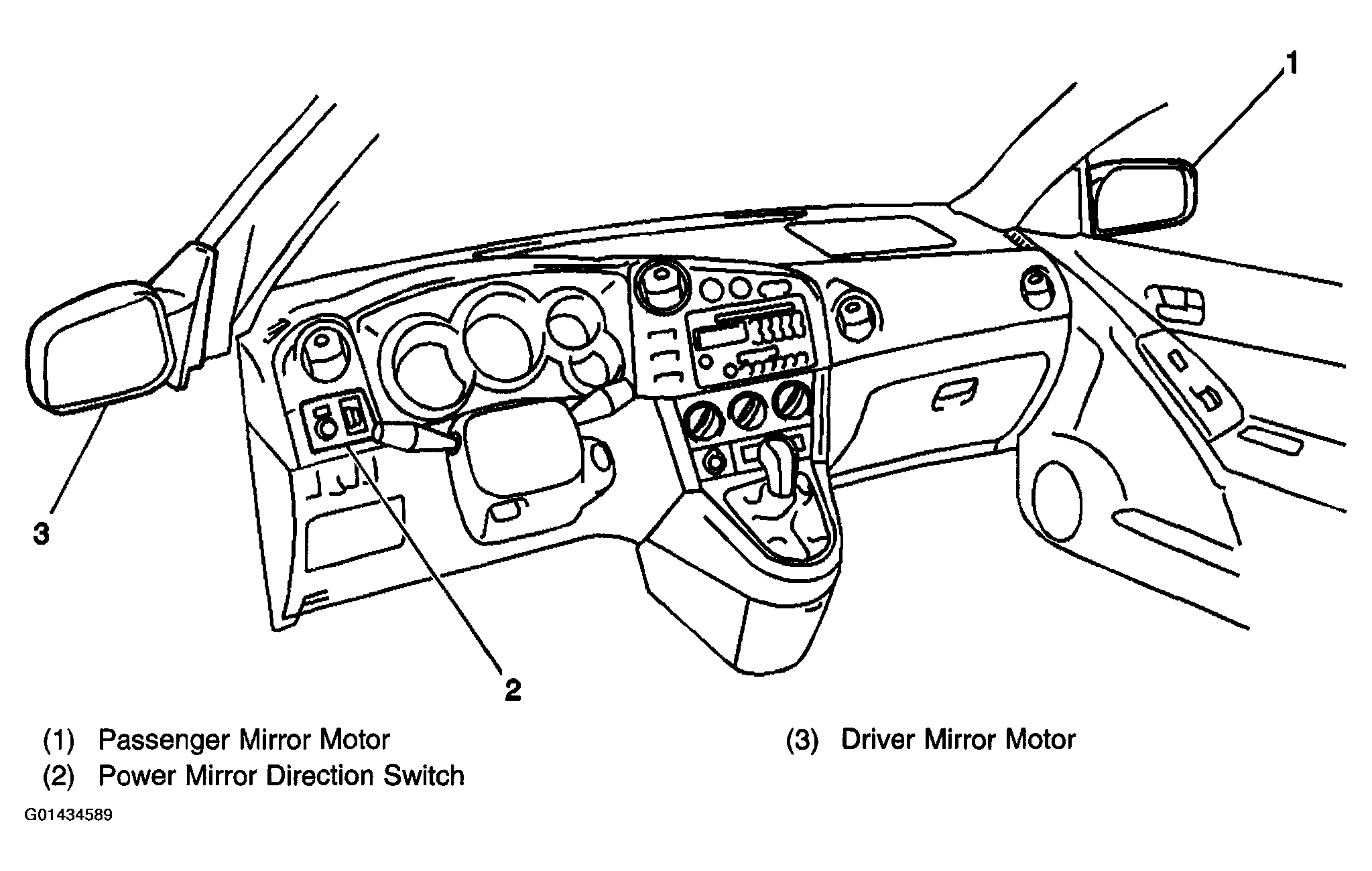

Fig 3: Power Door Systems Component View - Power Mirrors

Courtesy of GENERAL MOTORS CORP.
