Removal Procedure

Using a taped flat bladed tool, gently pry the front side door accessory switch mounting plate (1) from the front side door trim (2).

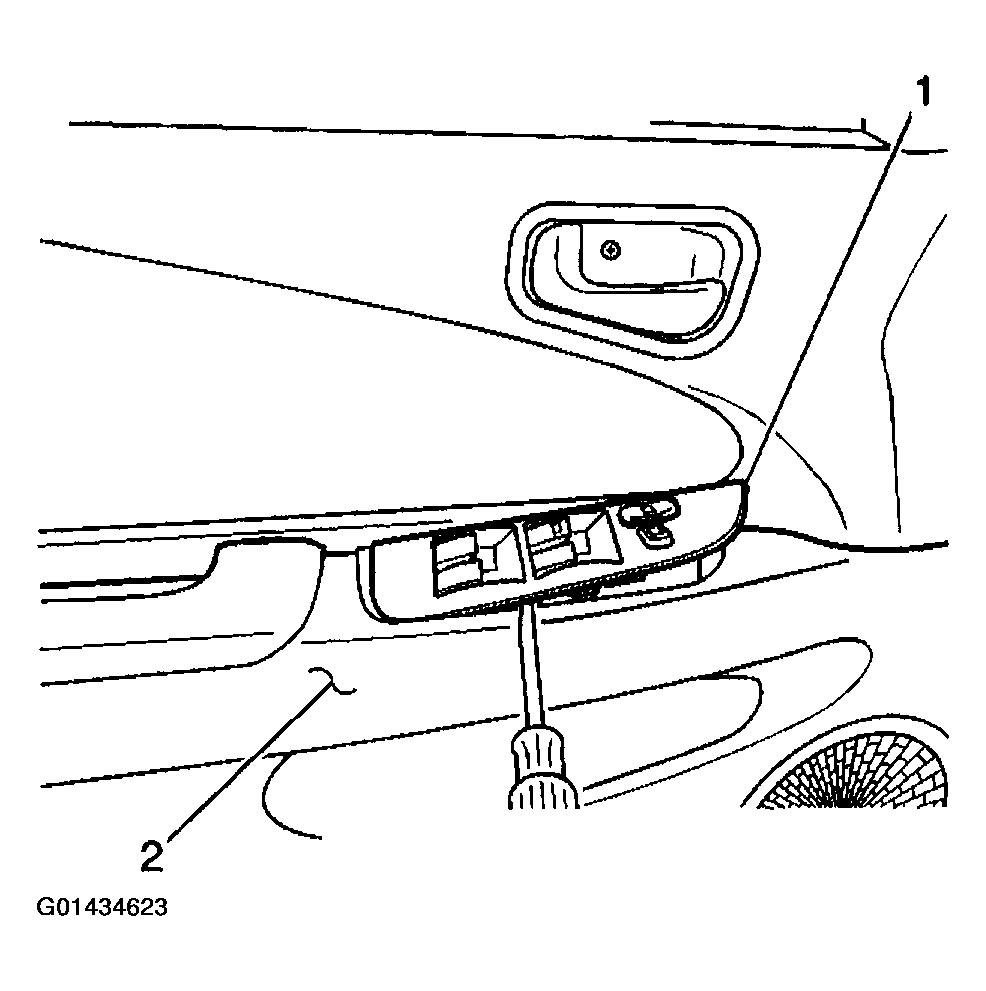

Fig 1: Prying Front Side Door Accessory Switch Mounting Plate From Front Side Door Trim
Courtesy of GENERAL MOTORS CORP.
Disconnect the front side door window/lock switch electrical connector (2).

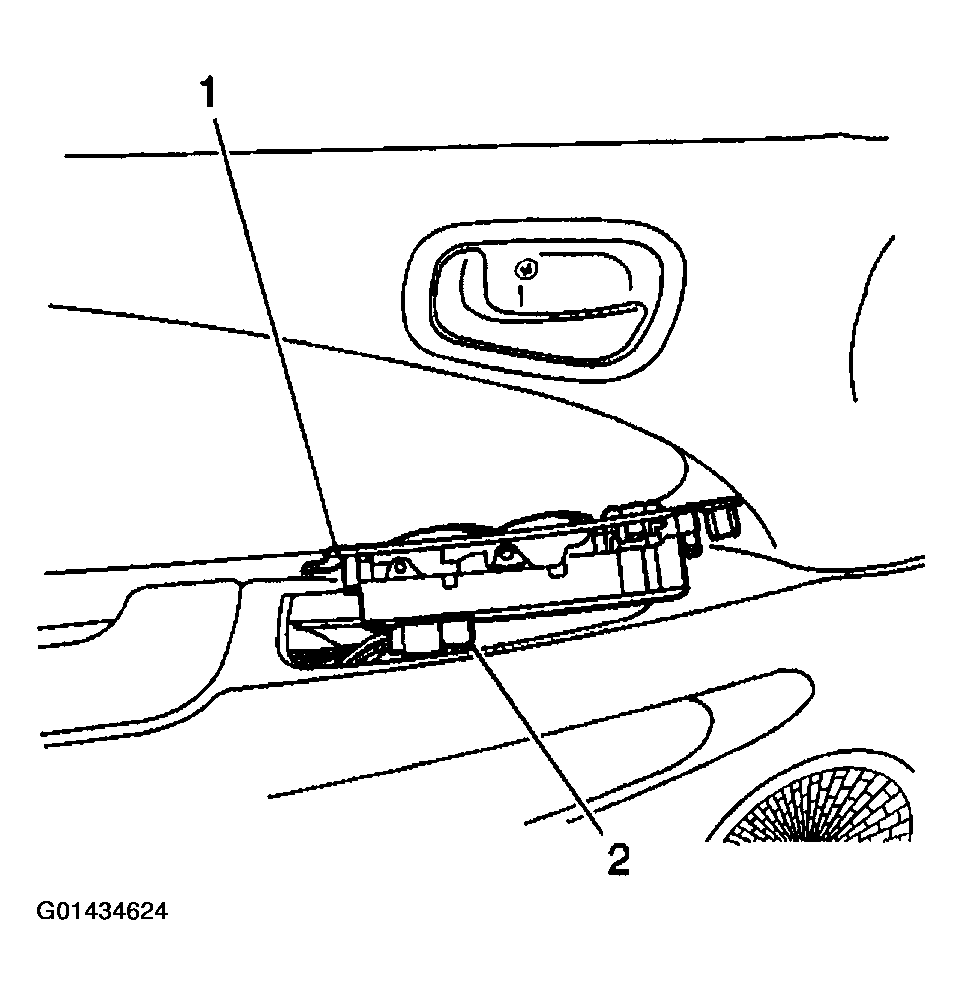

Fig 2: Disconnecting Front Side Door Window/Lock Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the following components from the front side door window/lock switch (3):
- The 3 screws (1)
- The front side door accessory switch mounting plate (2)

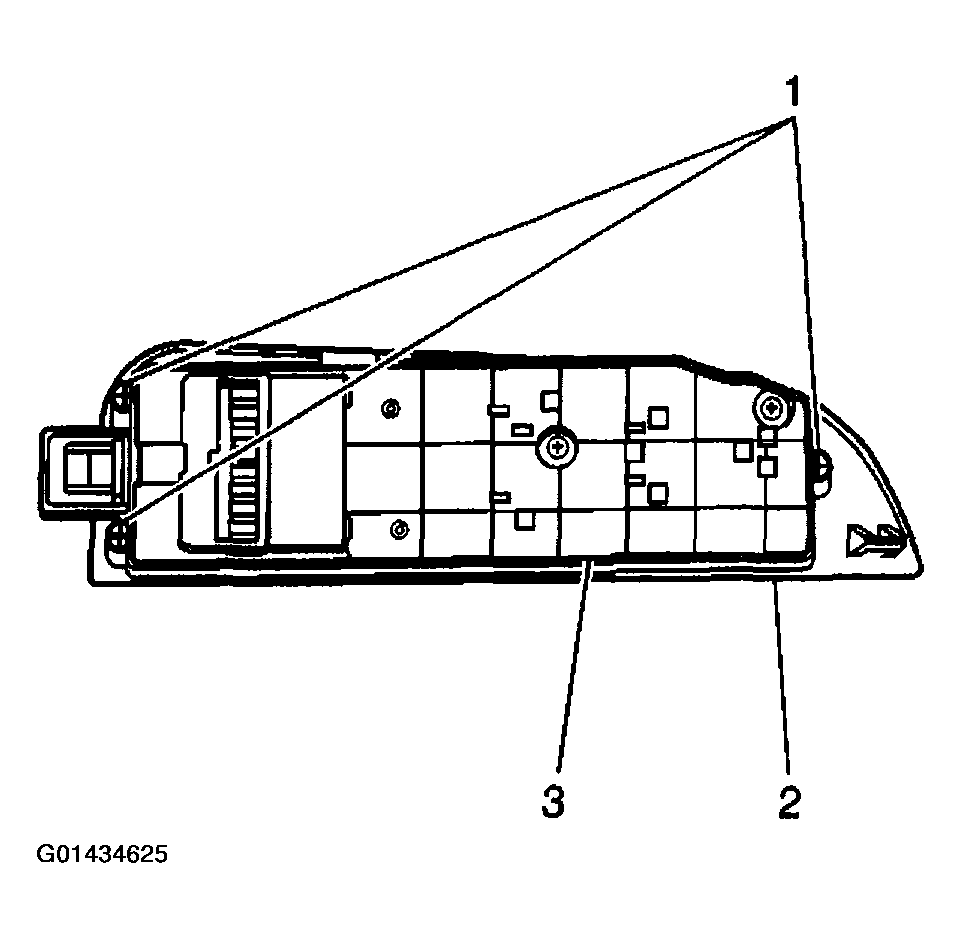

Fig 3: Removing Front Side Door Accessory Switch Mounting Plate From Front Side Door Window/Lock Switch

Courtesy of GENERAL MOTORS CORP.
