Anti-Theft Module Connector End View (1 Of 2)

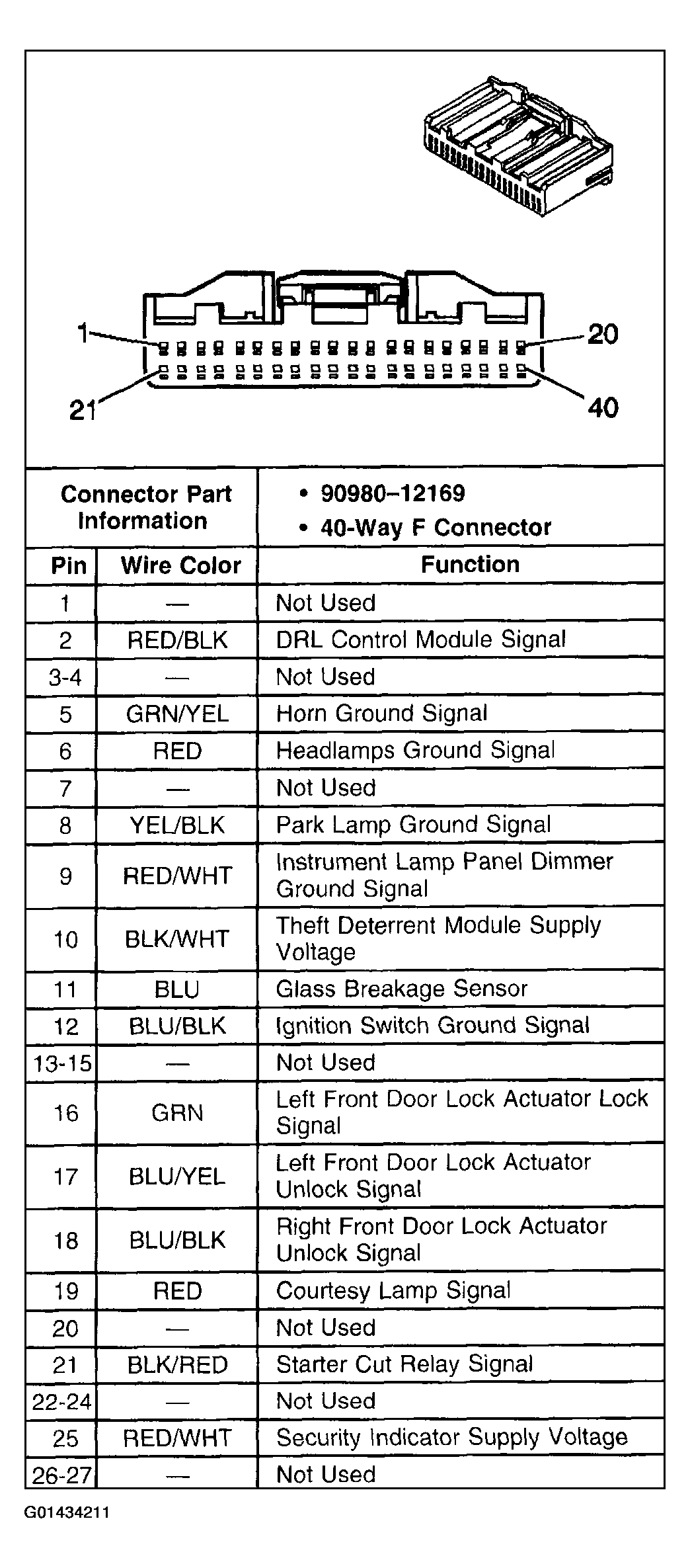

Fig 1: Anti-Theft Module Connector End View (1 Of 2)
G01434211Courtesy of GENERAL MOTORS CORP.
