Fluid Capacity Specifications

FLUID CAPACITY SPECIFICATIONS

Application	Specification
	Metric	English
Fluid Recommended	ATF Type T-IV
Dry Fill	7.3 liters	7.75 qts
Drain and Refill	3.1 liters	3.25 qts

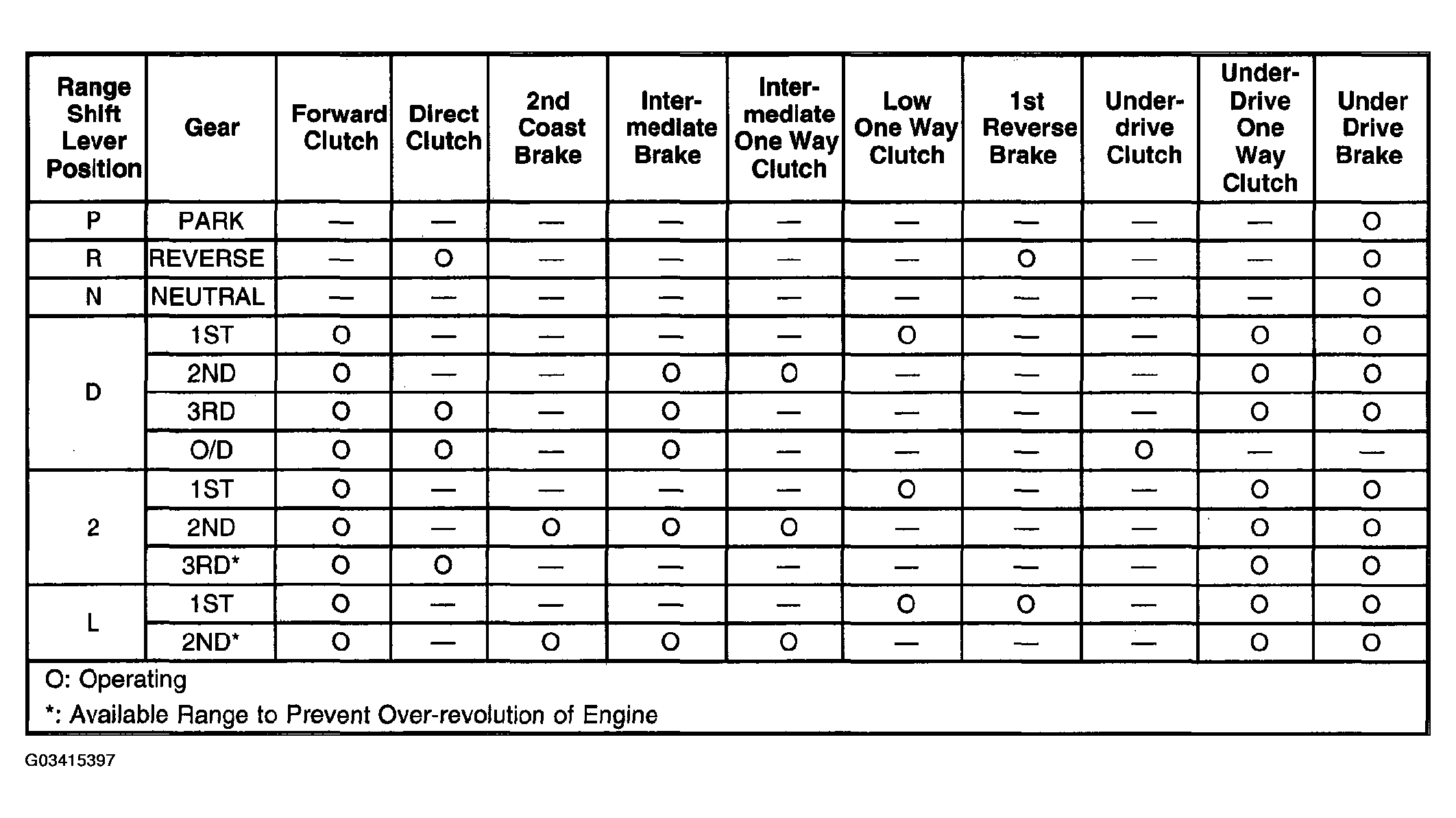

Fig 1: Range Reference Chart

Courtesy of GENERAL MOTORS CORP.
