Installation Procedure

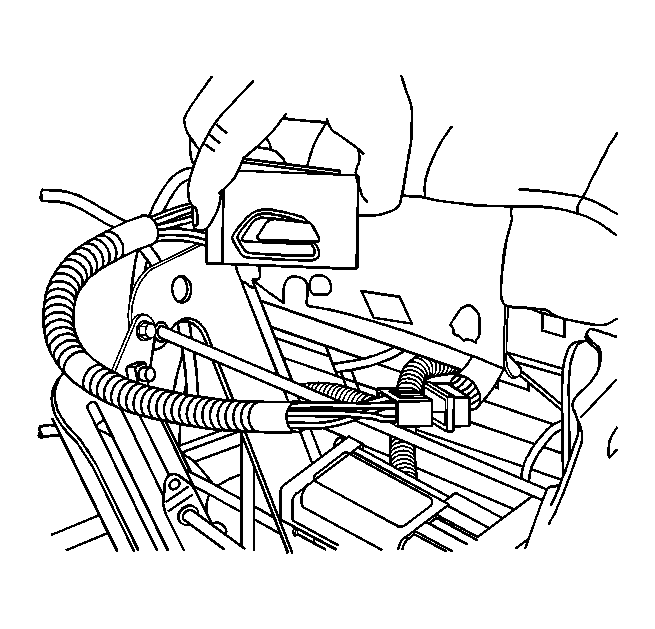

    Fig 1: Locating Power Seat Switch Electrical Connector
    GM627008Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the power seat switch.
    2. Fig 2: Locating Power Seat Switch
    GM627002Courtesy of GENERAL MOTORS CORP.
  2. Install the power seat switch to the outer trim panel, pressing the switch into place until fully seated.
    3. Fig 3: View Of Power Seat Switch Harness
    GM627240Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The power front seat switch harness must be in the proper position for the proper installation of the outer seat cushion trim panel.
  3. Connect the power seat switch harness to the front seat support.
  4. Install the outer trim panel to the front seat cushion. Refer to Seat Cushion Outer Trim Panel Replacement - Front Seat .
