Driver Seat Schematics

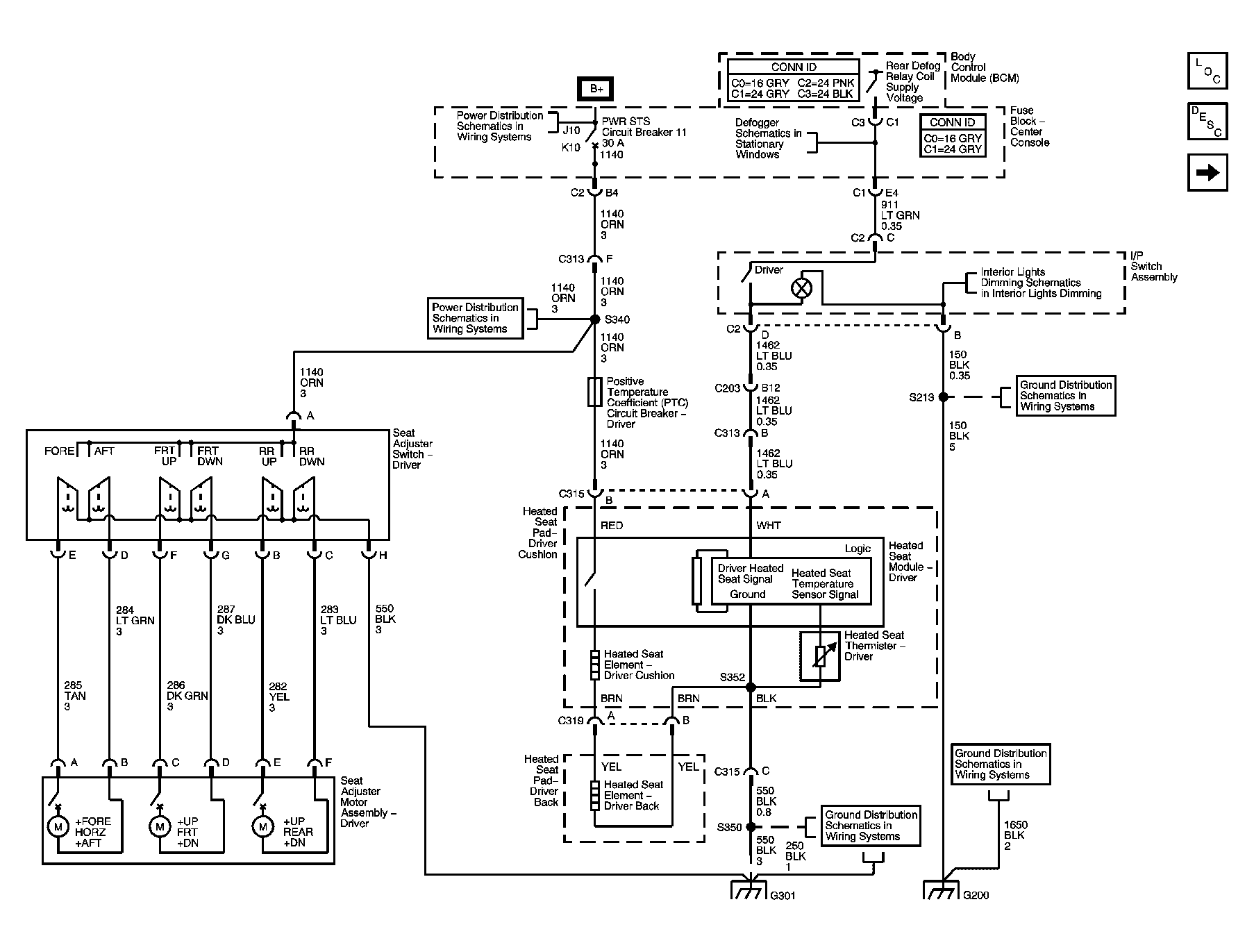

Fig 1: Driver Power and Heated Seat Schematic
GM1340160Courtesy of GENERAL MOTORS CORP.

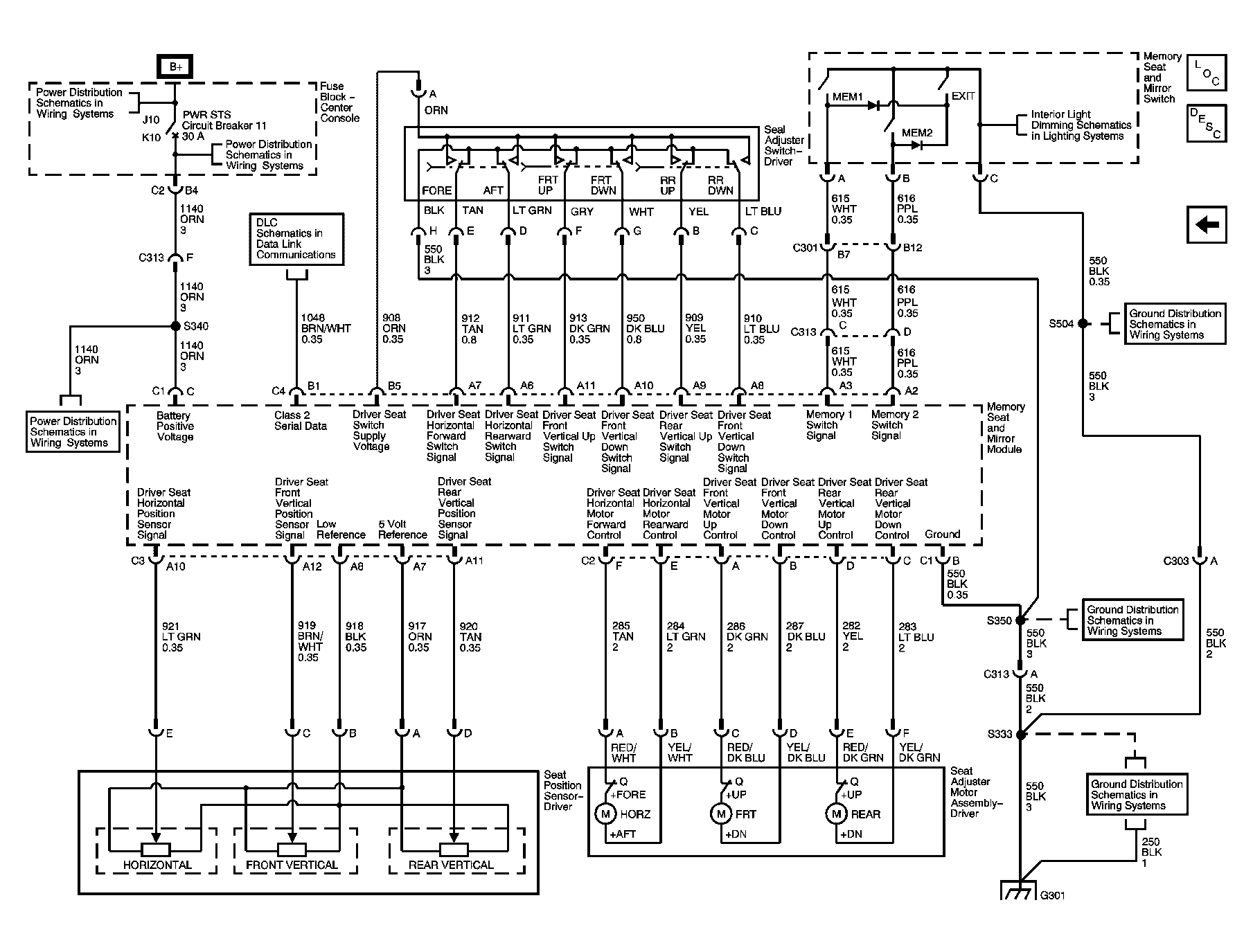

Fig 2: Memory Seat Schematic
GM1340169Courtesy of GENERAL MOTORS CORP.
