Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Aztek)  or Trim Panel Replacement - Side Front Door (Rendezvous) .
  2. Remove the gasket from the inside door handle if equipped.
  3. Remove the front door water deflector from the front door inner panel.

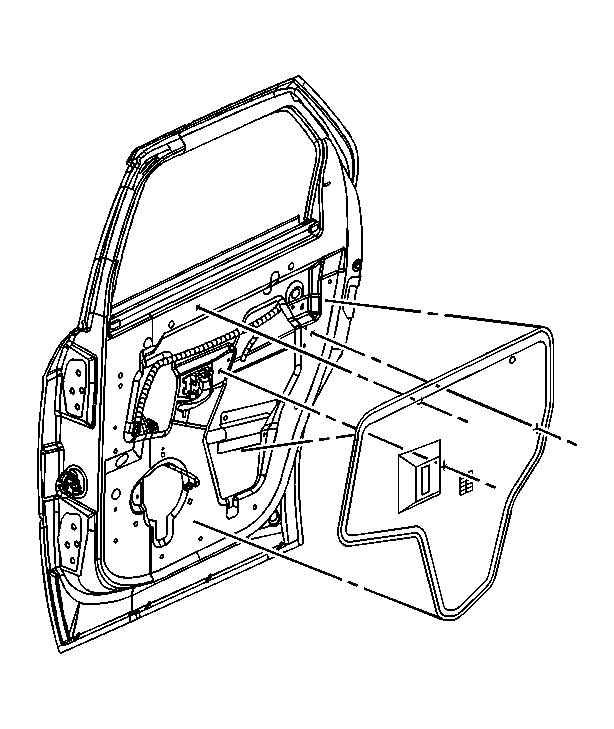

    Fig 1: Identifying Water Deflector
    GM621715Courtesy of GENERAL MOTORS CORP.
  4. Pull the electrical connectors through the slit in the door handle cut out.
