Door Lock/Indicator Schematics

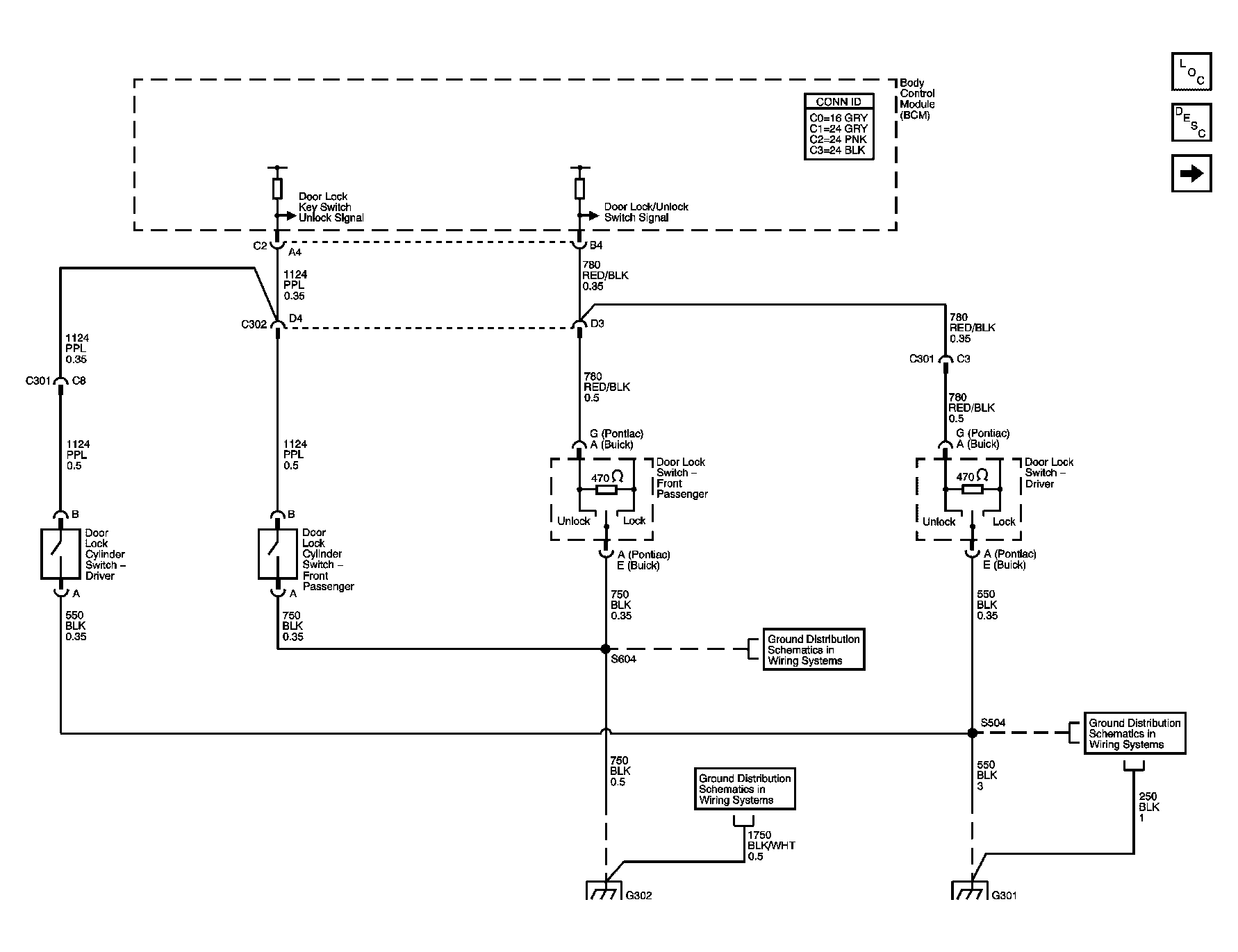

Fig 1: Door Lock Switches Schematic

Courtesy of GENERAL MOTORS CORP.

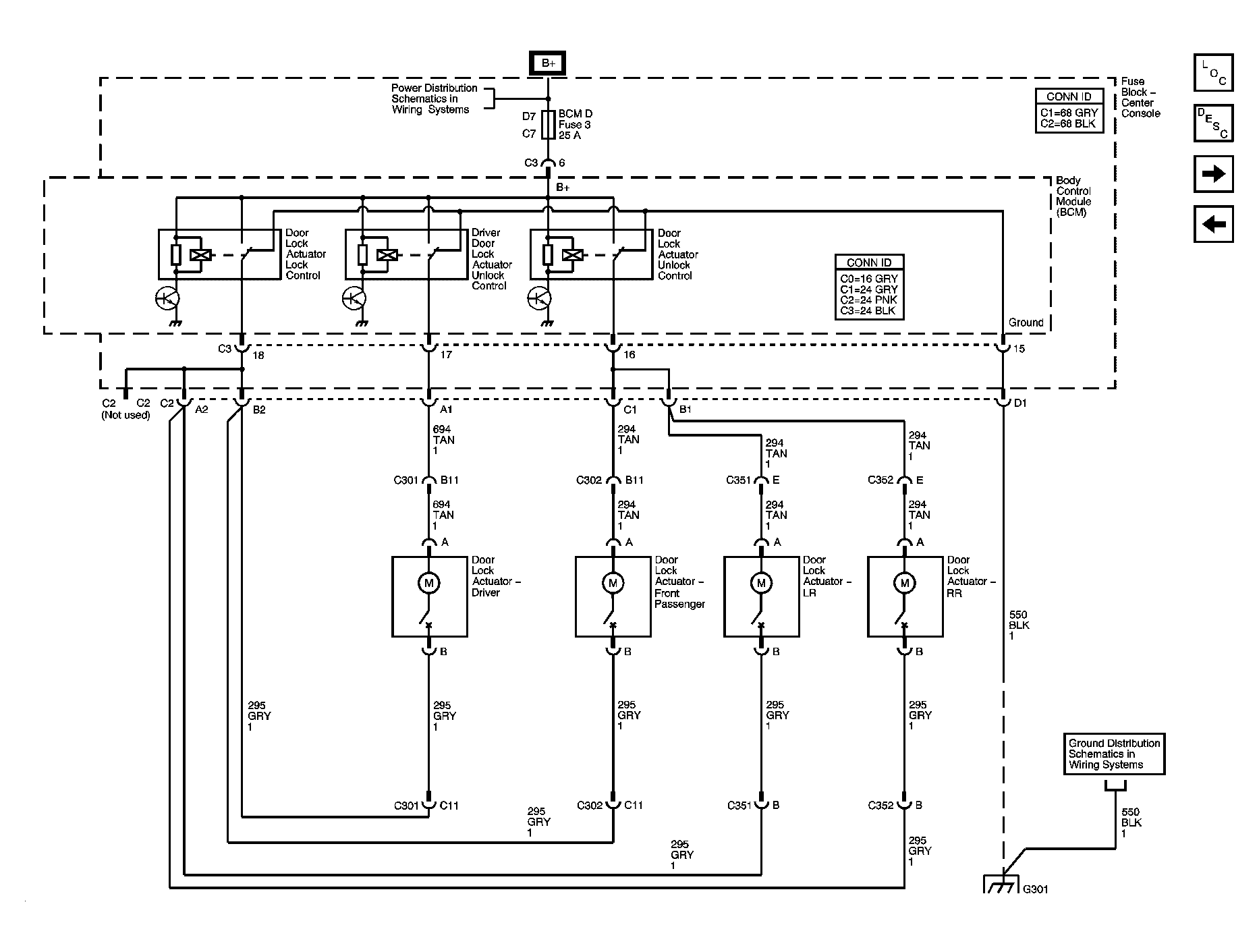

Fig 2: Door Lock Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

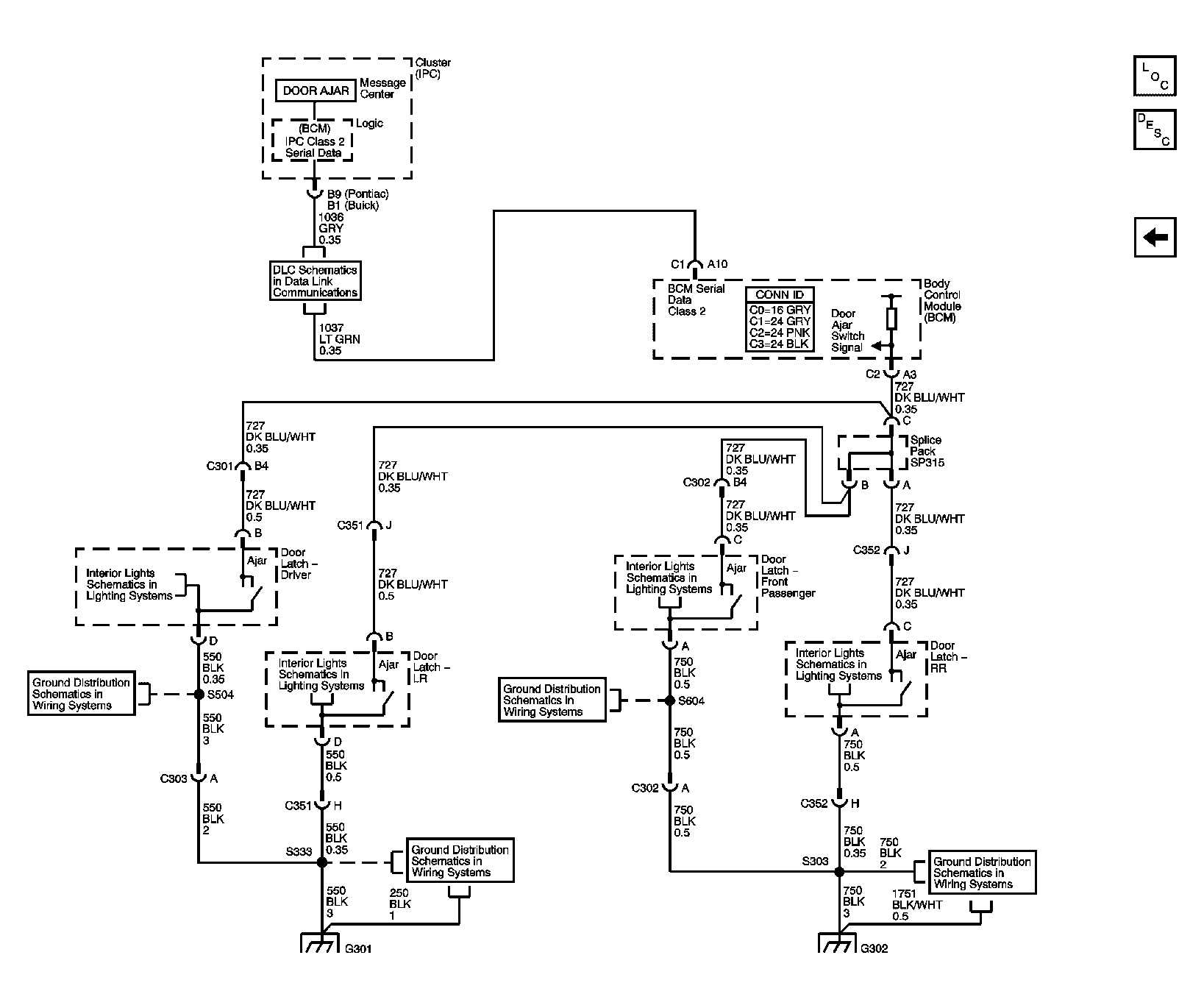

Fig 3: Door Ajar Indicator Schematic

Courtesy of GENERAL MOTORS CORP.
