Outside Mirror Schematics

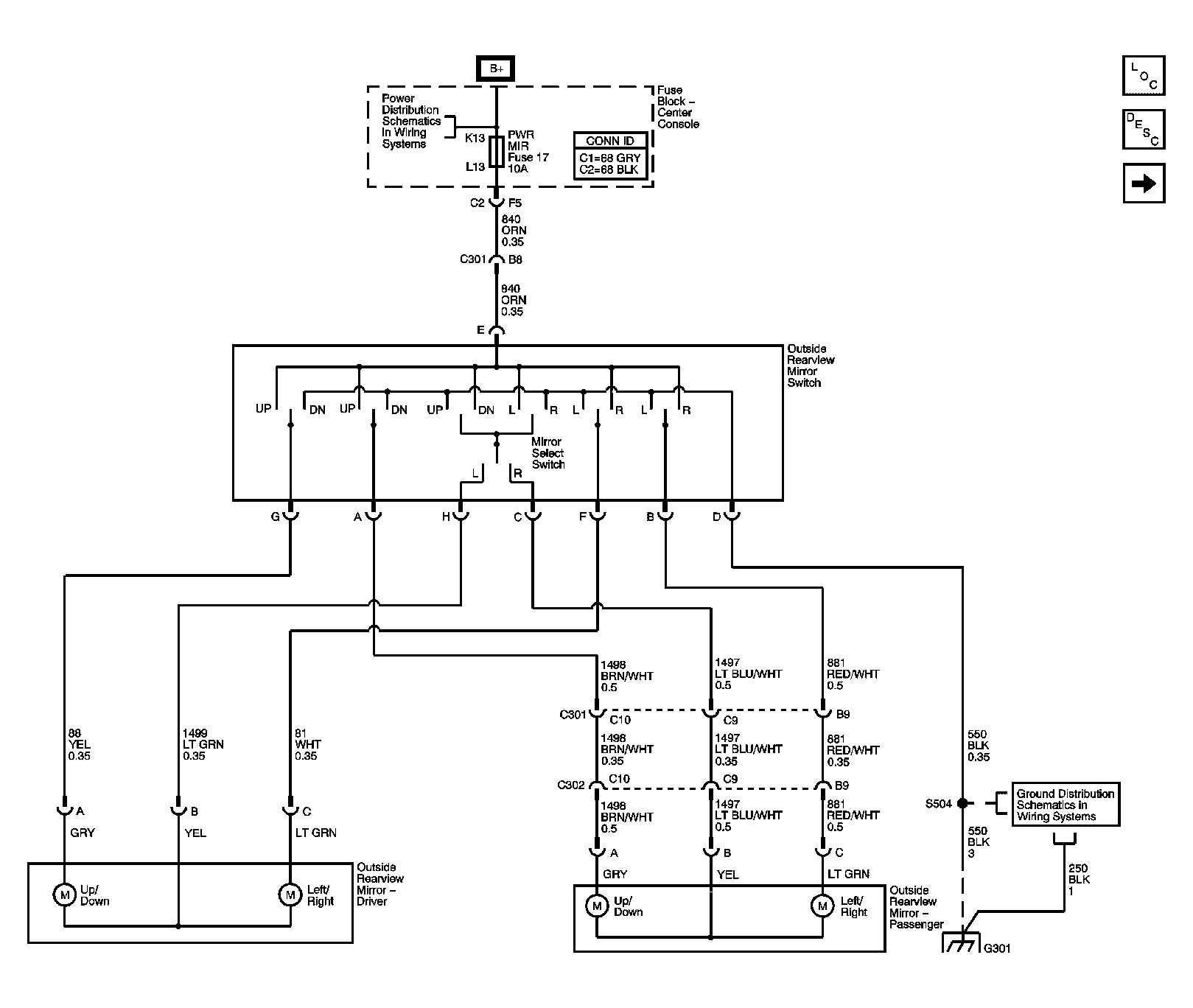

Fig 1: Base Mirrors Schematic
GM754037Courtesy of GENERAL MOTORS CORP.

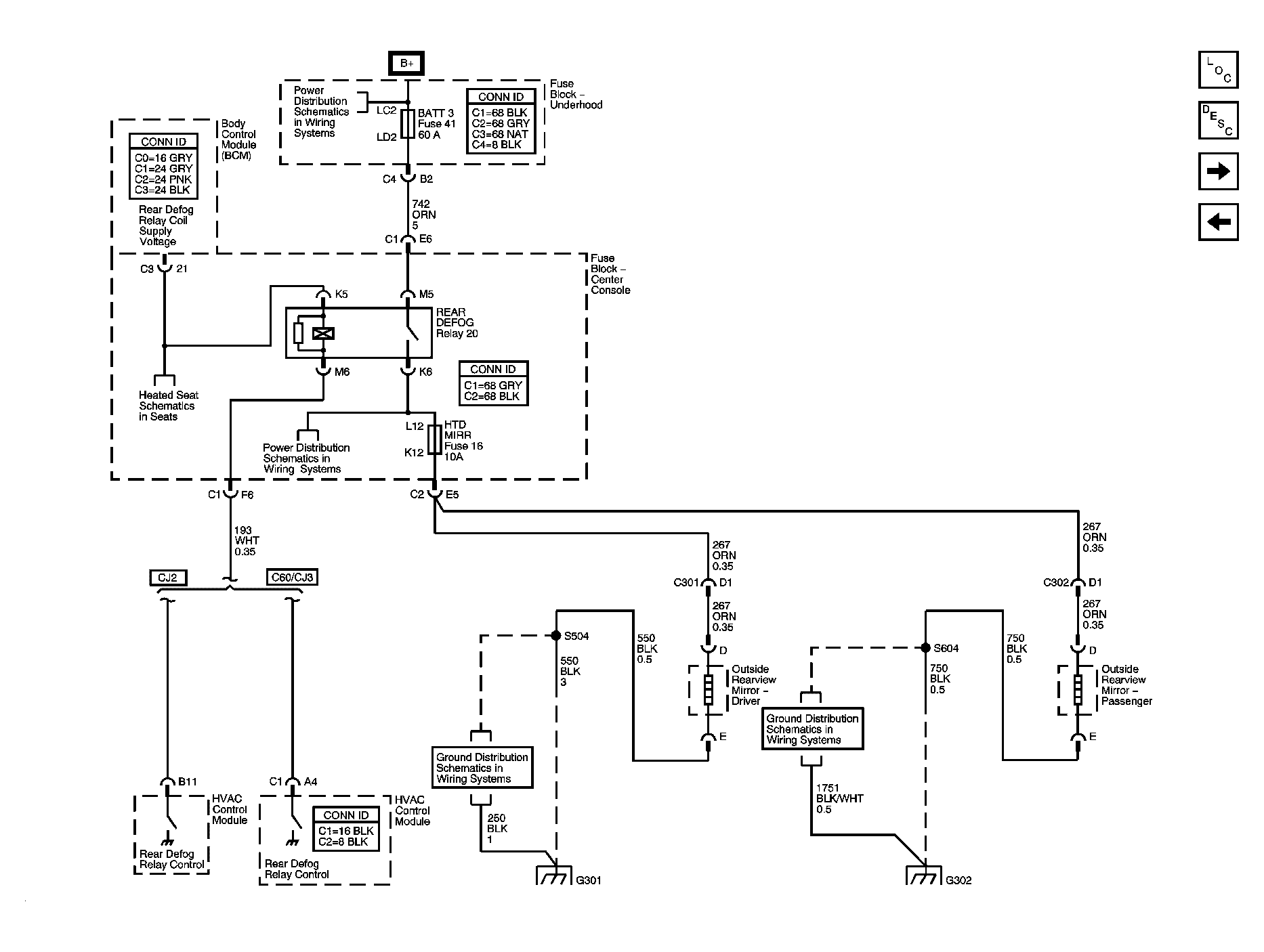

Fig 2: Heated Mirrors Schematic
GM1407286Courtesy of GENERAL MOTORS CORP.

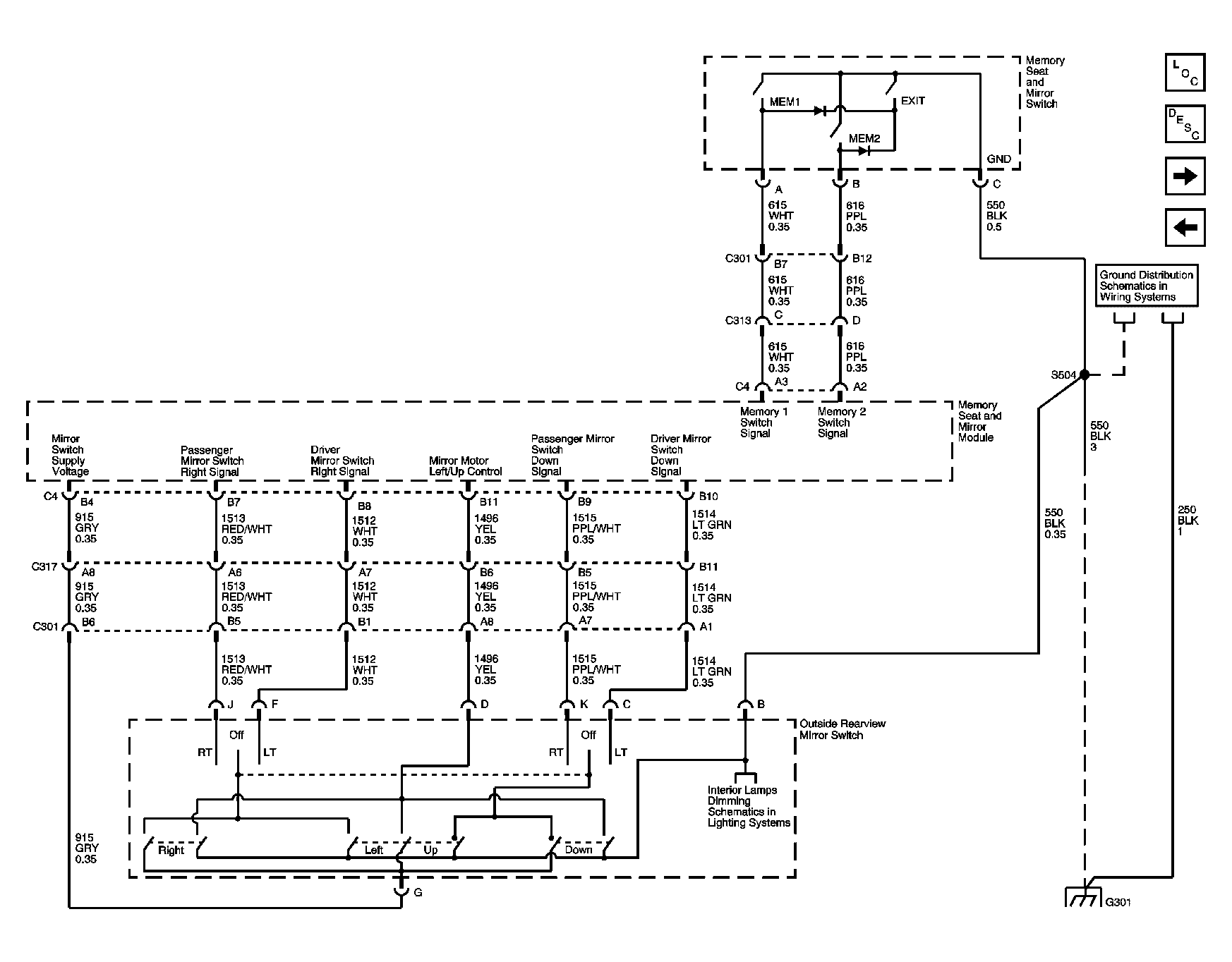

Fig 3: Memory Mirrors - Power, Ground and Switches Schematic
GM796610Courtesy of GENERAL MOTORS CORP.

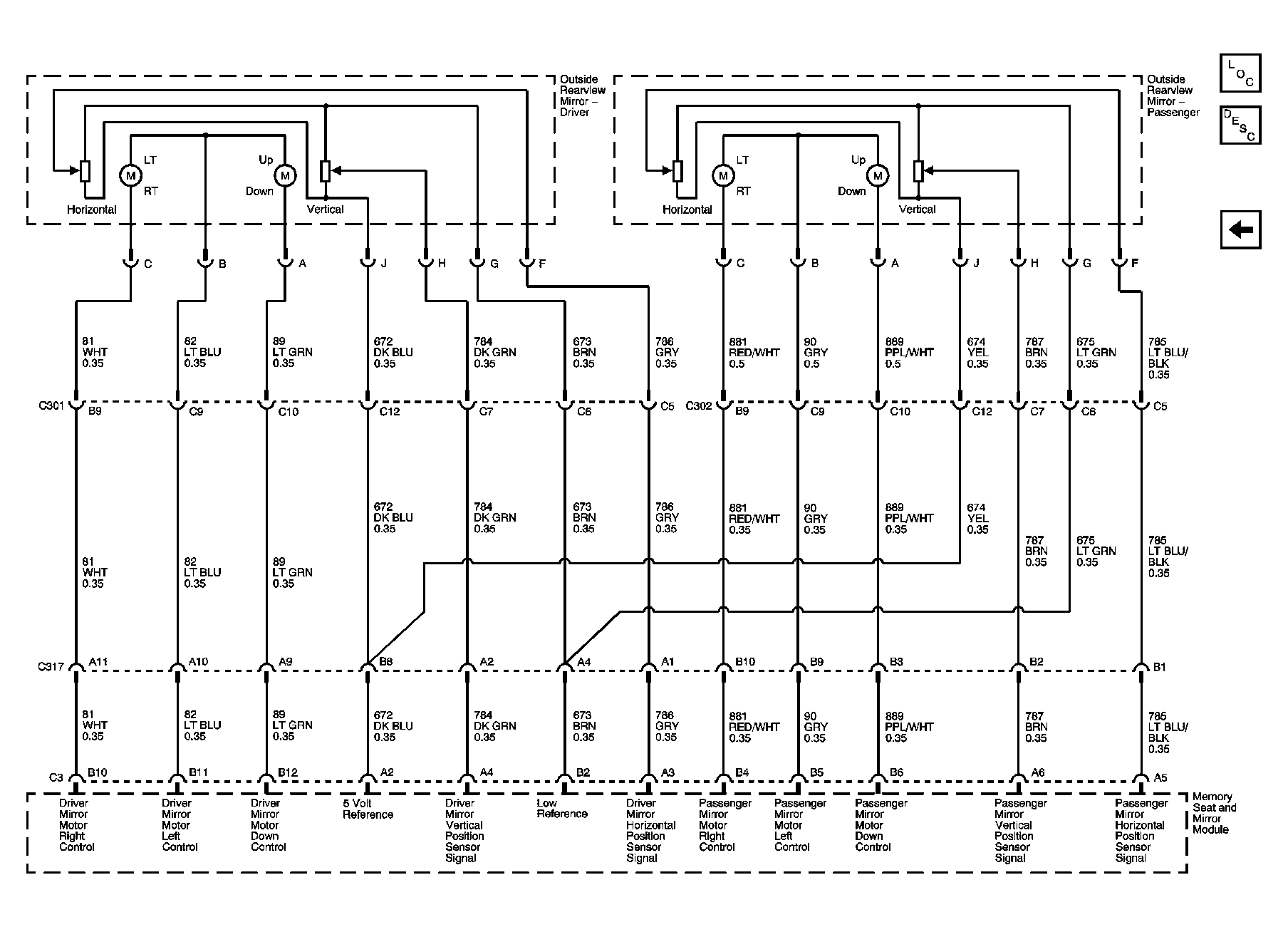

Fig 4: Memory Mirrors - Mirror Controls Schematic
GM796611Courtesy of GENERAL MOTORS CORP.
