FixVault
Home
›
Pontiac
›
2004
›
Aztek Base, AWD
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Stationary Window System
›
Schematic and Routing Diagrams
›
Inside Rearview Mirror Schematics
Inside Rearview Mirror Schematics

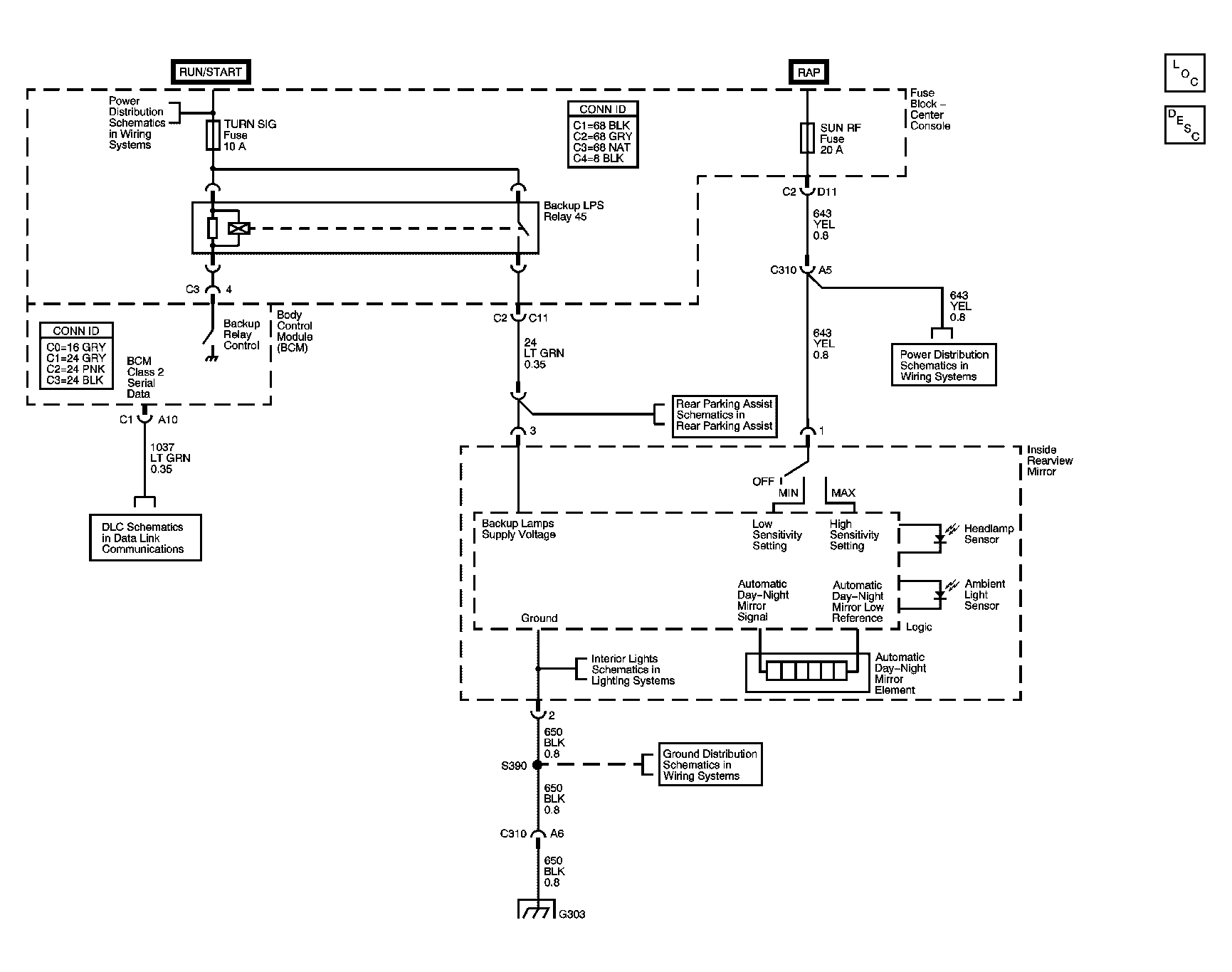

Fig 1: Inside Rearview Mirror Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
