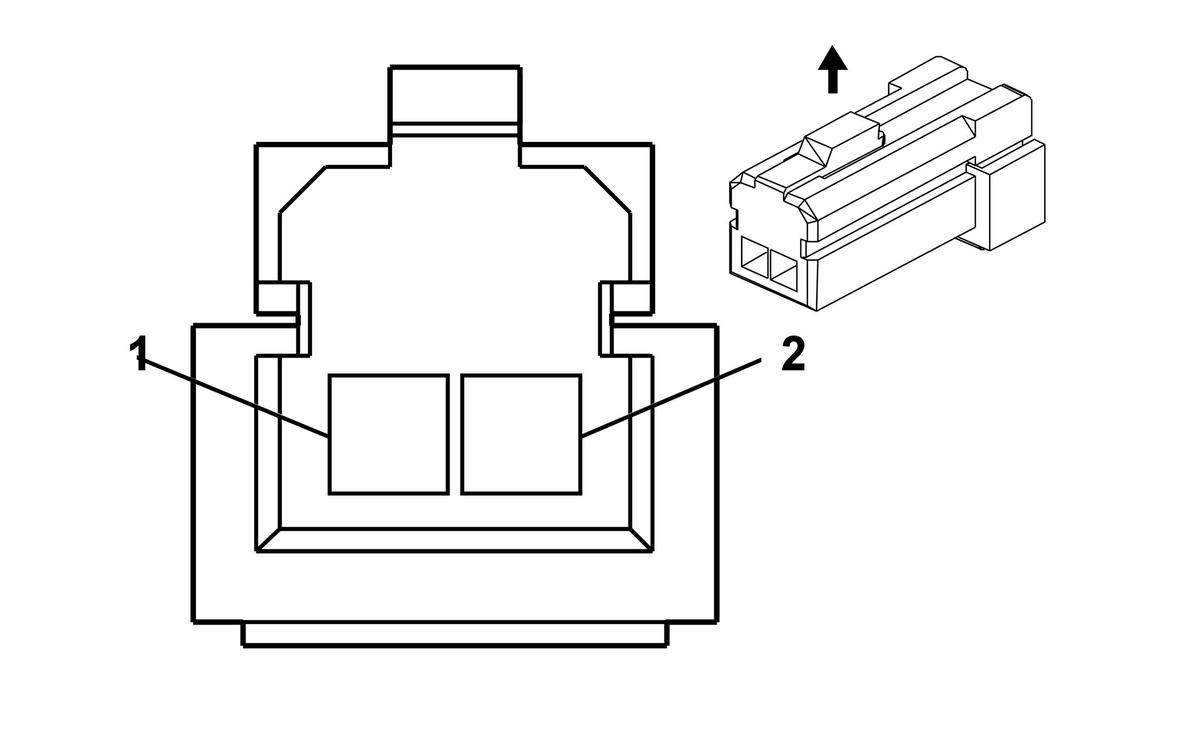

Sunload Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15316639 2-Way F (BLK)
Pin	Wire Color	Circuit No.	Function
1	LT BLU/BLK	590	Sunload Sensor Signal
2	BLK	552	Low Reference
