Engine Flywheel Installation

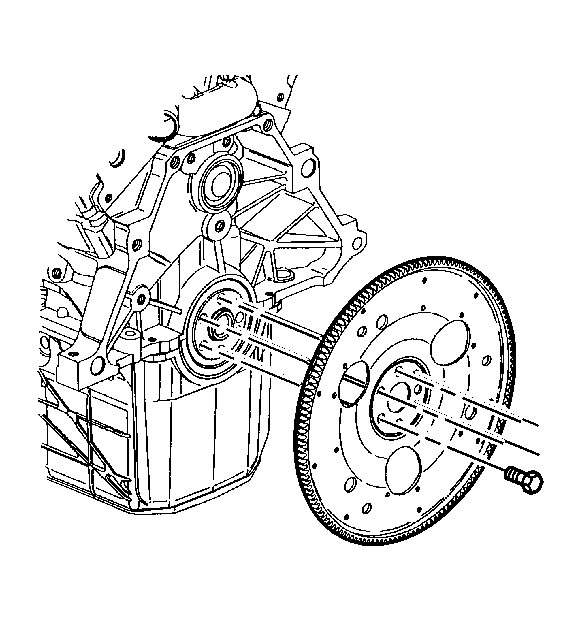

Fig 1: View Of Engine Flywheel

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the flywheel bolts.
Tighten: Tighten the flywheel bolts to 70 N.m (52 lb ft).
