Interior Lights Schematics

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

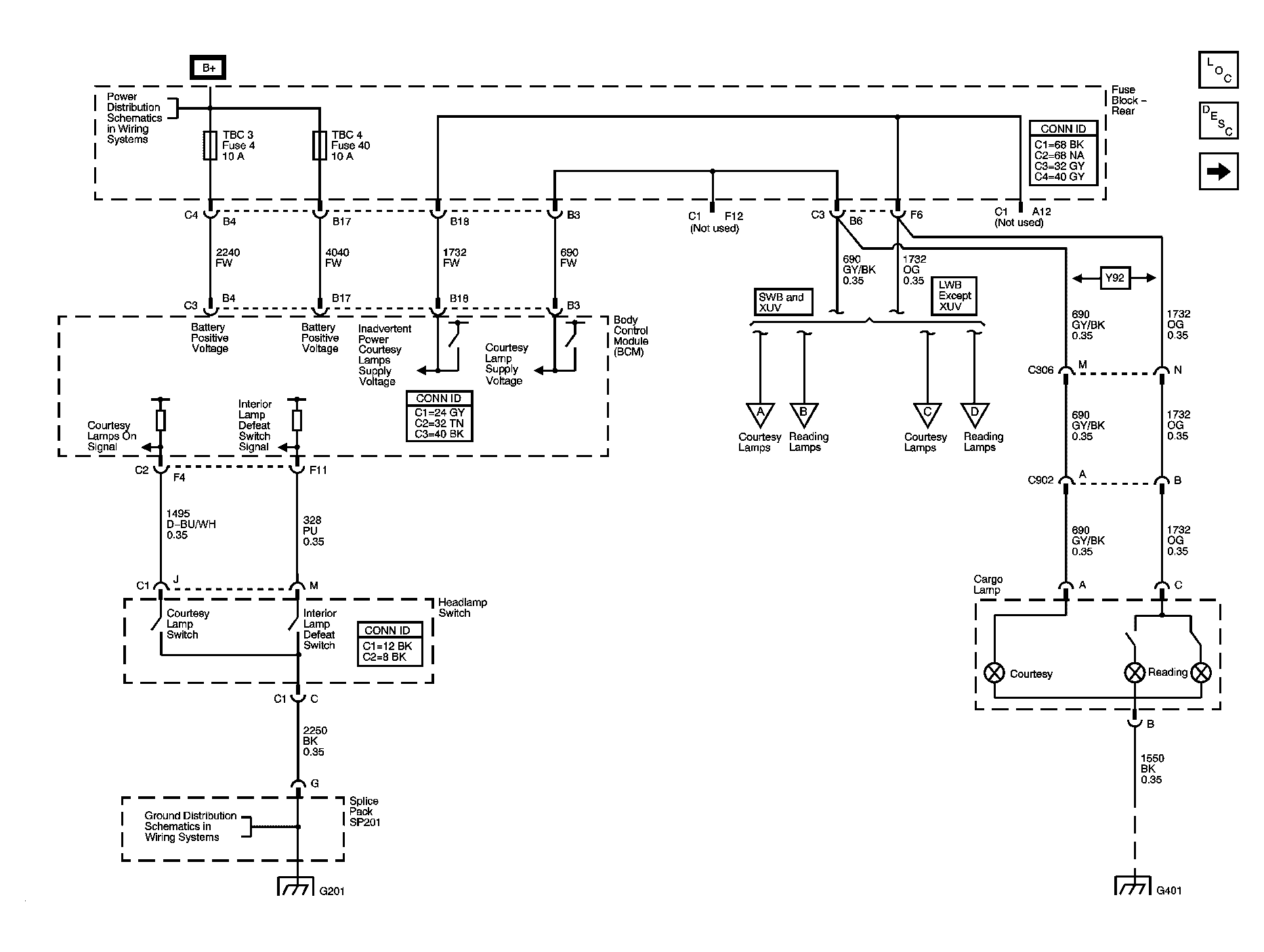

Fig 1: Interior Lamps Controls Schematic

GM1310035

Courtesy of GENERAL MOTORS CORP.

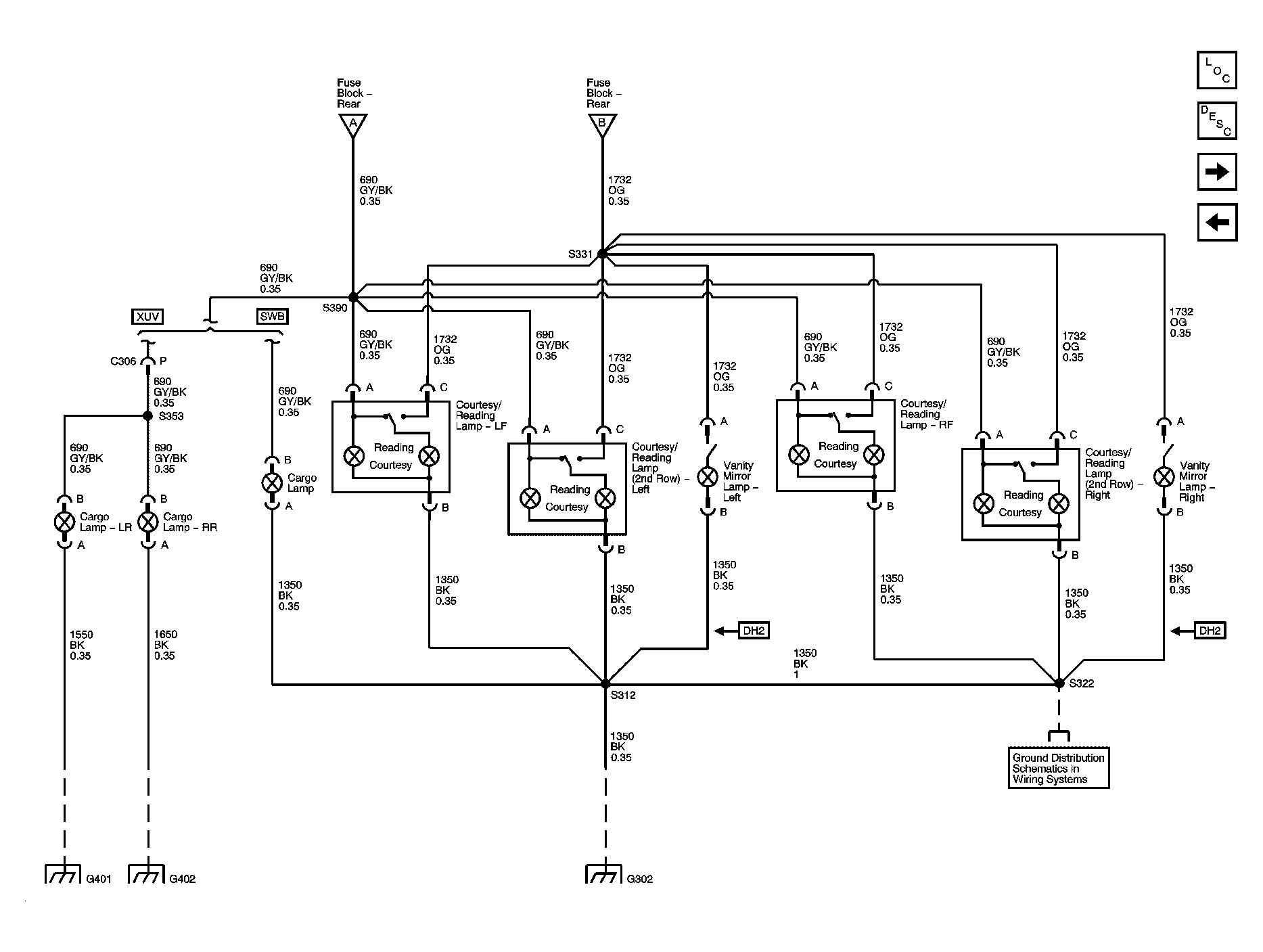

Fig 2: Interior Lamps - Short Wheelbase (SWB) and XUV Schematic

GM1310036

Courtesy of GENERAL MOTORS CORP.

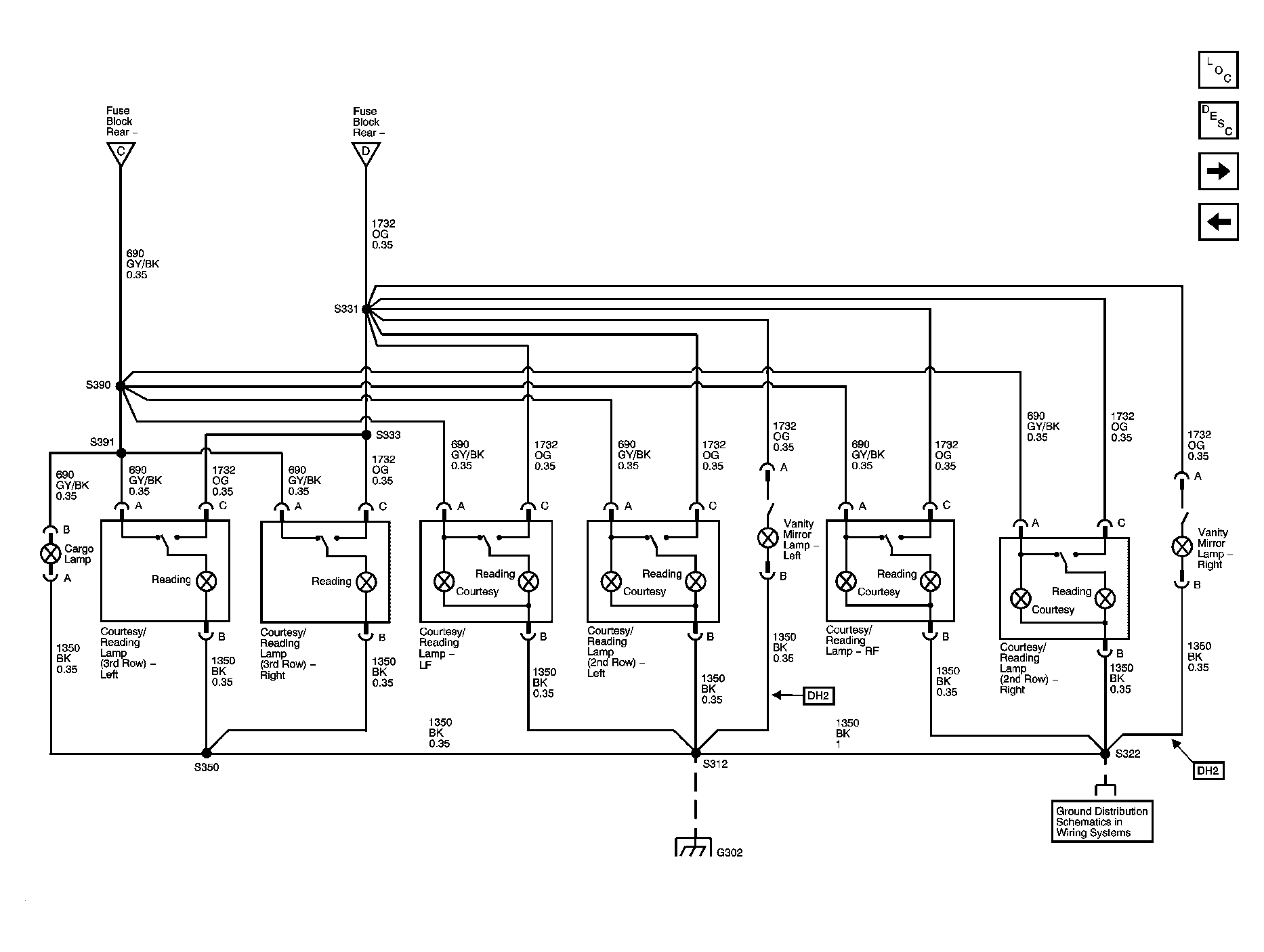

Fig 3: Interior Lamps - Long Wheelbase (LWB) Except XUV Schematic

GM1310039

Courtesy of GENERAL MOTORS CORP.

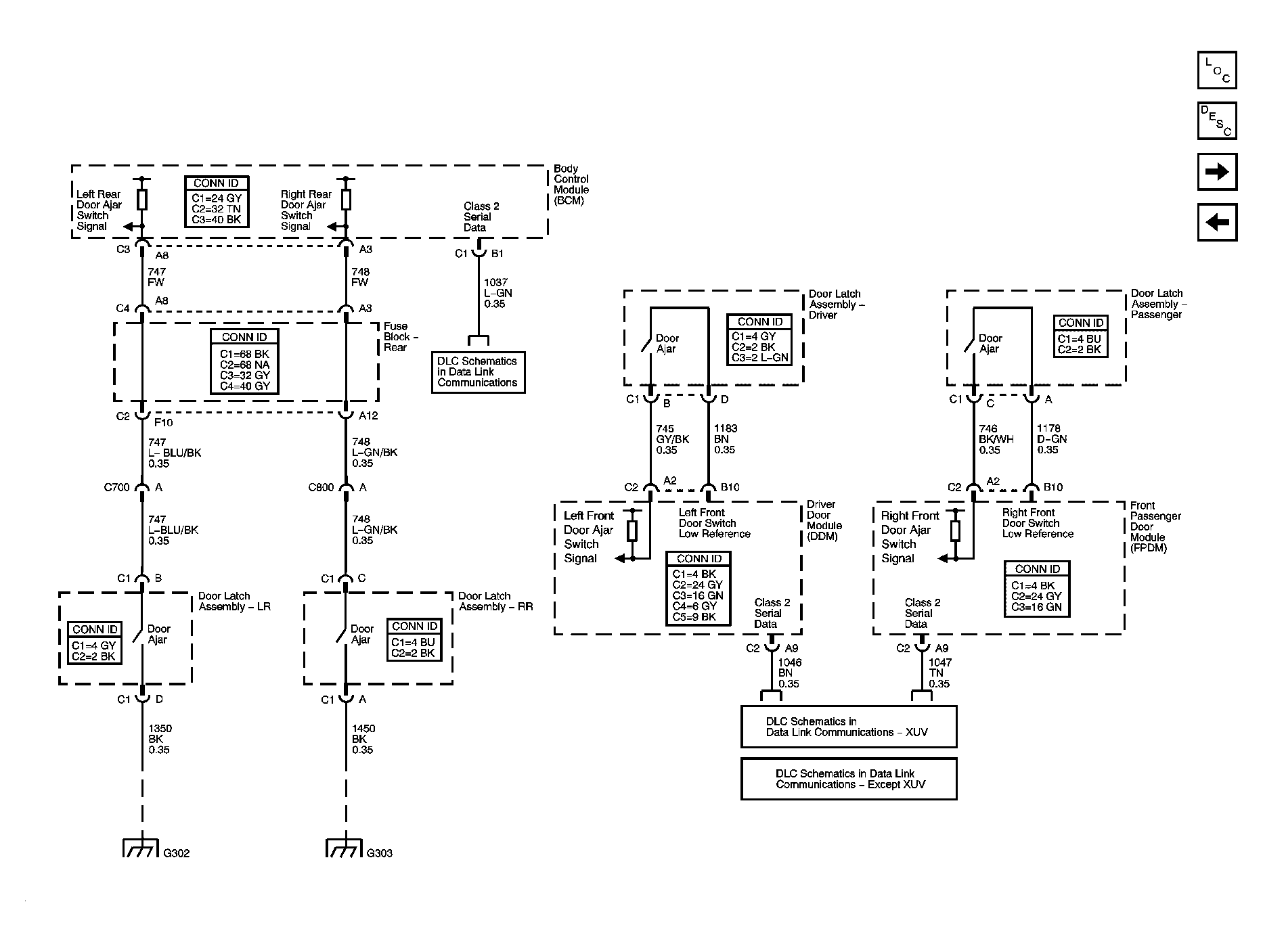

Fig 4: Door Switch Inputs Schematic

GM1310042

Courtesy of GENERAL MOTORS CORP.

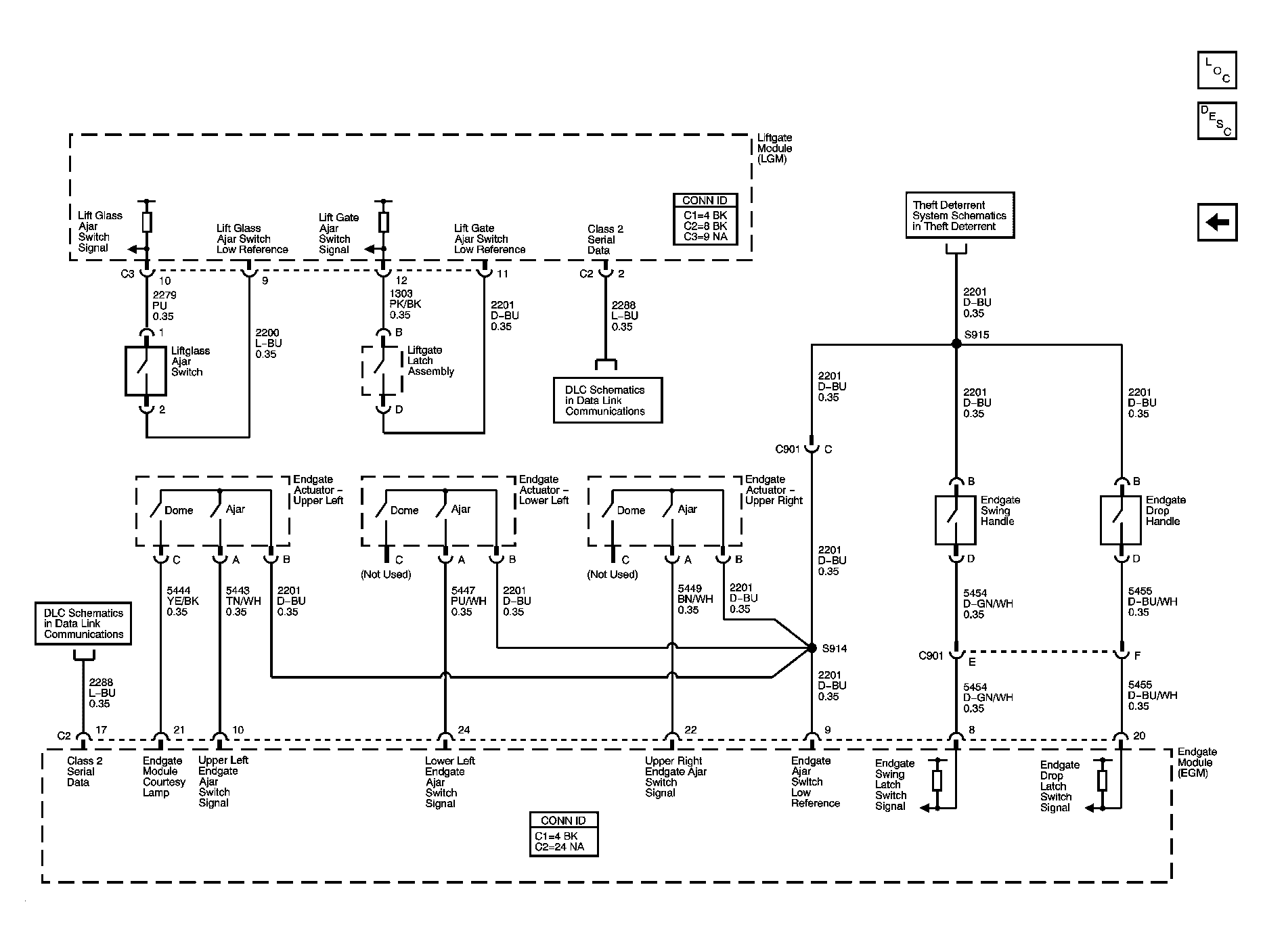

Fig 5: Liftgate Module (Except XUV) and Endgate Module (XUV) Switch Inputs Schematic

GM1310046

Courtesy of GENERAL MOTORS CORP.
