HVAC Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

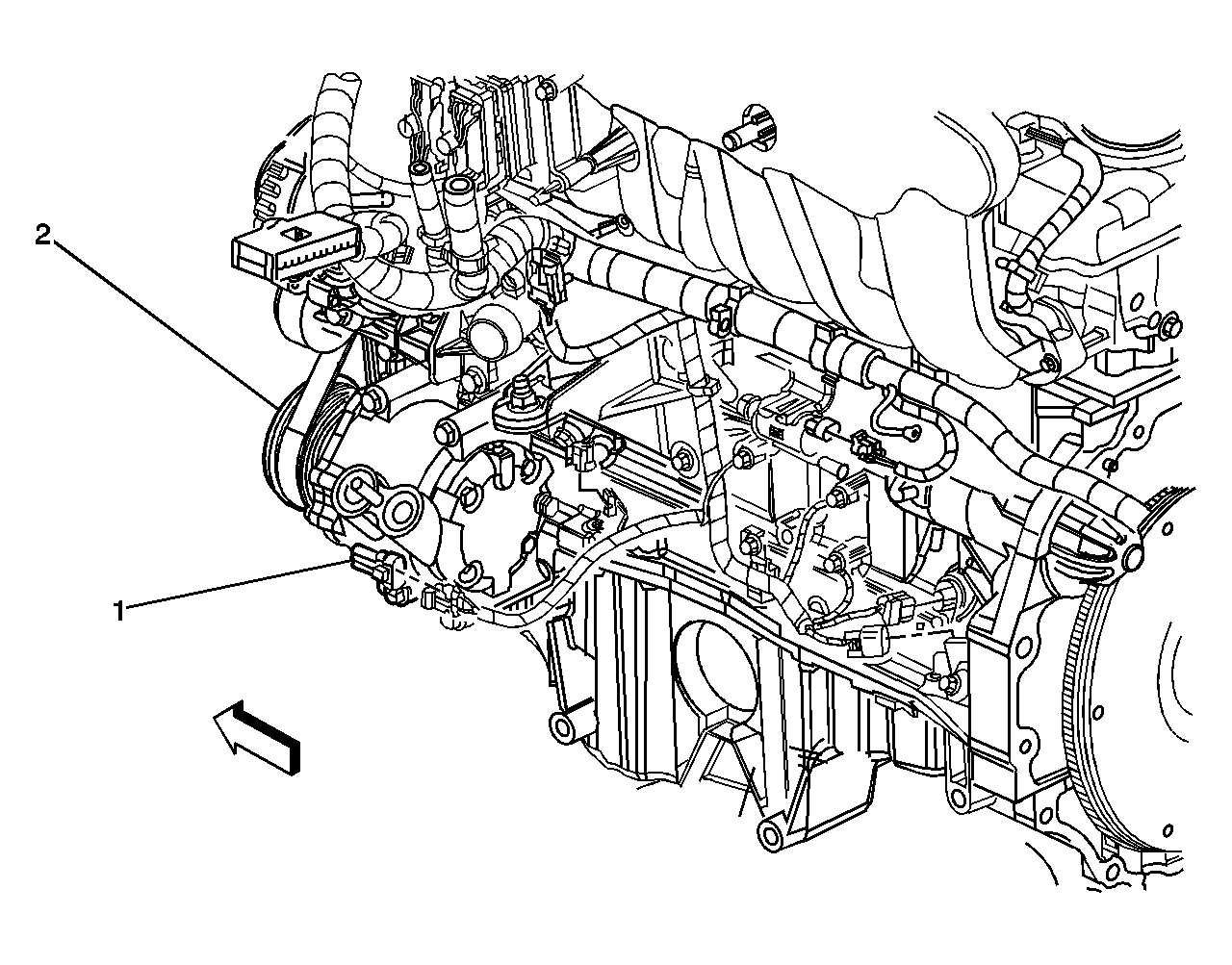

Fig 1: Six Cylinder Engine, Left Side HVAC Component View

GM747710

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor Clutch Connector
2	A/C Compressor

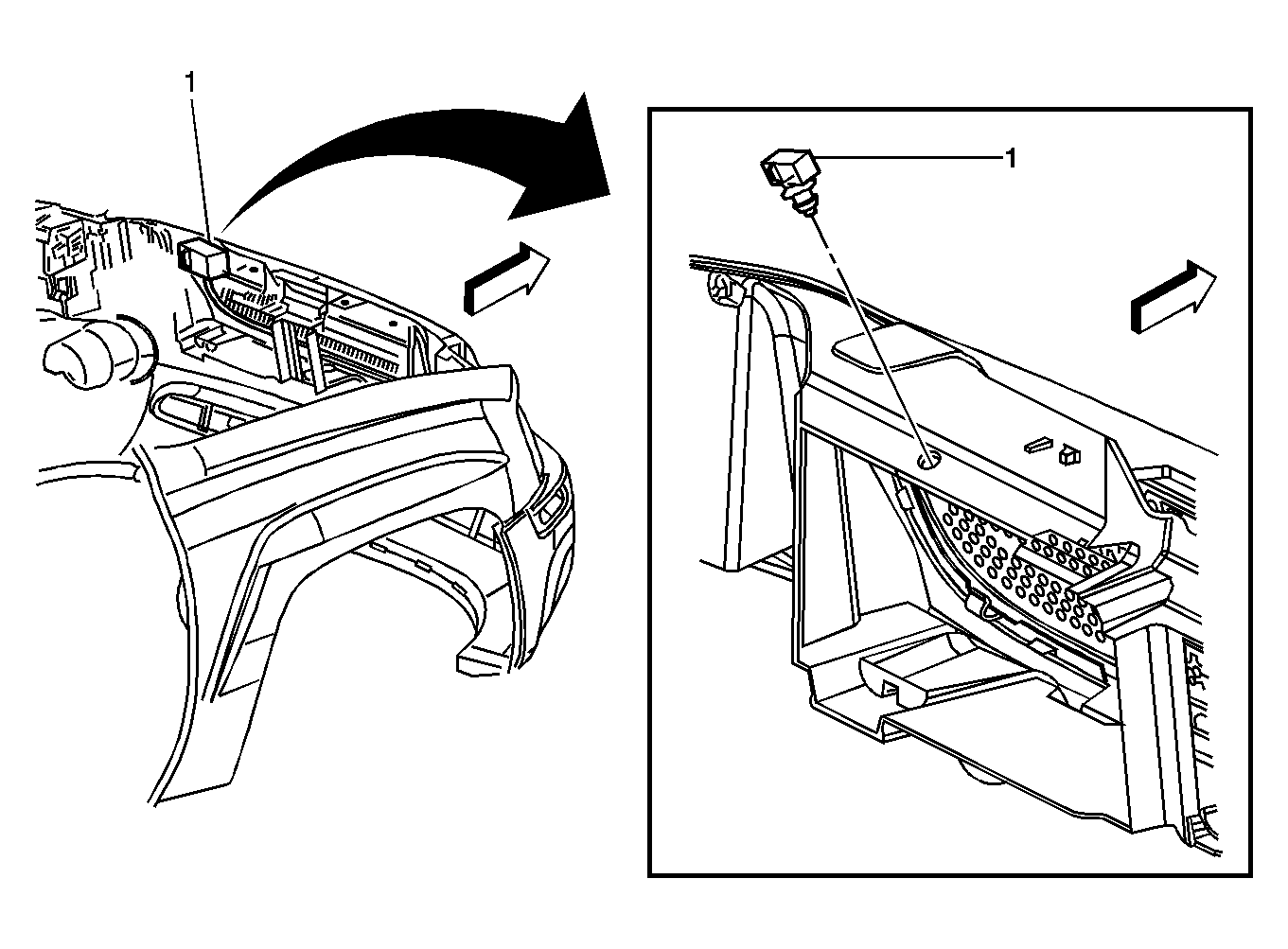

Fig 2: Ambient Air Temperature Sensor

GM747711

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor

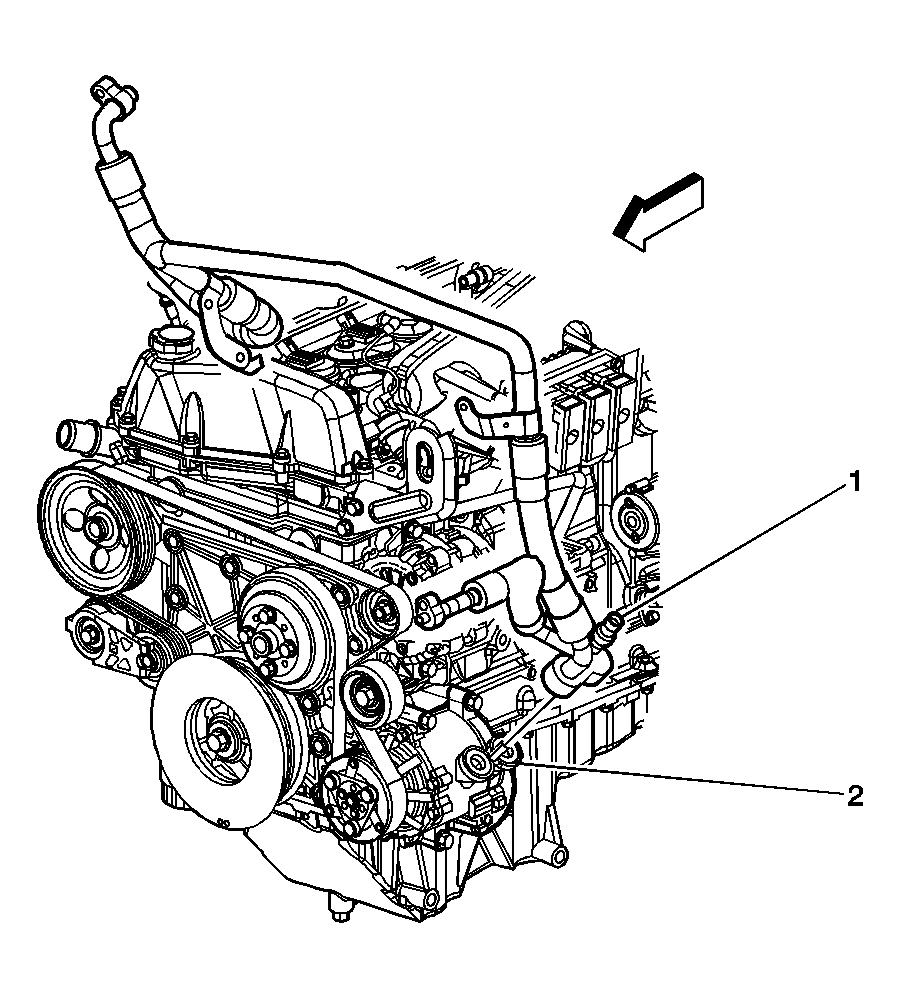

Fig 3: A/C Refrigerant Pressure Sensor, Six Cylinder Engine

GM797101

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Conditioning Refrigerant Pressure Sensor
2	A/C Compressor

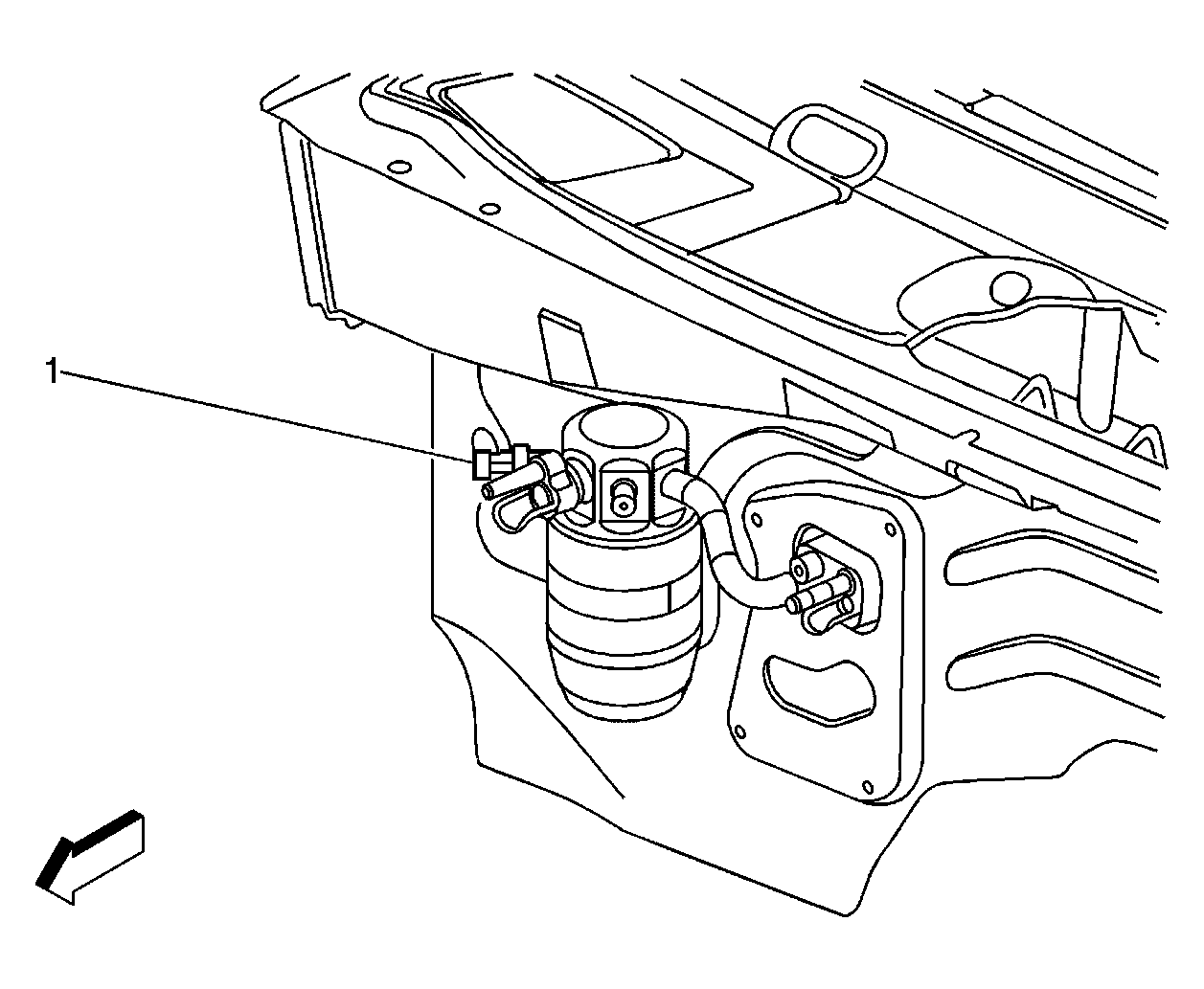

Fig 4: A/C Low Pressure Switch

GM747714

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Low Pressure Switch

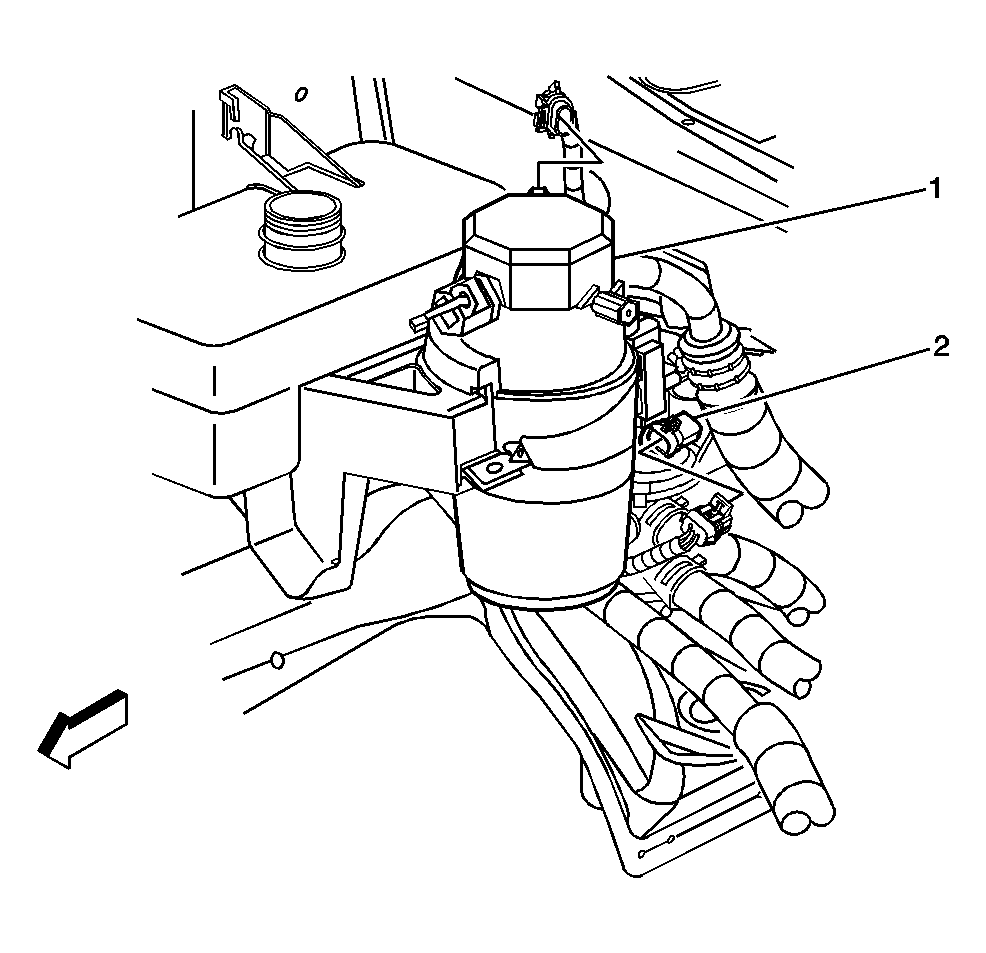

Fig 5: Accumulator & Coolant Bypass Valve (Long Wheelbase Except XUV)

GM825659

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accumulator
2	Coolant Bypass Valve

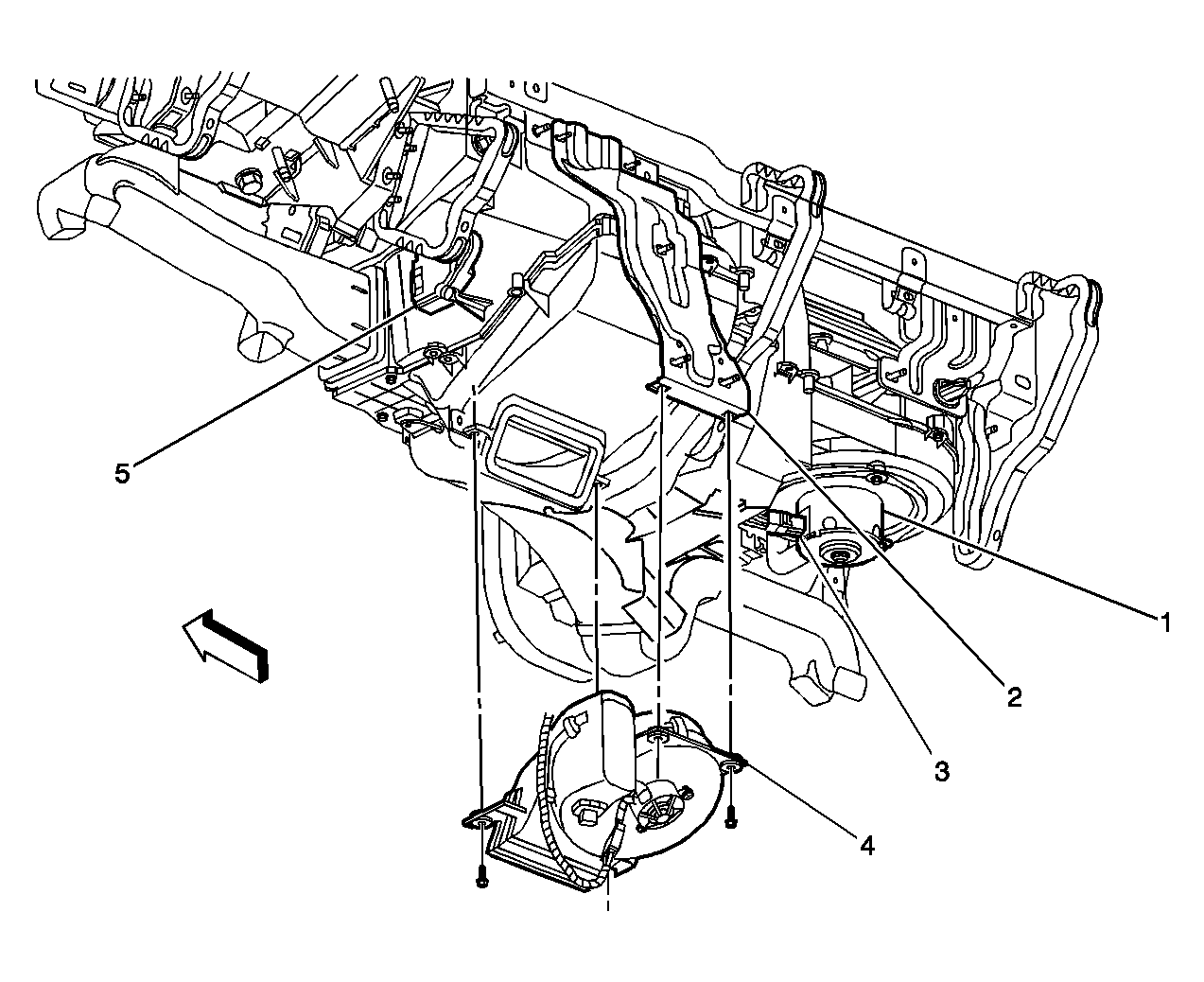

Fig 6: Instrument Panel Carrier HVAC Components

GM747715

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower
2	I/P Center Support
3	Blower Motor Control Processor
4	Blower - Auxiliary (Short Wheelbase and XUV)
5	Air Temperature Actuator - Left

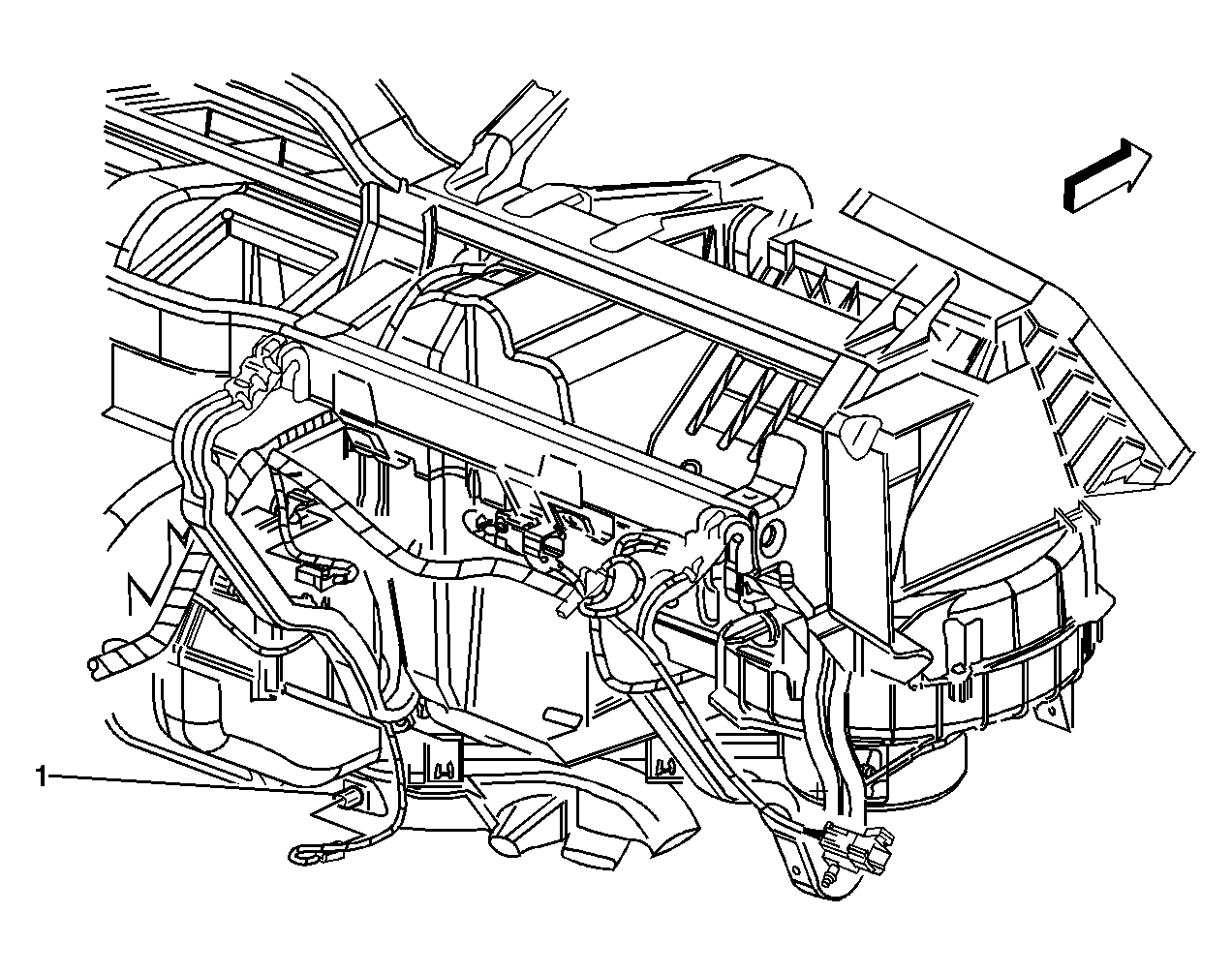

Fig 7: Lower Air Temperature Sensor - Right Side

GM747716

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lower Air Temperature Sensor-Right

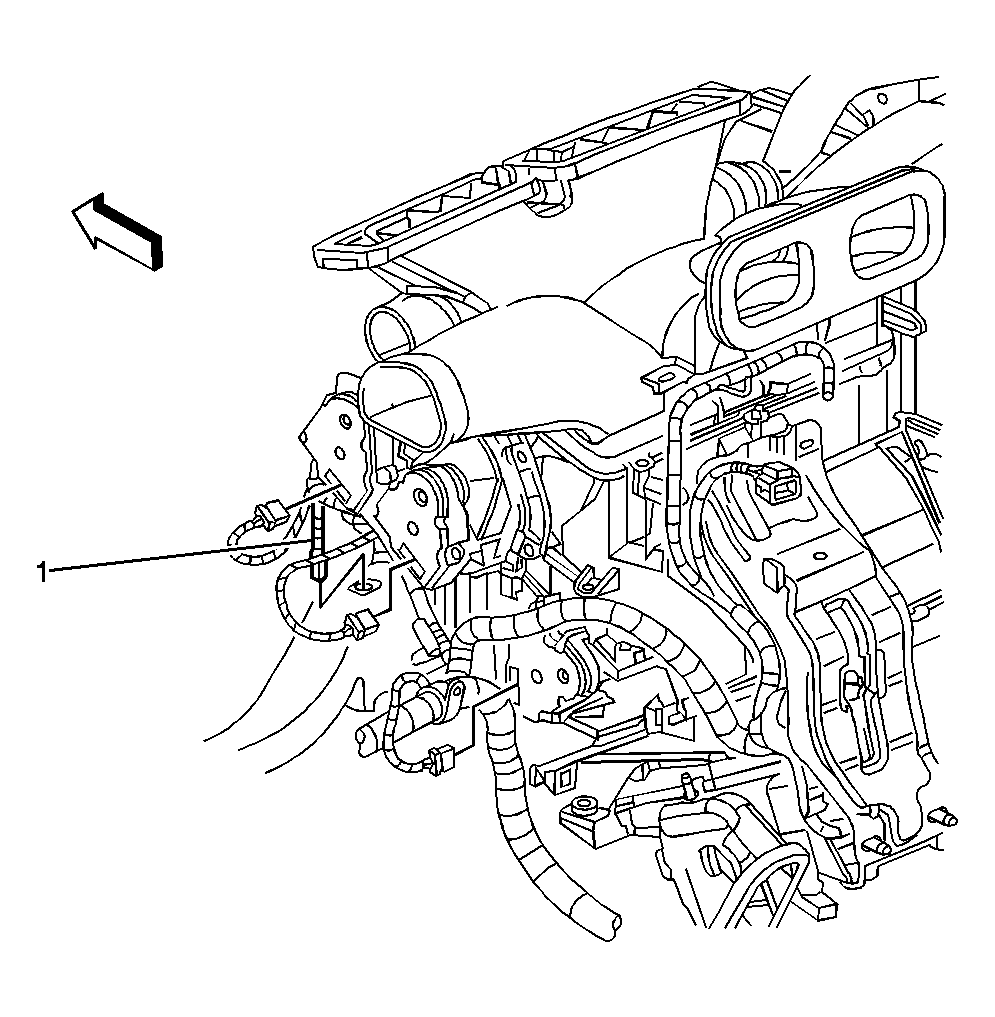

Fig 8: Lower Air Temperature Sensor - Left

GM747731

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lower Air Temperature Sensor-Left

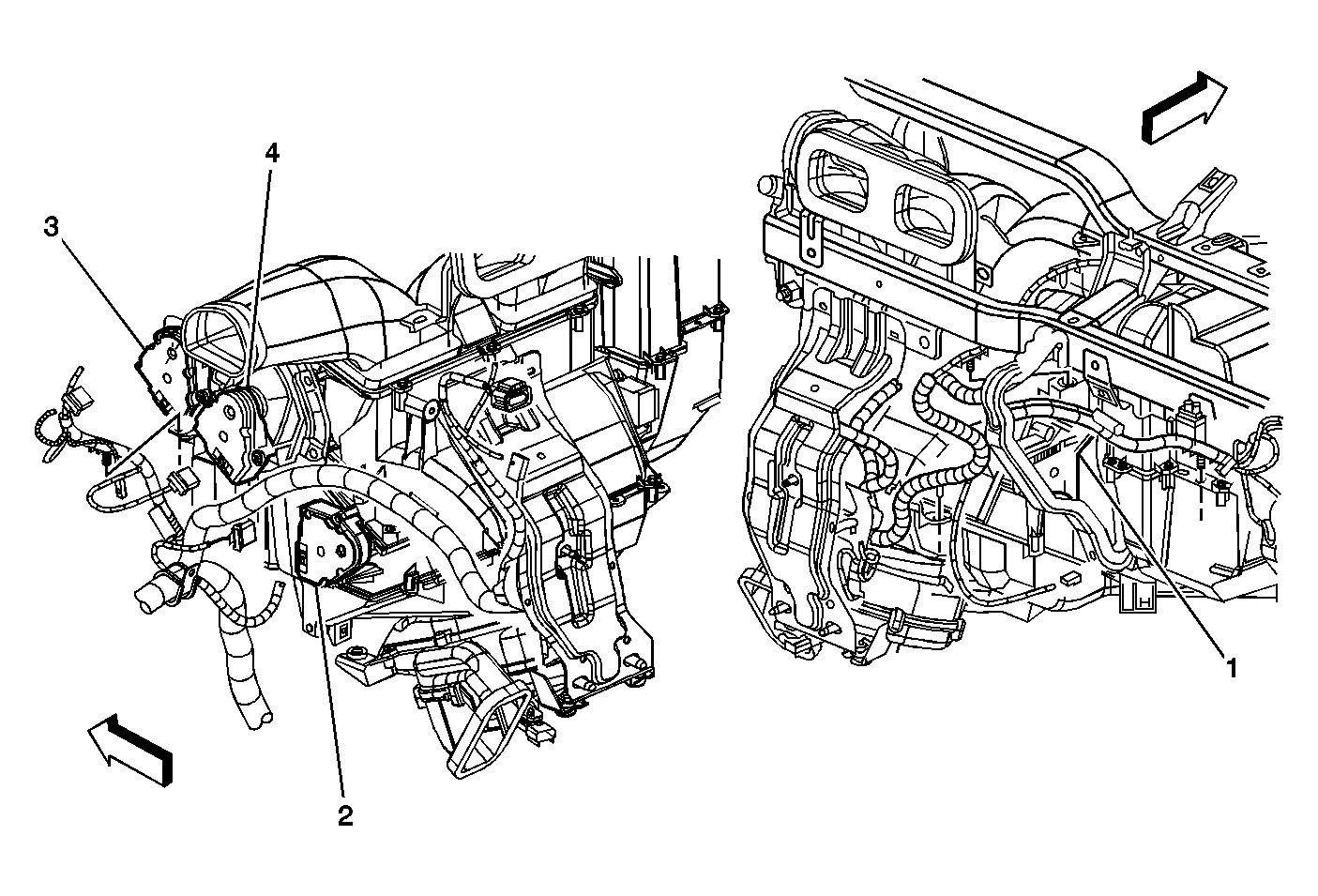

Fig 9: Instrument Panel Carrier HVAC Components, Left and Right

GM747718

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator-Right
2	Air Temperature Actuator-Left
3	Defrost Actuator
4	Mode Actuator

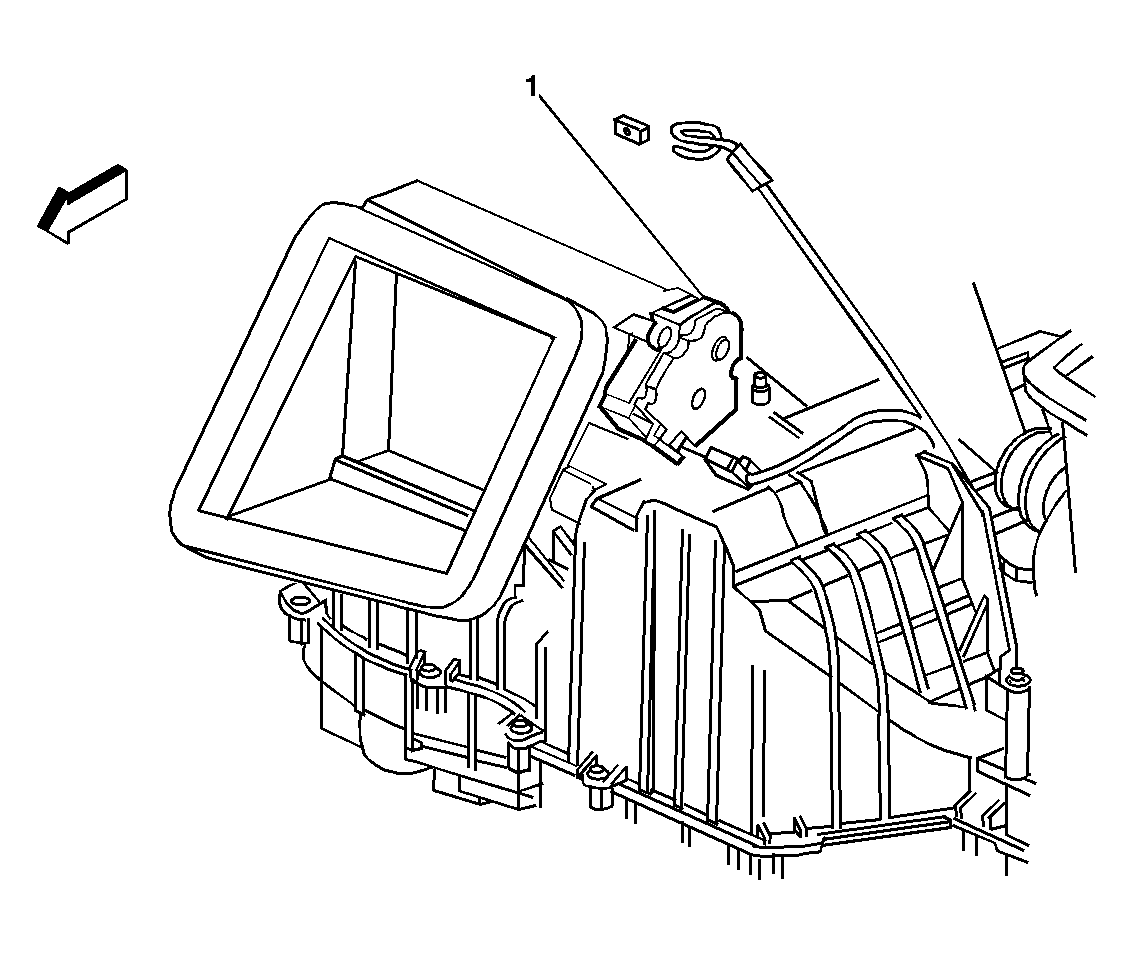

Fig 10: Recirculation Actuator, Cowl Side

GM747719

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Recirculation Actuator

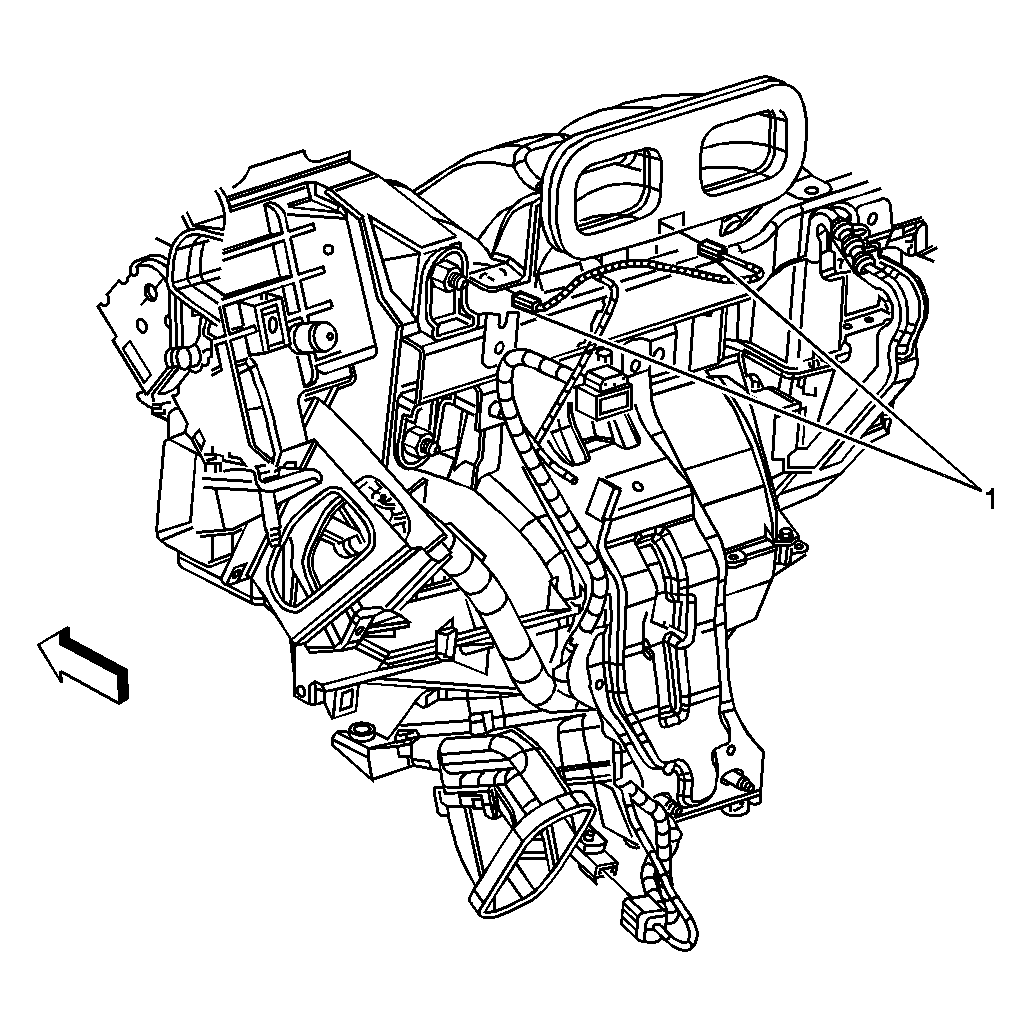

Fig 11: Upper Air Temperature Sensors - Air Duct

GM747721

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Air Temperature Sensors

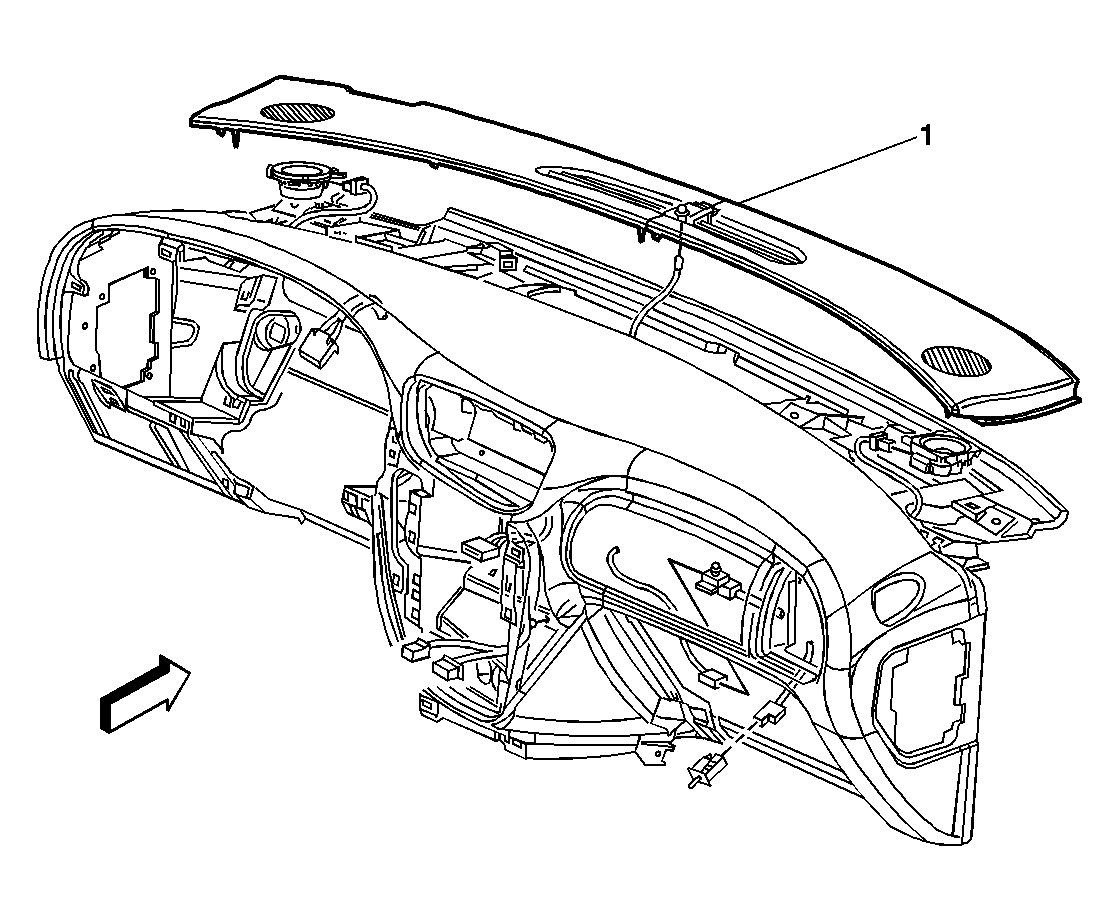

Fig 12: Ambient Light/Sunload Sensor

GM747798

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light/Sunload Sensor

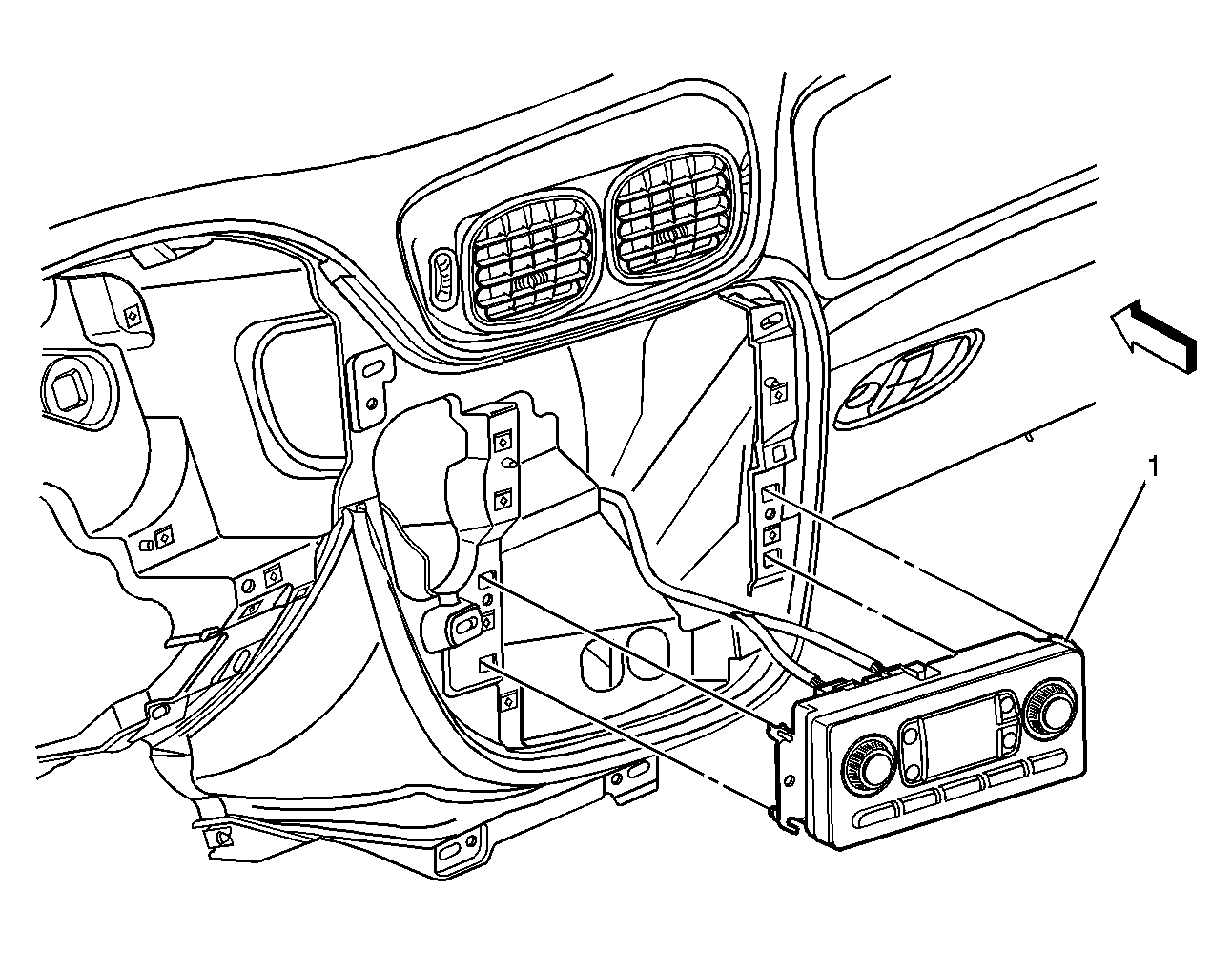

Fig 13: HVAC Control Module

GM747722

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Module

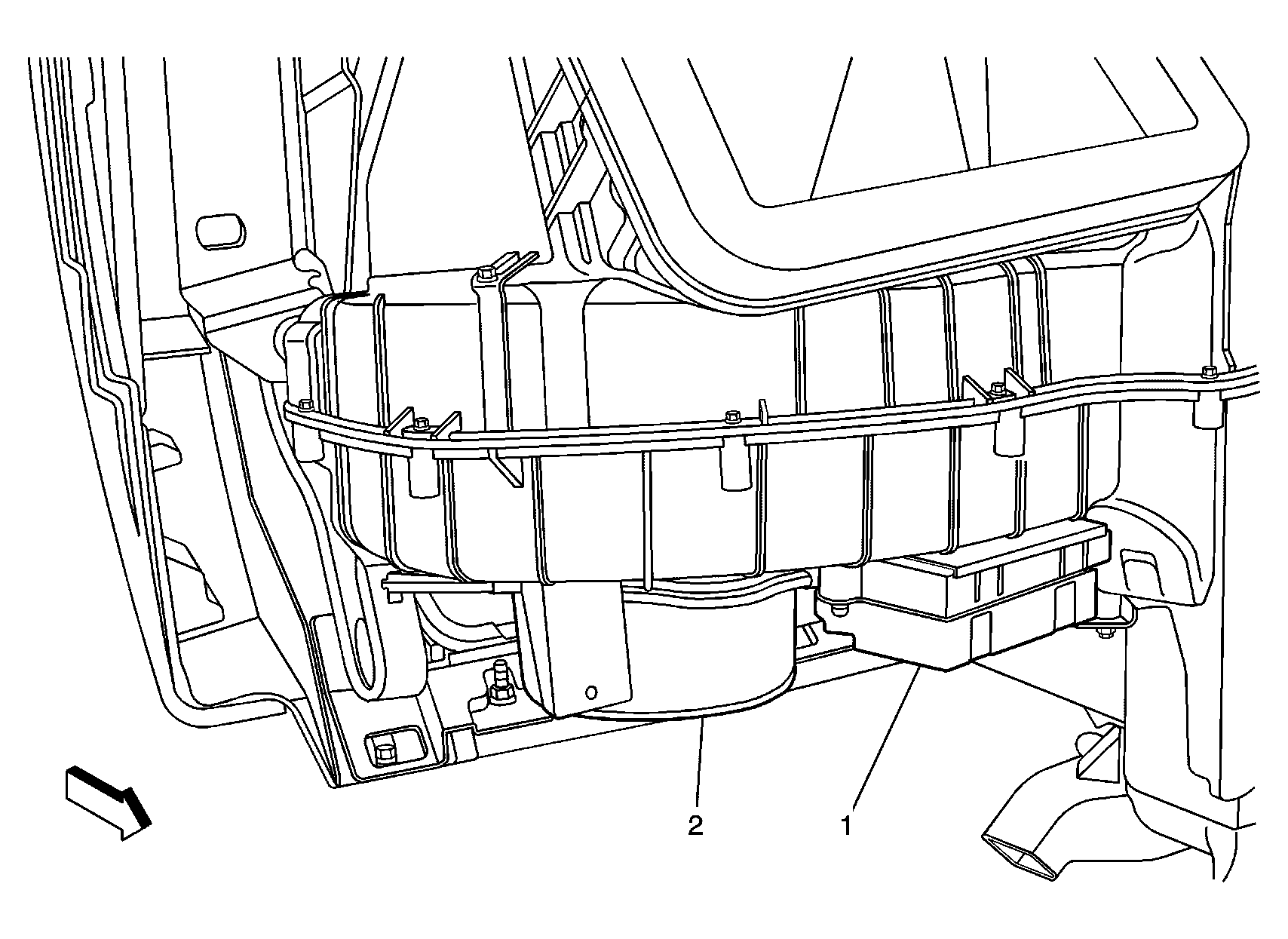

Fig 14: Blower Motor & Control Processor - Lower I/P, Right Side

GM891676

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Control Processor
2	Blower Motor

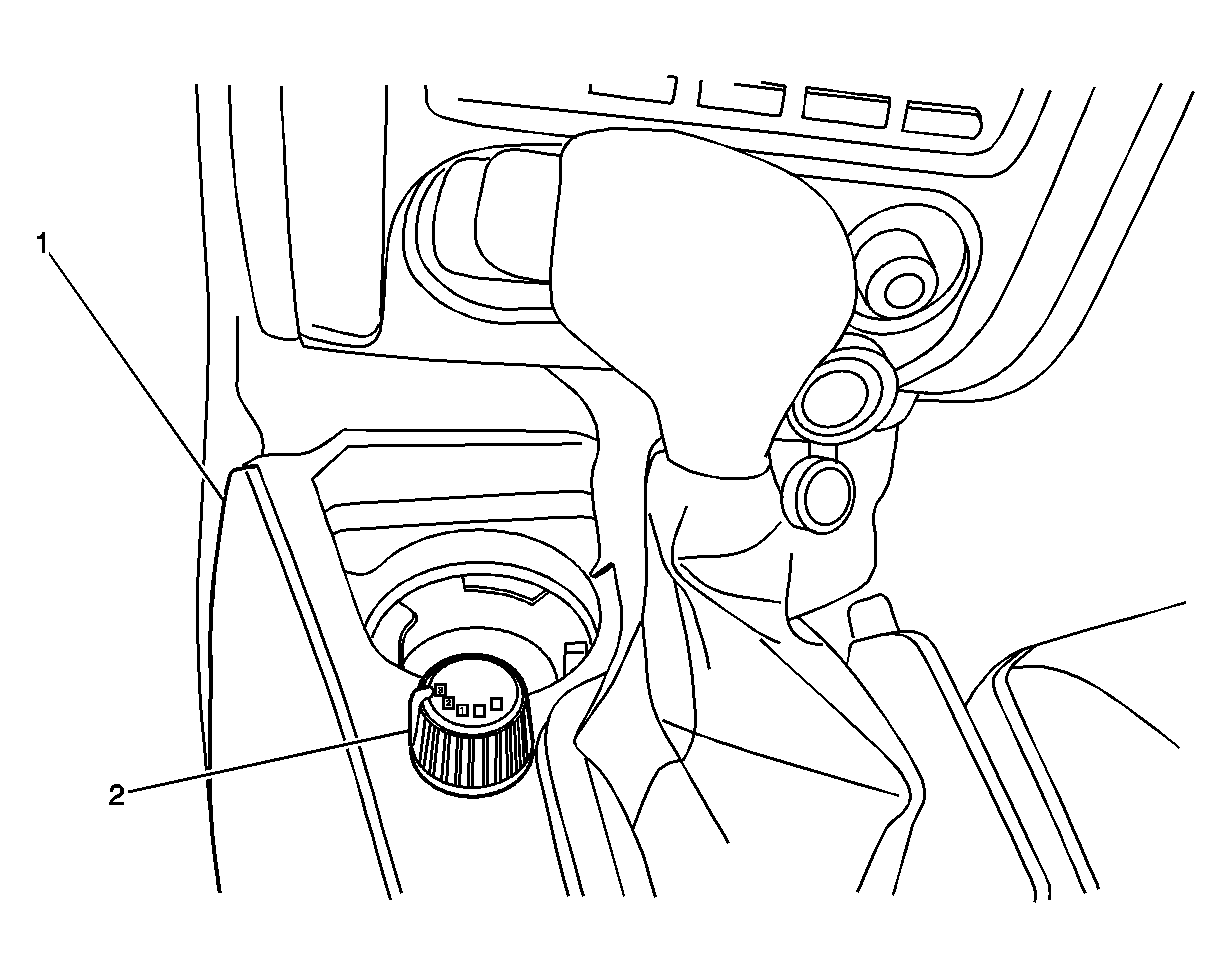

Fig 15: Front Auxiliary Blower Motor Switch (Long Wheelbase Except XUV)

GM826160

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lower Console
2	Blower Motor Switch - Auxiliary

Fig 16: Inside Air Temperature Sensor (B-Pillar, Left)

GM747723

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Air Temperature Sensor

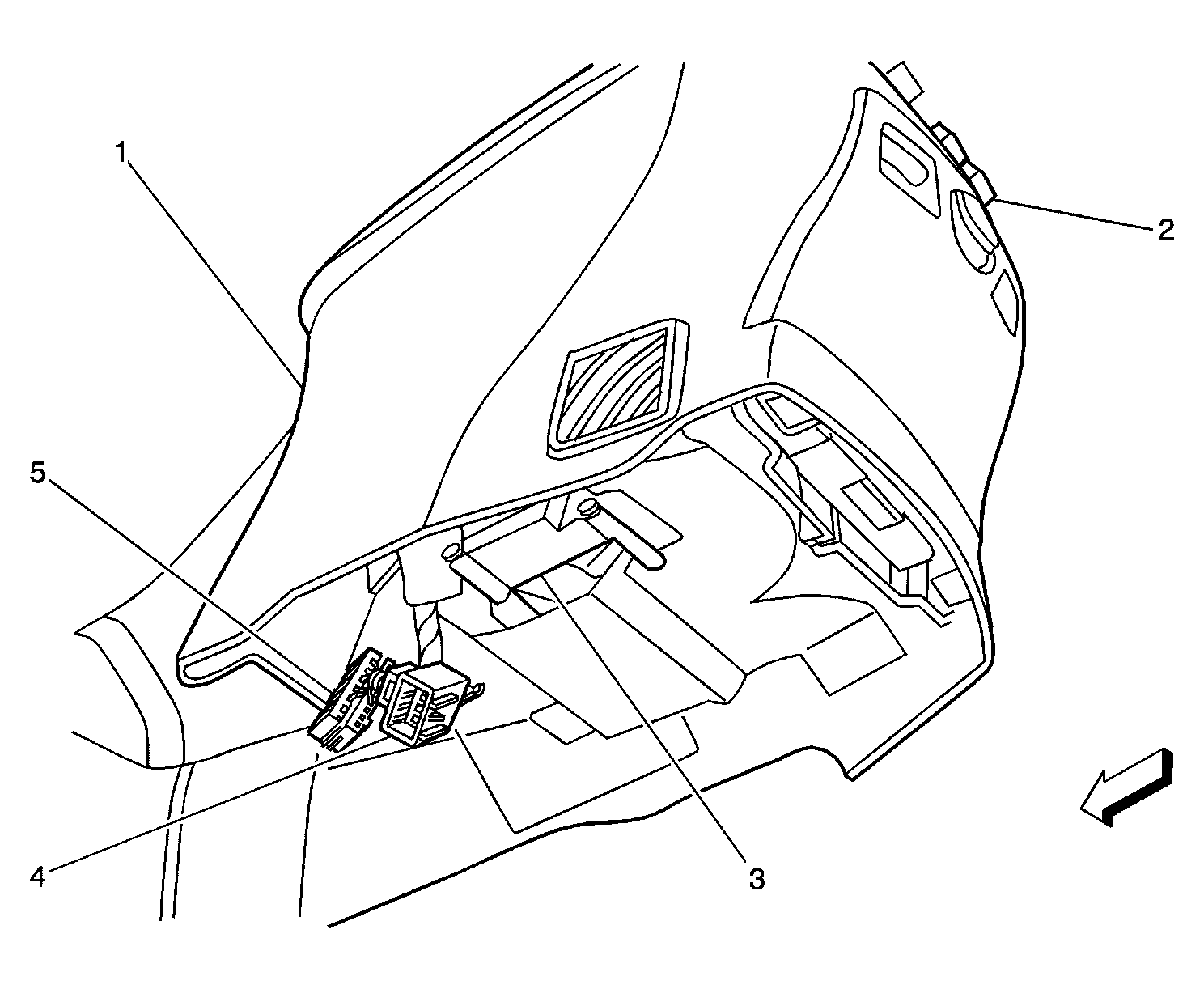

Fig 17: Lower Console HVAC Components

GM872448

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lower Console
2	HVAC Control Module-Auxiliary or RSA/HVAC Control Module-Auxiliary
3	Console Mode Actuator
4	C309
5	C307

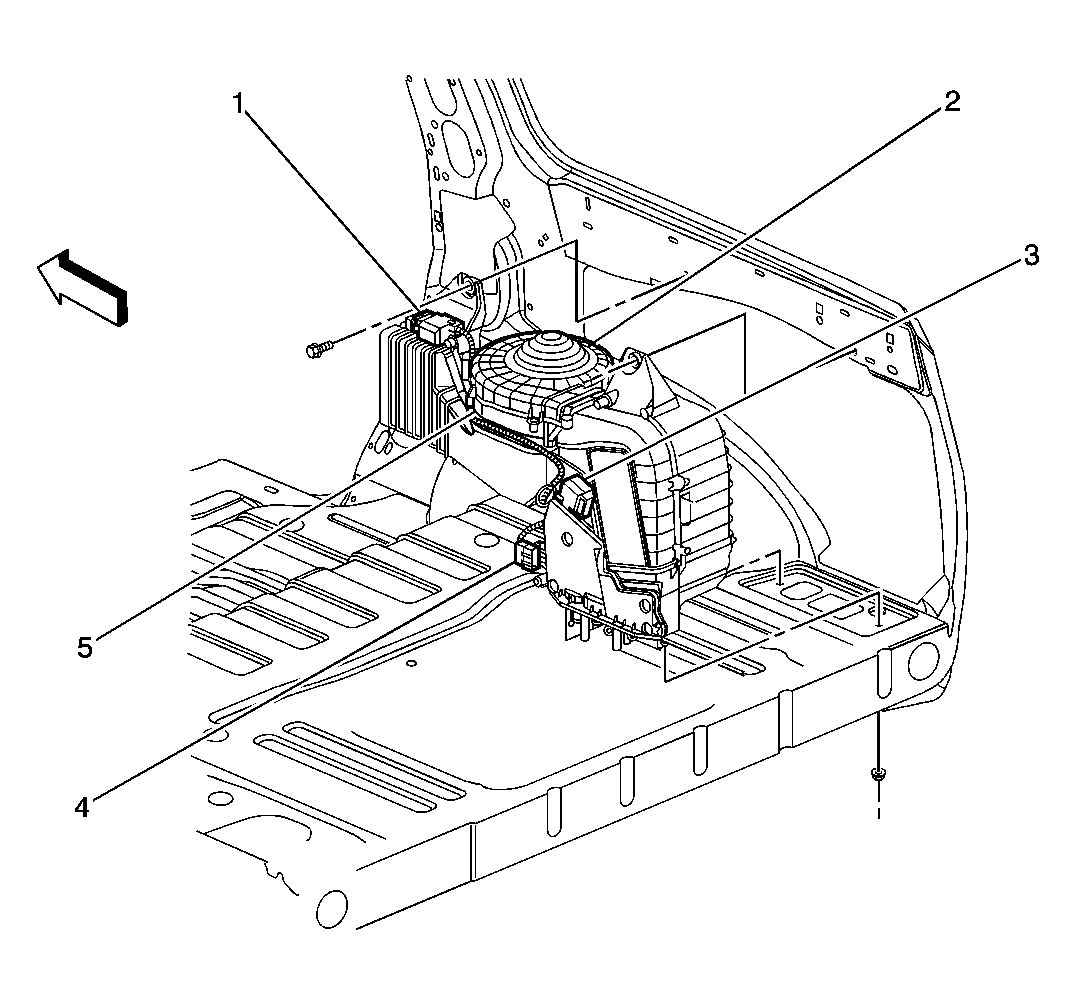

Fig 18: HVAC Module - Auxiliary (Long Wheelbase Except XUV)

GM872310

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator - Auxiliary
2	Blower - Auxiliary
3	Air Temperature Actuator - Auxiliary
4	C401
5	In-Line 30A Fuse

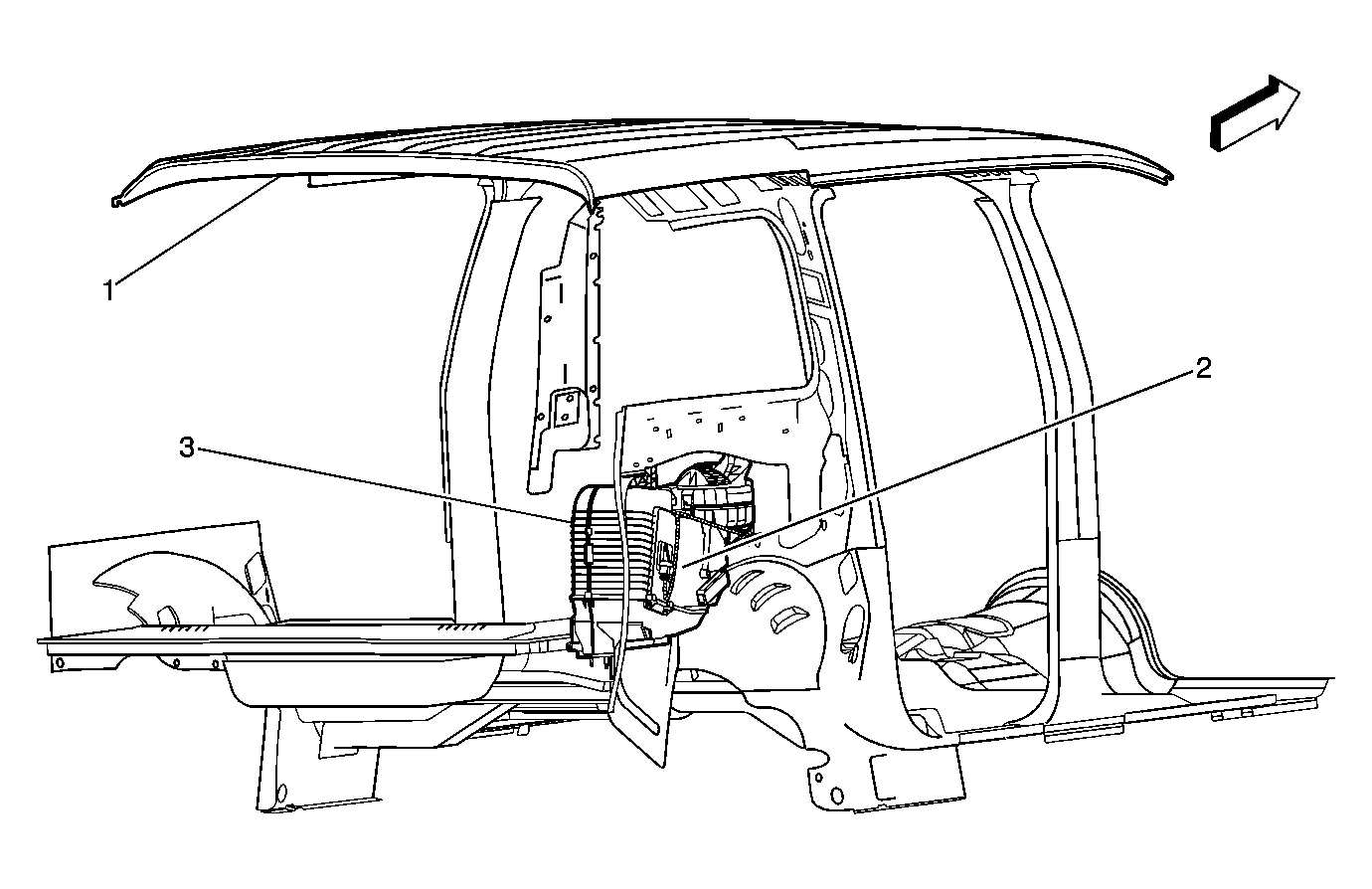

Fig 19: Blower Motor Control Processor - Auxiliary (Long Wheelbase Except XUV)

GM1208964

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Rear Opening
2	Blower Motor Control Processor - Auxiliary
3	Rear Evaporator and Heater Core
