Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

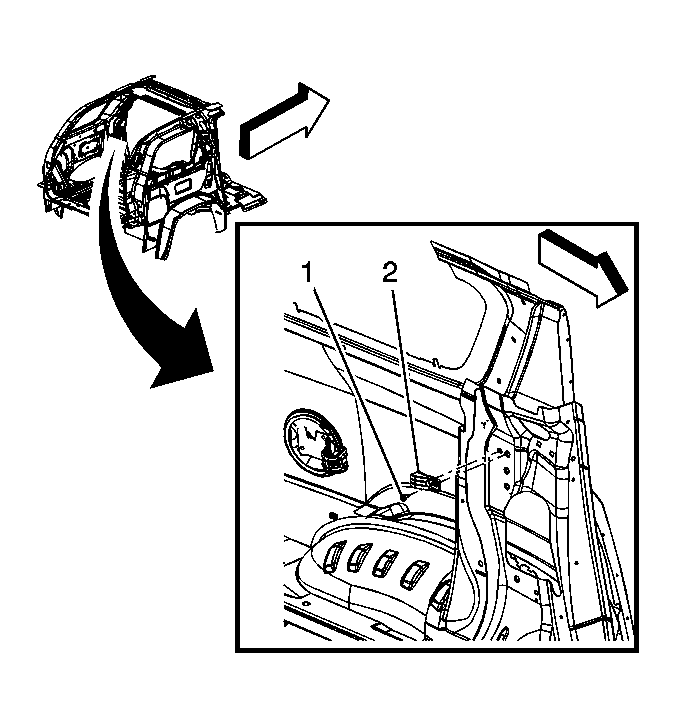

- Install the midgate wedge (2) to the vehicle.
- Install the screw (1) retaining the wedge to the body.
Tighten: Tighten the screw only until the wedge cannot rock up and down, but can slide fore and aft.
- Slide the midgate wedge as far forward as possible.
- Close the midgate assembly to set the wedge adjustment.
- Open the midgate.
- Fully tighten the midgate wedge screw.
Tighten: Tighten the midgate wedge screw to 10 N.m (89 lb in).
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
